COOLING SOLUTIONS FOR TODAY’S MOST DEMANDING DESKTOP AND WORKSTATION SYSTEMS
Delta offers a complete selection of cost effective, high efficiency fans for all desktop systems, whether for business, home or high performance gaming devices. Standard design or customized, centrifugal or axial, Delta’s fan for AIO desktop and workstation application begins with various standard sizes and hundreds of individual models to support any performance requirements and price point.
KEY FEATURES FOR DESKTOP PERFORMANCE
The Delta customized AIO desktop fan features a centrifugal blower with great design flexibility, outstanding airflow performance and excellent sound quality level.
Delta’s AIO Fan Application System
.jpg)
For traditional home and business PC desktops, Delta offers a complete line of sleeve and superflo bearing fans. These systems are generally price competitive and require very quiet fan operation. Delta AUB series are specially designed for this application. The AUB series with superflo bearings are best for business PCs which require longer life and adjustable speed control (PWM) function.
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|---|---|---|---|---|---|---|---|---|

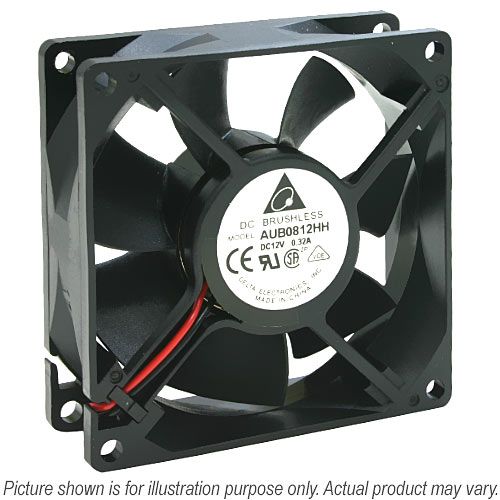

AUB0812L-A (EOL)
|
80x80x25 | 7.0~13.8 | 12 VDC | 0.11 A | 1.32 W | 2400 RPM | 28.0 dB(A) | 31.06CFM (0.879 m3/min) | 0.118 inchH2O (3.000 mmH2O) |
AUB0524MB
|
50x50x15 | 14.0~27.8 | 24 VDC | 0.06 A | 1.44 W | 4800 RPM | 28.0 dB(A) | 12.36 CFM (0.350 m3/min) | 0.180 inchH2O (4.56 mmH2O) |
AUB0524HHD
|
50x50x20 | 14.0~27.6 | 24 VDC | 0.09 A | 2.16 W | 6400 RPM | 32.5 dB(A) | 18.30CFM (0.518 m3/min) | 0.254 inchH2O (6.44 mmH2O) |
AUB0524LD
|
50x50x20 | 14.0~27.6 | 24 VDC | 0.05 A | 1.20 W | 4000 RPM | 18.5 dB(A) | 12.00CFM (0.339 m3/min) | 0.110 IncH2O (2.79 mmH2O |
AUB0524MD
|
50x50x20 | 14.0~27.6 | 24 VDC | 0.06 A | 1.44 W | 4800 RPM | 24.0 dB(A) | 14.83 CFM (0.420 m3/min) | 0.170 inchH2O (4.306 mmH2O) |
AUB0524VHD
|
50x50x20 | 14.0~27.6 | 24 VDC | 0.06 A | 2.40 W | 7000 RPM | 40.5 dB(A) | 20.30CFM (0.575 m3/min) | 0.303 inchH2O (7.70 mmH2O) |
AUB0612H (EOL)
|
60x60x25 | 7.0~13.8 | 12 VDC | 0.06 A | 1.44 W | 4250 RPM | 28.0 dB(A) | 19.42 CFM (0.550 m3/min) | 0.193 inchH2O (4.92 mmH2O) |
AUB0812LB-AR00 (EOL)
|
80x80x15 | 5.0~13.8 | 12 VDC | 0.09 A | 1.20 W | 2400 RPM | 27.0 dB(A) | 27.053CFM (0.766 m3/min) | 0.080 inchH2O (02.05 mmH2O) |
AUB0812VHB-AF00
|
80x80x15 | 5.0~13.2 | 12 VDC | 0.25 A | 3.00 W | 3700 RPM | 40.5 dB(A) | 42.71CFM (1.209 m3/min) | 0.190 inchH2O (4.83 mmH2O) |
AUB0524HB
|
50x50x15 | 14.0~27.8 | 24 VDC | 0.07 A | 1.68 W | 5600 RPM | 32.0 dB(A) | 14.13 CFM (0.400 m3/min) | 0.240 inchH2O (6.10 mmH2O) |
AUB0812M-A (EOL)
|
80x80x25 | 7.0~13.8 | 12 VDC | 0.15 A | 1.80 W | 2700 RPM | 32.0 dB(A) | 35.30CFM (0.999 m3/min) | 0.146 inchH2O (3.720 mmH2O) |
AUB0812VH-AF00
|
80x80x25 | 7.0~13.8 | 12 VDC | 0.27 A | 3.24 W | 3600 RPM | 39.0 dB(A) | 46.60 CFM (1.320 m3/min) | 0.262 inchH2O (6.65 mmH2O) |
AUB0912HH-CF00
|
92x92x25 | 7.0~13.8 | 12 VDC | 0.33 A | 3.96 W | 3200 RPM | 41.0 dB(A) | 62.18 CFM (1.759 m3/min) | 0.221 inchH2O (5.62 mmH2O) |
AUB0712HH-C
|
70x70x25mm | 5.0 - 13.2 VDC | 12 VDC | 0.25 A | 3.00 W | 4500 RPM | 40.5 dB(A) | 36.60 CFM (1.037 m3/min) | 0.288 inchH2O (7.32 mmH2O) |
AUB0812H-E
|
80x80x25 mm | 5.0 - 13.2 VDC | 12 VDC | 0.23 A | 2.76 W | 3900 RPM | 37.5 dB(A) | 50.15 CFM (1.421 m3/min) | 0.239 inchH2O (6.08 mm H2O) |
AUB0912HJ-00
|
92x92x25 mm | 10.8 - 13.2 VDC | 12 VDC | 0.35 A | 4.20 W | 4600 RPM | 45.0 dB(A) | 69.02CFM (1.955 m3/min) | 0.407 inchH2O (10.340 mm H2O) |
AUB0812EJ-00
|
N/A | N/A | 12 VDC | 1.00 A | 6.60 W | 4500 RPM | 46.5 dB(A) | 69.50 CFM (1.968 m3/min) | 0.297 inchH2O (7.55 mmH2O) |
AUB0512LB-AYCX
|
50x50x15 | 6.0~13.2 | 12 VDC | 0.04 A | 0.48 W | 3800 RPM | 20.0 dB(A) | 10.02CFM (0.284 m3/min) | 0.096 inchH2O (2.43 mmH2O) |
AUB0912VH-CX09
|
92x92x25 | 10.8~13.2 | 12 VDC | 0.38 A | 4.56 W | 3800 RPM | 45.0 dB(A) | 67.80 CFM (1.920 m3/min) | 0.302 inchH2O (7.67 mmH2O) |
AUB0812VH-SP00
|
80x80x25 | 10.8~13.2 | 12 VDC | 0.19 A | 2.28 W | 3600 RPM | 39.0 dB(A) | 42.02 CFM (1.190 m3/min) | 0.217 inchH2O (5.51 mmH2O) |
AUB0812VH-AIT
|
80x80x25 | 7.0~13.8 | 12 VDC | 0.27 A | 3.24 W | 3600 RPM | 39.0 dB(A) | 46.60 CFM (1.320 m3/min) | 0.255 inchH2O (6.50 mmH2O) |
AUB0812HHDXHN
|
80x80x20 | 10.8~12.6 | 12 VDC | 0.30 A | 3.60 W | 4500 RPM | 43.0 dB(A) | 51.46CFM (1.457 m3/min) | 0.291 inchH2O (7.38 mmH2O) |
| AUB0812H-AF00 | 80x80x25 | 7.0~13.8 | 12 VDC | 0.18 A | 2.16 W | 3000 RPM | 34.0 dB(A) | 38.83 CFM (1.100 m3/min) | 0.177 inchH2O (4.50 mmH2O) |
AUB0612VH-AIT
|
60x60x25.40 | 4.0 ~ 13.8 | 12 VDC | 0.24 A | 2.88 W | 5500 RPM | 42.5 dB(A) | 29.30CFM (0.830 m3/min) | 0.352 inchH2O (8.95mmH2O) |
| AUB0612HHB-A | 60x60x15 | 7.0~13.8 | 12 VDC | 0.13 A | 1.56 W | 4500 RPM | 33.0 dB(A) | 23.39 CFM (0.662 m3/min) | 0.190 inchH2O (4.83 mmH2O) |
| AUB0612HB-A | 60x60x15 | 7.0~13.8 | 12 VDC | 0.06 A | 0.72 W | 3000 RPM | 20.0 dB(A) | 15.25 CFM (0.432 m3/min) | 0.087 inchH2O (2.20 mmH2O) |
AUB0924VH-A
|
92x92x25 | 14.8~26.4 | 24 VDC | 0.25 A | 6.00 W | 3800 RPM | 46.0 dB(A) | 81.47 CFM (2.307 m3/min) | 0.345 inchH2O (8.76mmH2O) |
AUB0412VD-00
|
40x40x20 | 10.8~13.2 | 12 VDC | 0.11 A | 1.32 W | 7500 RPM | 26.5 dB(A) | 9.56CFM (0.271 m3/min) | 0.236 inchH2O (5.99 mmH2O) |
AUB0405VD-00
|
40x40x20 | 4.5 ~ 5.5 | 3 VDC | 0.15 A | 0.75 W | 7500 RPM | 26.5 dB(A) | 9.56 CFM (0.271 m3/min) | 0.236 inchH2O (5.99 mmH2O) |
AUB0512HB
|
50x50x15 | 7.0~13.8 | 12 VDC | 0.10 A | 1.20 W | 5600 RPM | 32.0 dB(A) | 14.13 CFM (0.400 m3/min) | 0.240 inchH2O (6.10 mmH2O) |
AUB0512HB-F00
|
50x50x15 | 7.0~13.8 | 12 VDC | 0.10 A | 1.20 W | 5600 RPM | 32.0 dB(A) | 14.13 CFM (0.400 m3/min) | 0.240 inchH2O (6.10 mmH2O) |
AUB0512HHB-F00
|
50x50x15 | 7.0~13.8 | 12 VDC | 0.13 A | 1.56 W | 6400 RPM | 36.0 dB(A) | 16.24 CFM (0.460 m3/min) | 0.315 inchH2O (8.00 mmH2O) |
AUB0512LB
|
50x50x15 | 7.0~13.8 | 12 VDC | 0.06 A | 0.72 W | 4000 RPM | 24.0 dB(A) | 9.89 CFM (0.280 m3/min) | 0.126 inchH2O (3.20 mmH2O) |
AUB0512MB-F00
|
50x50x15 | 7.0~13.8 | 12 VDC | 0.08 A | 0.96 W | 4800 RPM | 28.0 dB(A) | 12.36 CFM (0.350 m3/min) | 0.181 inchH2O (4.60 mmH2O) |
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|
For gaming systems and workstations, enthusiasts love Delta fans for their exceptional performance.
The dual blade design of the FFB series is popular for this application.
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|---|---|---|---|---|---|---|---|---|
FFB0948HH-F00
|
92x92x25.40 | 28.0 - 53.0 | 48 VDC | 0.14 A | 6.72 W | 3200 RPM | 44.1 dB(A) | 70.21 CFM (1.988 m3/min) | 0.242 inchH2O (6.14 mmH2O) |
FFB0924HH
|
92x92x25.4 | 14.0 - 27.6 | 24 VDC | 0.24 A | 5.76 W | 3200 RPM | 44.1 dB(A) | 70.21 CFM (1.988 m3/min) | 0.242 inchH2O (6.14 mmH2O) |
| FFB0924EHE-T500 | 92x92x38 | 14.0~27.6 | 24 VDC | 0.50 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0924EHE-F00
|
92x92x38 | 14.0 - 27.6 | 24 VDC | 0.50 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0924EHE
|
92x92x38 | 14.0 - 27.6 | 24 VDC | 0.50 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0912VH-R00
|
92x92x38 | 14.0 - 27.6 | 12 VDC | 0.60 A | 7.20 W | 3700 RPM | 48.2 dB(A) | 81.97 CFM (2.321 m3/min) | 0.319 inchH2O (8.11 mmH2O) |
FFB0912VH-F00
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.60 A | 7.20 W | 3700 RPM | 48.2 dB(A) | 81.97 CFM (2.321 m3/min) | 0.319 inchH2O (8.11 mmH2O) |
FFB0912VHE-R00
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 0.50 A | 6.00 W | 3800 RPM | 47.5 dB(A) | 293.25CFM (8.304m3 / min) | 0.319 inchH2O (8.11 mmH2O) |
FFB0912VHE-F00
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 0.50 A | 6.00 W | 3800 RPM | 47.5 dB(A) | 293.25CFM (8.304m3 / min) | 0.406 inchH2O (10.30 mmH2O) |
FFB0912VHE
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 0.50 A | 6.00 W | 3800 RPM | 47.5 dB(A) | 293.25CFM (8.304m3 / min) | 0.406 inchH2O (10.30 mmH2O) |
FFB0912VH
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.60 A | 7.20 W | 3700 RPM | 48.2 dB(A) | 293.25CFM (8.304m3 / min) | 0.319 inchH2O (8.11 mmH2O) |
FFB0912SH-F00
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.69 A | 8.28 W | 4100 RPM | 50.0 dB(A) | 90.05 CFM (2.550 m3/min) | 0.396 inchH2O (10.06 mmH2O) |
FFB0912SHE
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 0.75 A | 9.00 W | 4400 RPM | 52.5 dB(A) | 100.29 CFM (2.840 m3/min) | 0.572 inchH2O (14.53 mmH2O) |
FFB0912SH
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.69 A | 8.28 W | 4100 RPM | 50.0 dB(A) | 90.05 CFM (2.550 m3/min) | 0.396 inchH2O (10.06 mmH2O) |
FFB0912HH-R00
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.40 A | 4.80 W | 3200 RPM | 44.1 dB(A) | 70.21 CFM (1.988 m3/min) | 0.242 inchH2O (6.14 mmH2O) |
FFB0912HH-F00
|
92x92x25.4 | 7.0 - 13.8 | 12 VDC | 0.40 A | 4.80 W | 3200 RPM | 44.1 dB(A) | 70.21 CFM (1.988 m3/min) | 0.242 inchH2O (6.14 mmH2O) |
FFB0912HHE-R00
|
92x92x38 | 7.0 -13.8 | 12 VDC | 0.35 A | 4.20 W | 3200 RPM | 42.5 dB(A) | 71.69 CFM (2.030 m3/min) | 0.298 inchH2O (7.58 mmH2O) |
FFB0912HHE
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 0.35 A | 4.20 W | 3200 RPM | 42.5 dB(A) | 71.69 CFM (2.030 m3/min) | 0.298 inchH2O (7.58 mmH2O) |
FFB0912HH
|
92x92x25.40 | 7.0 - 13.8 | 12 VDC | 0.40 A | 4.80 W | 3200 RPM | 44.1 dB(A) | 70.21 CFM (1.988 m3/min) | 0.242 inchH2O (6.14 mmH2O) |
FFB0912EHE-R00
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 1.00 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0912EHE-F00
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 1.00 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0912EHE
|
92x92x38 | 7.0 - 13.8 | 12 VDC | 1.00 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0824VHE-R00
|
80x80x38 | 14.0 - 27.6 | 24 VDC | 0.24 A | 5.76 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0824VHE-F00
|
80x80x38 | 14.0 - 27.6 | 24 VDC | 0.24 A | 5.76 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0824VHE
|
80x80x38 | 14.0 - 27.6 | 24 VDC | 0.24 A | 5.76 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0824SH-TZW1
|
80x80x25 | 20.4~26.4 | 24 VDC | 0.24 A | 5.76 W | 4500 RPM | 48.6 dB(A) | 67.02 CFM (1.898 m3/min) | 0.392 inchH2O (9.95 mmH2O) |
FFB0824SHE-F00
|
80x80x38 | 14.0 - 27.6 | 24 VDC | 0.34 A | 8.16 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0824SHE
|
80x80x38 | 14.0 - 27.6 | 24 VDC | 0.34 A | 8.16 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0824HHE
|
80x80x38 | 14.0 - 26.4 | 24 VDC | 0.15 A | 3.60 W | 3400 RPM | 39.0 dB(A) | 45.20 CFM (1.280 m3/min) | 0.281 inchH2O (7.13 mmH2O) |
FFB0824EHE-R00
|
80x80x38 | 14.0 -26.4 | 24 VDC | 0.50 A | 12.00 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0824EHE-F00
|
80x80x38 | 14.0 26.4 | 24 VDC | 0.50 A | 12.00 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0824EHE
|
80x80x38 | 14.0 - 26.4 | 24 VDC | 0.50 A | 12.00 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0812XHXHC
|
80x80x25 | 7~15 | 12 VDC | 1.00 A | 12.00 W | 9000 RPM | 59.0 dB(A) | 92.69 CFM (2.626m3/min) | 1.102 inchH2O (28.00 mmH2O) |
FFB0812VH-T500
|
80x80x25 | 14.0~13.2 | 12 VDC | 0.34 A | 4.08 W | 4000 RPM | 45.4 dB(A) | 54.56CFM (1.545 m3/min) | 0.291 inchH2O (7.39 mmH2O) |
FFB0812VH-F00
|
80x80x25.4 | 7.0 - 13.2 | 12 VDC | 0.34 A | 4.08 W | 4000 RPM | 45.4 dB(A) | 54.56CFM (1.545 m3/min) | 0.291 inchH2O (7.39 mmH2O) |
FFB0812VHE-R00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.38 A | 4.56 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0812VHE-F00
|
80x80x38 | 7.0 -13.8 | 12 VDC | 0.38 A | 4.56 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0812VHE
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.38 A | 4.56 W | 4200 RPM | 44.5 dB(A) | 57.21 CFM (1.620 m3/min) | 0.424 inchH2O (10.77 mmH2O) |
FFB0812VH
|
80x80x25.4 | 7.0 - 13.2 | 12 VDC | 0.34 A | 4.08 W | 4000 RPM | 45.4 dB(A) | 54.56CFM (1.545 m3/min) | 0.291 inchH2O (7.38 mmH2O) |
FFB0812UHE-F00
|
80x80x38 | 7.0 - 13.2 | 12 VDC | 1.50 A | 18.00 W | 7500 RPM | 62.2 dB(A) | 100.29 CFM (2.840 m3/min) | 1.233 inchH2O (31.32 mmH2O) |
FFB0812UHE
|
80x80x38 | 7.0 - 13.2 | 12 VDC | 1.50 A | 18.00 W | 7500 RPM | 62.2 dB(A) | 100.29 CFM (2.840 m3/min) | 1.233 inchH2O (31.32 mmH2O) |
FFB0812SH-R00
|
80x80x25.4 | 4.0 - 13.2 | 12 VDC | 0.50 A | 6.00 W | 4500 RPM | 48.6 dB(A) | 67.02 CFM (1.898 m3/min) | 0.392 inchH2O (9.955 mmH2O) |
FFB0812SH-F00
|
80x80x25.4 | 4.0 13.2 | 12 VDC | 0.50 A | 6.00 W | 4500 RPM | 48.6 dB(A) | 67.02 CFM (1.898 m3/min) | 0.392 inchH2O (9.955 mmH2O) |
FFB0812SHE-R00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.58 A | 6.96 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0812SHE-F00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.58 A | 6.96 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0812SHE
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.58 A | 6.96 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0812SH
|
80x80x25.4 | 4.0 - 13.2 | 12 VDC | 0.50 A | 6.00 W | 4500 RPM | 48.6 dB(A) | 67.02 CFM (1.898 m3/min) | 0.392 inchH2O (9.955 mmH2O) |
FFB0812HHE-F00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.20 A | 2.40 W | 3400 RPM | 39.0 dB(A) | 45.20 CFM (1.280 m3/min) | 0.281 inchH2O (7.13 mmH2O) |
FFB0812HHE
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.20 A | 2.40 W | 3400 RPM | 39.0 dB(A) | 45.20 CFM (1.280 m3/min) | 0.281 inchH2O (7.13 mmH2O) |
FFB0812HH
|
80x80x25.4 | 4.0 - 13.2 | 12 VDC | 0.26 A | 3.12 W | 3500 RPM | 41.7 dB(A) | 47.22 CFM (1.339 m3/min) | 0.229 inchH2O (5.81 mmH2O) |
FFB0812EHE-R00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.90 A | 10.80 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0812EHE-F00
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.90 A | 10.80 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0812EHE
|
80x80x38 | 7.0 - 13.8 | 12 VDC | 0.90 A | 10.80 W | 5700 RPM | 52.5 dB(A) | 80.16 CFM (2.270 m3/min) | 0.812 inchH2O (20.63 mmH2O) |
FFB0424VHN-R00
|
40x40x28 | 14.0 - 26.4 | 24 VDC | 0.10 A | 2.40 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0424VHN-F00
|
40x40x28 | 14.0 - 27.6 | 24 VDC | 0.10 A | 2.40 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0424VHN-B
|
40x40x28 | 14.0 - 26.4 | 24 VDC | 0.10 A | 2.40 W | 9500 RPM | 42.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0424VHN
|
40x40x28 | 14.0 - 26.4 | 24 VDC | 0.10 A | 2.40 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0424HN-F00
|
40x40x28 | 14.0 - 27.6 | 24 VDC | 0.06 A | 1.44 W | 6500 RPM | 36.0 dB(A) | 10.59CFM (0.300 m3/min) | 0.248 inchH2O (6.30 mmH2O) |
FFB0424HN
|
40x40x28 | 14.0 - 27.6 | 24 VDC | 0.06 A | 1.44 W | 6500 RPM | 36.0 dB(A) | 10.59CFM (0.300 m3/min) | 0.248 inchH2O (6.30 mmH2O) |
FFB0424HHN
|
40x40x28 | 14.0 - 27.6 | 24 VDC | 0.08 A | 1.92 W | 8000 RPM | 41.0 dB(A) | 13.24 CFM (0.375 m3/min) | 0.370 inchH2O (9.39 mmH2O) |
FFB0412VHN-R00
|
40x40x28 | 4.5 - 13.2 | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0412VHN-F00
|
40x40x28 | 4.5 - 13.2 | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0412VHN-BR00
|
40x40x28 | 4.5 - 13.2 | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
FFB0412VHN-B
|
40x40x28 | 4.5 - 13.2 | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
| FFB0412UHN-TYYK | 40x40x28 | 5.5~13.2 | 12 VDC | 0.65 A | 7.80 W | 18500 RPM | 58.5 dB(A) | 27.05CFM (0.766 m3/min) | 2.111 inchH2O (53.631 mmH2O) |
FFB0412UHN-CR00
|
40x40x28 | 5.5 - 13.2 | 12 VDC | 0.65 A | 7.80 W | 18500 RPM | 58.5 dB(A) | 27.053CFM (0.766 m3/min) | 2.111 inchH2O (53.631 mmH2O) |
FFB0412UHN-CF00
|
40x40x28 | 5.5 - 13.2 | 12 VDC | 0.65 A | 7.80 W | 18500 RPM | 58.5 dB(A) | 27.053CFM (0.766 m3/min) | 2.111 inchH2O (53.631 mmH2O) |
FFB0412SHN-R00
|
40x30x28 | 4.5 - 13.8 | 12 VDC | 0.50 A | 6.00 W | 13000 RPM | 54.5 dB(A) | 24.00CFM (0.680 m3/min) | 1.075 inchH2O (27.30 mmH2O) |
FFB0412SHN-F00
|
40x40x28 | 4.0 - 13.6 | 12 VDC | 0.50 A | 6.00 W | 13000 RPM | 54.5 dB(A) | 24.00CFM (0.680 m3/min) | 1.075 inchH2O (27.30 mmH2O) |
FFB0412SHN-BF00
|
40x40x28 | 4.0 - 13.6 | 12 VDC | 0.50 A | 6.00 W | 13000 RPM | 54.5 dB(A) | 24.01CFM (0.680 m3/min) | 1.075 inchH2O (27.30 mmH2O) |
FFB0412SHN
|
40x30x28 | 4.0 13.8 | 12 VDC | 0.50 A | 6.00 W | 13000 RPM | 54.5 dB(A) | 24.00CFM (0.680 m3/min) | 1.075 inchH2O (27.30 mmH2O) |
FFB0412MN
|
40x40x28 | 4.5 - 13.8 | 12 VDC | 0.05 A | 0.60 W | 5000 RPM | 30.0 dB(A) | 8.05 CFM (0.228 m3/min) | 0.148 inchH2O (03.77 mmH2O) |
FFB0412HN-R00
|
40x40x28 | 4.5 - 13.8 | 12 VDC | 0.07 A | 0.84 W | 6500 RPM | 36.0 dB(A) | 10.59CFM (0.300 m3/min) | 0.248 inchH2O (6.30 mmH2O) |
FFB0412HN-F00
|
40x40x28 | 4.5 - 13.8 | 12 VDC | 0.07 A | 0.84 W | 6500 RPM | 36.0 dB(A) | 10.59CFM (0.300 m3/min) | 0.248 inchH2O (6.30 mmH2O) |
FFB0412HHN-R00
|
40x40x28 | 4.5 - 13.8 | 12 VDC | 0.11 A | 1.32 W | 8000 RPM | 41.0 dB(A) | 13.24 CFM (0.375 m3/min) | 0.370 inchH2O (9.39 mmH2O) |
FFB0412HHN-F00
|
40x40x28 | 4.5 - 13.8 | 12 VDC | 0.11 A | 1.32 W | 8000 RPM | 41.0 dB(A) | 13.24 CFM (0.375 m3/min) | 0.370 inchH2O (9.39 mmH2O) |
FFB0412HHN
|
40x40x28 | 4.5 13.8 | 12 VDC | 0.11 A | 1.32 W | 8000 RPM | 41.0 dB(A) | 13.24 CFM (0.375 m3/min) | 0.370 inchH2O (9.39 mmH2O) |
FFB0412GHN-CF00
|
40x40x28 | 5.5 - 13.2 | 12 VDC | 0.50 A | 6.00 W | 16500 RPM | 56.0 dB(A) | 23.386CFM (0.662 m3/min) | 1.638 inchH2O (41.603 mmH2O) |
FFB0412EHN-CF00
|
40x40x28 | 5.5 -13.2 | 12 VDC | 0.33 A | 3.96 W | 14500 RPM | 53.0 dB(A) | 23.337CFM (0.576m3/min) | 1.232 inchH2O (31.283 mmH2O) |
FFB0412EHN-C
|
40x40x28 | 5.5 - 13.2 | 12 VDC | 0.33 A | 3.96 W | 14500 RPM | 53.0 dB(A) | 23.337CFM (0.576m3/min) | 1.232 inchH2O (31.283 mmH2O) |
FFB03812VN-SPC
|
38x38x28 | 7.0 -13.2 VDC | 12 VDC | 0.85 A | 10.20 W | 23000 RPM | 62.5 dB(A) | 23.00CFM (0.650 m3/min) | 3.40 inchH2O (86.36 mmH2O) |
FFB03812VHN-R00
|
N/A | N/A | 12 VDC | 0.65 A | 7.80 W | 16000 RPM | 58.5 dB(A) | 20.23 CFM (0.573 m3/min) | 1.463 inchH2O (37.15 mmH2O) |
FFB03812VHN-F00
|
N/A | N/A | 12 VDC | 0.65 A | 7.80 W | 16000 RPM | 58.5 dB(A) | 20.23 CFM (0.573 m3/min) | 1.463 inchH2O (37.15 mmH2O) |
FFB03812VHN-9C3P
|
38x38x23 | 7.0 -13.2 VDC | 12 VDC | 0.55 A | 6.60 W | 16000 RPM | 58.5 dB(A) | 20.23 CFM (0.573 m3/min) | 1.463 inchH2O (37.15 mmH2O) |
FFB03812VHN
|
N/A | N/A | 12 VDC | 0.65 A | 7.80 W | 16000 RPM | 58.5 dB(A) | 20.23 CFM (0.573 m3/min) | 1.463 inchH2O (37.15 mmH2O) |
FFB03812MN-F00
|
N/A | N/A | 12 VDC | 0.25 A | 3.00 W | 10000 RPM | 45.0 dB(A) | 12.44 CFM (0.352 m3/min) | 0.566 inchH2O (14.38 mmH2O) |
FFB03812MN
|
N/A | N/A | 12 VDC | 0.25 A | 3.00 W | 10000 RPM | 45.0 dB(A) | 12.44 CFM (0.352 m3/min) | 0.566 inchH2O (14.38 mmH2O) |
FFB03812LN-F00
|
N/A | N/A | 12 VDC | 0.20 A | 2.40 W | 8000 RPM | 39.0 dB(A) | 9.35 CFM (0.265 m3/min) | 0.396 inchH2O (10.07 mmH2O) |
FFB03812LN
|
N/A | N/A | 12 VDC | 0.20 A | 2.40 W | 8000 RPM | 39.0 dB(A) | 9.35 CFM (0.265 m3/min) | 0.396 inchH2O (10.07 mmH2O) |
FFB03812HN-F00
|
N/A | N/A | 12 VDC | 0.34 A | 4.08 W | 12000 RPM | 51.5 dB(A) | 15.22 CFM (0.431 m3/min) | 0.839 inchH2O (21.31 mmH2O) |
FFB03812HN
|
N/A | N/A | 12 VDC | 0.40 A | 4.80 W | 12000 RPM | 51.5 dB(A) | 15.22 CFM (0.431 m3/min) | 0.839 inchH2O (21.31 mmH2O) |
FFB03812HHN-R00
|
N/A | N/A | 12 VDC | 0.47 A | 5.64 W | 14000 RPM | 55.5 dB(A) | 17.30 CFM (0.490 m3/min) | 1.111 inchH2O (28.22 mmH2O) |
FFB03812HHN-F00
|
N/A | N/A | 12 VDC | 0.47 A | 5.64 W | 14000 RPM | 55.5 dB(A) | 17.30 CFM (0.490 m3/min) | 1.111 inchH2O (28.22 mmH2O) |
FFB03812HHN
|
N/A | N/A | 12 VDC | 0.47 A | 5.64 W | 14000 RPM | 55.5 dB(A) | 17.30 CFM (0.490 m3/min) | 1.111 inchH2O (28.22 mmH2O) |
FFB03612EHNYCL
|
36x36x28 | 10.8 - 13.2 VDC | 12 VDC | 0.63 A | 7.56 W | 19000 RPM | 58.0 dB(A) | 20.94CFM (0.593 m3/min) | 1.691 inchH2O (42.943 mmH2O) |
FFB03612EHN-BGA
|
36x36x28 | 10.8 - 13.2 VDC | 12 VDC | 0.39 A | 4.68 W | 14500 RPM | 50.0 dB(A) | 16.30CFM (0.461 m3/min) | 1.000 inchH2O (25.40 mmH2O) |
FFB0412VHN
|
N/A | N/A | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509 inchH2O (12.94 mmH2O) |
| FFB0824HHE-R00 | N/A | N/A | 24 VDC | 0.15 A | 3.60 W | 3400 RPM | 39.0 dB(A) | 45.20 CFM (1.280 m3/min) | 0.281 inchH2O (7.13 mmH2O) |
| FFB0824SHE-R00 | N/A | N/A | 24 VDC | 0.34 A | 8.16 W | 4300 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0848SHE-F00
|
N/A | N/A | 48 VDC | 0.16 A | 7.68 W | 4900 RPM | 48.5 dB(A) | 68.51 CFM (1.940 m3/min) | 0.591 inchH2O (15.01 mmH2O) |
FFB0924EHE-R00
|
N/A | N/A | 24 VDC | 0.50 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18 CFM (3.120 m3/min) | 0.665 inchH2O (16.90 mmH2O) |
FFB0924SHE-F00
|
N/A | N/A | 24 VDC | 0.40 A | 9.60 W | 4400 RPM | 52.5 dB(A) | 100.29 CFM (2.840 m3/min) | 0.572 inchH2O (14.53 mmH2O) |
FFB0924VHE-R00
|
N/A | N/A | 24 VDC | 0.28 A | 6.72 W | 3800 RPM | 47.5 dB(A) | 85.46 CFM (2.420 m3/min) | 0.406 inchH2O (10.30 mmH2O) |
| FFB1224SHE-F00 | N/A | N/A | 24 VDC | 0.80 A | 19.20 W | 3600 RPM | 56.5 dB(A) | 170.92CFM (4.840 m3/min) | 0.563 inchH2O (14.30 mmH2O) |
| FFB1224SHE-R00 | N/A | N/A | 24 VDC | 0.80 A | 19.20 W | 3600 RPM | 56.5 dB(A) | 170.92CFM (4.840 m3/min) | 0.563 inchH2O (14.30 mmH2O) |
FFB0948VH
|
N/A | N/A | 48 VDC | 0.17 A | 8.16 W | 3700 RPM | 48.2 dB(A) | 81.97 CFM (2.321 m3/min) | 0.319 inchH2O (8.11 mmH2O) |
FFB0948VH-F00
|
N/A | N/A | 48 VDC | 0.17 A | 8.16 W | 3700 RPM | 48.2 dB(A) | 81.97 CFM (2.321 m3/min) | 0.319 inchH2O (8.11 mmH2O) |
| FFB1212EH | N/A | N/A | 12 VDC | 1.45 A | 17.40 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
| FFB1212EH-TZUJ | 120x120x25.4 | 7.0 - 13.2 | 12 VDC | 1.45 A | 17.40 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
| FFB1212SHE-F00 | N/A | N/A | 12 VDC | 0.50 A | 18.00 W | 3600 RPM | 56.5 dB(A) | 170.92CFM (4.840 m3/min) | 0.563 inchH2O (14.30 mmH2O) |
| FFB1212VH | N/A | N/A | 12 VDC | 0.79 A | 9.48 W | 3400 RPM | 51.9 dB(A) | 126.85 CFM (3.592 m3/min) | 0.326 inchH2O (08.29 mmH2O) |
| FFB1212VH-F00 | N/A | N/A | 12 VDC | 0.79 A | 9.48 W | 3400 RPM | 51.9 dB(A) | 126.85 CFM (3.592 m3/min) | 0.326 inchH2O (08.29 mmH2O) |
FFB1224EH
|
N/A | N/A | 24 VDC | 0.63 A | 15.12 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
| FFB1224EHE | N/A | N/A | 24 VDC | 1.00 A | 24.00 W | 4000 RPM | 59.0 dB(A) | 190.00CFM (5.380 m3/min) | 0.700 inchH2O (17.78 mmH2O) |
| FFB1224EHE-F00 | N/A | N/A | 24 VDC | 1.00 A | 24.00 W | 4000 RPM | 59.0 dB(A) | 190.00CFM (5.380 m3/min) | 0.700 inchH2O (17.78 mmH2O) |
| FFB1224EHE-R00 | N/A | N/A | 24 VDC | 1.00 A | 24.00 W | 4000 RPM | 59.0 dB(A) | 190.00CFM (5.380 m3/min) | 0.700 inchH2O (17.78 mmH2O) |
| FFB1224EH-F00 | N/A | N/A | 24 VDC | 0.63 A | 15.12 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
| FFB1224EH-R00 | N/A | N/A | 24 VDC | 0.63 A | 15.12 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
FFB1224HH
|
N/A | N/A | 24 VDC | 0.28 A | 6.72 W | 3100 RPM | 49.7 dB(A) | 114.73 CFM (3.249 m3/min) | 0.288 inchH2O (7.32 mmH2O) |
FFB1224SH
|
N/A | N/A | 24 VDC | 0.52 A | 12.48 W | 3700 RPM | 54.3 dB(A) | 140.16 CFM (3.969 m3/min) | 0.419 inchH2O (10.64 mmH2O) |
| FFB1224VHE | N/A | N/A | 24 VDC | 0.56 A | 13.44 W | 3200 RPM | 53.0 dB(A) | 151.85CFM (4.300 m3/min) | 0.445 inchH2O (11.30 mmH2O) |
FFB1424UHE-M
|
N/A | N/A | 24 VDC | 3.35 A | 80.40 W | 5500 RPM | 74.0 dB(A) | 367.62CFM (10.410 m3/min) | 1.644 inchH2O (41.75 mmH2O) |
| FFB1212EH-F00 | N/A | N/A | 12 VDC | 1.45 A | 17.40 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489 inchH2O (12.43 mmH2O) |
FFB0412VN-00
|
N/A | N/A | 12 VDC | 0.83 A | 6.60 W | 18000 RPM | 56.5 dB(A) | 23.66CFM (0.670 m3/min) | 2.33 inchH2O (59.18 mmH2O) |
FFB03612VN-00
|
N/A | N/A | 12 VDC | 0.39 A | 4.68 W | 14500 RPM | 52.0 dB(A) | 16.30CFM (0.461 m3/min) | 1.000 inchH2O (25.40 mmH2O) |
FFB0424EHN-CP0
|
N/A | N/A | 24 VDC | 0.15 A | 3.60 W | 13100 RPM | 50.0 dB(A) | 17.67 CFM (0.50 m3/min) | 1.04 inchH2O (26.49 mmH2O) |
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|
The QFR series fan offers a great balance of low speed acoustics and high speed airflow performance.
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|---|---|---|---|---|---|---|---|---|
QFR0812UH-CX14
|
80x80x25.40 | 10.8 - 12.6 VDC | 12 VDC | 0.55 A | 6.60 W | 5600 RPM | 50.5 dB(A) | 70.24 CFM (1.989 m3/min) | 0.551 inchH2O (13.99 mmH2O) |
QFR0812SH-AA39
|
80x80x25.4 | 10.8 - 13.2 | 12 VDC | 0.33 A | 3.96 W | 4300 RPM | 41.2 dB(A) | 54.57CFM (1.545 m3/min) | 0.331 inchH2O (8.40 mmH2O) |

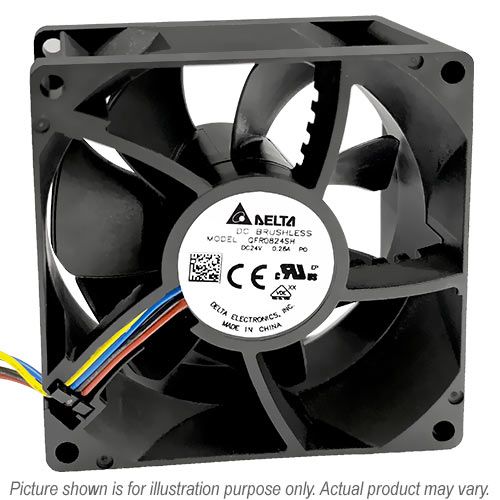

QFR0824SHP6
|
80x80x25 mm | 14.0 - 26.4 VDC | 24 VDC | 0.15 A | 3.60 W | 4300 RPM | 44.2 dB(A) | 50.3 CFM (1.423 m3/min) | 0.318 inchH2O (8.1 mmH2O) |
QFR0824HHP6
|
80x80x25 mm | 14.0 - 26.4 VDC | 24 VDC | 0.08 A | 1.92 W | 3300 RPM | 36.4 dB(A) | 38.5 CFM (1.089 m3/min) | 0.193 inchH2O (4.92 mmH2O) |
QFR0812MJ-00P6
|
80x80x25.4 | 10.8 - 13.8 VDC | 12 VDC | 0.24 A | 2.88 W | 4500 RPM | 43.5 dB(A) | 49.10 CFM (1.390 m3/min) | 0.283 inchH2O (7.20 mmH2O) |

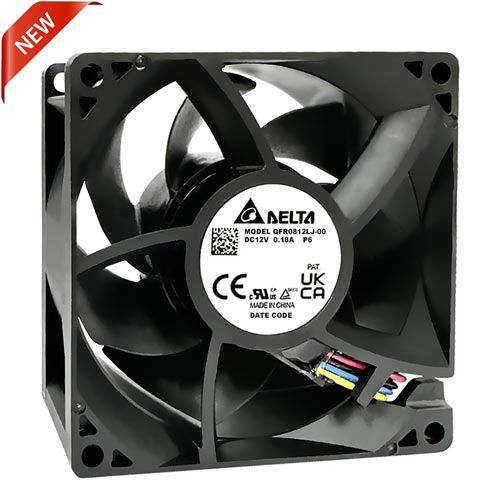

QFR0812LJ-00P6
|
80x80x25.4 | 10.8 - 13.8 VDC | 12 VDC | 0.13 A | 1.56 W | 3150 RPM | 31.5 dB(A) | 33.50 CFM (0.948 m3/min) | 0.141 inchH2O (3.60 mmH2O) |
QFR0812GJ-00P6
|
80x80x25.4 | 7.0 - 13.8 VDC | 12 VDC | 0.66 A | 7.92 W | 7000 RPM | 50.0 dB(A) | 78.8 CFM (2.23 m3/min) | 6.347inchH2O (161.21mmH2O) |
QFR0624GHP6
|
60x60x25.4 | 16.0 - 26.4 VDC | 24 VDC | 0.16 A | 3.84 W | 7600 RPM | 47.0 dB(A) | 34.78CFM (0.98 m3/min) | 0.547 inchH2O (13.89 mmH2O) |
QFR0624EHP6
|
60x60x25.4 | 16.0 - 26.4 VDC | 24 VDC | 0.10 A | 2.40 W | 6000 RPM | 39.5 dB(A) | 27.50CFM (0.778 m3/min) | 0.349 inchH2O (8.86 mmH2O) |

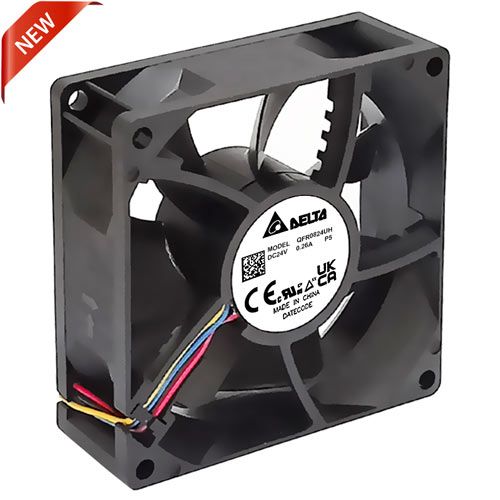

QFR0824UHP5
|
80x80x25 | 14.0 - 27.6 VDC | 24 VDC | 0.23 A | 5.52 W | 5400 RPM | 50.0 dB(A) | 65.55 CFM (1.854 m3/min) | 0.488 inchH2O (12.40 mm H2O) |
QFR0824SHP5
|
80x80x25 | 14.0 - 27.6 VDC | 24 VDC | 0.15 A | 3.60 W | 4300 RPM | 44.2 dB(A) | 52.38CFM (1.482 m3/min) | 0.324 inchH2O (8.23 mm H2O) |
QFR0824HHP5
|
80x80x25 | 14.0 - 27.6 VDC | 24 VDC | 0.10 A | 2.40 W | 3300 RPM | 36.4 dB(A) | 39.60CFM (1.120 m3/min) | 0.206 inchH2O (5.23 mmH2O) |
QFR0624DHP5
|
60x60x25.4 | 16.0 - 26.4 VDC | 24 VDC | 0.35 A | 8.40 W | 10600 RPM | 55.0 dB(A) | 49.50 CFM (1.402 m3/min) | 1.043 inchH2O (26.50 mmH2O) |
QFR1224GHEYPR
|
120x120x38 | 21.6 - 26.4 VDC | 24 VDC | 0.91 A | 21.84 W | 6000 RPM | 64.5 dB(A) | 195.68CFM (5.542 m3/min) | 1.028 inchH2O (26.105 mmH2O) |
QFR0912VH-SP00
|
92x92x25.40 | 10.8 - 13.2 VDC | 12 VDC | 0.40 A | 4.80 W | 4200 RPM | 45.0 dB(A) | 70.24 CFM (1.989 m3/min) | 0.551 inchH2O (13.99 mmH2O) |
QFR0812UHEYDW
|
80x80x38 | 10.8 - 13.2 VDC | 12 VDC | 1.15 A | 13.80 W | 9000 RPM | 60.0 dB(A) | 105.21 CFM (2.979 m3/min) | 1.335 inchH2O (33.91 mmH2O) |
QFR0624DHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.35 A | 8.40 W | 10600 RPM | 55.0 dB(A) | 49.50 CFM (1.402 m3/min) | 1.043 inchH2O (26.50 mmH2O) |
QFR0812SH-F00
|
N/A | N/A | 12 VDC | 0.33 A | 3.96 W | 4300 RPM | 41.2 dB(A) | 54.57CFM (1.545 m3/min) | 0.331 inchH2O (8.40 mmH2O) |
QFR1224GHE-SP01
|
120x120x38 | 16.0 - 26.4 VDC | 24 VDC | 0.94 A | 22.56 W | 6000 RPM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170 inchH2O (29.179 mmH2O) |
QFR1248GHE-SP01
|
120x120x38 | 33.0 - 52.8 VDC | 48 VDC | 0.50 A | 24.00 W | 6000 RPM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170 inchH2O (29.179 mmH2O) |
QFR0812SH-CX13
|
80x80x25.40 | 5.0 - 13.2 VDC | 12 VDC | 0.33 A | 3.96 W | 4300 RPM | 41.2 dB(A) | 54.57CFM (1.545 m3/min) | 0.331 inchH2O (8.40 mmH2O) |
QFR0824UHP6
|
80x80x25mm | 14.0 - 26.4 VDC | 24 VDC | 0.23 A | 5.52 W | 5300 RPM | 49.6 dB(A) | 62.18 CFM (1.759 m3/min) | 0.475 inchH2O (12.06 mmH2O) |
QFR1212GHEXUM
|
120x120x38 | 10.8 - 12.6 VDC | 12 VDC | 1.80 A | 21.60 W | 6000 RPM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170 inchH2O (29.179 mmH2O) |
QFR0912GJ-00P0
|
92x92x25.40mm | 7.0 - 13.8 VDC | 12 VDC | 0.71 A | 8.52 W | 5600 RPM | 51.0 dB(A) | 93.67 CFM (2.650 m3/min) | 0.513 inchH2O (13.05 mm H2O) |

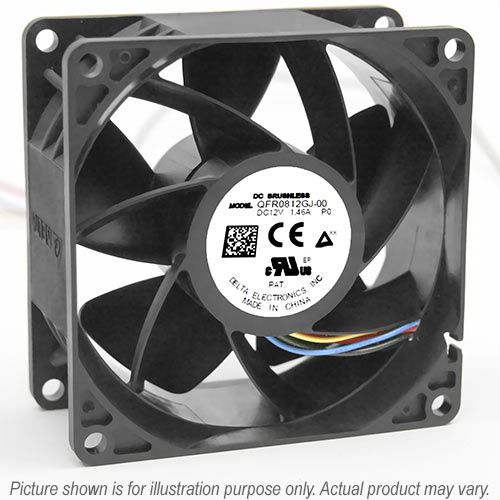

QFR0812GJ-00P0
|
80x80x25.40mm | 7.0 - 13.8 VDC | 12 VDC | 0.97 A | 11.64 W | 8000 RPM | 57.5 dB(A) | 88.44 CFM (2.720 m3/min) | 0.805 inchH2O (20.46 mm H2O) |
QFR0824HHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.23 A | 5.52 W | 3300 RPM | 50.0 dB(A) | 39.60CFM (1.120 m3/min) | 0.488 inchH2O (12.40 mm H2O) |
QFR0824SHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.15 A | 3.60 W | 4300 RPM | 44.2 dB(A) | 52.38CFM (1.482 m3/min) | 0.324 inchH2O (8.23 mm H2O) |
QFR0824UHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.23 A | 5.52 W | 5400 RPM | 50.0 dB(A) | 65.55 CFM (1.854 m3/min) | 0.488 inchH2O (12.40 mm H2O) |
QFR0624UHP6
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.26 A | 6.24 W | 9000 RPM | 50.0 dB(A) | 41.30CFM (1.170 m3/min) | 0.742 inchH2O (18.84 mm H2O) |
QFR0624EHP0
|
60x60x25mm | 16.0 - 26.4 VDC | 24 VDC | 0.10 A | 2.40 W | 6000 RPM | 39.5 dB(A) | 27.50CFM (0.778 m3/min) | 0.360 inchH2O (9.14 mm H2O) |
QFR0624GHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.16 A | 3.84 W | 7600 RPM | 47.0 dB(A) | 34.78CFM (0.98 m3/min) | 0.570 inchH2O (14.48 mmH2O) |
QFR0624UHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.23 A | 5.52 W | 9000 RPM | 50.0 dB(A) | 42.00CFM (1.189 m3/min) | 0.767 inchH2O (19.50 mmH2O) |
| Part number (Download spec sheets) |
Dimension (mm) |
Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure(in H2O) |
|---|
For more information on our server and storage solutions contact us at dcfansales.us@deltaww.com
