Energy Efficient Design For High Performance

Delta thermal products and cooling systems are designed for high efficiency with a commitment to low power consumption and green manufacturing processes. Advanced engineering and rigorous testing meet the highest standards of quality and performance. Heat exchanger and all thermal products provide high density cooling, protected from environmental conditions. All fan and thermal products undergo rigorous testing for:

  • Thermal cycling
  • Humidity exposure
  • Vibration
  • Mechanical shock
  • Bionic Blade Fan

    Delta bionic blade fans (THD Series) are high performance and extreme low noise dc fans that designed specifically for the following applications: telecom, networking, data center, server, and cloud storage. The THD series delta fan was inspired while observing a flying osprey. “The osprey’s diving posture when catching prey is swift, quiet, and precise. Their wings work similarly to the principle behind how fans work too.” Engineers manage to apply the posture and wing structures of ospreys to design fan blades via parameterized and simulated processes.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00P8 Round-225mm Diameter 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291inchH2O (58.20mmH2O)
    https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png THD0812VE-00 Square-80mm L X 80mm H 10.8~13.2 12 VDC 15.0 A 180.00 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.480inchH2O (190.00mmH2O)
    https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png THD0848VE-00 Square-80mm L X 80mm H 36.0~72.0 48 VDC 3.60 A 172.80 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.280inchH2O (185.00mmH2O)
    https://www.delta-fan.com/Download/Images/THD/THD0612VE-00.jpg https://www.delta-fan.com/Download/Images/THD/THD0612VE-00.jpg THD0612VE-00 Square-60mm L X 60mm H 10.2~13.2 12 VDC 2.90 A 34.80 W 19500 RPM 66.0 dB(A) 80.54CFM (2.278m3/min) 4.43inchH2O (112.52mmH2O)
    https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00 Round-225mm Diameter 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291inchH2O (58.20mmH2O)
    THD1348HE THD1348HE THD1348HE Square-134mm L X134mm H 36.0-60.0 48 VDC 5.00 A 240.00 W 12500 RPM 82.0 dB(A) 490.00CFM (13.870 m3/min) 7.10inchH2O (180.34mmH2O)
    THD2048HT THD2048HT THD2048HT Round-200mm Diameter 36.0~75.0 48 VDC 8.00 A 384.00 W 7400 RPM 78.0 dB(A) 1026.80CFM (29.06 m3/min) 4.945inchH2O (125.61mmH2O)
    THD0848ME THD0848ME THD0848ME Square-80mm L X 80mm H 36.0~75.0 48 VDC 0.55 A 26.40 W 9500 RPM 60.0 dB(A) 128.00CFM (3.626 m3/min) 1.476inchH2O (37.50mmH2O)
    THD1248HE THD1248HE THD1248HE Square-120mm L X 120mm H 32.0 ~ 59.0 48 VDC 2.20 A 105.82 W 10900 RPM 75.0 dB(A) 287.00CFM (8.122 m3/min) 4.40inchH2O (111.764mmH2O)
    THD0948HE-A THD0948HE-A THD0948HE-A Square-92mm L X 92mm H 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435inchH2O (87.24mmH2O)
    THD0948HE-AXHH THD0948HE-AXHH THD0948HE-AXHH Square-92mm L X 92mm H 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435inchH2O (87.24mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Frameless Fans

    THE PERFECT PARTNER FOR SPACE-CONSTRAINED AND NOISE SENSITIVE APPLICATIONS.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    EFB0612HHAF99 Round-56.0mm Diameter N/A 12 VDC 0.20 A 2.40 W 4800 RPM 39.0 dB(A) 15.03CFM (0.426 m3/min) 0.129 inchH2O (3.272 mmH2O)
    EFB0512HHAFAH Round-45mm Diameter N/A 12 VDC 0.15 A 1.56 W 5000 RPM 29.5 dB(A) 7.47CFM (0.211 m3/min) 0.056 inchH2O (1.42mmH2O)
    ASB0512HHB-AF0A Round-46.6mm Diameter N/A 12 VDC 0.27 A 1.44 W 5500 RFM 28.5 dB(A) 10.29CFM (0.291 m3/min) 0.11 inchH2O (2.83 mmH2O)
    ASB0412VHA-AF0B Round-36.9mm Diameter N/A 12 VDC 0.08 A 1.20 W 4800 RPM 28.0 dB(A) 3.13CFM (0.083 m3/min) 0.116 inchH2O (2.95 mmH2O)
    AFB0705MC-00F0R Round-65.8mm Diameter 4.5 - 5.5 VDC 5 VDC 0.22 A 1.10 W 2900 RPM 28.1 dB(A) 22.09CFM (0.626 m3/min) 0.093 inchH2O (2.36 mmH2O)
    KSB0405HBF0D KSB0405HBF0D KSB0405HBF0D Round-40mm Diameter N/A 5 VDC 0.16 A 0.80 W 3150 RPM 31.0 dB(A) 1.19CFM (0.034 m3/min) 0.008 inchH2O (2.28 mmH2O)
    KFB04512HHAF0C KFB04512HHAF0C KFB04512HHAF0C Round-49mm Diameter N/A 12 VDC 0.15 A 2.16 W 5000 RPM 28.5 dB(A) 4.29CFM (0.121 m3/min) 0.171inchH2O (04.33mmH2O)
    KFB0612HAFDB KFB0612HAFDB KFB0612HAFDB Round-60mm Diameter N/A 12 VDC 0.15 A 1.80 W 3300 RFM 36.7 dB(A) 9.15CFM (0.274 m3/min) 0.634inchH2O (16.10mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Ingress Protection - IP

    Delta Ingress Protection (IP) rated fans are purpose-built with superior production techniques to prevent dust and water ingress in harsh conditions. IP fans undergo the most rigorous testing against harsh environments.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)

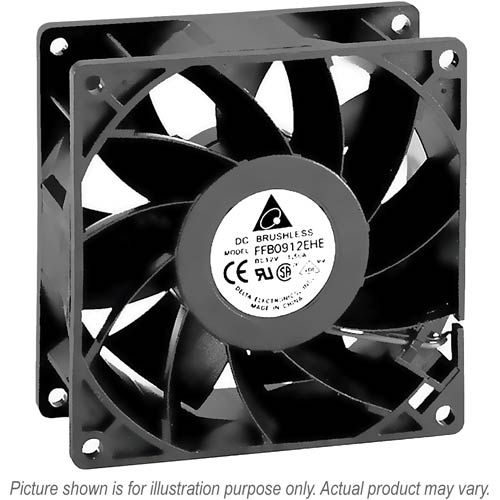

    https://www.delta-fan.com/Download/Images/FFB0912_FFB92X38mm.jpg https://www.delta-fan.com/Download/Images/FFB0912_FFB92X38mm.jpg FFB0924EHE-T500 Square-92mm L X 92mm H 14.0~27.6 24 VDC 0.50 A 12.00 W 4800 RPM 55.0 dB(A) 110.18CFM (3.120 m3/min) 0.665inchH2O (16.90mmH2O)
    FFB0824SH-TZW1 Square-80mm L X 80mm H 20.4~26.4 24 VDC 0.24 A 5.76 W 4500 RPM 48.6 dB(A) 67.02CFM (1.898 m3/min) 0.392inchH2O (09.950mmH2O)
    FFB0812VH-T500 Square-80mm L X 80mm H 14.0~13.2 12 VDC 0.34 A 4.08 W 4000 RPM 45.4 dB(A) 54.56CFM (1.545 m3/min) 0.291inchH2O (07.39mmH2O)
    https://www.delta-fan.com/Download/Images/FFB0412UHN-TYYK.jpg https://www.delta-fan.com/Download/Images/FFB0412UHN-TYYK.jpg FFB0412UHN-TYYK Square-40mm L X 40mm H 5.5~13.2 12 VDC 0.65 A 7.80 W 18500 RPM 58.5 dB(A) 27.05CFM (0.766 m3/min) 2.111inchH2O (53.631mmH2O)
    EFC1748DG-TYSG EFC1748DG-TYSG EFC1748DG-TYSG Round-172mm Diameter 28.0~53.0 48 VDC 1.23 A 59.04 W 5500 RPM 63.4 dB(A) 415.66CFM (11.770 m3/min) 1.771inchH2O (44.99mmH2O)
    EFB1724VHG-T500 Round-172mm Diameter 12.0~28.0 24 VDC 0.97 A 23.28 W 4000 RPM 57.0 dB(A) 302.29CFM (8.560 m3/min) 0.937inchH2O (23.80mmH2O)
    EFB1548VHG-TP14 Rounded/Rect-172mm L x 150mm H 36.0~60.0 48 VDC 0.49 A 23.52 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937inchH2O (23.80mmH2O)
    EFB1524VHG-EP Rounded/Rect-172mm L x 150mm H 20.4~27.6 24 VDC 1.02 A 24.48 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937inchH2O (23.80mmH2O)
    EFB1512HHG-T500 Rounded/Rect-172mm L x 150mm H 8.0~14.0 12 VDC 1.79 A 21.48 W 3700 RPM 57.5 dB(A) 279.69CFM (7.920 m3/min) 0.800inchH2O (20.30mmH2O)
    EFB1324SHE-EP Square-127mm L X127mm H 18.0~28.0 24 VDC 0.75 A 18.00 W 4600 RPM 58.5 dB(A) 200.00CFM (5.663 m3/min) 0.757inchH2O (19.23mmH2O)
    EFB0424VHD-TZW2 EFB0424VHD-TZW2 EFB0424VHD-TZW2 Square-40mm L X 40mm H 14.0~27.6 24 VDC 0.09 A 2.16 W 9000 RPM 32.5 dB(A) 10.10CFM (0.286 m3/min) 0.416inchH2O (10.57mmH2O)
    BFB1224H-T50R Square-120mm L X 120mm H 7.0~27.6 24 VDC 0.35 A 8.40 W 2500 RPM 51.0 dB(A) 29.00CFM (0.821 m3/min) 0.827inchH2O (21.00mmH2O)
    BFB1224GH-TA50 Rounded/Rect-120mm L x 92mm H 14.0~27.6 24 VDC 1.60 A 38.40 W 4400 RPM 65.0 dB(A) 60.39CFM (1.710 m3/min) 4.094inchH2O (104.00mmH2O)
    https://www.delta-fan.com/Download/Images/BFB1012-A.png https://www.delta-fan.com/Download/Images/BFB1012-A.png BFB1012L-TA5R Rounded/Rect-97.8mm L x 94.4mm H 4.0~13.2 12 VDC 0.37 A 4.40 W 2700 RPM 49.5 dB(A) 23.17CFM (0.656 m3/min) 0.585inchH2O (14.85mmH2O)
    https://www.delta-fan.com/Download/Images/automotive/BFB1012HD-04D4L.jpg https://www.delta-fan.com/Download/Images/automotive/BFB1012HD-04D4L.jpg BFB1012HD-04D4L Rounded/Rect-100mm L x 97.7mm H 90.0~16.9 12 VDC 0.58 A 6.96 W 4000 RPM 50.5 dB(A) 18.30CFM (0.50 m3/min) 1.62inchH2O (40.6mmH2O)
    BFB0724H-T500 Square-75.7mm L X 75.7mm H 14.0~27.6 24 VDC 0.12 A 2.88 W 2900 RPM 38.0 dB(A) 11.30CFM (0.320 m3/min) 0.480inchH2O (12.20mmH2O)

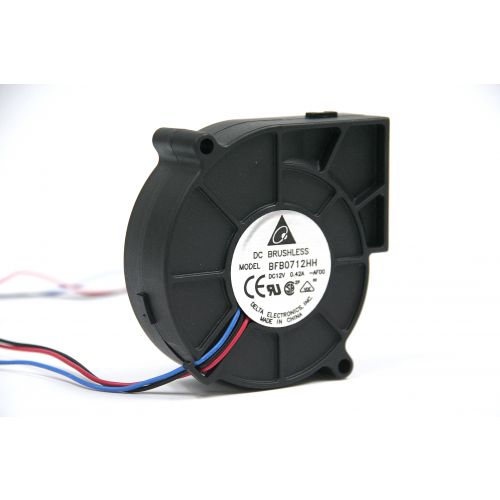

    https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg BFB0712HHD77 Rounded/Rect-75.7mm L x 80.6mm H 9.0~16.0 12 VDC 0.53 A 8.15 W 5500 RPM 50.0 dB(A) 14.70CFM (0.41 m3/min) 1.41inchH2O (35.9mmH2O)
    BFB0512HH-T50F Round-51mm Diameter 10.0~13.8 12 VDC 0.21 A 2.52 W 6500 RPM 45.0 dB(A) 4.59CFM (0.130 m3/min) 0.866inchH2O (22.00mmH2O)
    https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg BFB04512HHA-CZ0T Square-45mm L X 45mm H 50.0~13.5 12 VDC 0.14 A 1.68 W 6100 RPM 36.0 dB(A) 3.60CFM (0.102 m3/min) 0.598inchH2O (15.20mmH2O)

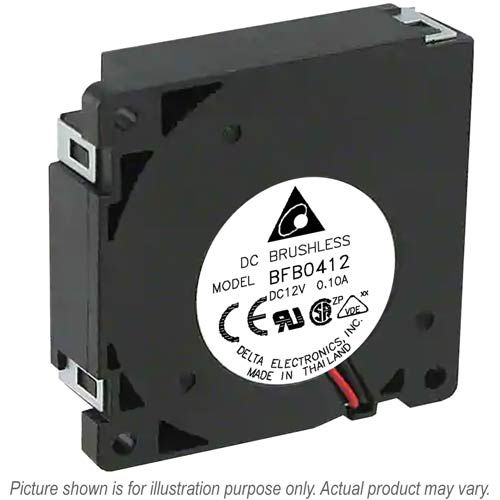

    https://www.delta-fan.com/Download/Images/BFB0412_40x10mm.jpg https://www.delta-fan.com/Download/Images/BFB0412_40x10mm.jpg BFB0405HHA-TZP4 Square-40mm L X 40mm H 4.0~5.5 5 VDC 0.16 A 0.80 W 8500 RPM 34.5 dB(A) 3.00CFM (0.085 m3/min) 0.564inchH2O (14.33mmH2O)
    https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg AFB1548VH-CD8G Rounded/Rect-172mm L x 150mm H 42.0~60.0 48 VDC 0.65 A 31.20 W 5000 RPM 65.0 dB(A) 305.043CFM (8.638 m3/min) 1.198inchH2O (30.426mmH2O)

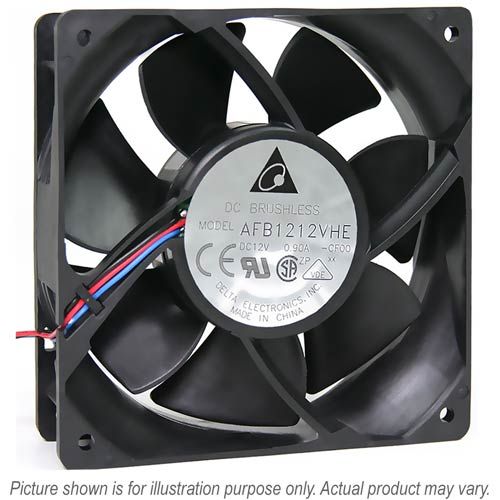

    https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1248VHE-TP18 Square-120mm L X 120mm H 34.0 - 56.0 VDC 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694inchH2O (17.635mmH2O)

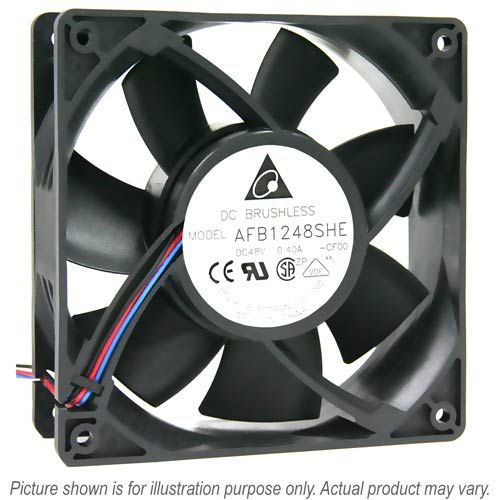

    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248VHE-T9LN Square-120mm L X 120mm H 34.0~56.0 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694inchH2O (17.635mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248SHE-TC50 Square-120mm L X 120mm H 20.0~56.0 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694inchH2O (17.635mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248SHEDC4 Square-120mm L X 120mm H 36.0~59.0 48 VDC 0.13 A 6.24 W 2300 RPM 40.0 dB(A) 103.24CFM (2.924 m3/min) 0.255inchH2O (06.50mmH2O)

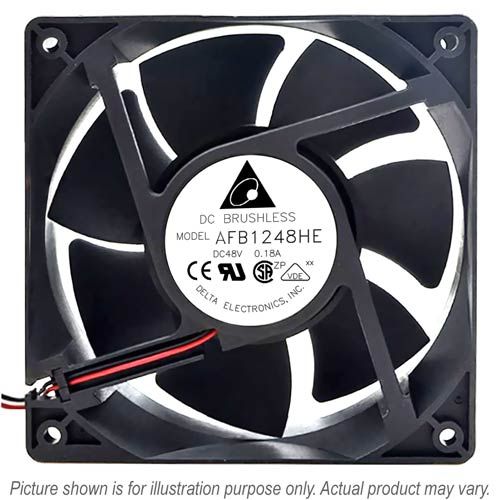

    https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg AFB1248HE-T500 Square-120mm L X 120mm H 28.0~56.0 48 VDC 0.12 A 5.76 W 2600 RPM 41.0 dB(A) 105.94CFM (3.000 m3/min) 0.300inchH2O (7.60mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1224VHE-TC5F Square-120mm L X 120mm H 7.0~27.6 24 VDC 0.36 A 13.68 W 4000 RPM 51.0 dB(A) 148.356CFM (4.201m3/min) 0.601inchH2O (15.296mmH2O)

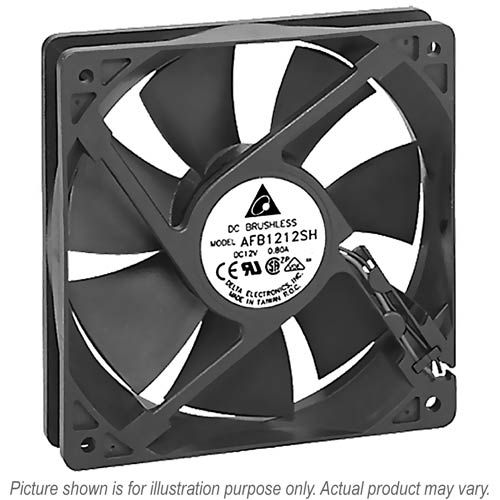

    https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg AFB1224SH-T500 Square-120mm L X 120mm H 14.0~27.6 24 VDC 0.28 A 6.72 W 3400 RPM 46.5 dB(A) 113.11CFM (3.203 m3/min) 0.430inchH2O (10.92mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224SHE-T50F Square-120mm L X 120mm H 7.0~27.6 24 VDC 0.50 A 12.00 W 3700 RPM 53.0 dB(A) 151.85CFM (4.300 m3/min) 0.571inchH2O (14.50mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg AFB1224HHE-T500 Square-120mm L X 120mm H 7.0~27.6 24 VDC 0.30 A 7.20 W 2900 RPM 44.0 dB(A) 120.07CFM (3.400 m3/min) 0.354inchH2O (09.00mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224EHE-EP Square-120mm L X 120mm H 21.6 ~ 26.4 24 VDC 0.85 A 20.40 W 4600 RPM 58.5 dB(A) 212.573CFM (6.019m3/min) 0.844inchH2O (21.427mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg AFB1212VH-T500 Square-120mm L X 120mm H 7.0~13.8 12 VDC 0.40 A 4.80 W 3100 RPM 44.5 dB(A) 103.75CFM (2.938 m3/min) 0.371inchH2O (09.43mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1212VHE-T50F Square-120mm L X 120mm H 4.0~13.2 12 VDC 0.60 A 7.20 W 3200 RPM 48.0 dB(A) 129.96CFM (3.680 m3/min) 0.420inchH2O (10.70mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg AFB1212SH-T500 Square-120mm L X 120mm H 7.0~13.8 12 VDC 0.53 A 6.36 W 3400 RPM 46.5 dB(A) 113.11CFM (3.203 m3/min) 0.430inchH2O (10.92mmH2O)
    AFB0924SH-TZUH Square-92mm L X 92mm H 14.0~26.4 24 VDC 0.40 A 9.60 W 4800 RPM 53.0 dB(A) 102.59CFM (2.905 m3/min) 0.526inchH2O (13.35mmH2O)
    https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg AFB0912SH-TZUG Square-92mm L X 92mm H 5.0~12.6 12 VDC 0.75 A 9.00 W 4800 RPM 53.0 dB(A) 102.59CFM (2.905 m3/min) 0.526inchH2O (13.35mmH2O)
    https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg AFB0912H-TA50 Square-92mm L X 92mm H 5.0~13.8 12 VDC 0.21 A 2.52 W 2800 RPM 37.0 dB(A) 59.89CFM (1.696 m3/min) 0.191inchH2O (04.86mmH2O)
    https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg https://www.delta-fan.com/Download/Images/AFB92x25mm-A.jpg AFB0912GHE-TA50 Square-92mm L X 92mm H 7.0~13.8 12 VDC 1.85 A 22.20 W 5400 RPM 60.0 dB(A) 143.87CFM (4.074 m3/min) 0.802inchH2O (20.37mmH2O)

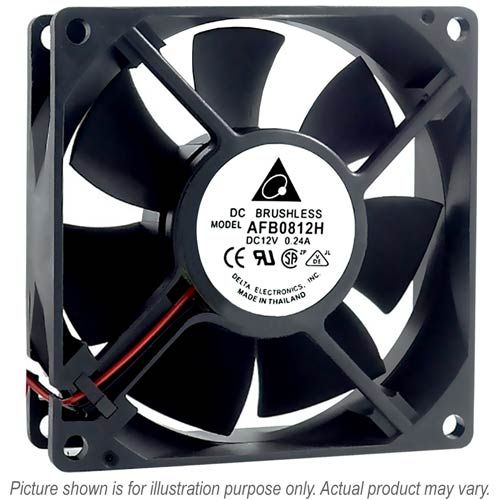

    https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg AFB0824HH-T500 Square-80mm L X 80mm H 14.0~27.6 24 VDC 0.09 A 2.16 W 3250 RPM 34.0 dB(A) 37.43CFM (1.060 m3/min) 0.181inchH2O (04.59mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg AFB0812HH-T500 Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.20 A 2.40 W 3250 RPM 34.0 dB(A) 37.43CFM (1.060 m3/min) 0.181inchH2O (04.59mmH2O)

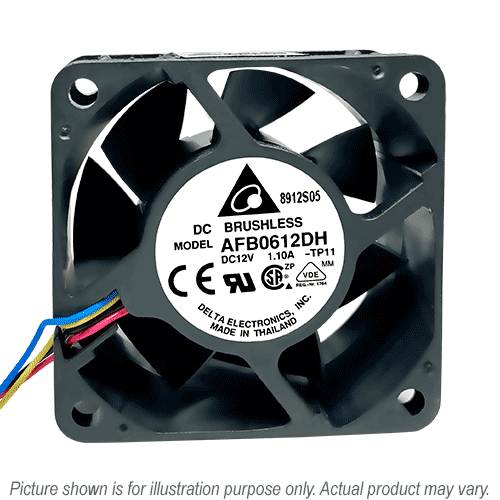

    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0624SH-TYTH Square-60mm L X 60mm H 14.0~27.6 24 VDC 0.17 A 4.08 W 6000 RPM 44.5 dB(A) 34.15CFM (0.967 m3/min) 0.422inchH2O (10.73mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0624EH-TA50 Square-60mm L X 60mm H 14.0~27.6 24 VDC 0.24 A 5.76 W 6800 RPM 46.5 dB(A) 38.35CFM (1.086 m3/min) 0.544inchH2O (13.81mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612SH-TA50 Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.27 A 3.24 W 6000 RPM 44.5 dB(A) 34.15CFM (0.967 m3/min) 0.422inchH2O (10.73mmH2O)
    AFB0612HHE-T500 AFB0612HHE-T500 AFB0612HHE-T500 Square-60mm L X 60mm H 7.0~13.8 12 VDC 0.68 A 8.16 W 8000 RPM 50.0 dB(A) 46.17CFM (1.307 m3/min) 0.793inchH2O (20.14mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612H-EP Square-60mm L X 60mm H 5.0~13.8 12 VDC 0.14 A 1.68 W 4250 RPM 34.0 dB(A) 22.63CFM (0.662 m3/min) 0.211inchH2O (5.35mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612DH-TZUT Square-60mm L X 60mm H 7.0~13.2 12 VDC 0.84 A 10.08 W 9000 RPM 55.0 dB(A) 50.40CFM (1.427 m3/min) 0.926inchH2O (23.52mmH2O)
    AFB0524VHD-TZW5 Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.10 A 2.40 W 7000 RPM 40.5 dB(A) 20.30CFM (0.575 m3/min) 0.303inchH2O (7.70mmH2O)

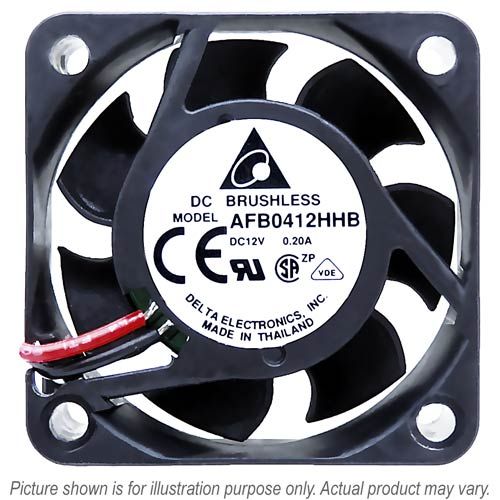

    https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg AFB0412SHB-T500 Square-40mm L X 40mm H 7.0~13.8 12 VDC 0.25 A 3.00 W 11000 RPM 41.5 dB(A) 14.83CFM (0.420 m3/min) 0.601inchH2O (15.26mmH2O)

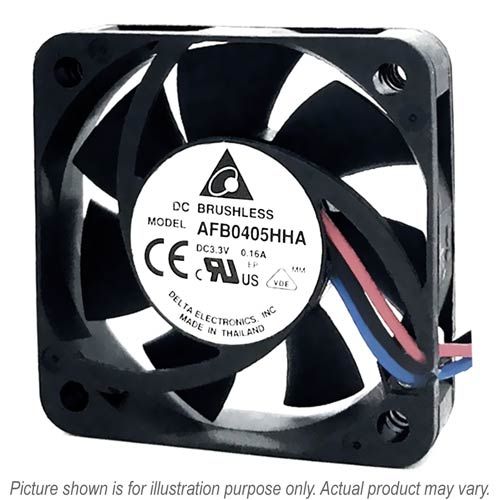

    https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg AFB0412HHA-TA5F Square-40mm L X 40mm H 7.0~13.8 12 VDC 0.05 A 0.60 W 7000 RPM 31.5 dB(A) 8.15CFM (0.231 m3/min) 0.190inH20 (4.831mmH2O)
    TFC0424EN-01EGG Square-40mm L X 40mm H 22.0 - 26.0 VDC 24 VDC 0.25 A 6.00 W 18300 RPM 55.0 dB(A) 21.11CFM (0.598 m3/min) 1.979inchH₂O (50.28 mmH₂O)
    https://www.delta-fan.com/Download/Images/TFA0412CNP8.png https://www.delta-fan.com/Download/Images/TFA0412CNP8.png TFA0412CNP8 Square-40mm L X 40mm H 7.0~13.8 12 VDC 0.50 A 6.00 W 16500 RPM 54.0 dB(A) 22.25CFM (0.630 m3/min) 1.566inchH2O (39.78mmH2O)
    https://www.delta-fan.com/Download/Images/PFC0648SE-00P8.png https://www.delta-fan.com/Download/Images/PFC0648SE-00P8.png PFC0648SE-00P8 Square-60mm L X 60mm H 36.0~60.0 48 VDC 0.52 A 24.96 W 17000 RPM 69.0 dB(A) 65.35CFM (1.851 m3/min) 3.503inchH2O (88.98mmH2O)
    https://www.delta-fan.com/Download/Images/TFD0948HE-00P8.jpg https://www.delta-fan.com/Download/Images/TFD0948HE-00P8.jpg TFD0948HE-00P8 Square-92mm L X 92mm H 36.0~60.0 48 VDC 0.75 A 36.00 W 9000 RPM 65.5 dB(A) 144.58CFM (4.096 m3/min) 2.429inchH2O (61.69mmH2O)
    https://www.delta-fan.com/Download/Images/TCA1748ATP8.png https://www.delta-fan.com/Download/Images/TCA1748ATP8.png TCA1748ATP8 Round-176.5mm Diameter 36.0~60.0 48 VDC 1.20 A 57.60 W 4000 RPM 70.8 dB(A) 382.04CFM (10.823m3/min) 2.114inchH2O (53.70mmH2O)
    https://www.delta-fan.com/Download/Images/TCA1748BT-00P8.png https://www.delta-fan.com/Download/Images/TCA1748BT-00P8.png TCA1748BT-00P8 Round-176.5mm Diameter 36.0~60.0 48 VDC 2.80 A 134.40 W 5400 RPM 78.0 dB(A) 540.00CFM (15.291 m3/min) 3.799inchH2O (96.50mmH2O)
    https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00P8 Round-225mm Diameter 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291inchH2O (58.20mmH2O)
    https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL15AUHS.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL15AUHS.jpg AFL15AUHS Round-151mm Diameter x H60.5 N/A 115VAC / 230VAC (50/60Hz) N/A 17.00 W 3200/2600 RPM 56.0 dB(A) 214.10CFM (6.060 m3/min) 0.650inchH2O (16.420mmH2O)
    https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png THD0812VE-00 Square-80mm L X 80mm H 10.8~13.2 12 VDC 15.0 A 180.00 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.480inchH2O (190.00mmH2O)
    https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png THD0848VE-00 Square-80mm L X 80mm H 36.0~72.0 48 VDC 3.60 A 172.80 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.280inchH2O (185.00mmH2O)
    EUB0912HF-03P1 EUB0912HF-03P1 EUB0912HF-03P1 Square-92mm L X 92mm H 10.8 - 13.2 VDC 12 VDC 0.13 A 1.44 W 3350 RPM 33.5 dB(A) 47.00CFM (1.330 m3/min) 0.227 inchH2O (5.770 mm H2O)
    EUB1312HE-10P1 EUB1312HE-10P1 EUB1312HE-10P1 Square-125mm L X 125mm H 10.8 - 13.2 VDC 12 VDC 0.13 A 1.56 W 2200 RPM 32.0 dB(A) 79.867CFM (2.260 m3/min) 0.184 inchH2O (4.660 mm H2O)
    KSB1212ME-03P1 KSB1212ME-03P1 KSB1212ME-03P1 Round-120mm Diameter 10.8 - 13.2 VDC 12 VDC 0.19 A 2.28 W 1800 RPM 36.2 dB(A) 44.91CFM (1.272 m3/min) 0.300 inchH2O (7.620 mm H2O)
    QFR0624UHP6 QFR0624UHP6 QFR0624UHP6 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.26 A 6.24 W 9000 RPM 50.0 dB(A) 41.30CFM (1.170 m3/min) 0.742 inchH2O (18.84 mm H2O)
    PFB0924DHEP6 PFB0924DHEP6 PFB0924DHEP6 Square-92mm L X 92mm H 21.6 - 26.4 VDC 24 VDC 1.10 A 26.40 W 7200 RFM 63.7 dB(A) 151.50CFM (4.290 m3/min) 1.395 inchH2O (35.43 mm H2O)
    FFC0948BY7T FFC0948BY7T FFC0948BY7T Square-92mm L X 92mm H N/A 48 VDC 0.17 A 8.16 W 3900 RPM 49.5 dB(A) 86.40CFM (2.448 m3/min) 0.355inchH2O (09.01mmH2O)

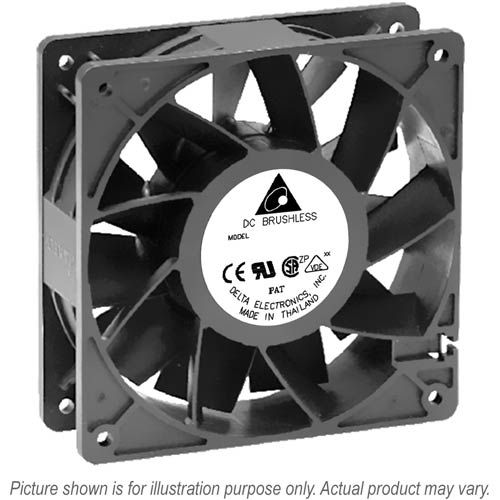

    PFB1224UHE-T50F PFB1224UHE-T50F PFB1224UHE-T50F Square-120mm L X 120mm H N/A 24 VDC 2.00 A 48.00 W 5500 RPM 66.5 dB(A) 252.85CFM (7.160 m3/min) 1.412inchH2O (35.877mmH2O)
    PFB1224GHE PFB1224GHE PFB1224GHE Square-120mm L X 120mm H N/A 24 VDC 1.35 A 32.40 W 4800 RPM 64.0 dB(A) 217.79CFM (6.167 m3/min) 1.075inchH2O (27.31mmH2O)
    THA0412AD-TZW3 Square-40mm L X 40mm H N/A 12 VDC 0.43 A 5.16 W 15600 RPM 52.0 dB(A) 20.56CFM (0.582 m3/min) 1.385inchH2O (35.16mmH2O)
    PFB0812DHE-TYNT PFB0812DHE-TYNT PFB0812DHE-TYNT Square-80mm L X 80mm H N/A 12 VDC 2.75 A 33.00 W 9000 RPM 66.0 dB(A) 132.60CFM (3.754 m3/min) 2.030inchH2O (51.57mmH2O)
    PFB0812UHE-EP PFB0812UHE-EP PFB0812UHE-EP Square-80mm L X 80mm H 10.2 - 13.8 12 VDC 0.99 A 11.88 W 6550 RPM 57.5 dB(A) 91.87CFM (2.601 m3/min) 0.974inchH2O (24.74mmH2O)
    PFB0824UHE-T500 PFB0824UHE-T500 PFB0824UHE-T500 Square-80mm L X 80mm H N/A 24 VDC 0.77 A 18.48 W 7500 RPM 61.0 dB(A) 107.30CFM (3.038 m3/min) 1.368inchH2O (34.75mmH2O)
    PFB0912EHE-T500 PFB0912EHE-T500 PFB0912EHE-T500 Square-92mm L X 92mm H 7.0 - 13.2 12 VDC 0.68 A 8.16 W 4800 RPM 54.0 dB(A) 103.67CFM (2.936 m3/min) 0.691inchH2O (17.56mmH2O)
    PFB0924DHE-T500 Square-92mm L X 92mm H N/A 24 VDC 1.45 A 34.80 W 8000 RPM 66.5 dB(A) 175.03CFM (4.957 m3/min) 1.819inchH2O (46.21mmH2O)
    TFA0412CN-CN TFA0412CN-CN TFA0412CN-CN Square-40mm L X 40mm H 7.0 - 13.2 VDC 12 VDC 0.60 A 7.20 W 17600 RPM 55.0 dB(A) 25.29CFM (0.717 m3/min) 1.868inchH2O (47.44mmH2O)
    THB1224B-PM00 THB1224B-PM00 THB1224B-PM00 Square-120mm L X 120mm H 18.0 - 27.5 VDC 24 VDC 0.95 A 22.80 W 8300 RPM 65.0 dB(A) 174.73CFM (4.948 m3/min) 2.139inchH2O (54.33mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Miniature Fans

    Miniature fans are the best choice for most electronics portable devices. Delta’s new miniature series fans use Core-Less motor technology, with a smaller motor hub size, good airflow performance, and good acoustic level. They come with the newly designed high efficiency Driver IC with PWM function for speed adjustments.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/BSB0203HA3-00CER.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/BSB0203HA3-00CER.jpg BSB0203HA3-00CER Square-20mm L X 20mm H N/A 3 VDC 0.06 A 0.18 W 13000 RPM 32.0 dB(A) 0.28CFM (0.008 m3/min) 6.40mmH2O
    https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01703HA3-00CAJ.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01703HA3-00CAJ.jpg BSB01703HA3-00CAJ Square-17mm L X 17mm H N/A 3 VDC 0.06 A 0.18 W 12000 RPM 26.5 dB(A) 0.23CFM (0.007 m3/min) 0.182inchH2O (4.630mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01503HA3-00CGE.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01503HA3-00CGE.jpg BSB01503HA3-00CGE Square-15mm L X 15mm H N/A 3 VDC 0.05 A 0.15 W 13800 RPM 30.0 dB(A) 0.17CFM (0.005 m3/min) 0.154inchH2O (3.90mmH2O)
    https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg BFB0312HA-CR00 Square-30mm L X 30mm H N/A 12 VDC 0.07 A 0.84 W 7500 RPM 29.0 dB(A) 1.45CFM (0.041 m3/min) 0.285inchH2O (7.24mmH2O)
    https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg BFB0312HA-CF00 Square-30mm L X 30mm H N/A 12 VDC 0.07 A 0.84 W 7500 RPM 29.0 dB(A) 1.45CFM (0.041 m3/min) 0.285inchH2O (7.24mmH2O)
    https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg https://www.delta-fan.com/Download/Images/BFB0305_30x10mm-C.jpg BFB0312HA-C Square-30mm L X 30mm H N/A 12 VDC 0.07 A 0.84 W 7500 RPM 29.0 dB(A) 1.45CFM (0.041 m3/min) 0.285inchH2O (7.24mmH2O)

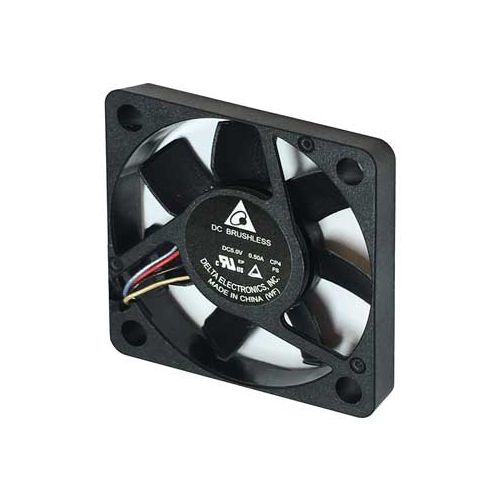

    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg ASB0305HP-00CP4 Square-30mm L X 30mm H 10.8 - 12.6 VDC 5 VDC 0.20 A 1.00 W 9500 RPM 29.0 dB(A) 5.10CFM (0.144 m3/min) 0.156inchH2O (3.96mmH2O)
    ASB02512VHA-A76N ASB02512VHA-A76N ASB02512VHA-A76N Square-25mm L X 25mm H N/A 12 VDC 0.09 A 0.60 W 13000 RPM 27.0 dB(A) 3.35CFM (0.095 m3/min) 0.214inchH2O (5.43mmH2O)
    ASB02505SHA-AY6B ASB02505SHA-AY6B ASB02505SHA-AY6B Square-25mm L X 25mm H N/A 5 VDC 0.12 A 0.60 W 10500 RPM 31.0 dB(A) 4.31CFM (0.122 m3/min) 0.320inchH2O (8.13mmH2O)

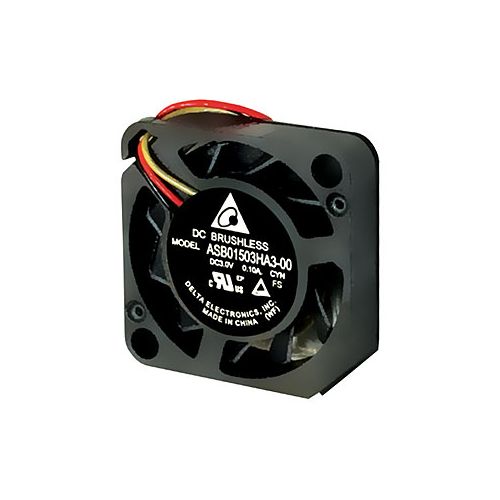

    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01503HA3-00CYN.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01503HA3-00CYN.jpg ASB01503HA3-00CYN Square-15mm L X 15mm H N/A 3 VDC 0.06 A 0.15 W 14500 RPM 31.0 dB(A) 0.28CFM (0.008 m3/min) 0.075 inchH2O (0.042 mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ND35B00-17J17.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ND35B00-17J17.jpg ND35B00-17J17 Square-30mm L X 30mm H N/A 5 VDC 0.10 A 0.50 W 10500 RPM 49.5 dB(A) 1.05CFM (0.029 m3/min) 0.400inchH2O (10.16mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01703HA3-00CAH.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01703HA3-00CAH.jpg ASB01703HA3-00CAH Square-17mm L X 17mm H N/A 3 VDC 0.06 A 0.18 W 12000 RPM 30.0 dB(A) 0.51CFM (0.014 m3/min) 0.071 inchH2O (0.040 mmH2O)
    BSB0205HP-00EFG BSB0205HP-00EFG BSB0205HP-00EFG Square-20mm L X 20mm H N/A 5 VDC 0.08 A 0.40 W 12000 RPM 35.9 dB(A) 0.57CFM (0.016 m3/min) 0.144inchH2O (3.66mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg ASB0305HP-00 Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.20 A 1.00 W 9500 RPM 29.0 dB(A) 5.10CFM (0.144 m3/min) 0.156inchH2O (3.96mmH2O)

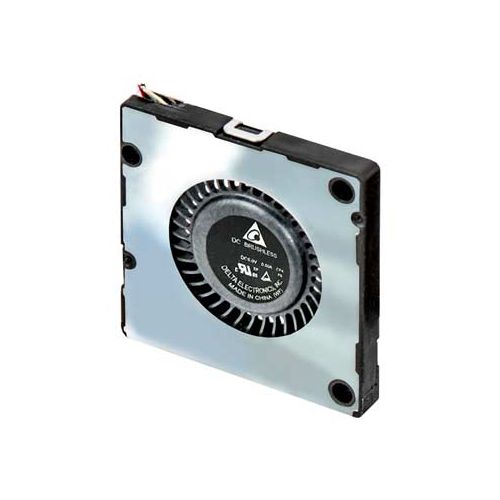

    https://www.delta-fan.com/Download/Images/Mini_Fans/KDB0305HA3-00C1J.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/KDB0305HA3-00C1J.jpg KDB0305HA3-00 Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.35 A 1.75 W 12500 RPM 42.0 dB(A) @ 0.5M 0.95CFM (0.027 m3/min) 0.946inchH2O (24.02mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ND35B00-17J17.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ND35B00-17J17.jpg ND35B00 Square-30mm L X 30mm H N/A 5 VDC 0.10 A 0.50 W 10500 RPM 40.0dB(A) @ 0.3M 1.05CFM (0.029 m3/min) 0.400inchH2O (10.16mmH2O)
    KDB0305HA3-00C1J KDB0305HA3-00C1J KDB0305HA3-00C1J Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.35 A 1.75 W 12500 RPM 42.0 dB(A) 0.95CFM (0.027 m3/min) 0.946inchH2O (24.02mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Pulse-Width Modulation - PWM

    Delta Pulse Width Modulation PWM fans offer full lineup of speed control. PWM fans have advanced cooling solutions, deliver best performance and greater effciency. PWM regulates the voltage signal between fully on and fully off, controlling the speed of a fan. The PWM function is commonly used in OEM cases. Delta also provides standard PWM through distribution channels.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    https://www.delta-fan.com/Download/Images/FFB0824_FFB80X38mm.jpg https://www.delta-fan.com/Download/Images/FFB0824_FFB80X38mm.jpg FFB0848SHE-TP36 Square-80mm L X 80mm H N/A 48 VDC 0.16 A 7.68 W 4900 RPM 48.5 dB(A) 68.51CFM (1.940 m3/min) 0.591inchH2O (15.01mmH2O)

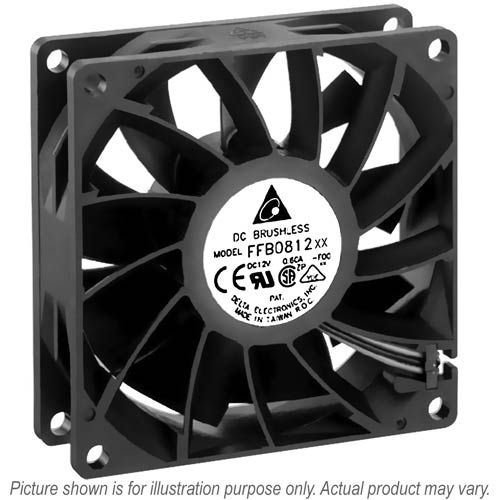

    FFB0812XHXHC FFB0812XHXHC FFB0812XHXHC Square-80mm L X 80mm H 7~15 12 VDC 1.00 A 12.00 W 9000 RPM 59.0 dB(A) 92.69CFM (2.626m3/min) 1.102inchH2O (28.00mmH2O)
    FFB0424VHN-TZT4 FFB0424VHN-TZT4 FFB0424VHN-TZT4 Square-40mm L X 40mm H N/A 24 VDC 0.10 A 2.40 W 9500 RPM 41.9 dB(A) 15.79CFM (0.447 m3/min) 0.509inchH2O (12.94mmH2O)

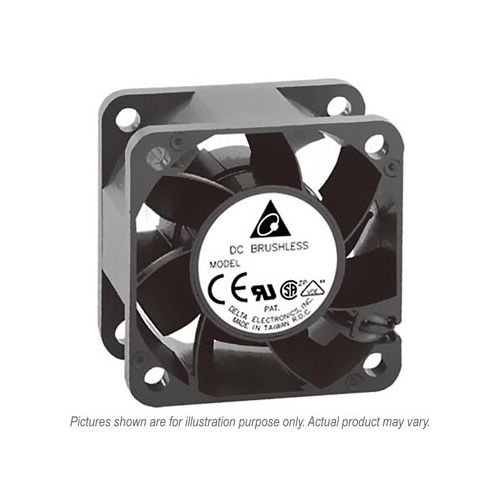

    https://www.delta-fan.com/Download/Images/FFB0412VHN-TP03.jpg https://www.delta-fan.com/Download/Images/FFB0412VHN-TP03.jpg FFB0412VHN-TP03 Square-40mm L X 40mm H N/A 12 VDC 0.16 A 1.92 W 9500 RPM 45.0 dB(A) 15.79CFM (0.447 m3/min) 0.509inchH2O (12.94mmH2O)
    https://www.delta-fan.com/Download/Images/FFB0412UHN-SP4Z.jpg https://www.delta-fan.com/Download/Images/FFB0412UHN-SP4Z.jpg FFB0412UHN-SP4Z Square-40mm L X 40mm H N/A 12 VDC 0.84 A 10.08 W 23000 RPM 59.9 dB(A) 26.55CFM (0.751 m3/min) 3.15inchH2O (80.00mmH2O)
    FFB0412SN-00Y2F FFB0412SN-00Y2F FFB0412SN-00Y2F Square-40mm L X 40mm H N/A 12 VDC 0.93 A 11.16 W 22000 RPM 61.5 dB(A) 29.23CFM (0.828 m3/min) 3.46inchH2O (87.88mmH2O)

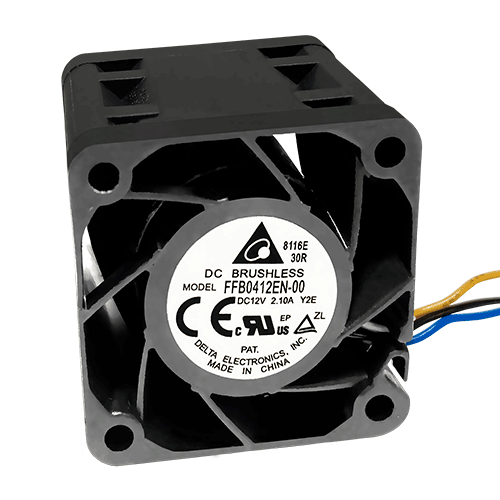

    https://www.delta-fan.com/Download/Images/FFB0412EN-00Y2E.png https://www.delta-fan.com/Download/Images/FFB0412EN-00Y2E.png FFB0412EN-00Y2E Square-40mm L X 40mm H N/A 12 VDC 1.45 A 17.40 W 25000 RPM 64.0 dB(A) 32.90CFM (0.932 m3/min) 4.44inchH2O (112.78mmH2O)
    FFB03812VN-SPC FFB03812VN-SPC FFB03812VN-SPC Square-38mm L X 38mm H 7.0 -13.2 VDC 12 VDC 0.85 A 10.20 W 23000 RPM 62.5 dB(A) 23.00CFM (0.650 m3/min) 3.40inchH2O (86.36mmH2O)

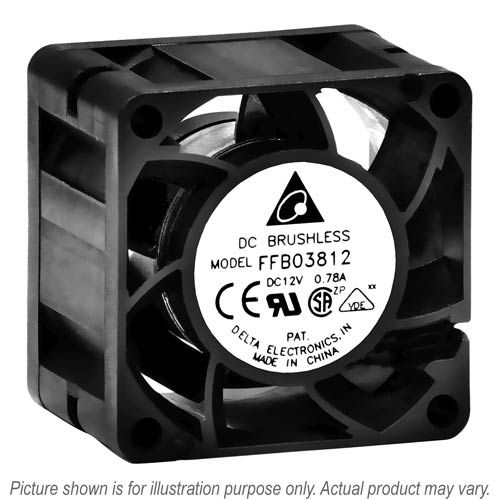

    https://www.delta-fan.com/Download/Images/FFB03812VHN-9C3P.jpg https://www.delta-fan.com/Download/Images/FFB03812VHN-9C3P.jpg FFB03812VHN-9C3P Square-38mm L X 38mm H 7.0 -13.2 VDC 12 VDC 0.55 A 6.60 W 16000 RPM 58.5 dB(A) 20.23CFM (0.573 m3/min) 1.463inchH2O (37.15mmH2O)
    FFB03612EHN-BGA FFB03612EHN-BGA FFB03612EHNYCL Square-36mm L X36mm H 10.8 - 13.2 VDC 12 VDC 0.63 A 7.56 W 19000 RPM 58.0 dB(A) 20.94CFM (0.593 m3/min) 1.691inchH2O (42.943mmH2O)
    FFB03612EHN-BGA FFB03612EHN-BGA FFB03612EHN-BGA Square-36mm L X36mm H 10.8 - 13.2 VDC 12 VDC 0.39 A 4.68 W 14500 RPM 50.0 dB(A) 16.30CFM (0.461 m3/min) 1.000inchH2O (25.40mmH2O)
    EFC1748DG-TYSG EFC1748DG-TYSG EFC1748DG-TYSG Round-172mm Diameter 28.0~53.0 48 VDC 1.23 A 59.04 W 5500 RPM 63.4 dB(A) 415.66CFM (11.770 m3/min) 1.771inchH2O (44.99mmH2O)
    EFC0812DB-F00 EFC0812DB-F00 EFC0812DB-F00 Square-80mm L X 80mm H 7.0 - 12.6 VDC 12 VDC 0.33 A 3.96 W 3800 RPM 41.0 dB(A) 48.80CFM (1.382 m3/min) 0.171inchH2O (4.35mmH2O)
    EFB1548VHG-TP14 Rounded/Rect-172mm L x 150mm H 36.0~60.0 48 VDC 0.49 A 23.52 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937inchH2O (23.80mmH2O)
    EFB1524VHG-EP Rounded/Rect-172mm L x 150mm H 20.4~27.6 24 VDC 1.02 A 24.48 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937inchH2O (23.80mmH2O)
    EFB1324SHE-EP Square-127mm L X127mm H 18.0~28.0 24 VDC 0.75 A 18.00 W 4600 RPM 58.5 dB(A) 200.00CFM (5.663 m3/min) 0.757inchH2O (19.23mmH2O)
    EFB0412VHD-SP05 EFB0412VHD-SP05 EFB0412VHD-SP05 Square-40mm L X 40mm H 36.0 - 75.0 VDC 12 VDC 0.12 A 1.44 W 9000 RPM 34.5 dB(A) 10.10CFM (0.286 m3/min) 0.416inchH2O (10.57mmH2O)
    BFB1012UH-BA40ZYD Rounded/Rect-96.6mm L x 94.3mm H 12.0 - 16.8 VDC 14.2 VDC 2.15 A 30.53 W 7000 RPM 68.0 dB(A) 36.93CFM (1.046 m3/min) 4.764inchH2O (121.02mmH2O)
    https://www.delta-fan.com/Download/Images/BFB1012-A.png https://www.delta-fan.com/Download/Images/BFB1012-A.png BFB1012HH-TP48 Rounded/Rect-97.2mm L x 94.4mm H 10.8 - 13.2 VDC 12 VDC 0.69 A 8.28 W 3200 RPM 53.5 dB(A) 28.33CFM (0.802 m3/min) 0.947inchH2O (24.05mmH2O)
    BFB1012EH-C18J Rounded/Rect-96.6mm L x 94.3mm H 10.8-14.0VDC 12 VDC 1.97 A 23.64 W 5800 RPM 62.0 dB(A) 45.49CFM (1.288 m3/min) 3.694inchH2O (93.83mmH2O)
    BFB1012EF-0018H BFB1012EF-0018H BFB1012EF-0018H Rounded/Rect-96.6mm L x 94.3mm H 10.8 - 12.6 VDC 12 VDC 5.00 A 60.00 W 7500 RPM 69.0 dB(A) 56.08CFM (1.588 m3/min) 6.903inchH2O (175.35mmH2O)
    https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg BFB0712HHD77 Rounded/Rect-75.7mm L x 80.6mm H 9.0~16.0 12 VDC 0.53 A 8.15 W 5500 RPM 50.0 dB(A) 14.70CFM (0.41 m3/min) 1.41inchH2O (35.9mmH2O)
    BFB0512HA-CX3D Square-50mm L X 50mm H 10.8 - 13.2 VDC 12 VDC 0.12 A 1.44 W 5100 RPM 32.5 dB(A) 3.53CFM (0.100 m3/min) 0.563inchH2O (14.31mmH2O)
    https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg BFB04512HHA-CZ0T Square-45mm L X 45mm H 50.0~13.5 12 VDC 0.14 A 1.68 W 6100 RPM 36.0 dB(A) 3.60CFM (0.102 m3/min) 0.598inchH2O (15.20mmH2O)

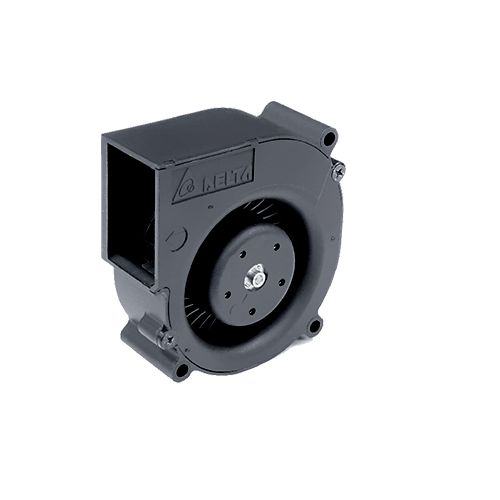

    BCB0812UHN-TP09 Rounded/Rect-75mm L x 80mm H 10.8 - 12.6 VDC 12 VDC 2.30 A 27.60 W 10800 RPM 69.3 dB(A) 30.16CFM (0.854 m3/min) 3.675inchH2O (93.35mmH2O)
    AUC0512DB-AF00 AUC0512DB-AF00 AUC0512DB-AF00 Square-50mm L X 50mm H 10.8 - 13.2 VDC 12 VDC 0.18 A 2.16 W 7400 RPM 38.5 dB(A) 20.22CFM (0.572 m3/min) 0.299inchH2O (7.58mmH2O)
    AUB1212H-CK15 Square-120mm L X 120mm H 10.8~13.2 12 VDC 0.27 A 3.24 W 2200 RPM 38.0 dB(A) 88.60CFM (2.51 m3/min) 0.161inchH2O (04.08mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912HH.jpg https://www.delta-fan.com/Download/Images/AUB0912HH.jpg AUB0912VH-CX09 Square-92mm L X 92mm H 10.8~13.2 12 VDC 0.38 A 4.56 W 3800 RPM 45.0 dB(A) 67.80CFM (1.920 m3/min) 0.302inchH2O (07.67mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812VH-SP00 Square-80mm L X 80mm H 10.8~13.2 12 VDC 0.19 A 2.28 W 3600 RPM 39.0 dB(A) 42.02CFM (1.190 m3/min) 0.217inchH2O (05.51mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812L-9X41 Square-80mm L X 80mm H 10.8~13.8 12 VDC 0.09 A 1.08 W 2400 RPM 25.0 dB(A) 27.90CFM (0.790 m3/min) 0.102 inH2O (02.59 mmH2O)
    AUB0812HHDXHN Square-80mm L X 80mm H 10.8~12.6 12 VDC 0.30 A 3.60 W 4500 RPM 43.0 dB(A) 51.46CFM (1.457 m3/min) 0.291inchH2O (07.38mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg ASB0305HP-00CP4 Square-30mm L X 30mm H 10.8 - 12.6 VDC 5 VDC 0.20 A 1.00 W 9500 RPM 29.0 dB(A) 5.10CFM (0.144 m3/min) 0.156inchH2O (3.96mmH2O)
    https://www.delta-fan.com/Download/Images/AFC120x25.40mm.jpg https://www.delta-fan.com/Download/Images/AFC120x25.40mm.jpg AFC1212D-SP19 Square-120mm L X 120mm H 10.8 - 12.6 VDC 12 VDC 0.32 A 3.84 W 3000 RPM 46.0 dB(A) 89.70CFM (2.540 m3/min) 0.338inchH2O (8.591mmH2O)
    AFC0948DE-TP20 AFC0948DE-TP20 AFC0948DE-TP20 Square-92mm L X 92mm H 36.0 - 75.0 VDC 48 VDC 0.60 A 28.80 W 7500 RPM 67.0 dB(A) 159.36CFM (4.515 m3/min) 1.528inchH2O (38.082mmH2O)
    AFC0912DB-F00 AFC0912DB-F00 AFC0912DB-F00 Square-92mm L X 92mm H 7.0 - 12.6 VDC 12 VDC 0.31 A 3.72 W 3300 RPM 41.5 dB(A) 51.53CFM (1.453 m3/min) 0.156inchH2O (3.96mmH2O)
    AFC0912D-AF00 AFC0912D-AF00 AFC0912D-AF00 Square-92mm L X 92mm H 8.0 - 13.2 VDC 12 VDC 0.75 A 9.00 W 4800 RPM 53.0 dB(A) 102.59CFM (2.905 m3/min) 0.526inchH2O (13.35mmH2O)
    https://www.delta-fan.com/Download/Images/AFB70x20mm.png https://www.delta-fan.com/Download/Images/AFB70x20mm.png AFC0712DD-TP10 Square-70mm L X 70mm H 8.0 - 13.2 VDC 12 VDC 0.35 A 4.20 W 5000 RPM 44.3 dB(A) 46.86CFM (1.327 m3/min) 0.285inchH2O (7.24mmH2O)
    AFC0712DB-F00 AFC0712DB-F00 AFC0712DB-F00 Square-70mm L X 70mm H 8.0 - 13.2 VDC 12 VDC 0.35 A 4.20 W 6000 RFM 46.5 dB(A) 41.95CFM (1.188 m3/min) 0.327inchH2O (8.308mmH2O)
    AFC0612D-SP07 AFC0612D-SP07 AFC0612D-SP07 Square-60mm L X 60mm H 10.8 - 13.8 VDC 12 VDC 0.13 A 1.56 W 4250 RPM 34.0 dB(A) 23.38CFM (0.662 m3/min) 0.211inchH2O (5.35mmH2O)
    AFC0612DB-F00 AFC0612DB-F00 AFC0612DB-F00 Square-60mm L X 60mm H 8.0 - 13.2 VDC 12 VDC 0.33 A 3.96 W 7200 RFM 47.5 dB(A) 29.24CFM (0.828 m3/min) 0.517inchH2O (13.12mmH2O)
    https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg AFB1548VH-CD8G Rounded/Rect-172mm L x 150mm H 42.0~60.0 48 VDC 0.65 A 31.20 W 5000 RPM 65.0 dB(A) 305.043CFM (8.638 m3/min) 1.198inchH2O (30.426mmH2O)
    https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg AFB1512EHYVB Rounded/Rect-172mm L x 150mm H 10.0 - 13.2 VDC 12 VDC 3.00 A 36.00 W 4300 RPM 61.5 dB(A) 290.64CFM (8.230 m3/min) 0.821inchH2O (20.85mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1248VHE-TP18 Square-120mm L X 120mm H 34.0 - 56.0 VDC 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694inchH2O (17.635mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248VHE-T9LN Square-120mm L X 120mm H 34.0~56.0 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694inchH2O (17.635mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248SHEDC4 Square-120mm L X 120mm H 36.0~59.0 48 VDC 0.13 A 6.24 W 2300 RPM 40.0 dB(A) 103.24CFM (2.924 m3/min) 0.255inchH2O (06.50mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224GHEYNU Square-120mm L X 120mm H 21.6- 26.4 VDC 24 VDC 1.30 A 31.20 W 5200 RPM 62.0 dB(A) 240.96CFM (6.823 m3/min) 1.082inchH2O (27.483mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224EHE-EP Square-120mm L X 120mm H 21.6 ~ 26.4 24 VDC 0.85 A 20.40 W 4600 RPM 58.5 dB(A) 212.573CFM (6.019m3/min) 0.844inchH2O (21.427mmH2O)
    https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1212HHE-TP02 Square-120mm L X 120mm H 10.8 - 13.2 VDC 12 VDC 0.40 A 4.80 W 2900 RPM 44.0 dB(A) 120.07CFM (3.400 m3/min) 0.354inchH2O (09.00mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0824HB-F00.jpg https://www.delta-fan.com/Download/Images/AFB0824HB-F00.jpg AFB0824SHBAV1 Square-80mm L X 80mm H 14.0 -26.0 VDC 24 VDC 0.16 A 4.08 W 4000 RPM 42.5 dB(A) 42.73CFM (1.210 m3/min) 0.216inchH2O (5.49mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg AFB0812SH-TP12 Square-80mm L X 80mm H 10.0 - 13.2 VDC 12 VDC 0.30 A 3.60 W 4500 RPM 46.0 dB(A) 55.59CFM (1.574 m3/min) 0.38inchH2O (09.598mmH2O)
    https://www.delta-fan.com/Download/Images/AFB70x25.4mm-A.png https://www.delta-fan.com/Download/Images/AFB70x25.4mm-A.png AFB0712SHX02 Square-70mm L X 70mm H 5.0 - 13.8 VDC 12 VDC 0.65 A 7.80 W 6300 RPM 50.5 dB(A) 61.05CFM (1.729 m3/min) 0.625inchH2O (15.90mmH2O)
    AFB0705MC-00F0R Round-65.8mm Diameter 4.5 - 5.5 VDC 5 VDC 0.22 A 1.10 W 2900 RPM 28.1 dB(A) 22.09CFM (0.626 m3/min) 0.093 inchH2O (2.36 mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0648EH-TP27 Square-60mm L X 60mm H 36.0 - 60.0 VDC 48 VDC 0.14 A 6.72 W 6800 RPM 46.5 dB(A) 38.35CFM (1.086 m3/min) 0.544inchH2O (13.81mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0624EH-SP50 Square-60mm L X 60mm H 21.6 - 26.4 VDC 24 VDC 0.24 A 5.76 W 6800 RPM 46.5 dB(A) 38.35CFM (1.086 m3/min) 0.544inchH2O (13.81mmH2O)
    https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612DH-TP11 Square-60mm L X 60mm H 10.8 - 13.2 VDC 12 VDC 0.84 A 10.08 W 9000 RPM 55.0 dB(A) 50.40CFM (1.427 m3/min) N/A
    AFB0512HB-TP41 AFB0512HB-TP41 AFB0512HB-TP41 Square-50mm L X 50mm H 10.8 - 13.2 VDC 12 VDC 0.10 A 1.44 W 6300 RPM 34.0 dB(A) 17.97CFM (0.509 m3/min) 0.230inchH2O (5.84mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg AFB0412VHB-TP29 Square-40mm L X 40mm H 7.0 - 13.8 VDC 12 VDC 0.18 A 2.16 W 9500 RPM 36.5 dB(A) 13.00CFM (0.368 m3/min) 0.459inchH2O (11.66mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg AFB0412VHB-TP25 Square-40mm L X 40mm H 7.0 - 13.8 VDC 12 VDC 0.18 A 2.16 W 9500 RPM 36.5 dB(A) 13.00CFM (0.368 m3/min) 0.459inchH2O (11.66mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg AFB0412VHA-DU48 Square-40mm L X 40mm H 7.0 - 15.0 VDC 12 VDC 0.06 A 1.08 W 8000 RPM 33.0 dB(A) 8.81CFM (0.250 m3/min) 0.224inchH2O (5.678mmH2O)
    https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg https://www.delta-fan.com/Download/Images/AFB0412_AFB40x15mm.jpg AFB0412SHB-SP04 Square-40mm L X 40mm H 7.0 - 13.8 VDC 12 VDC 0.25 A 3.00 W 11000 RPM 41.5 dB(A) 14.83CFM (0.420 m3/min) 0.601inchH2O (15.26mmH2O)
    BSB0205HP-00EFG BSB0205HP-00EFG BSB0205HP-00EFG Square-20mm L X 20mm H N/A 5 VDC 0.08 A 0.40 W 12000 RPM 35.9 dB(A) 0.57CFM (0.016 m3/min) 0.144inchH2O (3.66mmH2O)
    bfm1012uhff8 bfm1012uhff8 BFM1012UHFF8 Rounded/Rect-96.6mm L x 94.3mm H 10.8~12.6 12 VDC 5.80 A 69.60 W 8700 RPM 70.5 dB(A) 66.03CFM (1.785 m3/min) 6.806inchH2O (172.86mmH2O)
    TFC0424EN-01EGG Square-40mm L X 40mm H 22.0 - 26.0 VDC 24 VDC 0.25 A 6.00 W 18300 RPM 55.0 dB(A) 21.11CFM (0.598 m3/min) 1.979inchH₂O (50.28 mmH₂O)
    https://www.delta-fan.com/Download/Images/BFB04512HHA-DV52.jpg https://www.delta-fan.com/Download/Images/BFB04512HHA-DV52.jpg BFB04512HHA-DV52 Square-45mm L X 45mm H 5.0 - 13.5 VDC 12 VDC 0.14 A 1.68 W 6100 RPM 36.0 dB(A) 3.60CFM (0.102 m3/min) 0.598inchH2O (15.20mmH2O)
    https://www.delta-fan.com/Download/Images/PFB0412EN-E.jpg https://www.delta-fan.com/Download/Images/PFB0412EN-E.jpg PFB0412EN-E Square-40mm L X 40mm H 10.8 ~ 13.2 VDC 12 VDC 4.00 A 31.20 W 32500 RPM 70.5 dB(A) 38.00 CFM (1.076 m3/min) 7.430inchH2O (188.72mmH2O)
    GFB0412ES-E GFB0412ES-E GFB0412ES-E Square-40mm L X 40mm H 10.8 ~ 13.2 VDC 12 VDC 3.25 A 39.00 W 29500 RPM 73.0 dB(A) 33.90CFM (0.960 m3/min) 6.440inchH2O (163.58mmH2O)
    GFB0812ES-E GFB0812ES-E GFB0812ES-E Square-80mm L X 80mm H 10.8 ~ 13.2 VDC 12 VDC 4.50 A 54.00 W 16300 RPM 79.0 dB(A) 136.00CFM (3.853 m3/min) 5.899inchH2O (149.82mmH2O)
    https://www.delta-fan.com/Download/Images/PFB0612EE-E.jpg https://www.delta-fan.com/Download/Images/PFB0612EE-E.jpg PFB0612EE-E Square-60mm L X 60mm H 10.8 ~ 13.2 VDC 12 VDC 3.50 A 42.00 W 25500 RPM 68.6 dB(A) 77.31CFM (2.165 m3/min) 7.310inchH2O (185.67mmH2O)
    https://www.delta-fan.com/Download/Images/GFB0612ES-E.jpg https://www.delta-fan.com/Download/Images/GFB0612ES-E.jpg GFB0612ES-E Square-60mm L X 60mm H 10.8 ~ 13.2 VDC 12 VDC 4.15 A 49.80 W 24300 RPM 82.0 dB(A) 76.51CFM (2.170 m3/min) 9.73inchH2O (247.14mmH2O)
    GFB0912ES-E GFB0912ES-E GFB0912ES-E Square-92mm L X 92mm H 10.8 ~ 13.2 12 VDC 3.95 A 47.40 W 11400 RPM 78.5 dB(A) 165.44CFM (4.685 m3/min) 4.670inchH2O (118.62mmH2O)
    BFB0712HH-AWPH BFB0712HH-AWPH BFB0712HH-AWPH Rounded/Rect-75.7mm L x 75.7mm H 7.0 - 13.8 VDC 12 VDC 0.34 A 4.08 W 4400 RPM 51.0 dB(A) 15.32CFM (0.434 m3/min) 0.977inchH2O (24.816mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB0305HP-00CP4.jpg ASB0305HP-00 Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.20 A 1.00 W 9500 RPM 29.0 dB(A) 5.10CFM (0.144 m3/min) 0.156inchH2O (3.96mmH2O)
    https://www.delta-fan.com/Download/Images/Mini_Fans/KDB0305HA3-00C1J.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/KDB0305HA3-00C1J.jpg KDB0305HA3-00 Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.35 A 1.75 W 12500 RPM 42.0 dB(A) @ 0.5M 0.95CFM (0.027 m3/min) 0.946inchH2O (24.02mmH2O)
    AUB0912HJ-00 AUB0912HJ-00 AUB0912HJ-00 Square-92mm L X 92mm H 10.8 - 13.2 VDC 12 VDC 0.35 A 4.20 W 4600 RPM 45.0 dB(A) 69.02CFM (1.955 m3/min) 0.407 inchH2O (10.340 mm H2O)
    BUB0712HD-SM BUB0712HD-SM BUB0712HD-SM Rounded/Rect-73mm L X 75mm H 10.8 - 12.6 VDC 12 VDC 0.26 A 3.12 W 3800 RPM 41.5 dB(A) 10.21CFM (0.289 m3/min) 0.831 inchH2O (21.100 mm H2O)
    BUB0812HN-00 BUB0812HN-00 BUB0812HN-00 Square-80mm L X 80mm H 10.8 - 13.2 VDC 12 VDC 0.50 A 6.00 W 4300 RPM 44.5 dB(A) 18.84CFM (0.534 m3/min) 1.350 inchH2O (34.300 mm H2O)
    EUB0912HF-03P1 EUB0912HF-03P1 EUB0912HF-03P1 Square-92mm L X 92mm H 10.8 - 13.2 VDC 12 VDC 0.13 A 1.44 W 3350 RPM 33.5 dB(A) 47.00CFM (1.330 m3/min) 0.227 inchH2O (5.770 mm H2O)
    EUB1312HE-10P1 EUB1312HE-10P1 EUB1312HE-10P1 Square-125mm L X 125mm H 10.8 - 13.2 VDC 12 VDC 0.13 A 1.56 W 2200 RPM 32.0 dB(A) 79.867CFM (2.260 m3/min) 0.184 inchH2O (4.660 mm H2O)
    KSB1212ME-03P1 KSB1212ME-03P1 KSB1212ME-03P1 Round-120mm Diameter 10.8 - 13.2 VDC 12 VDC 0.19 A 2.28 W 1800 RPM 36.2 dB(A) 44.91CFM (1.272 m3/min) 0.300 inchH2O (7.620 mm H2O)
    KSB0405HBF0D KSB0405HBF0D KSB0405HBF0D Round-40mm Diameter N/A 5 VDC 0.16 A 0.80 W 3150 RPM 31.0 dB(A) 1.19CFM (0.034 m3/min) 0.008 inchH2O (2.28 mmH2O)
    KFB04512HHAF0C KFB04512HHAF0C KFB04512HHAF0C Round-49mm Diameter N/A 12 VDC 0.15 A 2.16 W 5000 RPM 28.5 dB(A) 4.29CFM (0.121 m3/min) 0.171inchH2O (04.33mmH2O)
    KFB0612HAFDB KFB0612HAFDB KFB0612HAFDB Round-60mm Diameter N/A 12 VDC 0.15 A 1.80 W 3300 RFM 36.7 dB(A) 9.15CFM (0.274 m3/min) 0.634inchH2O (16.10mmH2O)
    THD1348HE THD1348HE THD1348HE Square-134mm L X134mm H 36.0-60.0 48 VDC 5.00 A 240.00 W 12500 RPM 82.0 dB(A) 490.00CFM (13.870 m3/min) 7.10inchH2O (180.34mmH2O)
    EFB0424VHD-CP0 EFB0424VHD-CP0 EFB0424VHD-CP0 Square-40mm L X 40mm H 14.0 - 26.5 VDC 24 VDC 0.06 A 1.44 W 9000 RPM 37.3 dB(A) 9.36CFM (0.266 m3/min) 0.368 inchH2O (9.346mmH2O)
    QFR0624DHP0 QFR0624DHP0 QFR0624DHP0 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.35 A 8.40 W 10600 RPM 55.0 dB(A) 49.50CFM (1.402 m3/min) 1.043inchH2O (26.50mmH2O)
    QFR0624UHP0 QFR0624UHP0 QFR0624UHP0 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.23 A 5.52 W 9000 RPM 50.0 dB(A) 42.00CFM (1.189 m3/min) 0.767inchH2O (1950mmH2O)
    QFR0624GHP0 QFR0624GHP0 QFR0624GHP0 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.16 A 3.84 W 7600 RPM 47.0 dB(A) 34.78CFM (0.98 m3/min) 0.570 inchH2O (14.48 mmH2O)
    QFR0624EHP0 QFR0624EHP0 QFR0624EHP0 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.10 A 2.40 W 6000 RPM 39.5 dB(A) 27.50CFM (0.778 m3/min) 0.360 inchH2O (9.14 mm H2O)
    QFR0624UHP6 QFR0624UHP6 QFR0624UHP6 Square-60mm L X 60mm H 16.0 - 26.4 VDC 24 VDC 0.26 A 6.24 W 9000 RPM 50.0 dB(A) 41.30CFM (1.170 m3/min) 0.742 inchH2O (18.84 mm H2O)
    QFR0824UHP0 QFR0824UHP0 QFR0824UHP0 Square-80mm L X 80mm H 14.0 - 27.6 VDC 24 VDC 0.23 A 5.52 W 5400 RPM 50.0 dB(A) 65.55CFM (1.854 m3/min) 0.488 inchH2O (12.40 mm H2O)

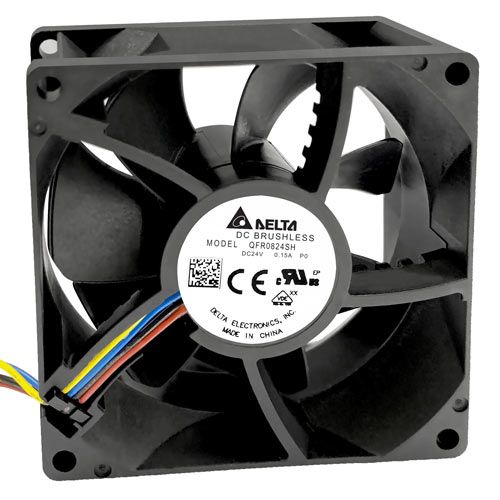

    QFR0824SHP0 QFR0824SHP0 QFR0824SHP0 Square-80mm L X 80mm H 14.0 - 27.6 VDC 24 VDC 0.15 A 3.60 W 4300 RPM 44.2 dB(A) 52.38CFM (1.482 m3/min) 0.324 inchH2O (8.23 mm H2O)
    QFR0824HHP0 QFR0824HHP0 QFR0824HHP0 Square-80mm L X 80mm H 14.0 - 27.6 VDC 24 VDC 0.23 A 5.52 W 3300 RPM 50.0 dB(A) 39.60CFM (1.120 m3/min) 0.488 inchH2O (12.40 mm H2O)
    QFR0812GJ-00P0 QFR0812GJ-00P0 QFR0812GJ-00P0 Square-80mm L X 80mm H 7.0 - 13.8 VDC 12 VDC 0.97 A 11.64 W 8000 RPM 57.5 dB(A) 88.44CFM (2.720 m3/min) 0.805 inchH2O (20.46 mm H2O)

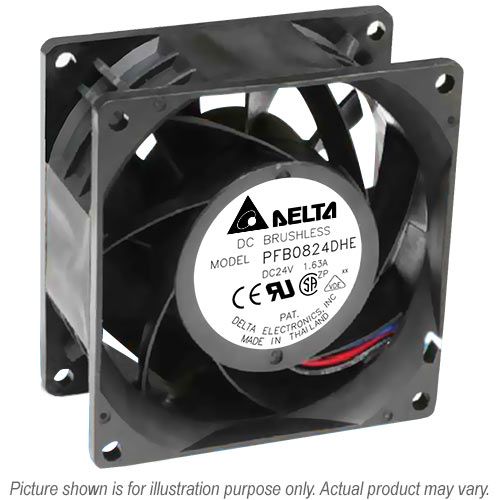

    PFB0824DHEP0 PFB0824DHEP0 PFB0824DHEP0 Square-80mm L X 80mm H 14.0 - 27.6 VDC 24 VDC 1.26 A 30.24 W 9000 RPM 65.0 dB(A) 132.56CFM (3.754 m3/min) 2.030inchH2O (51.57mmH2O)
    PFB0824UHEP0 PFB0824UHEP0 PFB0824UHEP0 Square-80mm L X 80mm H 14.0 - 27.6 VDC 24 VDC 0.77 A 18.48 W 7500 RPM 61.0 dB(A) 107.30CFM (3.038 m3/min) 1.368inchH2O (34.75mmH2O)
    QFR0912GJ-00P0 QFR0912GJ-00P0 QFR0912GJ-00P0 Square-92mm L X 92mm H 7.0 - 13.8 VDC 12 VDC 0.71 A 8.52 W 5600 RPM 51.0 dB(A) 93.67CFM (2.650 m3/min) 0.513 inchH2O (13.05 mm H2O)
    PFB0924DHEP0 PFB0924DHEP0 PFB0924DHEP0 Square-92mm L X 92mm H 21.6 - 26.4 VDC 24 VDC 1.45 A 34.80 W 8000 RPM 66.5 dB(A) 175.03CFM (4.957 m3/min) 1.819inchH2O (46.21mmH2O)
    PFB0924DHEP6 PFB0924DHEP6 PFB0924DHEP6 Square-92mm L X 92mm H 21.6 - 26.4 VDC 24 VDC 1.10 A 26.40 W 7200 RFM 63.7 dB(A) 151.50CFM (4.290 m3/min) 1.395 inchH2O (35.43 mm H2O)
    PFB1224SE-00P0 PFB1224SE-00P0 PFB1224SE-00P0 Square-120mm L X 120mm H 14.0 - 27.6 VDC 24 VDC 2.10 A 50.40 W 7500 RPM 70.0 dB(A) 265.43CFM (7.517 m3/min) 2.070 inchH2O (52.58 mm H2O)
    PFB1224HE-00P0 PFB1224HE-00P0 PFB1224HE-00P0 Square-120mm L X 120mm H 14.0 - 27.6 VDC 24 VDC 1.00 A 24.00 W 5800 RPM 65.0 dB(A) 201.41CFM (5.704 m3/min) 1.480 inchH2O (37.59 mm H2O)
    THD2048HT THD2048HT THD2048HT Round-200mm Diameter 36.0~75.0 48 VDC 8.00 A 384.00 W 7400 RPM 78.0 dB(A) 1026.80CFM (29.06 m3/min) 4.945inchH2O (125.61mmH2O)
    THD0848ME THD0848ME THD0848ME Square-80mm L X 80mm H 36.0~75.0 48 VDC 0.55 A 26.40 W 9500 RPM 60.0 dB(A) 128.00CFM (3.626 m3/min) 1.476inchH2O (37.50mmH2O)
    THD1248HE THD1248HE THD1248HE Square-120mm L X 120mm H 32.0 ~ 59.0 48 VDC 2.20 A 105.82 W 10900 RPM 75.0 dB(A) 287.00CFM (8.122 m3/min) 4.40inchH2O (111.764mmH2O)
    THD0948HE-A THD0948HE-A THD0948HE-A Square-92mm L X 92mm H 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435inchH2O (87.24mmH2O)
    THB1748BG THB1748BG THB1748BG Round-172mm Diameter N/A 48 VDC 3.50 A 168.00 W 8000 RPM 75.0 dB(A) 607.07CFM (17.170 m3/min) 4.136inchH2O (105.5mmH2O)
    QFR1212GHEXUM QFR1212GHEXUM QFR1212GHEXUM Square-120mm L X 120mm H 10.8 - 12.6 VDC 12 VDC 1.80 A 21.60 W 6000 RFM 64.0 dB(A) 210.38CFM (5.957 m3/min) 1.170inchH2O (29.179mmH2O)
    QFR1212GHE QFR1212GHE QFR1212GHE Square-120mm L X 120mm H 8.0 - 13.2 VDC 12 VDC 1.80 A 21.60 W 6000 RFM 64.0 dB(A) 210.38CFM (5.957 m3/min) 1.170inchH2O (29.179mmH2O)
    QFR0824UHP6 QFR0824UHP6 QFR0824UHP6 Square-80mm L X 80mm H 14.0 - 26.4 VDC 24 VDC 0.23 A 5.52 W 5300 RPM 49.6 dB(A) 62.18CFM (1.759 m3/min) 0.475inchH2O (12.06mmH2O)

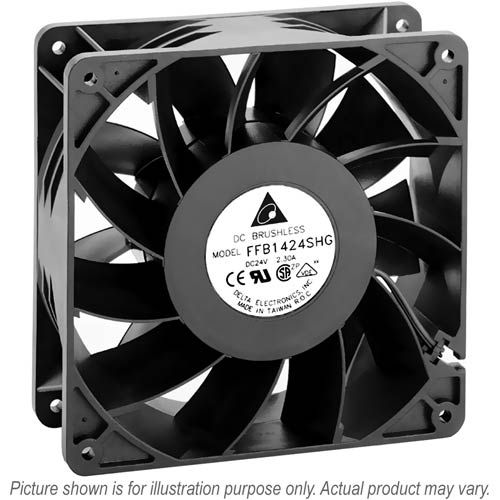

    FFB1424VHG-EP FFB1424VHG-EP FFB1424VHG-EP Square-139.7mm L X 139.7mm H N/A 24 VDC 1.00 A 24.00 W 3200 RPM 58.5 dB(A) 252.11CFM (7.139 m3/min) 0.644inchH2O (16.36mmH2O)
    FFC0612DE-PP01 FFC0612DE-PP01 FFC0612DE-PP01 Square-60mm L X 60mm H 7.0 - 13.2 VDC 12 VDC 0.90 A 10.80 W 9000 RPM 60.0 dB(A) 54.79CFM (1.550 m3/min) 1.182inchH2O (30.02mmH2O)
    https://www.delta-fan.com/Download/Images/FFC0812-80x38mm.jpg https://www.delta-fan.com/Download/Images/FFC0812-80x38mm.jpg FFC0812DE-F00 Square-80mm L X 80mm H N/A 12 VDC 1.50 A 18.00 W 7500 RPM 62.2 dB(A) 102.02CFM (2.889 m3/min) 1.233inchH2O (31.32mmH2O)
    FFC0912DE-TP04 FFC0912DE-TP04 FFC0912DE-TP04 Square-92mm L X 92mm H N/A 12 VDC 0.80 A 9.60 W 4800 RPM 55.0 dB(A) 110.18CFM (3.120 m3/min) 0.665inchH2O (16.90mmH2O)
    FFC0948BY7T FFC0948BY7T FFC0948BY7T Square-92mm L X 92mm H N/A 48 VDC 0.17 A 8.16 W 3900 RPM 49.5 dB(A) 86.40CFM (2.448 m3/min) 0.355inchH2O (09.01mmH2O)

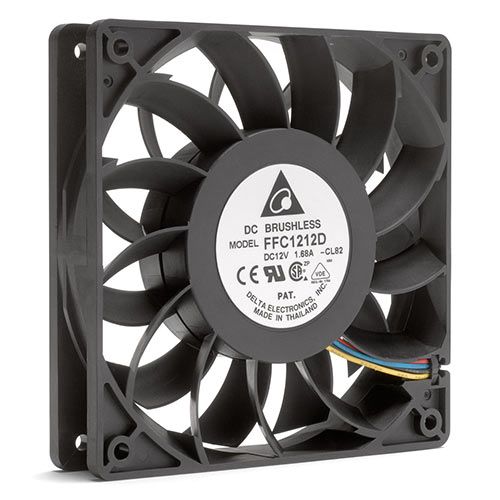

    FFC1212D-F00 FFC1212D-F00 FFC1212D-F00 Square-120mm L X 120mm H N/A 12 VDC 1.45 A 17.40 W 4000 RPM 56.4 dB(A) 150.33CFM (4.257 m3/min) 0.489inchH2O (12.43mmH2O)
    QFR0812SH-CX13 QFR0812SH-CX13 QFR0812SH-CX13 Square-80mm L X 80mm H 5.0 - 13.2 VDC 12 VDC 0.33 A 3.96 W 4300 RPM 41.2 dB(A) 54.57CFM (1.545 m3/min) 0.331inchH2O (8.400mmH2O)
    GFC0412DS-DF00 GFC0412DS-DF00 GFC0412DS-DF00 Square-40mm L X 40mm H N/A 12 VDC 1.30 A 15.60 W 16000 RPM 64.5 dB(A) 32.179CFM (0.911 m3/min) 2.631inchH2O (66.824mmH2O)
    GFC0812DS-CMA8 GFC0812DS-CMA8 GFC0812DS-CMA8 Square-80mm L X 80mm H N/A 12 VDC 2.17 A 26.04 W 12000 RPM 72.6 dB(A) 90.12CFM (2.552 m3/min) 3.827inchH2O (97.21mmH2O)
    GFC0812DW-SM00B7P GFC0812DW-SM00B7P GFC0812DW-SM00B7P Square-80mm L X 80mm H N/A 12 VDC 5.20 A 62.40 W 12000 RPM 74.5 dB(A) 90.12CFM (2.552 m3/min) 4.170inchH2O (105.94mmH2O)

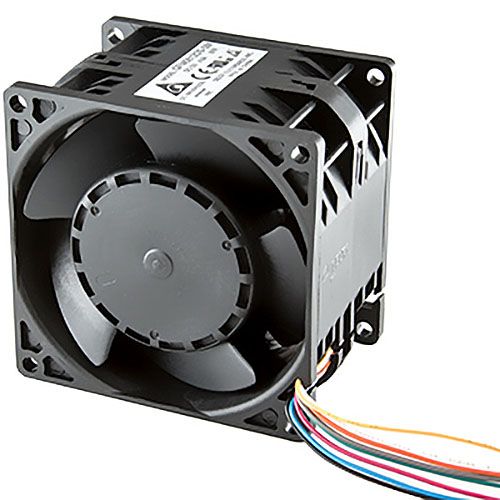

    GFM0812DS-SMB7R GFM0812DS-SMB7R GFM0812DS-SMB7R Square-80mm L X 80mm H N/A 12 VDC 2.40 A 28.80 W 12500 RPM 73.3 dB(A) 93.23CFM (2.640 m3/min) 4.485inchH2O (113.91mmH2O)
    GFM0812DUB7S GFM0812DUB7S GFM0812DUB7S Square-80mm L X 80mm H N/A 12 VDC 9.00 A 18.00 W 13800 RPM 82.5 dB(A) 190.63CFM (5.398 m3/min) 5.749inchH2O (146.04mmH2O)
    KFB2348HHU-EP
KFB2348HHU-EP
KFB2348HHU-EP Round-225mm Diameter N/A 48 VDC 2.20 A 105.60 W 2600 RPM 71.0 dB(A) 735.08CFM (20.853 m3/min) 1.990inchH2O (50.54mmH2O)
    KDB0305HA3-00C1J KDB0305HA3-00C1J KDB0305HA3-00C1J Square-30mm L X 30mm H 4.5 - 5.5 VDC 5 VDC 0.35 A 1.75 W 12500 RPM 42.0 dB(A) 0.95CFM (0.027 m3/min) 0.946inchH2O (24.02mmH2O)
    PFB0412EHN-TP06 PFB0412EHN-TP06 PFB0412EHN-TP06 Square-40mm L X 40mm H N/A 12 VDC 0.50 A 6.00 W 16000 RPM 54.5 dB(A) 21.83CFM (0.618 m3/min) 1.431inchH2O (36.334mmH2O)
    THA0412AD-TZW3 Square-40mm L X 40mm H N/A 12 VDC 0.43 A 5.16 W 15600 RPM 52.0 dB(A) 20.56CFM (0.582 m3/min) 1.385inchH2O (35.16mmH2O)
    PFB0812DHE-TYNT PFB0812DHE-TYNT PFB0812DHE-TYNT Square-80mm L X 80mm H N/A 12 VDC 2.75 A 33.00 W 9000 RPM 66.0 dB(A) 132.60CFM (3.754 m3/min) 2.030inchH2O (51.57mmH2O)
    PFB0812UHE-EP PFB0812UHE-EP PFB0812UHE-EP Square-80mm L X 80mm H 10.2 - 13.8 12 VDC 0.99 A 11.88 W 6550 RPM 57.5 dB(A) 91.87CFM (2.601 m3/min) 0.974inchH2O (24.74mmH2O)
    PFB0824DHEYDG PFB0824DHEYDG PFB0824DHEYDG Square-80mm L X 80mm H 12.0 - 27.6 VDC 24 VDC 1.35 A 32.40 W 9000 RPM 65.0 dB(A) 132.56CFM (3.754 m3/min) 2.030inchH2O (51.57mmH2O)
    PFB0948UHE-TP16 PFB0948UHE-TP16 PFB0948UHE-TP16 Square-92mm L X 92mm H N/A 48 VDC 0.52 A 24.96 W 7000 RPM 64.0 dB(A) 153.52CFM (4.347 m3/min) 1.449inchH2O (36.79mmH2O)
    PFB1248XHE-TP17 PFB1248XHE-TP17 PFB1248XHE-TP17 Square-120mm L X 120mm H N/A 48 VDC 1.60 A 76.80 W 7000 RPM 72.5 dB(A) 306.92CFM (8.691 m3/min) 2.175inchH2O (55.235mmH2O)
    PFC0612DE-F00 PFC0612DE-F00 PFC0612DE-F00 Square-60mm L X 60mm H N/A 12 VDC 1.40 A 16.80 W 12000 RPM 61.5 dB(A) 67.85CFM (1.922 m3/min) 2.129inchH2O (54.10mmH2O)
    PFC0812DE-SP04 PFC0812DE-SP04 PFC0812DE-SP04 Square-80mm L X 80mm H N/A 12 VDC 2.75 A 33.00 W 9000 RPM 65.0 dB(A) 132.56CFM (3.754 m3/min) 2.030inchH2O (51.57mmH2O)
    PFC0812DE-SP07 PFC0812DE-SP07 PFC0812DE-SP07 Square-80mm L X 80mm H N/A 12 VDC 0.80 A 9.60 W 6000 RPM 54.4 dB(A) 86.65CFM (2.454 m3/min) 0.895inchH2O (22.733mmH2O)
    PFC1212DE-F00 Square-120mm L X 120mm H N/A 12 VDC 4.00 A 48.00 W 5500 RPM 66.5 dB(A) 252.85CFM (7.160 m3/min) 1.412inchH2O (35.877mmH2O)
    QFR1248GHE-SP01 QFR1248GHE-SP01 QFR1248GHE-SP01 Square-120mm L X 120mm H 33.0 - 52.8 VDC 48 VDC 0.50 A 24.00 W 6000 RPM 64.0 dB(A) 210.38CFM (5.957 m3/min) 1.170inchH2O (29.179mmH2O)
    PFC1224DE-F00 PFC1224DE-F00 PFC1224DE-F00 Round-120mm Diameter N/A 24 VDC 2.00 A 48.00 W 5500 RPM 66.5 dB(A) 252.85CFM (7.160 m3/min) 1.412inchH2O (35.877mmH2O)
    PFM0412HSA05 PFM0412HSA05 PFM0412HSA05 Square-40mm L X 40mm H N/A 12 VDC 1.00 A 12.00 W 24000 RPM 59.5 dB(A) 28.89CFM (0.818 m3/min) 3.53inchH2O (89.700mmH2O)
    PFM0612XHEB7T PFM0612XHEB7T PFM0612XHEB7T Square-60mm L X 60mm H 10.8 - 12.6 VDC 12 VDC 1.15 A 13.80 W 18500 RPM 65.1 dB(A) 64.44CFM (1.825 m3/min) 2.343inchH2O (59.52mmH2O)
    PFM0812HE-01BFY PFM0812HE-01BFY PFM0812HE-01BFY Square-80mm L X 80mm H N/A 12 VDC 4.30 A 51.60 W 16300 RPM 77.0 dB(A) 129.42CFM (3.665 m3/min) 4.969inchH2O (126.22mmH2O)
    PFM1412DEB7V PFM1412DEB7V PFM1412DEB7V Square-139.7mm L X 139.7mm H 10.8 - 12.8 VDC 12 VDC 3.90 A 46.80 W 6500 RPM 70.0 dB(A) 282.31CFM (7.994 m3/min) 2.033inchH2O (51.65mmH2O)
    PFR0612DHE-SP00 PFR0612DHE-SP00 PFR0612DHE-SP00 Square-60mm L X 60mm H N/A 12 VDC 1.60 A 19.20 W 14500 RPM 63.3 dB(A) 65.98CFM (1.868 m3/min) 2.502inchH2O (63.56mmH2O)
    THA1248BE THA1248BE THA1248BE Square-120mm L X 120mm H N/A 48 VDC 2.07 A 99.36 W 7600 RPM 72.0 dB(A) 318.19CFM (9.010 m3/min) 3.091inchH2O (78.50mmH2O)
     PFR0612XHE-SP00  PFR0612XHE-SP00 PFR0612XHE-SP00 Square-60mm L X 60mm H N/A 12 VDC 2.30 A 27.60 W 16500 RPM 67.7 dB(A) 76.16CFM (2.157 m3/min) 3.185inchH2O (80.90mmH2O)
    PFR0812XHE-SP00 PFR0812XHE-SP00 PFR0812XHE-SP00 Square-80mm L X 80mm H N/A 12 VDC 3.50 A 42.00 W 13300 RPM 71.5 dB(A) 134.292CFM (3.800 m3/min) 3.00inchH2O (76.20mmH2O)
    PFR0848XHE-DV82 PFR0848XHE-DV82 PFR0848XHE-DV82 Square-80mm L X 80mm H N/A 48 VDC 1.00 A 48.00 W 13800 RPM 73.0 dB(A) 144.18CFM (4.080 m3/min) 3.457inchH2O (87.80mmH2O)
    PFR0912XHE-SP00 Square-92mm L X 92mm H N/A 12 VDC 3.70 A 44.40 W 11500 RPM 71.0 dB(A) 185.55CFM (5.255 m3/min) 2.523inchH2O (64.10mmH2O)
    PFR1212DHE-SP00 PFR1212DHE-SP00 PFR1212DHE-SP00 Square-120mm L X 120mm H N/A 12 VDC 3.70 A 44.40 W 7400 RPM 68.5 dB(A) 254.34CFM (7.202 m3/min) 1.438inchH2O (36.513mmH2O)
    PFR1212UHE-SP00 PFR1212UHE-SP00 PFR1212UHE-SP00 Square-120mm L X 120mm H N/A 12 VDC 2.70 A 32.40 W 6600 RPM 65.5 dB(A) 228.65CFM (6.475 m3/min) 1.206inchH2O (30.636mmH2O)
    QFR0812DE-F00 QFR0812DE-F00 QFR0812DE-F00 Square-80mm L X 80mm H 10.8 - 13.2 VDC 12 VDC 1.15 A 13.80 W 9000 RPM 60.0 dB(A) 105.21CFM (2.991m3/min) 1.335inchH2O (33.91mmH2O)
    QFR1224GHE-SP01 QFR1224GHE-SP01 QFR1224GHE-SP01 Square-120mm L X 120mm H 16.0 - 26.4 VDC 24 VDC 0.94 A 22.56 W 6000 RPM 64.0 dB(A) 210.38CFM (5.957 m3/min) 1.170inchH2O (29.179mmH2O)
    QFR0812UH-CX14 QFR0812UH-CX14 QFR0812UH-CX14 Square-80mm L X 80mm H 10.8 - 12.6 VDC 12 VDC 0.55 A 6.60 W 5600 RPM 50.5 dB(A) 70.24CFM (1.989 m3/min) 0.551inchH2O (13.99mmH2O)
    QFR0812UHEYDW QFR0812UHEYDW QFR0812UHEYDW Square-80mm L X 80mm H 10.8 - 13.2 VDC 12 VDC 1.15 A 13.80 W 9000 RPM 60.0 dB(A) 105.21CFM (2.979 m3/min) 1.335inchH2O (33.91mmH2O)
    QFR0912VH-SP00 QFR0912VH-SP00 QFR0912VH-SP00 Square-92mm L X 92mm H 10.8 - 13.2 VDC 12 VDC 0.40 A 4.80 W 4200 RPM 45.0 dB(A) 70.24CFM (1.989 m3/min) 0.551inchH2O (13.99mmH2O)
    QFR1224GHEYPR QFR1224GHEYPR QFR1224GHEYPR Square-120mm L X 120mm H 21.6 - 26.4 VDC 24 VDC 0.91 A 21.84 W 6000 RPM 64.5 dB(A) 195.68CFM (5.542 m3/min) 1.028inchH2O (26.105mmH2O)
    THD0948HE-AXHH THD0948HE-AXHH THD0948HE-AXHH Square-92mm L X 92mm H 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435inchH2O (87.24mmH2O)
    TFA0412BN-CN TFA0412BN-CN TFA0412BN-CN Square-40mm L X 40mm H N/A 12 VDC 0.42 A 5.04 W 15600 RPM 50.8 dB(A) 22.20CFM (0.629 m3/min) 1.617inchH2O (41.08mmH2O)
    TFA0412CN-CN TFA0412CN-CN TFA0412CN-CN Square-40mm L X 40mm H 7.0 - 13.2 VDC 12 VDC 0.60 A 7.20 W 17600 RPM 55.0 dB(A) 25.29CFM (0.717 m3/min) 1.868inchH2O (47.44mmH2O)
    THA0412AD THA0412AD THA0412AD Square-40mm L X 40mm H N/A 12 VDC 0.43 A 5.16 W 15600 RPM 52.0 dB(A) 20.56CFM (0.582 m3/min) 1.385inchH2O (35.16mmH2O)
    THA0412BN THA0412BN THA0412BN Square-40mm L X 40mm H N/A 12 VDC 0.89 A 10.68 W 19000 RPM 59.0 dB(A) 29.52CFM (0.830 m3/min) 2.40inchH2O (61.06mmH2O)
    THB0648BE THB0648BE THB0648BE Square-60mm L X 60mm H 36.0 - 60.0 VDC 48 VDC 0.34 A 16.32 W 14700 RPM 61.5 dB(A) 68.60CFM (1.943 m3/min) 2.886inchH2O (73.30mmH2O)
    THB1212B-AXHF THB1212B-AXHF THB1212B-AXHF Square-120mm L X 120mm H 7.0 - 15.0 VDC 12 VDC 1.60 A 19.20 W 5300 RPM 59.0 dB(A) 184.20CFM (5.218 m3/min) 0.899inchH2O (22.83mmH2O)
    THB1224B-PM00 THB1224B-PM00 THB1224B-PM00 Square-120mm L X 120mm H 18.0 - 27.5 VDC 24 VDC 0.95 A 22.80 W 8300 RPM 65.0 dB(A) 174.73CFM (4.948 m3/min) 2.139inchH2O (54.33mmH2O)
    THB1248B-A THB1248B-A THB1248B-A Square-120mm L X 120mm H 36.0 -75.0 VDC 48 VDC 0.40 A 19.20 W 5300 RPM 59.0 dB(A) 186.57CFM (5.285 m3/min) 0.962inchH2O (24.43mmH2O)
    THB1248CE THB1248CE THB1248CE Square-120mm L X 120mm H 36.0 - 60.0 VDC 48 VDC 0.95 A 45.60 W 7800 RPM 70.0 dB(A) 262.00CFM (7.360 m3/min) 2.025inchH2O (51.44mmH2O)
    THB1448AE THB1448AE THB1448AE Square-139.7mm L X 139.7mm H 36.0 - 60.0 VDC 48 VDC 1.10 A 52.80 W 6100 RPM 66.8 dB(A) 325.90CFM (9.230 m3/min) 1.650inchH2O (41.85mmH2O)
    THB1548AG THB1548AG THB1548AG Rounded/Rect-172mm L x 150mm H 36.0 - 60.0 VDC 48 VDC 3.00 A 144.00 W 7500 RPM 77.0 dB(A) 527.37CFM (14.930 m3/min) 3.776inchH2O (95.92mmH2O)
    THB1548DG-CXKQ Rounded/Rect-172mm L x 150mm H 24.0 - 72.0 VDC 48 VDC 1.57 A 75.36 W 5800 RPM 70.0 dB(A) 410.51CFM (11.624 m3/min) 2.085inchH2O (52.97mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Slim Heat Pipe / Vapor Chamber

    Slim heat pipes and slim vapor chambers are the latest in Delta’s high-efficiency heat transfer solutions. Developed for low profile laptops, tablets, and handheld devices, the slim heat pipes and vapor chambers transport large amounts of heat with very small temperature gradients.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    ASB03512HB-F00 Square-35mm L X 35mm H N/A 12 VDC 0.11 A 1.32 W N/A 37.0 dB(A) 9.50CFM (0.270 m3/min) 0.327inchH2O (8.305mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Superflo Bearing

    The Superflo Bearing System represents a mechanical advancement in sleeve bearing systems, featuring a permanently lubricated spinning mechanism for Delta fans. The Superflo system includes an anti-gravity oil pump that re-circulates and recycles the oil in a sealed chamber with dual labyrinth seals.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    AUB1212H-CK15 Square-120mm L X 120mm H 10.8~13.2 12 VDC 0.27 A 3.24 W 2200 RPM 38.0 dB(A) 88.60CFM (2.51 m3/min) 0.161inchH2O (04.08mmH2O)
    AUB0924VH-A Square-92mm L X 92mm H 14.8~26.4 24 VDC 0.25 A 6.00 W 3800 RPM 46.0 dB(A) 81.47CFM (2.307 m3/min) 0.345inchH2O (08.76mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912HH.jpg https://www.delta-fan.com/Download/Images/AUB0912HH.jpg AUB0912VH-CX09 Square-92mm L X 92mm H 10.8~13.2 12 VDC 0.38 A 4.56 W 3800 RPM 45.0 dB(A) 67.80CFM (1.920 m3/min) 0.302inchH2O (07.67mmH2O)
    AUB0912H-A Square-92mm L X 92mm H 5.0~13.8 12 VDC 0.21 A 2.52 W 2800 RPM 37.0 dB(A) 59.89CFM (1.696 m3/min) 0.191inchH2O (04.86mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812VH-SP00 Square-80mm L X 80mm H 10.8~13.2 12 VDC 0.19 A 2.28 W 3600 RPM 39.0 dB(A) 42.02CFM (1.190 m3/min) 0.217inchH2O (05.51mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812VH-AIT Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.27 A 3.24 W 3600 RPM 39.0 dB(A) 46.60CFM (1.320 m3/min) 0.256inchH2O (6.500mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812L-9X41 Square-80mm L X 80mm H 10.8~13.8 12 VDC 0.09 A 1.08 W 2400 RPM 25.0 dB(A) 27.90CFM (0.790 m3/min) 0.102 inH2O (02.59 mmH2O)
    AUB0812HHDXHN Square-80mm L X 80mm H 10.8~12.6 12 VDC 0.30 A 3.60 W 4500 RPM 43.0 dB(A) 51.46CFM (1.457 m3/min) 0.291inchH2O (07.38mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812HH-A Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.21 A 2.52 W 3250 RPM 35.5 dB(A) 42.36CFM (1.200 m3/min) 0.207inchH2O (5.250mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812H-AF00 Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.18 A 2.16 W 3000 RPM 34.0 dB(A) 38.83CFM (1.100 m3/min) 0.177inchH2O (4.50mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0812-80x25.4mm.jpg AUB0812H-A Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.18 A 2.16 W 3000 RPM 34.0 dB(A) 38.83CFM (1.100 m3/min) 0.177inchH2O (4.50mmH2O)
    AUB0612VH-AIT AUB0612VH-AIT AUB0612VH-AIT Square-60mm L X 60mm H 4.0 ~ 13.8 12 VDC 0.24 A 2.88 W 5500 RPM 42.5 dB(A) 29.30CFM (0.830 m3/min) 0.352inchH2O (8.95mmH2O)
    AUB0612HHB-A AUB0612HHB-A AUB0612HHB-A Square-60mm L X 60mm H 7.0~13.8 12 VDC 0.13 A 1.56 W 4500 RPM 33.0 dB(A) 23.39CFM (0.662 m3/min) 0.190inchH2O (4.83mmH2O)
    AUB0612HH-AF00 Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.20 A 2.40 W 5000 RPM 40.0 dB(A) 25.42CFM (0.720 m3/min) 0.281inchH2O (7.13mmH2O)
    AUB0612HH-A Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.20 A 2.40 W 5000 RPM 40.0 dB(A) 25.42CFM (0.720 m3/min) 0.281inchH2O (7.13mmH2O)
    AUB0612HB-A Square-60mm L X 60mm H 7.0~13.8 12 VDC 0.06 A 0.72 W 3000 RPM 20.0 dB(A) 15.25CFM (0.432 m3/min) 0.087 inchH2O (2.20 mmH2O)

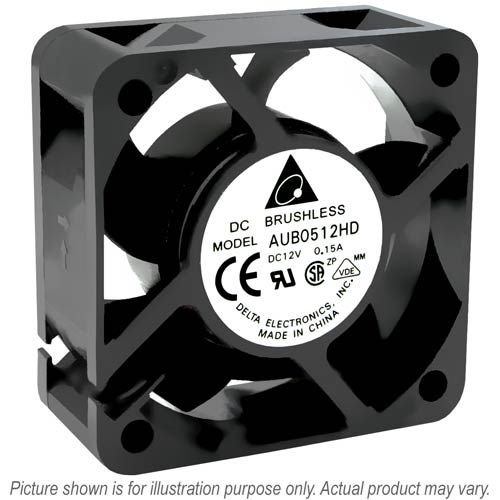

    AUB0512LB-AYCX AUB0512LB-AYCX AUB0512LB-AYCX Square-50mm L X 50mm H 6.0~13.2 12 VDC 0.04 A 0.48 W 3800 RPM 20.0 dB(A) 10.02CFM (0.284 m3/min) 0.096 inchH2O (2.43 mmH2O)
    AUB0412HDYFM Square-40mm L X 40mm H 7.0~13.8 12 VDC 0.11 A 1.32 W 7500 RPM 22.0 dB(A) 8.01CFM (0.227 m3/min) 0.166inchH2O (04.22mmH2O)
    AUB0512HB AUB0512HB AUB0512HB Square-50mm L X 50mm H 7.0~13.8 12 VDC 0.10 A 1.20 W 5600 RPM 32.0 dB(A) 14.13CFM (0.400 m3/min) 0.240inchH2O (6.10mmH2O)
    AUB0512HB-F00 AUB0512HB-F00 AUB0512HB-F00 Square-50mm L X 50mm H 7.0~13.8 12 VDC 0.10 A 1.20 W 5600 RPM 32.0 dB(A) 14.13CFM (0.400 m3/min) 0.240inchH2O (6.10mmH2O)
    AUB0512HHB-F00 AUB0512HHB-F00 AUB0512HHB-F00 Square-50mm L X 50mm H 7.0~13.8 12 VDC 0.13 A 1.56 W 6400 RPM 36.0 dB(A) 16.24CFM (0.460 m3/min) 0.320inchH2O (8.13mmH2O)
    AUB0512LB AUB0512LB AUB0512LB Square-50mm L X 50mm H 7.0~13.8 12 VDC 0.06 A 0.72 W 4000 RPM 24.0 dB(A) 9.89CFM (0.280 m3/min) 0.130 inchH2O (03.25 mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg AUB0512MB-F00 Square-50mm L X 50mm H 7.0~13.8 12 VDC 0.08 A 0.96 W 4800 RPM 28.0 dB(A) 12.36CFM (0.350 m3/min) 0.180inchH2O (4.60mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg AUB0524HB Square-50mm L X 50mm H 14.0~27.8 24 VDC 0.07 A 1.68 W 5600 RPM 32.0 dB(A) 14.13CFM (0.400 m3/min) 0.240inchH2O (6.10mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg AUB0524LB Square-50mm L X 50mm H 14.0~27.8 24 VDC 0.05 A 1.20 W 4000 RPM 24.0 dB(A) 9.89CFM (0.280 m3/min) 0.130 inchH2O (03.25 mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x15mm.jpg AUB0524MB Square-50mm L X 50mm H 14.0~27.8 24 VDC 0.06 A 1.44 W 4800 RPM 28.0 dB(A) 12.36CFM (0.350 m3/min) 0.180inchH2O (04.56mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0505HD Square-50mm L X 50mm H 4.5~5.5 5 VDC 0.33 A 1.65 W 5600 RPM 28.0 dB(A) 17.13CFM (0.485 m3/min) 0.230inchH2O (5.84mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0524HD Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.07 A 1.68 W 5600 RPM 28.0 dB(A) 17.13CFM (0.485 m3/min) 0.230inchH2O (5.84mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0524HHD Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.09 A 2.16 W 6400 RPM 32.5 dB(A) 20.13CFM (0.570 m3/min) 0.029 inchH2O
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0524LD Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.05 A 1.20 W 4000 RPM 18.5 dB(A) 12.00CFM (0.339 m3/min) 0.110 IncH2O (2.79 mmH2O
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0524MD Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.06 A 1.44 W 4800 RPM 24.0 dB(A) 14.83CFM (0.420 m3/min) 0.170inchH2O (4.306mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg https://www.delta-fan.com/Download/Images/AUB0512_AUB50x20mm.jpg AUB0524VHD Square-50mm L X 50mm H 14.0~27.6 24 VDC 0.06 A 2.40 W N/A 40.5 dB(A) 21.54CFM (0.609 m3/min) 0.034 inchH2O
    AUB0624HB Square-60mm L X 60mm H 14.0~27.6 24 VDC 0.06 A 1.44 W 4000 RPM 32.0 dB(A) 15.36CFM (0.435 m3/min) N/A
    AUB0624HHB Square-60mm L X 60mm H 14.0~27.6 24 VDC 0.06 A 1.68 W 4500 RPM 35.0 dB(A) 17.30CFM (0.490 m3/min) 0.211 inchH2O (5.358 mmH2O)
    AUB0624MB Square-60mm L X 60mm H 14.0~27.6 24 VDC 0.06 A 1.20 W 3500 RPM 29.0 dB(A) 13.45CFM (0.381 m3/min) 0.12 inchH2O
    AUB0612H Square-60mm L X 60mm H 7.0~13.8 12 VDC 0.06 A 1.44 W 4250 RPM 28.0 dB(A) 19.42CFM (0.550 m3/min) 0.190inchH2O (4.83mmH2O)
    AUB0612H-A Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.06 A 1.56 W 4200 RPM 35.0 dB(A) 21.19CFM (0.600 m3/min) 0.211 inchH2O (5.358 mmH2O)
    AUB0612H-F00 Square-60mm L X 60mm H 7.0~13.8 12 VDC 0.06 A 1.44 W 4250 RPM 28.0 dB(A) 19.42CFM (0.550 m3/min) 0.190inchH2O (4.83mmH2O)
    AUB0612L-A Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.06 A 0.84 W 3100 RPM 26.5 dB(A) 13.77CFM (0.389 m3/min) 0.100 inchH2O (02.53 mmH2O)
    AUB0612M-A Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.06 A 1.08 W 3600 RPM 31.0 dB(A) 18.36CFM (0.520 m3/min) 0.15 inchH2O
    AUB0612VH-AF00 AUB0612VH-AF00 AUB0612VH-AF00 Square-60mm L X 60mm H 4.0~13.8 12 VDC 0.20 A 2.88 W 5500 RPM 42.5 dB(A) 29.31CFM (0.830 m3/min) 0.355inchH2O (09.01mmH2O)
    AUB0812HB-AR00 Square-80mm L X 80mm H 5.0~13.8 12 VDC 0.15 A 1.80 W 3100 RPM 35.0 dB(A) 36.36CFM (1.030 m3/min) 0.138inchH2O (03.51mmH2O)
    AUB0812LB-AR00 Square-80mm L X 80mm H 5.0~13.8 12 VDC 0.09 A 1.20 W 2400 RPM 27.0 dB(A) 27.053CFM (0.766 m3/min) 0.080 inchH2O (02.05 mmH2O)
    AUB0812VHB-AF00 Square-80mm L X 80mm H 5.0~13.2 12 VDC 0.25 A 3.00 W 3700 RPM 40.5 dB(A) 42.71CFM (1.209 m3/min) 0.190inchH2O (4.83mmH2O)
    AUB0824HB-A N/A 10.0~27.6 24 VDC 0.06 A 2.40 W 3100 RPM 35.0 dB(A) 36.36CFM (1.030 m3/min) 0.140inchH2O (3.600mmH2O)
    AUB0824HHB-A N/A 10.0~27.6 24 VDC 0.06 A 2.88 W 3400 RPM 38.0 dB(A) 39.18CFM (1.109 m3/min) 0.170inchH2O (4.306mmH2O)
    AUB0824MB-A N/A 10.0~27.6 24 VDC 0.06 A 1.92 W 2700 RPM 31.0 dB(A) 31.42CFM ( 0.889 m3/min) 0.110 IncH2O (2.79 mmH2O
    AUB0812L-A Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.11 A 1.32 W 2400 RPM 28.0 dB(A) 31.06CFM (0.879 m3/min) 0.12 inchH2O
    AUB0812M-A AUB0812M-A AUB0812M-A Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.15 A 1.80 W 2700 RPM 32.0 dB(A) 35.30CFM (0.999 m3/min) 0.15 inchH2O
    AUB0812VH-AF00 Square-80mm L X 80mm H 7.0~13.8 12 VDC 0.27 A 3.24 W 3600 RPM 39.0 dB(A) 46.60CFM (1.320 m3/min) 0.262inchH2O (06.65mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg AUB0912H-C Square-92mm L X 92mm H 7.0~13.8 12 VDC 0.06 A 3.00 W 2800 RPM 38.0 dB(A) 56.66CFM (1.604 m3/min) 0.180inchH2O (04.56mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg AUB0912HH-CF00 Square-92mm L X 92mm H 7.0~13.8 12 VDC 0.33 A 3.96 W 3200 RPM 41.0 dB(A) 62.18CFM (1.759 m3/min) 0.221inchH2O (05.62mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg AUB0912L-C Square-92mm L X 92mm H 7.0~13.8 12 VDC 0.06 A 1.32 W 2000 RPM 27.0 dB(A) 39.36CFM (1.114 m3/min) 0.093 inchH2O (2.36 mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg AUB0912M-C Square-92mm L X 92mm H 7.0~13.8 12 VDC 0.06 A 1.92 W 2400 RPM 33.0 dB(A) 46.81CFM (1.325 m3/min) 0.130 inchH2O (03.25 mmH2O)
    https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg https://www.delta-fan.com/Download/Images/AUB0912_92x25.4mm.jpg AUB0912VH-CF00 Square-92mm L X 92mm H 7.0~13.8 12 VDC 0.40 A 4.80 W 3450 RPM 45.0 dB(A) 72.01CFM (2.039 m3/min) 0.291inchH2O (07.38mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Liquid Cooling Solutions

    DELTA TOTAL LIQUID COOLING SOLUTIONS (LCS): DELIVERING HIGH HEAT DENSITY THERMAL SOLUTIONS FOR A BROAD RANGE OF APPLICATIONS.


    As technological innovation accelerates forward at an ever-increasing speed, companies need equally impressive thermal solutions to maintain that pace. Delta Liquid Cooling Solutions allow these technologies to push the limits of heat densities and design complexities. Delta engineers will work within a customer’s thermal solution budget and overall project goals to determine what is not only possible, but what is necessary. Depending on wattage dissipation and thermal resistance (Rca) requirements, Delta engineers can utilize their varied industrial experience to design, modify, or suggest a solution that suits the challenge. These solutions need not only include liquid cooling. Delta offers a full catalog of thermal solutions that can come in the form of natural or forced convection designs, remote fin enhanced volume air cooling, liquid-assisted air cooling, or complete multiple heat source liquid cooling. If a liquid cooling solution is required, Delta can design a total liquid cooling solution (LCS) that includes all necessary components from a high-performance pump, cold plate, heat exchanger, and a coolant distribution unit (CDU).

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • Three Phase Fan

    Data center and server cooling fans demand high energy efficiency and low rotating vibration to achieve thermal requirements and operating performance. Delta's 3-Phase Brushless DC Motor Fans, powered by 3 phase motor, provide a smoother transition between slots compared to single-phase motor fans.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    GFC0412DS-DF00 GFC0412DS-DF00 GFC0412DS-DF00 Square-40mm L X 40mm H N/A 12 VDC 1.30 A 15.60 W 16000 RPM 64.5 dB(A) 32.179CFM (0.911 m3/min) 2.631inchH2O (66.824mmH2O)
    GFC0412DS-DV17 GFC0412DS-DV17 GFC0412DS-DV17 Square-40mm L X 40mm H N/A 12 VDC 1.50 A 18.00 W 20500 RPM 66.0 dB(A) 33.22CFM (0.941 m3/min) 3.330inchH2O (84.58mmH2O)
    GFC0412DS-SM06B0G GFC0412DS-SM06B0G GFC0412DS-SM06B0G Square-40mm L X 40mm H 12 VDC 12 VDC 2.27 A 27.24 W 23000 RPM 69.0 dB(A) 37.61CFM (1.065 m3/min) 4.110inchH2O (104.39mmH2O)
    GFC0412DS-DV17 GFC0412DS-DV17 GFC0412DS-TP01 Square-40mm L X 40mm H N/A 12 VDC 1.00 A 12.00 W 15300 RPM 61.0 dB(A) 30.50CFM (0.864 m3/min) 1.726inchH2O (43.83mmH2O)
    GFC0612DS-AQ14 GFC0612DS-AQ14 GFC0612DS-AQ14 Square-60mm L X 60mm H N/A 12 VDC 1.60 A 19.20 W 10400 RPM 66.0 dB(A) 65.03CFM (1.842 m3/min) 2.007inchH2O (50.98mmH2O)
    GFC0624DW-DT48 GFC0624DW-DT48 GFC0624DW-DT48 Square-60mm L X 60mm H N/A 24 VDC 1.40 A 31.20 W 11300 RPM 71.5 dB(A) 69.44CFM (1.996 m3/min) 3.025inchH2O (76.83mmH2O)
    GFC0812DS-CMA8 GFC0812DS-CMA8 GFC0812DS-CMA8 Square-80mm L X 80mm H N/A 12 VDC 2.17 A 26.04 W 12000 RPM 72.6 dB(A) 90.12CFM (2.552 m3/min) 3.827inchH2O (97.21mmH2O)
    GFC0812DW-SM00B7P GFC0812DW-SM00B7P GFC0812DW-SM00B7P Square-80mm L X 80mm H N/A 12 VDC 5.20 A 62.40 W 12000 RPM 74.5 dB(A) 90.12CFM (2.552 m3/min) 4.170inchH2O (105.94mmH2O)
    GFC0812DW-TD2G GFC0812DW-TD2G GFC0812DW-TD2G Square-80mm L X 80mm H N/A 12 VDC 8.27 A 99.24 W 13500 RPM 80.0 dB(A) 177.10CFM (5.015 m3/min) 4.502inchH2O (114.35mmH2O)
    GFM0412SS-DE1PB7Q Square-40mm L X 40mm H N/A 12 VDC 1.10 A 12.60 W 19000 RPM 68.5 dB(A) 21.56CFM (0.610 m3/min) 3.416inchH2O (86.78mmH2O)
    GFM0812DS-SMB7R GFM0812DS-SMB7R GFM0812DS-SMB7R Square-80mm L X 80mm H N/A 12 VDC 2.40 A 28.80 W 12500 RPM 73.3 dB(A) 93.23CFM (2.640 m3/min) 4.485inchH2O (113.91mmH2O)
    GFM0812DUB7S GFM0812DUB7S GFM0812DUB7S Square-80mm L X 80mm H N/A 12 VDC 9.00 A 18.00 W 13800 RPM 82.5 dB(A) 190.63CFM (5.398 m3/min) 5.749inchH2O (146.04mmH2O)
    PFM0612XHEB7T PFM0612XHEB7T PFM0612XHEB7T Square-60mm L X 60mm H 10.8 - 12.6 VDC 12 VDC 1.15 A 13.80 W 18500 RPM 65.1 dB(A) 64.44CFM (1.825 m3/min) 2.343inchH2O (59.52mmH2O)
    PFM0812HE-01BFY PFM0812HE-01BFY PFM0812HE-01BFY Square-80mm L X 80mm H N/A 12 VDC 4.30 A 51.60 W 16300 RPM 77.0 dB(A) 129.42CFM (3.665 m3/min) 4.969inchH2O (126.22mmH2O)
    PFM1412DEB7V PFM1412DEB7V PFM1412DEB7V Square-139.7mm L X 139.7mm H 10.8 - 12.8 VDC 12 VDC 3.90 A 46.80 W 6500 RPM 70.0 dB(A) 282.31CFM (7.994 m3/min) 2.033inchH2O (51.65mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • High Pressure Blowers

    Blowers with very high air pressure performance are commonly used in systems with high impedance design, but are also recommended for products with high suction design. For example: vacuum cleaner, vacuum robot, or CPAP for medical devices, etc. The unique characteristic for blower design is that the fan speed increases automatically when the faced impedance in system becomes bigger.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    BFB1012UH-BA40ZYD Rounded/Rect-96.6mm L x 94.3mm H 12.0 - 16.8 VDC 14.2 VDC 2.15 A 30.53 W 7000 RPM 68.0 dB(A) 36.93CFM (1.046 m3/min) 4.764inchH2O (121.02mmH2O)
    BFB1012EH-C18J Rounded/Rect-96.6mm L x 94.3mm H 10.8-14.0VDC 12 VDC 1.97 A 23.64 W 5800 RPM 62.0 dB(A) 45.49CFM (1.288 m3/min) 3.694inchH2O (93.83mmH2O)
    BFB1012EF-0018H BFB1012EF-0018H BFB1012EF-0018H Rounded/Rect-96.6mm L x 94.3mm H 10.8 - 12.6 VDC 12 VDC 5.00 A 60.00 W 7500 RPM 69.0 dB(A) 56.08CFM (1.588 m3/min) 6.903inchH2O (175.35mmH2O)
    bfm1012uhff8 bfm1012uhff8 BFM1012UHFF8 Rounded/Rect-96.6mm L x 94.3mm H 10.8~12.6 12 VDC 5.80 A 69.60 W 8700 RPM 70.5 dB(A) 66.03CFM (1.785 m3/min) 6.806inchH2O (172.86mmH2O)
    BFN0724SS-01 BFN0724SS-01 BFN0724SS-01 Rounded/Rect-80.4mm L x 67mm H 21.6~26.4 24 VDC 1.50 A 36.00 W 31500 RPM 38.0 dB(A) 18.06CFM (511.407 m3/min) 19.66inchH2O (499.36mmH2O)
    https://www.delta-fan.com/Download/Images/FC241B07-L0E.png https://www.delta-fan.com/Download/Images/FC241B07-L0E.png FC241B07-L0E Square-75.7mm L X 50.0mm H 21.6~26.4 24 VDC 1.50 A 36.00 W N/A N/A N/A N/A
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • E Series Fans

    E series DC fans, based on the market requirement, offer CPU thermal design power, electronic brake function, advanced communication design, high-performance fan, new impeller structure design, new motor design, new firmware design, and new control circuit design.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    https://www.delta-fan.com/Download/Images/PFB0412EN-E.jpg https://www.delta-fan.com/Download/Images/PFB0412EN-E.jpg PFB0412EN-E Square-40mm L X 40mm H 10.8 ~ 13.2 VDC 12 VDC 4.00 A 31.20 W 32500 RPM 70.5 dB(A) 38.00 CFM (1.076 m3/min) 7.430inchH2O (188.72mmH2O)
    GFB0412ES-E GFB0412ES-E GFB0412ES-E Square-40mm L X 40mm H 10.8 ~ 13.2 VDC 12 VDC 3.25 A 39.00 W 29500 RPM 73.0 dB(A) 33.90CFM (0.960 m3/min) 6.440inchH2O (163.58mmH2O)
    GFB0812ES-E GFB0812ES-E GFB0812ES-E Square-80mm L X 80mm H 10.8 ~ 13.2 VDC 12 VDC 4.50 A 54.00 W 16300 RPM 79.0 dB(A) 136.00CFM (3.853 m3/min) 5.899inchH2O (149.82mmH2O)
    https://www.delta-fan.com/Download/Images/PFB0612EE-E.jpg https://www.delta-fan.com/Download/Images/PFB0612EE-E.jpg PFB0612EE-E Square-60mm L X 60mm H 10.8 ~ 13.2 VDC 12 VDC 3.50 A 42.00 W 25500 RPM 68.6 dB(A) 77.31CFM (2.165 m3/min) 7.310inchH2O (185.67mmH2O)
    https://www.delta-fan.com/Download/Images/GFB0612ES-E.jpg https://www.delta-fan.com/Download/Images/GFB0612ES-E.jpg GFB0612ES-E Square-60mm L X 60mm H 10.8 ~ 13.2 VDC 12 VDC 4.15 A 49.80 W 24300 RPM 82.0 dB(A) 76.51CFM (2.170 m3/min) 9.73inchH2O (247.14mmH2O)
    GFB0912ES-E GFB0912ES-E GFB0912ES-E Square-92mm L X 92mm H 10.8 ~ 13.2 12 VDC 3.95 A 47.40 W 11400 RPM 78.5 dB(A) 165.44CFM (4.685 m3/min) 4.670inchH2O (118.62mmH2O)
    https://www.delta-fan.com/Download/Images/PFB0812EE-E.jpg https://www.delta-fan.com/Download/Images/PFB0812EE-E.jpg PFB0812EE-E Square-80mm L X 80mm H 10.8 ~ 13.2 VDC 12 VDC 4.00 A 48.00 W 16800 RPM 73.0 dB(A) 129.56CFM (3.635 m3/min) 6.01inchH2O (152.65mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
  • ASB 30x10mm Version D

    ASB30x30x10 mm Series fans are general axial fans with a sleeve bearing system for multiple industry cooling applications. Mini DC fans.

    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
    ASB03512MA-AF00 Square-35mm L X 35mm H N/A 12 VDC 0.05 A 0.60 W 5800 RPM 18.5 dB(A) 4.50CFM (0.127m3/min) 0.079 inchH2O (02.00 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312MA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.06 A 0.72 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312MA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.06 A 0.72 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312MA-D Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.06 A 0.72 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312LA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.05 A 0.60 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312LA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.05 A 0.60 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312LA-D Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.05 A 0.60 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    ASB0312HA-DR00 ASB0312HA-DR00 ASB0312HA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.07 A 0.84 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312HA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.07 A 0.84 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0312HA-D Square-30mm L X 30mm H 4.5 ~ 5.5 12 VDC 0.07 A 0.84 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305MA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.11 A 0.55 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305MA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.11 A 0.55 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305MA-D Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.11 A 0.55 W 9000 RPM 23.0 dB(A) 3.72CFM (0.105 m3/min) 0.167inchH2O (4.25mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305LA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.10 A 0.50 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305LA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.10 A 0.50 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305LA-D Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.10 A 0.50 W 8000 RPM 21.0 dB(A) 3.21CFM (0.091 m3/min) 0.131 inchH2O (3.33 mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305HA-DR00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.14 A 0.70 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305HA-DF00 Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.14 A 0.70 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg https://www.delta-fan.com/Download/Images/ASB30x10mm-D.jpg ASB0305HA-D Square-30mm L X 30mm H 4.5 ~ 5.5 5 VDC 0.14 A 0.70 W 10500 RPM 27.0 dB(A) 4.30CFM (0.122 m3/min) 0.214inchH2O (5.44mmH2O)
    Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
Loading
