Professional Grade IP68, IP67, IP56, IP55, IP54, IP53 and IP51: Durable, Reliable, and Weatherproof.

Delta Ingress Protection (IP) - rated fans are purpose-built using advanced manufacturing techniques to prevent dust and water ingress in harsh environments. These IP-rated fans undergo rigorous testing to ensure durability under extreme conditions, including:

  • Rain and flooding
  • Salt, fog, and moisture
  • Severe dust and dirt exposure

Delta Environmental-Proof Fans: In outdoor environments, water spray, dust exposure, unexpected corrosion, and high humidity can all cause electrical devices to malfunction. Delta’s environmental-proof fans are designed using a potting method to seal the printed wiring board (PWB), effectively isolating it from external elements. By going beyond common standards such as IP and Bellcore, Delta’s environmental-proof fans are built to withstand outdoor conditions and similarly harsh environments.

IP Code Protection:

The IP Code classifies and rates the degree of protection against the intrusion of solid objects — such as hands and fingers — as well as dust, accidental contact, and moisture or water.

Enclosures are critical to the lifespan and efficient operation of any fan and are designed to withstand specific types of intrusion. To ensure greater durability, Delta provides IP55 and higher protection ratings as an industry standard.

IP-Code_IP55-IP56_protection

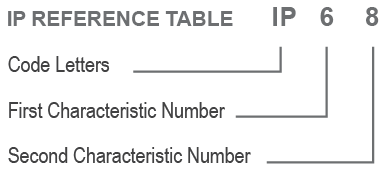

IP Reference Table:

Please refer to the table below for an explanation of IP (Ingress Protection). IP is a standard that defines the level of protection provided by enclosures against the intrusion of solid objects, dust, and water.

The first digit indicates the level of protection against dust while the second digit indicates the level of protection against water jets.
IP reference table
IPX Rating Solid Particle Protection (First Digit) IPX Rating Water Protection (Second Digit)
0 No protection against solid objects. 0 No protection against water.
1 Protected against solid objects over 50mm (e.g., accidental touch by hands). 1 Protected against vertically falling water drops (e.g., condensation).
2 Protected against solid objects over 12.5mm (e.g., fingers). 2 Protected against vertically falling water drops when the device is tilted up to 15°.
3 Protected against solid objects over 2.5mm (e.g., tools and wires). 3 Protected against water spray at an angle up to 60°)from vertical.
4 Protected against solid objects over 1mm (e.g., small tools and wires). 4 Protected against water splashes from any direction.
5 Protected against limited dust ingress (no harmful deposit). 5 Protected against water jets from any direction (low-pressure).
6 Totally protected against dust. 6 Protected against powerful water jets (high-pressure).
    7 Protected against immersion in water up to 1 meter for 30 minutes.
    8 Protected against continuous immersion in water beyond 1 meter.


Brand-new Outdoor Fan Solution IP68 rating (International Standard Rating)

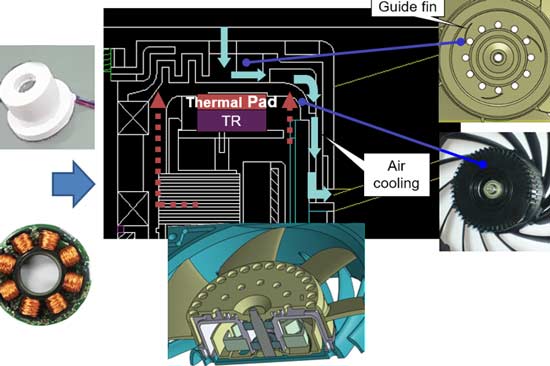

Epoxy-Free Technology (EFT)

+ Closed type design for outdoor protection & UV proof
+ Epoxy-free to reduce material and labor cost.

EFT Design

+ Enhanced air cooling
Brand-new Outdoor Fan Solution IP - ETF design

Delta IP68 Axial Fans (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/TFA0412CNP8.png https://www.delta-fan.com/Download/Images/TFA0412CNP8.png TFA0412CNP8 40x40x28 7.0 - 13.8 12 VDC 0.50 A 6.00 W 16500 RPM 54.0 dB(A) 22.24 CFM (0.630 m3/min) 1.566 inchH2O (39.78 mmH2O) -10~+70⁰C
QFR0624GHP6, 60x60x25.4mm, industrial fan, IP68, 24 VDC, 0.16 A, 3.84 Watts, 7600 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0624GHP6, 60x60x25.4mm, industrial fan, IP68, 24 VDC, 0.16 A, 3.84 Watts, 7600 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0624GHP6 60x60x25.4 16.0 - 26.4 VDC 24 VDC 0.16 A 3.84 W 7600 RPM 47.0 dB(A) 34.78CFM (0.98 m3/min) 0.547 inchH2O (13.89 mmH2O) -10~+70⁰C
QFR0624EHP6, 60x60x25.4mm, industrial fan, IP68, 24 VDC, 0.10 A, 2.40 Watts, 6000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0624EHP6, 60x60x25.4mm, industrial fan, IP68, 24 VDC, 0.10 A, 2.40 Watts, 6000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0624EHP6 60x60x25.4 16.0 - 26.4 VDC 24 VDC 0.10 A 2.40 W 6000 RPM 39.5 dB(A) 27.50CFM (0.778 m3/min) 0.349 inchH2O (8.86 mmH2O) -10~+70⁰C
QFR0624UHP6 QFR0624UHP6 QFR0624UHP6 60x60x25.4 16.0 - 26.4 VDC 24 VDC 0.26 A 6.24 W 9000 RPM 50.0 dB(A) 41.30CFM (1.170 m3/min) 0.742 inchH2O (18.84 mm H2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/PFC0648SE-00P8.png https://www.delta-fan.com/Download/Images/PFC0648SE-00P8.png PFC0648SE-00P8 60x60x38 36.0 - 60.0 48 VDC 0.52 A 24.96 W 17000 RPM 69.0 dB(A) 65.35 CFM (1.851 m3/min) 3.503 inchH2O (88.98 mmH2O) -25~+70⁰C
QFR0824SHP6, 80x80x25 mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.15 A, 3.60 Watts, 4300 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan QFR0824SHP6, 80x80x25 mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.15 A, 3.60 Watts, 4300 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan QFR0824SHP6 80x80x25 mm 14.0 - 26.4 VDC 24 VDC 0.15 A 3.60 W 4300 RPM 44.2 dB(A) 50.3 CFM (1.423 m3/min) 0.318 inchH2O (8.1 mmH2O) -10~+70⁰C
QFR0824HHP6, 80x80x25 mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.08 A, 1.92 Watts, 3300 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan QFR0824HHP6, 80x80x25 mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.08 A, 1.92 Watts, 3300 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan QFR0824HHP6 80x80x25 mm 14.0 - 26.4 VDC 24 VDC 0.08 A 1.92 W 3300 RPM 36.4 dB(A) 38.5 CFM (1.089 m3/min) 0.193 inchH2O (4.92 mmH2O) -10~+70⁰C
QFR0824UHP6, 80x80x25mm, IP68, 24 VDC, 0.23 A, 5.52 Watts, 5300 RPM, 4 lead wires, ball bearing, axial, PWM speed control, speed sensor (Tach), dc fan, delta fan QFR0824UHP6, 80x80x25mm, IP68, 24 VDC, 0.23 A, 5.52 Watts, 5300 RPM, 4 lead wires, ball bearing, axial, PWM speed control, speed sensor (Tach), dc fan, delta fan QFR0824UHP6 80x80x25mm 14.0 - 26.4 VDC 24 VDC 0.23 A 5.52 W 5300 RPM 49.6 dB(A) 62.18 CFM (1.759 m3/min) 0.475 inchH2O (12.06 mmH2O) -10~+70⁰C
QFR0812MJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.24 A, 2.88 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812MJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.24 A, 2.88 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812MJ-00P6 80x80x25.4 10.8 - 13.8 VDC 12 VDC 0.24 A 2.88 W 4500 RPM 43.5 dB(A) 49.10 CFM (1.390 m3/min) 0.283 inchH2O (7.20 mmH2O) -10~+70⁰C
QFR0812LJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.13 A, 1.56 Watts, 3150 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812LJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.13 A, 1.56 Watts, 3150 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812LJ-00P6 80x80x25.4 10.8 - 13.8 VDC 12 VDC 0.13 A 1.56 W 3150 RPM 31.5 dB(A) 33.50 CFM (0.948 m3/min) 0.141 inchH2O (3.60 mmH2O) -10~+70⁰C
QFR0812GJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.66 A, 7.92 Watts, 7000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812GJ-00P6, 80x80x25.4mm, industrial fan, IP68, 12 VDC, 0.66 A, 7.92 Watts, 7000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan QFR0812GJ-00P6 80x80x25.4 7.0 - 13.8 VDC 12 VDC 0.66 A 7.92 W 7000 RPM 50.0 dB(A) 78.8 CFM (2.23 m3/min) 6.347inchH2O (161.21mmH2O) -10~+70⁰C
PFB0824UHEP6 80x80x38 mm 14.0 - 26.4 VDC 24 VDC 0.68 A 16.32 W 7000 RPM 57.9 dB(A) 96.789 CFM (2.740 m3/min) 1.148 inchH2O (29.16 mmH2O) -10~+70⁰C
PFB0824GHEP6 80x80x38 mm 14.0 - 26.4 VDC 24 VDC 0.45 A 10.80 W 6100 RPM 55.5 dB(A) 86.44 CFM (2.448 m3/min) 0.898 inchH2O (22.80 mmH2O) -10~+70⁰C
PFB0924EHEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 0.33 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924EHEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 0.33 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924EHEP6 92x92x38 21.6 - 26.4 VDC 24 VDC 0.33 A 7.92 W 4800 RPM 54.0 dB(A) 103.67 CFM (2.936 m3/min) 0.691 inchH2O (17.56 mmH2O) -10~+70⁰C
THD0924HEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP6 92x92x38 21.6 - 26.4 VDC 24 VDC 1.15 A 27.60 W 10700 RPM 64.0 dB(A) 145.54 CFM (4.121 m3/min) 2.334 inchH2O (59.283 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/TFD0948HE-00P8.jpg https://www.delta-fan.com/Download/Images/TFD0948HE-00P8.jpg TFD0948HE-00P8 92x92x38 36.0 - 60.0 48 VDC 0.75 A 36.00 W 9000 RPM 65.5 dB(A) 144.58CFM (4.096 m3/min) 2.429 inchH2O (61.69 mmH2O) -25~+70⁰C
PFB0924DHEP6 PFB0924DHEP6 PFB0924DHEP6 92x92x38mm 21.6 - 26.4 VDC 24 VDC 1.10 A 26.40 W 7200 RPM 63.7 dB(A) 151.50CFM (4.290 m3/min) 1.395 inchH2O (35.43 mm H2O) -10~+70⁰C
PFB1224SE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.45 A, 50.40 Watts, 7500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan PFB1224SE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00, 24 VDC, 0.45 A, 50.40 Watts, 7500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan PFB1224SE-00P6 120x120x38 mm 14.0 - 27.6 VDC 24 VDC 2.07 A 50.40 W 7500 RPM 70.0 dB(A) 265.43 CFM (7.517 m3/min) 2.070 inchH2O (52.58 mm H2O) -10~+70⁰C
PFB1224LE-00P6 120x120x38 mm 14.0 - 27.6 VDC 24 VDC 0.45 A 10.08 W 4000 RPM 57.0 dB(A) 140.87 CFM (3.990 m3/min) 0.766 inchH2O (19.449 mmH2O) -10~+70⁰C
PFB1224HE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00,24 VDC, 1.00 A, 24 Watts, 5800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224HE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00,24 VDC, 1.00 A, 24 Watts, 5800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224HE-00P6 120x120x38 mm 14.0 - 28.0 VDC 24 VDC 1.00 A 24.00 W 5800 RPM 65.0 dB(A) 201.41CFM (5.704 m3/min) 1.480 inchH2O (37.59 mm H2O) -10~+70⁰C
PFB1224GHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224GHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224GHEP6 120x120x38 mm 21.6 - 26.4 VDC 24 VDC 1.35 A 32.40 W 4800 RPM 64.0 dB(A) 212.21 CFM (6.01 m3/min) 1.040 inchH2O (26.49 mmH2O) -10~+70⁰C
PFB1224EHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 0.90 A, 21.6 Watts, 4000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224EHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 0.90 A, 21.6 Watts, 4000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224EHEP6 120x120x38mm 21.6 - 26.4 VDC 24 VDC 0.90 A 21.60 W 4000 RPM 59.0 dB(A) 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) -10~+70⁰C
THB1748BGP6, Round-172mmx13mm W, industrial fan, IP68, 48 VDC, 3.40 A, 163.20 Watts, 8000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THB1748BGP6, Round-172mmx13mm W, industrial fan, IP68, 48 VDC, 3.40 A, 163.20 Watts, 8000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THB1748BGP6 Round-170mm Diameter x 50.8mm 36.0 - 60.0 VDC 48 VDC 3.40 A 163.20 W 8000 RPM 77.5 dB(A) 607.07CFM (17.19 m3/min) 3.828 inchH2O (97.24 mmH2O) -10~+70⁰C
EFB1524SHGP6, Round/rect-172x150x50.8mm, industrial fan, IP68, F00, PWM, 24 VDC, 1.55 A, 37.20 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524SHGP6, Round/rect-172x150x50.8mm, industrial fan, IP68, F00, PWM, 24 VDC, 1.55 A, 37.20 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524SHGP6 Rounded/Rect-172mm L x 150mm H x 50.80mm W 21.6 - 26.4 VDC 24 VDC 1.55 A 37.20 W 4500 RPM 62.0 dB(A) 322.39 CFM (9.13 m3/min) 1.265 inchH2O (32.14 mmH2O) -10~+70⁰C
EFB1524HHGP6, Round/rect-172x150x13mm, industrial fan, IP68, PWM, 24 VDC, 0.90 A, 21.60 Watts, 3700 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524HHGP6, Round/rect-172x150x13mm, industrial fan, IP68, PWM, 24 VDC, 0.90 A, 21.60 Watts, 3700 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524HHGP6 Rounded/Rect-172mm L x 150mm H x 50.8mm 21.6 - 26.4 VDC 24 VDC 0.90 A 21.60 W 3700 RPM 59.0 dB(A) 265.79 CFM (7.521 m3/min) 0.814 inchH2O (20.684 mmH2O) -10~+70⁰C
EFB1524LGP6, Round/rect-172x150x50.8mm, industrial fan, IP68, F00, PWM, 24 VDC, 0.50 A, 12.00 Watts, 2800 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524LGP6, Round/rect-172x150x50.8mm, industrial fan, IP68, F00, PWM, 24 VDC, 0.50 A, 12.00 Watts, 2800 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524LGP6 Rounded/Rect-172mm L x 150mm H x 50.8mm W 21.6 - 26.4 VDC 24 VDC 0.50 A 12.00 W 2800 RPM 52.3 dB(A) 195.80 CFM (5.540 m3/min) 0.496 inchH2O (12.60 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00P8 Round-225mm diameter x 100mm Width 36.0 - 60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291 inchH2O (58.20 mmH2O) -25~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)


Delta IP68 Blowers (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/TCA1748ATP8.png https://www.delta-fan.com/Download/Images/TCA1748ATP8.png TCA1748ATP8 Round -176.5mm 36.0 - 60.0 48 VDC 1.20 A 57.60 W 4000 RPM 70.8 dB(A) 382.04CFM (10.823m3/min) 2.114 inchH2O (53.68 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/TCA1748BT-00P8.png https://www.delta-fan.com/Download/Images/TCA1748BT-00P8.png TCA1748BT-00P8 Round -176.5mm 36.0 - 60.0 48 VDC 2.80 A 134.40 W 5400 RPM 78.0 dB(A) 540.00CFM (15.291 m3/min) 3.799 inchH2O (96.50 mmH2O) -25~+75⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)


Delta IP67 Axial Fans (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
TFC0424EN-01EGG 40x40x28 22.0 - 26.0 VDC 24 VDC 0.25 A 6.00 W 18300 RPM 55.0 dB(A) 21.11CFM (0.598 m3/min) 1.979 inchH₂O (50.28 mmH₂O) -10~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)


Delta IP56 Fans and blowers (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612H-EP 60x60x25 5.0~13.8 12 VDC 0.14 A 1.68 W 4250 RPM 34.0 dB(A) 22.63CFM (0.662 m3/min) 0.211 inchH2O (5.35 mmH2O) -10~+70⁰C
PFB0812UHE-EP PFB0812UHE-EP PFB0812UHE-EP 80x80x38 10.2 - 13.8 12 VDC 0.99 A 11.88 W 6550 RPM 57.5 dB(A) 91.87CFM (2.601 m3/min) 0.974 inchH2O (24.74 mmH2O) -25~+60⁰C
FFC0948BY7T FFC0948BY7T FFC0948BY7T 92x92x25.40 36.0 - 75.0 48 VDC 0.17 A 8.16 W 3900 RPM 49.5 dB(A) 86.40 CFM (2.448 m3/min) 0.355 inchH2O (09.01mmH2O) -25~+70⁰C
PFB1248UHE-EP, 120x120x38mm, PWM, IP56, 48VDC, 0.88A, 42.24W, ball bearing, axial, 5300 RPM, 4 lead wires, speed sensor (Tach), dc fan, delta PFB1248UHE-EP, 120x120x38mm, PWM, IP56, 48VDC, 0.88A, 42.24W, ball bearing, axial, 5300 RPM, 4 lead wires, speed sensor (Tach), dc fan, delta PFB1248UHE-EP 120x120x38 30.0 - 60.0 48 VDC 0.88 A 42.24 W 5300 RPM 66.0 dB(A) 243.66CFM (6.900 m3/min) 1.311 inchH2O (33.315 mmH2O) -40~+75⁰C
https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224EHE-EP 120x120x38 21.6 ~ 26.4 24 VDC 0.85 A 20.40 W 4600 RPM 58.5 dB(A) 212.573CFM (6.019m3/min) 0.844 inchH2O (21.427 mmH2O) -10~+70⁰C
FFB1424VHG-EP FFB1424VHG-EP FFB1424VHG-EP 139.7 x 139.7 x 50.8 18.0 - 26.4 24 VDC 1.00 A 24.00 W 3200 RPM 58.5 dB(A) 252.11CFM (7.139 m3/min) 0.644 inchH2O (16.36 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg https://www.delta-fan.com/Download/Images/AFB150x172x51mm.jpg AFB1548VH-CD8G 172x150x25 42.0~60.0 48 VDC 0.65 A 31.20 W 5000 RPM 65.0 dB(A) 305.043CFM (8.638 m3/min) 1.198 inchH2O (30.426 mmH2O) -40~+70⁰C
EFB1524VHG-EP EFB1524VHG-EP EFB1524VHG-EP Rounded/Rect-172 L x 150 H x 50.80 W 20.4~27.6 24 VDC 1.02 A 24.48 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937 inchH2O (23.80 mmH2O) -10~+70⁰C
KFB2348HHU-EP KFB2348HHU-EP KFB2348HHU-EP Round-225mm Diameter x 99mm W 36.0 - 60.0 48 VDC 2.20 A 105.60 W 2600 RPM 71.0 dB(A) 735.08CFM (20.853 m3/min) 1.99 inchH2O (50.54 mmH2O) -25~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)


Delta IP55 Axial Fans (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01503HA3-00CYN.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/ASB01503HA3-00CYN.jpg ASB01503HA3-00CYN 15x15x3 2.0 - 3.50 VDC 3 VDC 0.06 A 0.15 W 14500 RPM 31.0 dB(A) 0.28 CFM (0.008 m3/min) 0.075 inchH2O (0.042 mmH2O) -10~+60⁰C
ASB01703HA3-00CAH ASB01703HA3-00CAH ASB01703HA3-00CAH 17x17x3 2.0 - 3.50 VDC 3 VDC 0.06 A 0.18 W 12000 RPM 30.0 dB(A) 0.51 CFM (0.014 m3/min) 0.071 inchH2O (0.040 mmH2O) -10~+60⁰C
BSB0205HP-00EFG BSB0205HP-00EFG BSB0205HP-00EFG 20x20x5 36.0 - 75.0 VDC 5 VDC 0.08 A 0.40 W 12000 RPM 35.9 dB(A) 0.57 CFM (0.016 m3/min) 0.144 inchH2O (3.66 mmH2O) -10~+60⁰C
BSB01503HA3-00CGE BSB01503HA3-00CGE BSB01503HA3-00CGE 15x15x3 2.0 - 3.50 VDC 3 VDC 0.05 A 0.15 W 13800 RPM 30.0 dB(A) 0.17 CFM (0.005 m3/min) 0.154 inchH2O (3.90 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01703HA3-00CAJ.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/BSB01703HA3-00CAJ.jpg BSB01703HA3-00CAJ 17x17x3 2.0 - 3.50 VDC 3 VDC 0.06 A 0.18 W 12000 RPM 26.5 dB(A) 0.23 CFM (0.007 m3/min) 0.182inchH2O (4.630 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/Mini_Fans/BSB0203HA3-00CER.jpg https://www.delta-fan.com/Download/Images/Mini_Fans/BSB0203HA3-00CER.jpg BSB0203HA3-00CER 20x20x3 2.0 - 3.50 VDC 3 VDC 0.06 A 0.18 W 13000 RPM 32.0 dB(A) 0.28 CFM (0.008 m3/min) 6.44 inchH2O (163.58 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg https://www.delta-fan.com/Download/Images/AFB0405HHA_40x10.jpg AFB0412HHA-TA5F 40x40x10 7.0~13.8 12 VDC 0.05 A 0.60 W 7000 RPM 31.5 dB(A) 8.15 CFM (0.231 m3/min) 0.190 inH20 (4.831 mmH2O) -10~+70⁰C
AFB0412SHB-T500 40x40x15 7.0~13.8 12 VDC 0.25 A 3.00 W 11000 RPM 41.5 dB(A) 14.83 CFM (0.420 m3/min) 0.601 inchH2O (15.26 mmH2O) -10~+70⁰C
THA0412AD-TZW3 40x40x20 7.0 - 15.0 12 VDC 0.43 A 5.16 W 15600 RPM 52.0 dB(A) 20.56CFM (0.582 m3/min) 1.385 inchH2O (35.16 mmH2O) -25~+70⁰C
EFB0424VHD-TZW2 EFB0424VHD-TZW2 EFB0424VHD-TZW2 40x40x20 14.0~27.6 24 VDC 0.09 A 2.16 W 9000 RPM 32.5 dB(A) 10.10 CFM (0.286 m3/min) 0.416 inchH2O (10.57 mmH2O) -10~+70⁰C
FFB0412UHN-TYYK 40x40x28 5.5~13.2 12 VDC 0.65 A 7.80 W 18500 RPM 58.5 dB(A) 27.05CFM (0.766 m3/min) 2.111 inchH2O (53.631 mmH2O) -10~+70⁰C
AFB0524VHD-TZW5 AFB0524VHD-TZW5 AFB0524VHD-TZW5 50x50x20 14.0~27.6 24 VDC 0.10 A 2.40 W 7000 RPM 40.5 dB(A) 20.30CFM (0.575 m3/min) 0.303 inchH2O (7.70 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0624SH-TYTH 60x60x25 14.0~27.6 24 VDC 0.17 A 4.08 W 6000 RPM 44.5 dB(A) 34.15CFM (0.967 m3/min) 0.422 inchH2O (10.73 mmH2O) -10~+70⁰C
AFB0624EH-TA50, 60x60x25.4mm, IP55, 24VDC, 0.24A, 5.76 Watts, 6800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta AFB0624EH-TA50, 60x60x25.4mm, IP55, 24VDC, 0.24A, 5.76 Watts, 6800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta AFB0624EH-TA50 60x60x25 14.0~27.6 24 VDC 0.24 A 5.76 W 6800 RPM 46.5 dB(A) 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png AFB0612SH-TA50 60x60x25 4.0~13.8 12 VDC 0.27 A 3.24 W 6000 RPM 44.5 dB(A) 34.15CFM (0.967 m3/min) 0.422 inchH2O (10.73 mmH2O) -10~+70⁰C
AFB0612DH-TZUT 60x60x25 7.0~13.2 12 VDC 0.84 A 10.08 W 9000 RPM 55.0 dB(A) 50.40 CFM (1.427 m3/min) 0.926 inchH2O (23.52 mmH2O) -10~+70⁰C
FFB0824SH-TZW1 FFB0824SH-TZW1 FFB0824SH-TZW1 80x80x25 20.4 - 26.4 24 VDC 0.24 A 5.76 W 4500 RPM 48.6 dB(A) 67.02 CFM (1.898 m3/min) 0.392 inchH2O (9.95 mmH2O) -10~+70⁰C
FFB0812VH-T500 80x80x25 14.0~13.2 12 VDC 0.34 A 4.08 W 4000 RPM 45.4 dB(A) 54.56CFM (1.545 m3/min) 0.291 inchH2O (7.39 mmH2O) -10~+60⁰C
AFB0824HH-T500 80x80x25 14.0~27.6 24 VDC 0.09 A 2.16 W 3250 RPM 34.0 dB(A) 37.43 CFM (1.060 m3/min) 0.181 inchH2O (4.59 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg https://www.delta-fan.com/Download/Images/AFB0812_AFB80x25.4mm.jpg AFB0812HH-T500 80x80x25 7.0~13.8 12 VDC 0.20 A 2.40 W 3250 RPM 34.0 dB(A) 37.43 CFM (1.060 m3/min) 0.181 inchH2O (4.59 mmH2O) -10~+70⁰C
PFB0812DHE-TYNT PFB0812DHE-TYNT PFB0812DHE-TYNT 80x80x38 10.8 - 13.2 12 VDC 2.75 A 33.00 W 9000 RPM 66.0 dB(A) 132.60 CFM (3.754 m3/min) 2.03 inchH2O (51.57 mmH2O) -10~+60⁰C
PFB0824UHE-T500 PFB0824UHE-T500 PFB0824UHE-T500 80x80x38 14.0 - 26.4 24 VDC 0.77 A 18.48 W 7500 RPM 61.0 dB(A) 107.30 CFM (3.038 m3/min) 1.368 inchH2O (34.75 mmH2O) -10~+60⁰C
PFB0824UHEP5, 80x80x38mm, IP55, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, dc fan, delta fan PFB0824UHEP5, 80x80x38mm, IP55, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, dc fan, delta fan PFB0824UHEP5 80x80x38mm 14.0 - 26.4 VDC 24 VDC 1.26 A 30.24 W 7500 RPM 65.0 dB(A) 107.30 CFM (3.038 m3/min) 1.368 inchH2O (34.75 mmH2O) -10~+70⁰C
AFB0924SH-TZUH, 92x92x25.40mm, 24 VDC, 0.40 A, 9.60 Watts, 4800 RPM, 3 lead wires, Speed Sensor (Tach), ball bearing, axial, dc fan, delta AFB0924SH-TZUH, 92x92x25.40mm, 24 VDC, 0.40 A, 9.60 Watts, 4800 RPM, 3 lead wires, Speed Sensor (Tach), ball bearing, axial, dc fan, delta AFB0924SH-TZUH 92x92x25 14.0~26.4 24 VDC 0.40 A 9.60 W 4800 RPM 53.0 dB(A) 102.59 CFM (2.905 m3/min) 0.526 inchH2O (13.35 mmH2O) -10~+70⁰C
AFB0912SH-TZUG 92x92x25 5.0~12.6 12 VDC 0.75 A 9.00 W 4800 RPM 53.0 dB(A) 102.59 CFM (2.905 m3/min) 0.526 inchH2O (13.35 mmH2O) -10~+70⁰C
THD0924HEP5, 92x92x38mm, industrial fan, IP55, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP5, 92x92x38mm, industrial fan, IP55, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP5 92x92x38 21.6 - 26.4 VDC 24 VDC 1.15 A 27.60 W 10700 RPM 64.0 dB(A) 145.54 CFM (4.121 m3/min) 2.334 inchH2O (59.283 mmH2O) -10~+70⁰C
PFB0912EHE-T500 PFB0912EHE-T500 PFB0912EHE-T500 92x92x38 7.0 - 13.2 12 VDC 0.68 A 8.16 W 4800 RPM 54.0 dB(A) 103.67 CFM (2.936 m3/min) 0.691 inchH2O (17.56 mmH2O) -10~+60⁰C
PFB0924DHE-T500 PFB0924DHE-T500 PFB0924DHE-T500 92x92x38 14.0 - 26.4 24 VDC 1.45 A 34.80 W 8000 RPM 66.5 dB(A) 175.03 CFM (4.957 m3/min) 1.819 inchH2O (46.21 mmH2O) -10~+60⁰C
FFB0924EHE-T500 92x92x38 14.0~27.6 24 VDC 0.50 A 12.00 W 4800 RPM 55.0 dB(A) 110.18 CFM (3.120 m3/min) 0.665 inchH2O (16.90 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg AFB1224SH-T500 120x120x25 14.0~27.6 24 VDC 0.28 A 6.72 W 3400 RPM 46.5 dB(A) 113.11 CFM (3.203 m3/min) 0.430 inchH2O (10.92 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg https://www.delta-fan.com/Download/Images/AFB1212SH_AFB120x120x25.jpg AFB1212VH-T500 120x120x25 7.0~13.8 12 VDC 0.40 A 4.80 W 3100 RPM 44.5 dB(A) 103.75 CFM (2.938 m3/min) 0.371 inchH2O (9.43 mmH2O) -10~+60⁰C
AFB1212SH-T500 120x120x25 7.0~13.8 12 VDC 0.53 A 6.36 W 3400 RPM 46.5 dB(A) 113.11 CFM (3.203 m3/min) 0.430 inchH2O (10.92 mmH2O) -10~+60⁰C
PFB1224UHE-T50F PFB1224UHE-T50F PFB1224UHE-T50F 120x120x38 14.0 - 26.5 24 VDC 2.00 A 48.00 W 5500 RPM 66.5 dB(A) 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) -10~+60⁰C
PFB1224GHE PFB1224GHE PFB1224GHE 120x120x38 14.0 - 26.5 24 VDC 1.35 A 32.40 W 4800 RPM 64.0 dB(A) 217.79CFM (6.167 m3/min) 1.075 inchH2O (27.31 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248VHE-T9LN 120x120x38 34.0~56.0 48 VDC 0.31 A 14.88 W 4100 RPM 55.5 dB(A) 190.48CFM (5.394 m3/min) 0.694 inchH2O (17.635 mmH2O) -40~+70⁰C
https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1248SHEDC4 120x120x38 36.0~59.0 48 VDC 0.13 A 6.24 W 2300 RPM 40.0 dB(A) 103.24 CFM (2.924 m3/min) 0.255 inchH2O (6.50 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg AFB1248HE-T500 120x120x38 28.0~56.0 48 VDC 0.12 A 5.76 W 2600 RPM 41.0 dB(A) 105.94 CFM (3.000 m3/min) 0.300 inchH2O (7.60 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1248_AFB120X38mm-C.jpg AFB1224SHE-T50F 120x120x38 7.0~27.6 24 VDC 0.50 A 12.00 W 3700 RPM 53.0 dB(A) 151.85CFM (4.300 m3/min) 0.571 inchH2O (14.50 mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg https://www.delta-fan.com/Download/Images/AFB1248H_AFB120x38mm.jpg AFB1224HHE-T500 120x120x38 7.0~27.6 24 VDC 0.30 A 7.20 W 2900 RPM 44.0 dB(A) 120.07 CFM (3.400 m3/min) 0.354 inchH2O (9.00mmH2O) -10~+60⁰C
https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg https://www.delta-fan.com/Download/Images/AFB1212_AFB120X38mm-C.jpg AFB1212VHE-T50F 120x120x38 4.0~13.2 12 VDC 0.60 A 7.20 W 3200 RPM 48.0 dB(A) 129.96 CFM (3.680 m3/min) 0.420 inchH2O (10.70 mmH2O) -10~+60⁰C
EFB1324SHE-EP, 127x127x38mm, IP55, PWM, 24 VDC, 0.75 A, 18 W, speed sensor (Tach), ball bearing, axial, 4600 RPM, 4 wire leads, dc fan, delta fan EFB1324SHE-EP, 127x127x38mm, IP55, PWM, 24 VDC, 0.75 A, 18 W, speed sensor (Tach), ball bearing, axial, 4600 RPM, 4 wire leads, dc fan, delta fan EFB1324SHE-EP 127x127x38 18.0~28.0 24 VDC 0.75 A 18.00 W 4600 RPM 58.5 dB(A) 200.00CFM (5.663 m3/min) 0.757 inchH2O (19.23 mmH2O) -10~+70⁰C
EFB1512HHG-T500 172x150x51 8.0~14.0 12 VDC 1.79 A 21.48 W 3700 RPM 57.5 dB(A) 279.69 CFM (7.920 m3/min) 0.800 inchH2O (20.30 mmH2O) -10~+70⁰C
EFC1748DG-TYSG EFC1748DG-TYSG EFC1748DG-TYSG Rounded/Rect-172 L x 150 H x 50.80 W 28.0~53.0 48 VDC 1.23 A 59.04 W 5500 RPM 63.4 dB(A) 415.66CFM (11.770 m3/min) 1.771 inchH2O (44.99 mmH2O) -10~+70⁰C
EFB1724VHG-T500, Round-172mmx50.8mm, IP55, 24VDC, 0.97A, 23.28W, 4000 RPM, 2 lead wires, ball bearing, axial, dc fan, delta EFB1724VHG-T500, Round-172mmx50.8mm, IP55, 24VDC, 0.97A, 23.28W, 4000 RPM, 2 lead wires, ball bearing, axial, dc fan, delta EFB1724VHG-T500 172x172x51 12.0~28.0 24 VDC 0.97 A 23.28 W 4000 RPM 57.0 dB(A) 302.29CFM (8.560 m3/min) 0.937 inchH2O (23.80 mmH2O) -10~+70⁰C
EFB1524SHGP5, 172x150x50.8mm, Industrial fan with IP68, PWM/F00, 24 VDC, 1.55 A, 37.50 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524SHGP5, 172x150x50.8mm, Industrial fan with IP68, PWM/F00, 24 VDC, 1.55 A, 37.50 Watts, 4500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan EFB1524SHGP5 Round/Rect 172x150x50.8 21.6 - 26.4 VDC 24 VDC 1.55 A 37.20 W 4500 RPM 62.0 dB(A) 322.39 CFM (9.13 m3/min) 1.265 inchH2O (32.14 mmH2O) -10~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)

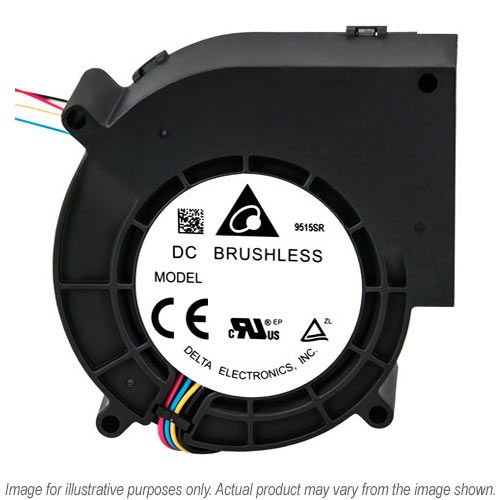

Delta IP55 Blowers (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/BFB0412_40x10mm.jpg https://www.delta-fan.com/Download/Images/BFB0412_40x10mm.jpg BFB0405HHA-TZP4 40x40x10 4.0~5.5 5 VDC 0.16 A 0.80 W 8500 RPM 34.5 dB(A) 3.00 CFM (0.085 m3/min) 0.564 inchH2O (14.33 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg https://www.delta-fan.com/Download/Images/automotive/BFB0712HHD77.jpg BFB0712HHD77 Rounded/Rect 75.7mm L x 80.6mm H x 25.00 9.0~16.0 12 VDC 0.53 A 8.15 W 5500 RPM 52.0 dB(A) 14.70 CFM (0.41 m3/min) 1.41 inchH2O (35.9 mmH2O) -40~+85⁰C
https://www.delta-fan.com/Download/Images/automotive/BFB1012HD-04D4L.jpg https://www.delta-fan.com/Download/Images/automotive/BFB1012HD-04D4L.jpg BFB1012HD-04D4L 100x98x20 90.0~16.9 12 VDC 0.58 A 6.96 W 4000 RPM 50.5 dB(A) 18.30CFM (0.50 m3/min) 1.62 inchH2O (40.60 mmH2O) -40~+85⁰C
THB1224B-PM00 THB1224B-PM00 THB1224B-PM00 120x120x25.40 18.0 - 27.5 VDC 24 VDC 0.95 A 22.80 W 8300 RPM 65.0 dB(A) 174.73CFM (4.948 m3/min) 2.139 inchH2O (54.33 mmH2O) -10~+70⁰C
BFB1224H-T50R BFB1224H-T50R BFB1224H-T50R 120x120x32 7.0~27.6 24 VDC 0.35 A 8.40 W 2500 RPM 51.0 dB(A) 29.00CFM (0.821 m3/min) 0.827 inchH2O (21.00 mmH2O) -10~+60⁰C
BFB1224GH-TA50 120x120x32 14.0~27.6 24 VDC 1.60 A 38.40 W 4400 RPM 65.0 dB(A) 60.39 CFM (1.710 m3/min) 4.094 inchH2O (104.00 mmH2O) -10~+60⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)



Delta IP54 Axial Fans (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
PFB0912UHE-T500 PFB0912UHE-T500 PFB0912UHE-T500 92x92x38 7.0 - 13.2 12 VDC 1.96 A 23.52 W 7000 RPM 64.0 dB(A) 153.52CFM (4.347 m3/min) 1.449 inchH2O (36.79 mmH2O) -10~+60⁰C
EFB1548VHG-TP14, Rounded/Rect 172x150x50.8mm, 48VDC, 0.49A, 23.52W, 4000 RPM, 4 lead wires, PWM speed control, speed sensor (Tach), ball bearing, axial, dc fan, delta fan EFB1548VHG-TP14, Rounded/Rect 172x150x50.8mm, 48VDC, 0.49A, 23.52W, 4000 RPM, 4 lead wires, PWM speed control, speed sensor (Tach), ball bearing, axial, dc fan, delta fan EFB1548VHG-TP14 Rounded/Rect-172 L x 150 H x 50.80 W 36.0 - 60.0 48 VDC 0.49 A 23.52 W 4000 RPM 60.0 dB(A) 302.29CFM (8.560 m3/min) 0.937 inchH2O (23.80 mmH2O) -10~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)



Delta IP53 Blowers (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg https://www.delta-fan.com/Download/Images/BFB04512HHA-CZ0T.jpg BFB04512HHA-CZ0T 45x45x10.3 50.0~13.5 12 VDC 0.14 A 1.68 W 6100 RPM 36.0 dB(A) 3.60 CFM (0.102 m3/min) 0.598 inchH2O (15.20 mmH2O) -10~+70⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)



Delta IP51 Axial Fans (Click on part numbers to download spec, 3D, and more.)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)
TFA0412CN-CN TFA0412CN-CN TFA0412CN-CN 40x40x28 7.0 - 13.2 VDC 12 VDC 0.60 A 7.20 W 17600 RPM 55.0 dB(A) 25.29CFM (0.717 m3/min) 1.868 inchH2O (47.44 mmH2O) -10~+70⁰C
https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png THD0812VE-00 80x80x80 10.8~13.2 12 VDC 15.0 A 180.00 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.480 inchH2O (190.00 mmH2O) -40~+70⁰C
https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png THD0848VE-00 80x80x80 36.0~72.0 48 VDC 3.60 A 172.80 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.280inchH2O (185.00mmH2O) -10~+70⁰C
EUB0912HF-03P1 EUB0912HF-03P1 EUB0912HF-03P1 92x92x32 mm 10.8 - 13.2 VDC 12 VDC 0.13 A 1.44 W 3350 RPM 33.5 dB(A) 47.00 CFM (1.330 m3/min) 0.227 inchH2O (5.770 mm H2O) -40~+40⁰C
KSB1212ME-03P1 KSB1212ME-03P1 KSB1212ME-03P1 Round-120mm Diameter x 38 mm W 10.8 - 13.2 VDC 12 VDC 0.19 A 2.28 W 1800 RPM 36.2 dB(A) 44.91CFM (1.272 m3/min) 0.300 inchH2O (7.62 mm H2O) -40~+40⁰C
EUB1312HE-10P1 EUB1312HE-10P1 EUB1312HE-10P1 125x125x39 mm 10.8 - 13.2 VDC 12 VDC 0.13 A 1.56 W 2200 RPM 32.0 dB(A) 79.867 CFM (2.260 m3/min) 0.184 inchH2O (4.660 mm H2O) -40~+40⁰C
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O) Operating Temperature (ºC)

The performance data is subject to change without notice.
Download brochure Contact us
Category
  1. Delta IP68 Axial Fans 27 items
  2. Delta IP68 Blowers 2 items
  3. Delta IP67 1 item
  4. Delta IP56 Fans and blowers 9 items
  5. Delta IP55 Axial Fans 45 items
  6. Delta IP55 Blowers 6 items
  7. Delta IP54 Axial Fans 2 items
  8. Delta IP53 Blowers 1 item
  9. Delta IP51 Axial Fans 6 items
Voltage Rating
  1. 2.0 - 3.50 VDC 5 items
  2. 4.0 - 5.5 VDC 1 item
  3. 4.0 - 13.2 VDC 1 item
  4. 4.0 - 13.8 VDC 1 item
  5. 5.0 - 12.6 VDC 1 item
  6. 5.0 - 13.5 VDC 1 item
  7. 5.0 - 13.8 VDC 1 item
  8. 5.5 - 13.2 VDC 1 item
  9. 7.0 - 13.2 VDC 3 items
  10. 7.0 - 13.8 VDC 4 items
  11. 7.0 - 15.0 VDC 1 item
  12. 7.0 - 27.6 VDC 3 items
  13. 8.0 - 14.0 VDC 1 item
  14. 9.0 - 16.0 VDC 2 items
  15. 10.2 - 13.8 VDC 1 item
  16. 10.8 - 13.2 VDC 6 items
  17. 10.8 - 13.8 VDC 2 items
  18. 12.0-28.0VDC 1 item
  19. 14.0 - 26.4 VDC 9 items
  20. 14.0-26.5VDC 2 items
  21. 14.0 - 27.6 VDC 4 items
  22. 14.0 - 27.6VDC 6 items
  23. 14.0 - 28.0 VDC 1 item
  24. 16.0 - 26.4 VDC 3 items
  25. 18.0 - 27.5 VDC 1 item
  26. 18.0 - 26.4 VDC 1 item
  27. 18.0 - 28.0 VDC 1 item
  28. 20.4 - 26.4VDC 1 item
  29. 20.4-27.6VDC 1 item
  30. 21.6 - 26.4 VDC 6 items
  31. 21.6-26.4VDC 5 items
  32. 22.0 - 26.0 VDC 1 item
  33. 28.0-53.0VDC 1 item
  34. 28.0-56.0VDC 1 item
  35. 30.0-60.0VDC 1 item
  36. 34.0-56.0VDC 1 item
  37. 36.0-59.0VDC 1 item
  38. 36.0 - 60.0 VDC 7 items
  39. 36.0 - 72.0 VDC 2 items
  40. 36.0 - 75.0 VDC 1 item
  41. 36.0-75.0VDC 1 item
  42. 42.0 - 60.0 VDC 1 item
Operating Temperature
  1. -10~+60⁰C 24 items
  2. -10~+70⁰C 58 items
  3. -25~+60⁰C 1 item
  4. -25~+70⁰C 6 items
  5. -25~+75⁰C 1 item
  6. -40~+40⁰C 3 items
  7. -40~+70⁰C 3 items
  8. -40~+75⁰C 1 item
  9. -40~+85⁰C 2 items
Noise
  1. 26.5 dB(A) 1 item
  2. 30.0 dB(A) 2 items
  3. 31.0 dB(A) 1 item
  4. 31.5 dB(A) 2 items
  5. 32.0 dB(A) 2 items
  6. 32.5 dB(A) 1 item
  7. 33.5 dB(A) 1 item
  8. 34.0 dB(A) 3 items
  9. 34.5 dB(A) 1 item
  10. 35.9 dB(A) 1 item
  11. 36.0 dB(A) 1 item
  12. 36.2 dB(A) 1 item
  13. 36.4 dB(A) 1 item
  14. 39.5 dB(A) 1 item
  15. 40.0 dB(A) 1 item
  16. 40.5 dB(A) 1 item
  17. 41.0 dB(A) 1 item
  18. 41.5 dB(A) 1 item
  19. 43.5 dB(A) 1 item
  20. 44.0 dB(A) 1 item
  21. 44.2 dB(A) 1 item
  22. 44.5 dB(A) 3 items
  23. 45.4 dB(A) 1 item
  24. 46.5 dB(A) 3 items
  25. 47.0 dB(A) 1 item
  26. 48.0 dB(A) 1 item
  27. 48.6 dB(A) 1 item
  28. 49.5 dB(A) 1 item
  29. 49.6 dB(A) 1 item
  30. 50.0 dB(A) 2 items
  31. 50.5 dB(A) 1 item
  32. 51.0 dB(A) 1 item
  33. 52.0 dB(A) 2 items
  34. 52.3 dB(A) 1 item
  35. 53.0 dB(A) 3 items
  36. 54.0 dB(A) 3 items
  37. 55.0 dB(A) 4 items
  38. 55.5 dB(A) 2 items
  39. 57.0 dB(A) 2 items
  40. 57.5 dB(A) 2 items
  41. 57.9 dB(A) 1 item
  42. 58.5 dB(A) 4 items
  43. 59.0 dB(A) 2 items
  44. 60.0 dB(A) 2 items
  45. 61.0 dB(A) 1 item
  46. 62.0 dB(A) 2 items
  47. 63.4 dB(A) 1 item
  48. 63.7 dB(A) 1 item
  49. 64.0 dB(A) 5 items
  50. 65.0 dB(A) 5 items
  51. 65.5 dB(A) 1 item
  52. 66.0 dB(A) 2 items
  53. 66.5 dB(A) 2 items
  54. 69.0 dB(A) 1 item
  55. 70.0 dB(A) 2 items
  56. 70.8 dB(A) 1 item
  57. 71.0 dB(A) 1 item
  58. 77.5 dB(A) 1 item
  59. 78.0 dB(A) 1 item
  60. 78.5 dB(A) 2 items
Voltage Rated
  1. 3 VDC 5 items
  2. 5 VDC 2 items
  3. 12 VDC 30 items
  4. 24 VDC 46 items
  5. 48 VDC 16 items
Ingress Protection
  1. IP68 29 items
  2. IP67 1 item
  3. IP56 9 items
  4. IP55 49 items
  5. IP54 2 items
  6. IP53 1 item
  7. IP51 6 items
Lifetime @ Temp
  1. 3600 Hrs@70⁰C 1 item
  2. 30000 Hrs@40°C 10 items
  3. 50000 Hrs@40⁰C 9 items
  4. 70000 Hrs@40⁰C 31 items
  5. 70000 Hrs@40°C 42 items
  6. 80000 Hrs@40⁰C 6 items
Material Blade
  1. Plastic 92 items
Material Frame
  1. Aluminum 5 items
  2. Die-Cast Alum 2 items
  3. Die-Casting Aluminum 8 items
  4. Plastic 84 items
Price
Current Rating
  1. 0.05 A 2 items
  2. 0.06 A 4 items
  3. 0.08 A 2 items
  4. 0.09 A 2 items
  5. 0.10 A 2 items
  6. 0.12 A 1 item
  7. 0.13 A 4 items
  8. 0.14 A 2 items
  9. 0.15 A 1 item
  10. 0.16 A 2 items
  11. 0.17 A 2 items
  12. 0.19 A 1 item
  13. 0.20 A 1 item
  14. 0.23 A 1 item
  15. 0.24 A 3 items
  16. 0.25 A 2 items
  17. 0.26 A 1 item
  18. 0.27 A 1 item
  19. 0.28 A 1 item
  20. 0.30 A 1 item
  21. 0.31 A 1 item
  22. 0.33 A 1 item
  23. 0.34 A 1 item
  24. 0.35 A 1 item
  25. 0.40 A 2 items
  26. 0.43 A 1 item
  27. 0.45 A 2 items
  28. 0.49 A 1 item
  29. 0.50 A 4 items
  30. 0.52 A 1 item
  31. 0.53 A 2 items
  32. 0.58 A 1 item
  33. 0.60 A 2 items
  34. 0.65 A 2 items
  35. 0.66 A 1 item
  36. 0.68 A 2 items
  37. 0.75 A 3 items
  38. 0.77 A 1 item
  39. 0.84 A 1 item
  40. 0.85 A 1 item
  41. 0.88 A 1 item
  42. 0.90 A 2 items
  43. 0.95 A 1 item
  44. 0.97 A 1 item
  45. 0.99 A 1 item
  46. 1.00 A 2 items
  47. 1.02 A 1 item
  48. 1.10 A 1 item
  49. 1.15 A 2 items
  50. 1.20 A 1 item
  51. 1.23 A 1 item
  52. 1.26 A 1 item
  53. 1.35 A 2 items
  54. 1.45 A 1 item
  55. 1.55 A 2 items
  56. 1.60 A 1 item
  57. 1.79 A 1 item
  58. 1.96 A 1 item
  59. 2.00 A 1 item
  60. 2.07 A 1 item
  61. 2.20 A 1 item
  62. 2.75 A 1 item
  63. 2.80 A 1 item
  64. 3.40 A 1 item
  65. 3.60 A 1 item
  66. 3.75 A 1 item
  67. 15.0 A 1 item
Features
  1. Closed Type Motor 13 items
  2. Locked Rotor Sensor 1 item
  3. Low Noise 1 item
  4. PWM control 4 items
  5. PWM Control, Speed Sensor (Tach) 41 items
  6. Speed Sensor (Tach) 14 items
Bearing Type
  1. Ball 90 items
  2. Sleeve 9 items
Fan Type
  1. Axial 85 items
  2. Blower 14 items
Series
  1. AFB 23 items
  2. ASB 2 items
  3. BFB 6 items
  4. BSB 4 items
  5. EFB 10 items
  6. EFC 1 item
  7. EUB 2 items
  8. FFB 5 items
  9. FFC 1 item
  10. KSB 1 item
  11. KFB 1 item
  12. PFB 19 items
  13. PFC 1 item
  14. QFR 9 items
  15. TCA 2 items
  16. TFA 2 items
  17. TFC 1 item
  18. TFD 1 item
  19. THA 1 item
  20. THD 5 items
  21. THB 2 items
Loading
