Commercial Fridge Fans & Motors

Commercial Fridge Fans & Motors

Energy-Efficient HVAC Solutions, Commercial Refrigerator Fans and Motors

Delta-designed refrigerator fans with dedicated bearing systems operate in low-temperature environments of up to -40°F. Our novel blade design is a low noise solution, creating abundant airflow within the system tunnel while maintaining a uniform internal refrigerator temperature. Advanced motor driver circuit technology minimizes vibration and increases fan efficiency. Our series also offers a PWM function that includes a wide range of speed settings.

Up to 70% Power Savings with Electronically Commutated Motors

Global energy-saving mandates grow more stringent every year — and AC-based fan motors struggle to keep pace with newer, more efficient HVAC and Commercial Refrigerator systems — that's why Delta developed brushless DC motor technology.

Our brushless DC motor technology is Electronically Commutated (EC) — featuring integrated AC to DC inverters and magnetic rotors — offers significant power savings over AC motor fans while maintaining AC source-input compatibility. Customers can expect up to 70% power savings by using Delta EC motor-based fans, so now you can offer high-performance, power-saving HVAC and Commercial Refrigerator products to your clients.

Protect Critical Cargo with Delta DC/EC Fan and Motor Technology

Delta offers a wide range of DC/EC motors that can protect temperature-sensitive goods. Delta has the right fan and motor technology solutions when you need cutting-edge solutions to safeguard your— or your client's — perishable or temperature-sensitive goods.



Potential Applications Include:

•     Refrigerated Transports

•     Cold Storage

•     Cooling Centers

•     Storage in Sales Outlets

•     Commercial and Home Refrigerators

•     Air Conditioners, Purifiers, and Circulators

•     Heat Exchangers

Cold-Chain Operation

Delta Home Appliance Advantage

Reduce vibration, noise, and energy usage with Delta Electronically Commutated (EC) fans and blowers and BLDC motors that are purpose-built to provide class-leading performance and quality to home appliances. Delta EC fans and blowers feature reductions to vibrations and noise while improving acoustic qualities to minimize bothersome operational noise. These EC fans and blowers also have been designed and tested to IPX1~5 (interior) and IP5X (exterior) with resistance to salt-fog to satisfy even the most demanding operational needs. BLDC motors improve upon noise and acoustic qualities while offering popular operating voltages, sine and square wave control, and 500~1500RPM speeds. All are built to withstand a wide range of operating temperatures relative to their application to ensure compatibility with our customers’ systems. Have a home appliance project to discuss? Reach out to one of our experienced engineers to ensure the right solution is either provided or designed for your needs.

Advantages/benefits

  • Brushless DC motor/fan driven by AC source input
  • Up to 70% power saving compared to AC fans/motors
  • Outstanding reliability, energy efficiency, and low-noise
  • Custom design service available

Electronically Commutated Fans

Electronically Commutated (EC) fans are ideal options for power efficiency and optimum performance for commercial refrigerator cooling units. Delta's EC fans provide lower energy consumption and longer component life to reduce operation and maintenance costs.

DC Refrigeration Fans

Part number
(Download spec sheets)
Dimension
(mm)
Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure(in H2O)
KSB1212ME-03P1 KSB1212ME-03P1 KSB1212ME-03P1 Round-120mm Diameter x 38 mm W 10.8 - 13.2 VDC 12 VDC 0.19 A 2.28 W 1800 RPM 36.2 dB(A) 44.91CFM (1.272 m3/min) 0.300 inchH2O (7.620 mm H2O)
EUB0912HF-03P1 EUB0912HF-03P1 EUB0912HF-03P1 92x92x32 mm 10.8 - 13.2 VDC 12 VDC 0.13 A 1.44 W 3350 RPM 33.5 dB(A) 47.00CFM (1.330 m3/min) 0.227 inchH2O (5.770 mm H2O)
EUB1312HE-10P1 EUB1312HE-10P1 EUB1312HE-10P1 125x125x39 mm 10.8 - 13.2 VDC 12 VDC 0.13 A 1.56 W 2200 RPM 32.0 dB(A) 79.867CFM (2.260 m3/min) 0.184 inchH2O (4.660 mm H2O)
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg AFL2224HW-00 Ø222*H80 (Ø172 impeller) N/A 24 VDC 0.90 A 21.60 W 2800 RPM 60.0 dB(A) 378.60CFM (10.720 m3/min) 0.660inchH2O (16.83mmH2O)
Part number
(Download spec sheets)
Dimension
(mm)
Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure(in H2O)

EC Commercial Refrigeration Fans

Delta's Part Number
(click for spec sheet)
Fan Dimension
(mm)
Voltage (VAC) Main Speed (RPM) 2nd Speed (RPM) Protection/ Option Ingress Protection Certification

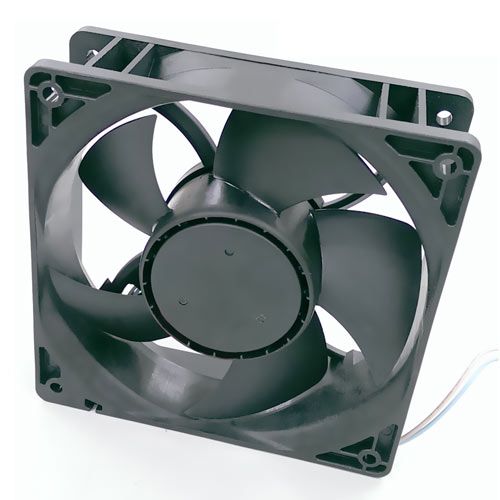

AFL12AUHE-C AFL12AUHE-C AFL12AUHE-C 120x120x38 mm 100 ~ 240 VAC 3200 N/A Electrical IP52 UL/CSA/CE/TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg AFL12AUHE-CGQ6 120*120*38 100-240 2900 N/A Electrical IP52 UL/CSA/CE/TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg AFL12AUME-C 120*120*38 100-240 2700 N/A Electrical IP52 UL/CSA/CE/TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL12AU_120x38mm.jpg AFL12AUHE-CGQ5 120*120*38 100-240 3200 N/A Electrical IP55 UL/CSA/CE/TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL15AUHS.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL15AUHS.jpg AFL15AUHS Ø151*H60.5 110-240 3200 2600 Thermal/ Speed Programmable IP54 UL / CSA
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg AFL2212LW-00GYQ Ø222*H80 (Ø172 impeller) N/A 1400 N/A Electrical/PWM Control IP56 UL/CSA/CE/TUV

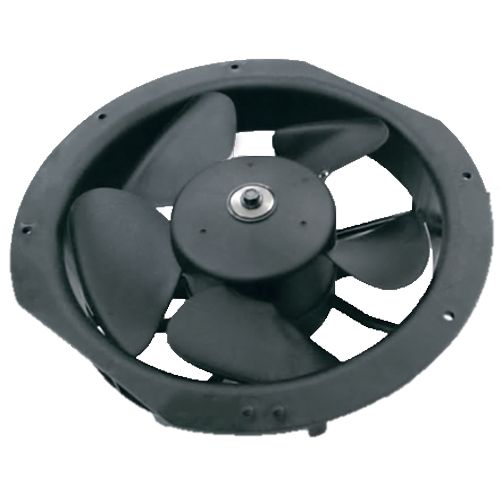

AFL22AUHW-R220DH Ø222*H80 (Ø172 impeller) 100-240 2200 1850 Thermal IP56 UL / CSA / ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-P0.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-P0.jpg AFL22AUHW-P0 Ø222*H80 (Ø172 impeller) 100-240 2500 1800 Thermal/ Speed Reprogrammable IP56 UL/CSA/CE/TUV/ATEX

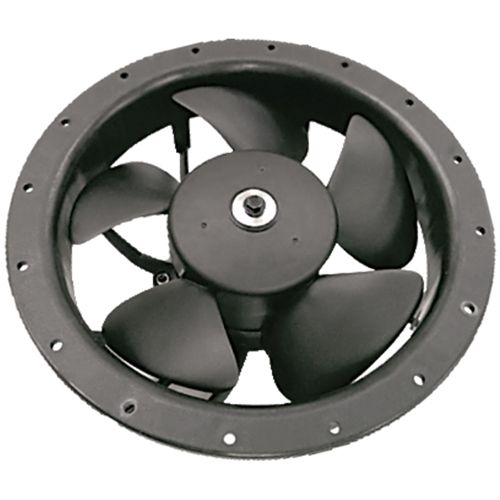

AFL22AUHW-P1 Ø222*H80 (Ø172 impeller) 100-240 2500 1800 Thermal/ Speed Reprogrammable IP56 UL / CSA / ATEX

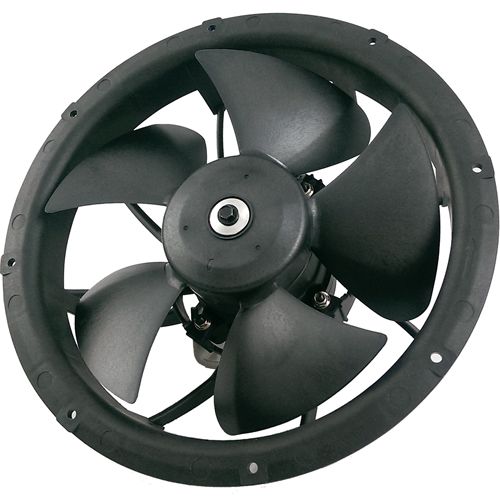

AFL25AUHW-P1 Ø250*H80 (Ø200 impeller) 115-230 2200 / 1600 RPM 1600 Thermal/ Speed Reprogrammable IP56 UL / CSA / ATEX

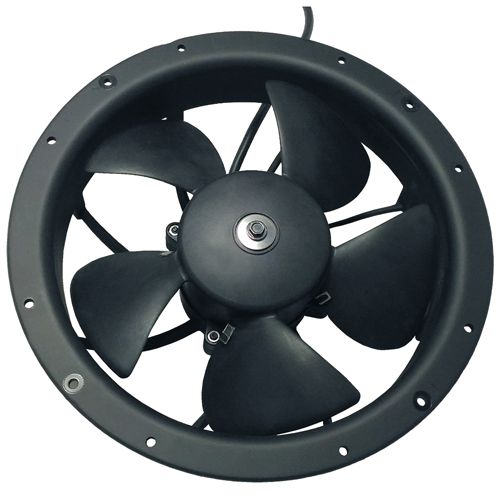

https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL25AUHW_8in-EC-Slim-fan.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL25AUHW_8in-EC-Slim-fan.jpg AFL25AUHW-P0 Ø250*H80 (Ø200 impeller) 110-240 2200 1600 Thermal/ Speed Reprogrammable IP56 UL/CSA/CE/TUV/ATEX
AFL25A2LU-00ASU Ø250*H105 (Ø200 impeller) 230 1600 / 1000 RPM 1000 Thermal IP55 UL/CSA/CE/ TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL25AUHW_8in-EC-Slim-fan.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL25AUHW_8in-EC-Slim-fan.jpg AFL2524HW-00 Ø250*H80 (Ø200 impeller) N/A 2200 N/A Electrical/PWM & Voltage Control IP56 UL/CSA/CE/TUV
AFL28A2LU-BRA01 Ø280*H105 (Ø230 impeller) 230 1400 N/A Thermal IP55 UL/CSA/CE/ TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/AFL22AUHW-R_Fridge_7in-ECfan.jpg AFL2224HW-00 Ø222*H80 (Ø172 impeller) 24 VDC 2800 N/A Electrical/PWM & Voltage Control IP56 UL/CSA/CE/TUV
Delta's Part Number
(click for spec sheet)
Impeller Diameter
(mm)
Voltage (VAC) Max. Speed (RPM) Min. Speed (RPM) Protection/ Option Ingress Protection Certification



Electronically Commutated Motors

The Electronically Commutated (EC) motors based on brushless DC motors use built-in AC to DC converter and magnet rotors to attain more power savings than regular AC motors. Our EC motors are designed for maximum reliability and power efficiency for HVAC applications.

EC MOTOR PRODUCT SPECIFICATION:

Delta's Part Number
(click for spec sheet)
Output Power Voltage (VAC) Input Power (W) Main Speed (RPM) 2nd Speed (RPM) Rotation Direction Ingress Protection Certification

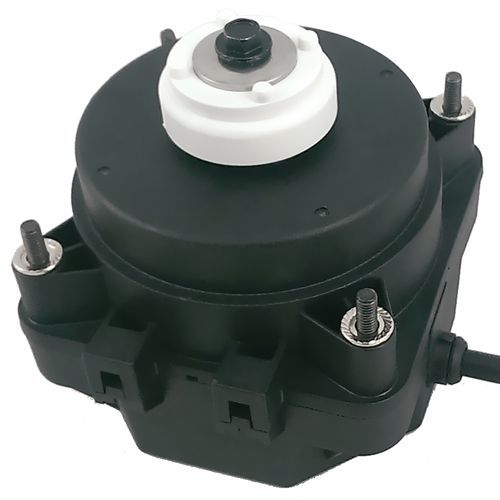

https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg MR83AUPE-144S20 15 100-240 25 1550 N/A CCW IP54 (IP67 option) UL / CSA / ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg MR83A2PE-105S00 1/50hp (15W) 230 25 1300 N/A CCW IP54 UL/CSA/CE/TUV/ATEX
https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg https://www.delta-fan.com/Download/Images/EC-fridge%20fans/MR83A2PE_Fridge_motor.jpg MR83AUPE-104S10 15 100-240 25 1300 N/A CCW IP54 (IP67 option) UL/CSA/CE/TUV/ATEX
Delta's Part Number
(click for spec sheet)
Output Power Voltage (VAC) Input Power (W) Max. Speed (RPM) Min. Speed (RPM) Rotation Direction Ingress Protection Certification

Performance data is subject to change without notice.

Contact us for more product information or sample requests.
