Consumer Applications: air purifiers, car audio, dish washers, video and audio systems, microwave ovens, refrigerators, rice cookers, televisions, washing machines, wine chests, gaming consoles, home appliances, and office machines.

High Temperature and Long Life Sleeve Fan Features

Consumer products like laser projection TVs and smart speakers have a high operational temperature. To meet thermal specifications and provide low noise output, high sound quality, and longer product life, Delta developed DC fans with sleeve bearings that are more durable in high operational temperatures while offering wide rotational speed characteristics.

Features and benefits:

• High operating temperature

• Wide range of speed control

• The benefit of lower noise from low speed

• Long life: 50,000 Hrs at 104⁰F or 40⁰C

high operating temperature and long life sleeve fan applications, projector, projected robot, laser projection TV, projected smart speaker

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	Current (A)	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure(in H2O)
AUB0712HH-C	70x70x25mm	5.0 - 13.2 VDC	12 VDC	0.25 A	3.00 W	4500 RPM	40.5 dB(A)	36.60 CFM (1.037 m3/min)	0.288 inchH2O (7.32 mmH2O)
AUB0812H-E	80x80x25 mm	5.0 - 13.2 VDC	12 VDC	0.23 A	2.76 W	3900 RPM	37.5 dB(A)	50.15 CFM (1.421 m3/min)	0.239 inchH2O (6.08 mm H2O)
AUB0912HJ-00	92x92x25 mm	10.8 - 13.2 VDC	12 VDC	0.35 A	4.20 W	4600 RPM	45.0 dB(A)	69.02CFM (1.955 m3/min)	0.407 inchH2O (10.340 mm H2O)

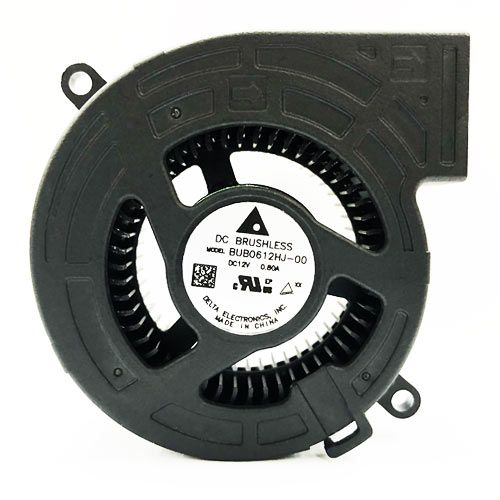

BUB0612HJ-00	60x60x23 mm	5.0 - 12.8 VDC	12 VDC	0.44 A	5.28 W	6000 RPM	43.0 dB(A)	11.38CFM (0.322 m3/min)	1.464 inchH2O (37.200 mm H2O)
BUB0712HJ-00	70x70x25 mm	5.0 - 13.2 VDC	12 VDC	0.42 A	5.04 W	4650 RPM	45.5 dB(A)	14.09 CFM (0.399 m3/min)	1.20 inchH2O (30.490 mm H2O)
BUB0712HD-SM	73x75x20 mm	10.8 - 12.6 VDC	12 VDC	0.26 A	3.12 W	3800 RPM	41.5 dB(A)	10.21CFM (0.289 m3/min)	0.831 inchH2O (21.100 mm H2O)
BUB0812HN-00	80x80x28 mm	10.8 - 13.2 VDC	12 VDC	0.50 A	6.00 W	4300 RPM	44.5 dB(A)	18.84CFM (0.534 m3/min)	1.350 inchH2O (34.300 mm H2O)

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	Current (A)	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure(in H2O)

DC Refrigerator Fans

Delta designed our refrigerator fans for low-temperature environments with a dedicated bearing system allowing our fans to work at an operational temperature of -40°F without freezing. Our unique blade design allows unrestricted airflow with lower system tunnel noise while keeping a steady temperature inside your refrigerator. Delta's advanced motor driver circuit technology achieves high efficiency and low vibration at the same time while also offering a PWM function for a wider speed range adjustment.

Features and benefits:

• Low noise blade design

• Low power consumption

• IP X1 water proof grade

• PWM function available

dc refrigerator fans, high efficiency non-frost fan, impeller modify blade shape to improve blade efficiency, PWBA driver IC, lower power consumption, high efficiency motor design, sleeve bearing design for low temperature, high endurance

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	Current (A)	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure(in H2O)
EUB0912HF-03P1	92x92x32 mm	10.8 - 13.2 VDC	12 VDC	0.13 A	1.44 W	3350 RPM	33.5 dB(A)	47.00 CFM (1.330 m3/min)	0.227 inchH2O (5.770 mm H2O)
KSB1212ME-03P1	Round-120mm Diameter x 38 mm W	10.8 - 13.2 VDC	12 VDC	0.19 A	2.28 W	1800 RPM	36.2 dB(A)	44.91CFM (1.272 m3/min)	0.300 inchH2O (7.62 mm H2O)
EUB1312HE-10P1	125x125x39 mm	10.8 - 13.2 VDC	12 VDC	0.13 A	1.56 W	2200 RPM	32.0 dB(A)	79.867 CFM (2.260 m3/min)	0.184 inchH2O (4.660 mm H2O)

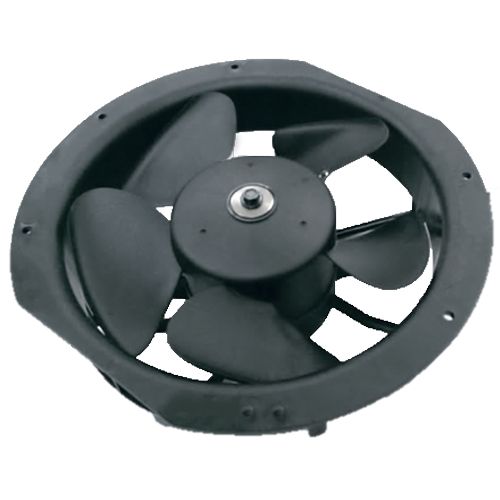

AFL2224HW-00	Ø222*H80 (Ø172 impeller)	21.6 - 26.4 VDC	24 VDC	0.90 A	21.60 W	2800 RPM	60.0 dB(A)	378.60CFM (10.720 m3/min)	0.660 inchH2O (16.83 mmH2O)
AFL2212LW-00GYQ	Ø222*H80 (Ø172 impeller)	10.8 - 13.2 VDC	12 VDC	0.40 A	4.80 W	1400 RPM	40.0 dB(A)	170.10CFM (4.820 m3/min)	0.184 inchH2O (4.660 mm H2O)

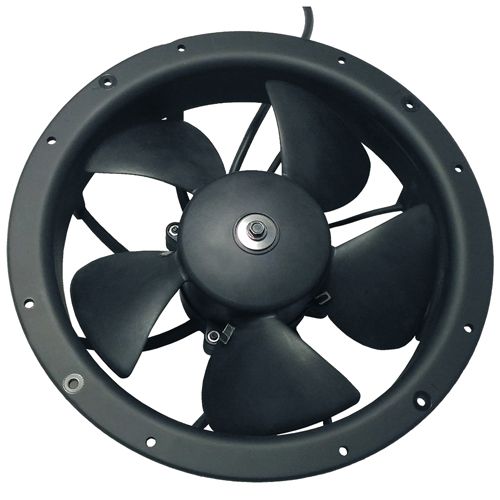

AFL2524HW-00	Ø250*H80 (Ø200 impeller)	21.6 - 26.4 VDC	24 VDC	1.00 A	24.00 W	2200 RPM	57.0 dB(A)	437.00CFM (12.40 m3/min)	0.460 inchH2O (11.70 mmH2O)
