Representing a decisive step forward in sleeve bearing technology, Delta Superflo Bearing Fans are this culmination of innumerable hours of research and development. The results of which are newly augmented mechanical structures that ensure permanent lubrication of the spinning mechanism. This is achieved through multiple improvements to the inner lubrication system, pump dynamics, sealing, and flow. Featuring an anti-gravity oil pump, Delta Superflo Bearing Fans recirculate internal oil reserves endlessly within a chamber sealed by dual labyrinth seals. This flow, combined with heat and pressure created through centrifugal forces during operation, minimizes friction and noise while extending the working life of the fan.

Cost-Conscious Long-Life Superflo Bearing Fans: Recognizing that sleeve bearings represent a common, cost-effective approach to cooling needs, Delta SuperFlo Bearing Fans offer a cost-conscious upgrade to assist in minimizing costly maintenance cycles. Inherent in these upgrades are commensurate improvements to radial vibration, excellent anti-shock, a wide range of applied operating temperatures, and overall noise reduction. These all contribute to reducing equipment failures due to overheating because of fan failure and replacement of fans.

Common Applications: As an often-overshadowed critical component, Delta Superflo bearing fans help maintain proper operating temperatures of core PC components such as the CPU and Power Supply. These are integrated into the CPU cooler and internally in the Power Supply. A wide array of consumer products in various other categories benefit from Superflo bearing fans to maintain their necessary thermal characteristics during operation.

Features:

Potentially integrated into a wide variety of applications, SuperFlo Bearing Fans key operational enhancements are as follows:

• Redesigned sealing and oil flow paths
• Greatly reduced friction and noise
• Better acoustic performance over 2-ball bearing fans at low speed operation
• Superb anti-shock
• Operating life guarantee (L10) 50,000 hours at 40C minimum
• Wide applicable temperature range

The Superflo Bearing System represents a mechanical advancement in sleeve bearing systems, featuring a permanently lubricated spinning mechanism for Delta fans. The Superflo system includes an anti-gravity oil pump that re-circulates and recycles the oil in a sealed chamber with dual labyrinth seals. Superflo fans can be used in many of the Delta fan series*.

*In the Delta fan naming system, the second digit “U” signifies a Superflo fan.

The Superflo AUB Series fan L10 life is guaranteed for 50,000 hrs @ 40

compared to regular sleeve bearing L10 life of 30,000 hrs @40

Available Models:

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	BearingType	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure (in H2O)
AUB0412HDYFM	40x40x20	7.0~13.8	12 VDC	Superflo	1.32 W	7500 RPM	22.0 dB(A)	8.01CFM (0.227 m3/min)	0.166inchH2O (04.22mmH2O)
AUB0512HB	50x50x15	7.0~13.8	12 VDC	Superflo	1.20 W	5600 RPM	32.0 dB(A)	14.13CFM (0.400 m3/min)	0.240inchH2O (6.10mmH2O)
AUB0512HB-F00	50x50x15	7.0~13.8	12 VDC	Superflo	1.20 W	5600 RPM	32.0 dB(A)	14.13CFM (0.400 m3/min)	0.240inchH2O (6.10mmH2O)

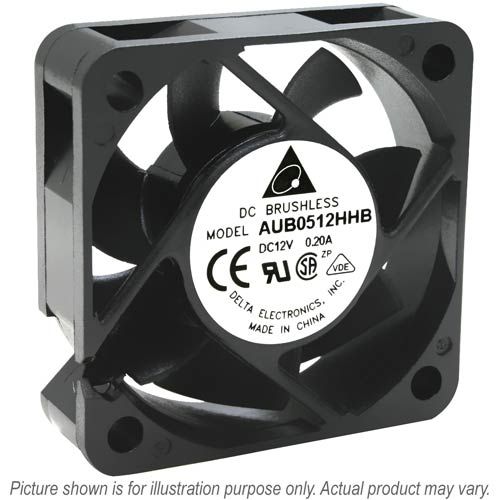

AUB0512HHB-F00	50x50x15	7.0~13.8	12 VDC	Superflo	1.56 W	6400 RPM	36.0 dB(A)	16.24CFM (0.460 m3/min)	0.320inchH2O (8.13mmH2O)
AUB0512LB	50x50x15	7.0~13.8	12 VDC	Superflo	0.72 W	4000 RPM	24.0 dB(A)	9.89CFM (0.280 m3/min)	0.130 inchH2O (03.25 mmH2O)
AUB0512LB-AYCX	50x50x15	6.0~13.2	12 VDC	Superflo	0.48 W	3800 RPM	20.0 dB(A)	10.02CFM (0.284 m3/min)	0.096 inchH2O (2.43 mmH2O)
AUB0512MB-F00	50x50x15	7.0~13.8	12 VDC	Superflo	0.96 W	4800 RPM	28.0 dB(A)	12.36CFM (0.350 m3/min)	0.180inchH2O (4.60mmH2O)
AUB0524HB	50x50x15	14.0~27.8	24 VDC	Superflo	1.68 W	5600 RPM	32.0 dB(A)	14.13CFM (0.400 m3/min)	0.240inchH2O (6.10mmH2O)
AUB0524LB	50x50x15	14.0~27.8	24 VDC	Superflo	1.20 W	4000 RPM	24.0 dB(A)	9.89CFM (0.280 m3/min)	0.130 inchH2O (03.25 mmH2O)
AUB0524MB	50x50x15	14.0~27.8	24 VDC	Superflo	1.44 W	4800 RPM	28.0 dB(A)	12.36CFM (0.350 m3/min)	0.180inchH2O (04.56mmH2O)

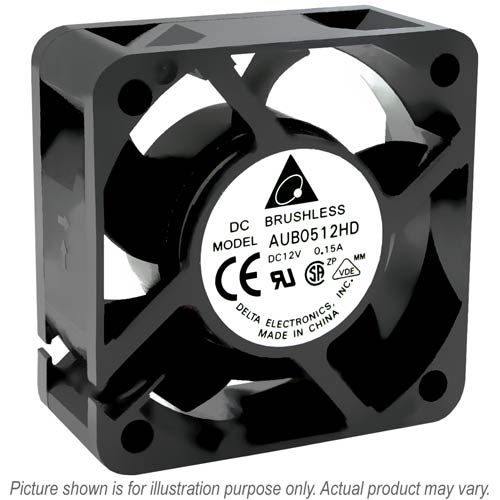

AUB0505HD	50x50x20	4.5~5.5	5 VDC	Superflo	1.65 W	5600 RPM	28.0 dB(A)	17.13CFM (0.485 m3/min)	0.230inchH2O (5.84mmH2O)
AUB0524HD	50x50x20	14.0~27.6	24 VDC	Superflo	1.68 W	5600 RPM	28.0 dB(A)	17.13CFM (0.485 m3/min)	0.230inchH2O (5.84mmH2O)
AUB0524HHD	50x50x20	14.0~27.6	24 VDC	Superflo	2.16 W	6400 RPM	32.5 dB(A)	20.13CFM (0.570 m3/min)	0.029 inchH2O
AUB0524LD	50x50x20	14.0~27.6	24 VDC	Superflo	1.20 W	4000 RPM	18.5 dB(A)	12.00CFM (0.339 m3/min)	0.110 IncH2O (2.79 mmH2O
AUB0524MD	50x50x20	14.0~27.6	24 VDC	Superflo	1.44 W	4800 RPM	24.0 dB(A)	14.83CFM (0.420 m3/min)	0.170inchH2O (4.306mmH2O)
AUB0524VHD	50x50x20	14.0~27.6	24 VDC	Superflo	2.40 W	N/A	40.5 dB(A)	21.54CFM (0.609 m3/min)	0.034 inchH2O
AUB0612HB-A	60x60x15	7.0~13.8	12 VDC	Superflo	0.72 W	3000 RPM	20.0 dB(A)	15.25CFM (0.432 m3/min)	0.087 inchH2O (2.20 mmH2O)
AUB0612HHB-A	60x60x15	7.0~13.8	12 VDC	Superflo	1.56 W	4500 RPM	33.0 dB(A)	23.39CFM (0.662 m3/min)	0.190inchH2O (4.83mmH2O)
AUB0624HB	60x60x15	14.0~27.6	24 VDC	Superflo	1.44 W	4000 RPM	32.0 dB(A)	15.36CFM (0.435 m3/min)	N/A
AUB0624HHB	60x60x15	14.0~27.6	24 VDC	Superflo	1.68 W	4500 RPM	35.0 dB(A)	17.30CFM (0.490 m3/min)	0.211 inchH2O (5.358 mmH2O)
AUB0624MB	60x60x15	14.0~27.6	24 VDC	Superflo	1.20 W	3500 RPM	29.0 dB(A)	13.45CFM (0.381 m3/min)	0.12 inchH2O
AUB0612H	60x60x25	7.0~13.8	12 VDC	Superflo	1.44 W	4250 RPM	28.0 dB(A)	19.42CFM (0.550 m3/min)	0.190inchH2O (4.83mmH2O)
AUB0612H-A	60x60x25	4.0~13.8	12 VDC	Superflo	1.56 W	4200 RPM	35.0 dB(A)	21.19CFM (0.600 m3/min)	0.211 inchH2O (5.358 mmH2O)
AUB0612H-F00	60x60x25	7.0~13.8	12 VDC	Superflo	1.44 W	4250 RPM	28.0 dB(A)	19.42CFM (0.550 m3/min)	0.190inchH2O (4.83mmH2O)
AUB0612HH-A	60x60x25	4.0~13.8	12 VDC	Superflo	2.40 W	5000 RPM	40.0 dB(A)	25.42CFM (0.720 m3/min)	0.281inchH2O (7.13mmH2O)
AUB0612HH-AF00	60x60x25	4.0~13.8	12 VDC	Superflo	2.40 W	5000 RPM	40.0 dB(A)	25.42CFM (0.720 m3/min)	0.281inchH2O (7.13mmH2O)
AUB0612L-A	60x60x25	4.0~13.8	12 VDC	Superflo	0.84 W	3100 RPM	26.5 dB(A)	13.77CFM (0.389 m3/min)	0.100 inchH2O (02.53 mmH2O)
AUB0612M-A	60x60x25	4.0~13.8	12 VDC	Superflo	1.08 W	3600 RPM	31.0 dB(A)	18.36CFM (0.520 m3/min)	0.15 inchH2O
AUB0612VH-AF00	60x60x25	4.0~13.8	12 VDC	Superflo	2.88 W	5500 RPM	42.5 dB(A)	29.31CFM (0.830 m3/min)	0.355inchH2O (09.01mmH2O)
AUB0612VH-AIT	60x60x25.40	4.0 ~ 13.8	12 VDC	Superflo	2.88 W	5500 RPM	42.5 dB(A)	29.30CFM (0.830 m3/min)	0.352inchH2O (8.95mmH2O)
AUB0812HB-AR00	80x80x15	5.0~13.8	12 VDC	Superflo	1.80 W	3100 RPM	35.0 dB(A)	36.36CFM (1.030 m3/min)	0.138inchH2O (03.51mmH2O)
AUB0812LB-AR00	80x80x15	5.0~13.8	12 VDC	Superflo	1.20 W	2400 RPM	27.0 dB(A)	27.053CFM (0.766 m3/min)	0.080 inchH2O (02.05 mmH2O)
AUB0812VHB-AF00	80x80x15	5.0~13.2	12 VDC	Superflo	3.00 W	3700 RPM	40.5 dB(A)	42.71CFM (1.209 m3/min)	0.190inchH2O (4.83mmH2O)
AUB0824HB-A	80x80x15	10.0~27.6	24 VDC	Superflo	2.40 W	3100 RPM	35.0 dB(A)	36.36CFM (1.030 m3/min)	0.140inchH2O (3.600mmH2O)
AUB0824HHB-A	80x80x15	10.0~27.6	24 VDC	Superflo	2.88 W	3400 RPM	38.0 dB(A)	39.18CFM (1.109 m3/min)	0.170inchH2O (4.306mmH2O)
AUB0824MB-A	80x80x15	10.0~27.6	24 VDC	Superflo	1.92 W	2700 RPM	31.0 dB(A)	31.42CFM ( 0.889 m3/min)	0.110 IncH2O (2.79 mmH2O
AUB0812HHDXHN	80x80x20	10.8~12.6	12 VDC	Superflo	3.60 W	4500 RPM	43.0 dB(A)	51.46CFM (1.457 m3/min)	0.291inchH2O (07.38mmH2O)
AUB0812H-A	80x80x25	7.0~13.8	12 VDC	Superflo	2.16 W	3000 RPM	34.0 dB(A)	38.83CFM (1.100 m3/min)	0.177inchH2O (4.50mmH2O)
AUB0812H-AF00	80x80x25	7.0~13.8	12 VDC	Superflo	2.16 W	3000 RPM	34.0 dB(A)	38.83CFM (1.100 m3/min)	0.177inchH2O (4.50mmH2O)
AUB0812HH-A	80x80x25	7.0~13.8	12 VDC	Superflo	2.52 W	3250 RPM	35.5 dB(A)	42.36CFM (1.200 m3/min)	0.207inchH2O (5.250mmH2O)
AUB0812L-A	80x80x25	7.0~13.8	12 VDC	Superflo	1.32 W	2400 RPM	28.0 dB(A)	31.06CFM (0.879 m3/min)	0.12 inchH2O
AUB0812L-9X41	80x80x25	10.8~13.8	12 VDC	Superflo	1.08 W	2400 RPM	25.0 dB(A)	27.90CFM (0.790 m3/min)	0.102 inH2O (02.59 mmH2O)
AUB0812M-A	80x80x25	7.0~13.8	12 VDC	Superflo	1.80 W	2700 RPM	32.0 dB(A)	35.30CFM (0.999 m3/min)	0.15 inchH2O
AUB0812VH-AF00	80x80x25	7.0~13.8	12 VDC	Superflo	3.24 W	3600 RPM	39.0 dB(A)	46.60CFM (1.320 m3/min)	0.262inchH2O (06.65mmH2O)
AUB0812VH-AIT	80x80x25	7.0~13.8	12 VDC	Superflo	3.24 W	3600 RPM	39.0 dB(A)	46.60CFM (1.320 m3/min)	0.256inchH2O (6.500mmH2O)
AUB0812VH-SP00	80x80x25	10.8~13.2	12 VDC	Superflo	2.28 W	3600 RPM	39.0 dB(A)	42.02CFM (1.190 m3/min)	0.217inchH2O (05.51mmH2O)

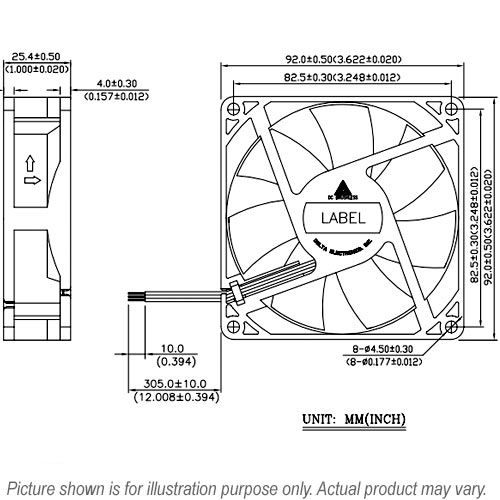

AUB0912H-A	92x92x25	5.0~13.8	12 VDC	Superflo	2.52 W	2800 RPM	37.0 dB(A)	59.89CFM (1.696 m3/min)	0.191inchH2O (04.86mmH2O)
AUB0912H-C	92x92x25	7.0~13.8	12 VDC	Superflo	3.00 W	2800 RPM	38.0 dB(A)	56.66CFM (1.604 m3/min)	0.180inchH2O (04.56mmH2O)
AUB0912HH-CF00	92x92x25	7.0~13.8	12 VDC	Superflo	3.96 W	3200 RPM	41.0 dB(A)	62.18CFM (1.759 m3/min)	0.221inchH2O (05.62mmH2O)
AUB0912L-C	92x92x25	7.0~13.8	12 VDC	Superflo	1.32 W	2000 RPM	27.0 dB(A)	39.36CFM (1.114 m3/min)	0.093 inchH2O (2.36 mmH2O)
AUB0912M-C	92x92x25	7.0~13.8	12 VDC	Superflo	1.92 W	2400 RPM	33.0 dB(A)	46.81CFM (1.325 m3/min)	0.130 inchH2O (03.25 mmH2O)
AUB0912VH-CF00	92x92x25	7.0~13.8	12 VDC	Superflo	4.80 W	3450 RPM	45.0 dB(A)	72.01CFM (2.039 m3/min)	0.291inchH2O (07.38mmH2O)
AUB0912VH-CX09	92x92x25	10.8~13.2	12 VDC	Superflo	4.56 W	3800 RPM	45.0 dB(A)	67.80CFM (1.920 m3/min)	0.302inchH2O (07.67mmH2O)
AUB0924VH-A	92x92x25	14.8~26.4	24 VDC	Superflo	6.00 W	3800 RPM	46.0 dB(A)	81.47CFM (2.307 m3/min)	0.345inchH2O (08.76mmH2O)
AUB1212H-CK15	120x120x25	10.8~13.2	12 VDC	Superflo	3.24 W	2200 RPM	38.0 dB(A)	88.60CFM (2.51 m3/min)	0.161inchH2O (04.08mmH2O)

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	BearingType	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure (in H2O)

 * Modified superflo.
The performance data is subject to change without notice.
