IT equipment and data center is essential to all business operations. A well planned and designed data center with energy-efficient and high-performance equipment has become a focal point of corporations. Delta Electronics being the industry leader in power and thermal management can provide a comprehensive solution from design, construction, and monitoring to management services.



A lot of data are transmitted by telecom and network according to the smart portable device grow. The heat also increases by the transmitted data. The higher cooling performance and powerful fan are needed by the data center or cloud-related equipment.

Optimized blade design for high efficiency

In the meantime, the efficiency becomes critical due to the continuous operation. Delta gets market information and the users' voice then develops an excellent cooling solution. The T-series fan meet to market demand and user aspire. The high airflow and air pressure is impressive and is useful to solve the thermal problem of data center and server.

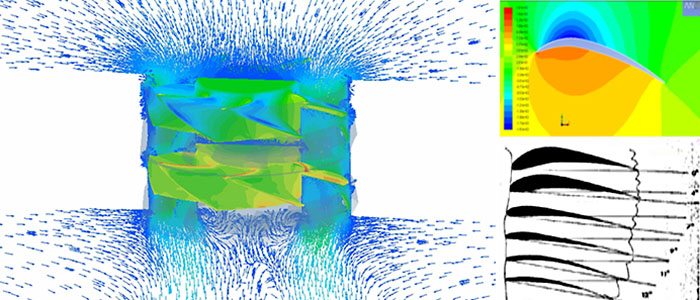

At the same time, high efficiency is another key benefit of T-series fans. After the aerodynamic analysis, the special design blades rotate and provide powerful cooling performance with low power consumption.

Optimized blade design for high efficiency

DATACOM FAN RECOMMEND LIST:

The newest generation "THD series" with talent design implement bionic blade then push up the fan meet higher performance, higher efficiency, and low noise. The recommended model list can be referred to and selected by different sizes.
(Roll over image to zoom in or click on image/PN to get more details)

Part number
(Download spec sheets)
Dimension
(mm)
Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure(in H2O)
https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00P8 Round-225mm diameter x 100mm Width 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291inchH2O (58.20mmH2O)
https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png THD0812VE-00 80x80x80 10.8~13.2 12 VDC 15.0 A 180.00 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.480inchH2O (190.00mmH2O)
https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png THD0848VE-00 80x80x80 36.0~72.0 48 VDC 3.60 A 172.80 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.280inchH2O (185.00mmH2O)
https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00 Round-225mm diameter x 100mm Width 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291inchH2O (58.20mmH2O)

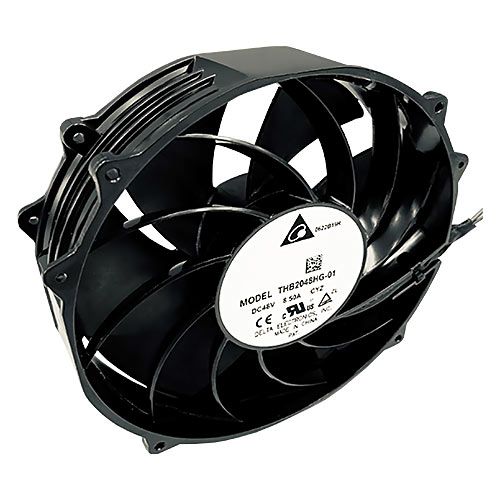

https://www.delta-fan.com/Download/Images/THB2048HG-01.jpg https://www.delta-fan.com/Download/Images/THB2048HG-01.jpg THB2048HG-01 Round-200mm diameter x 53mm Width 36~72 48 VDC 4.20 A 168.00 W 6400 RPM 75.5 dB(A) 787.75CFM (22.310 m3/min) 3.665inchH2O (93.08mmH2O)
THD1348HE THD1348HE THD1348HE 134x134x38 36.0-60.0 48 VDC 5.00 A 240.00 W 12500 RPM 82.0 dB(A) 490.00CFM (13.870 m3/min) 7.10inchH2O (180.34mmH2O)
THD2048HT THD2048HT THD2048HT Round-200mm diameter x 70mm Width 36.0~75.0 48 VDC 8.00 A 384.00 W 7400 RPM 78.0 dB(A) 1026.80CFM (29.06 m3/min) 4.945inchH2O (125.61mmH2O)
THD1248HE THD1248HE THD1248HE 120x120x38 32.0 ~ 59.0 48 VDC 2.20 A 105.82 W 10900 RPM 75.0 dB(A) 287.00CFM (8.122 m3/min) 4.40inchH2O (111.764mmH2O)
THD0948HE-A THD0948HE-A THD0948HE-A 92x92x38 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435inchH2O (87.24mmH2O)
Part number
(Download spec sheets)
Dimension
(mm)
Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure(in H2O)


The performance data is subject to change without notice.

Contact us now for more product information or sample requests.
