Pulse-Width Modulation - PWM
Delta Pulse Width Modulation PWM fans offer full lineup of speed control. PWM fans have advanced cooling solutions, deliver best performance and greater effciency. PWM regulates the voltage signal between fully on and fully off, controlling the speed of a fan. The PWM function is commonly used in OEM cases. Delta also provides standard PWM through distribution channels.
Delta's internal PWM signal control fans deliver a variety of advantages over external PWM controlled devices:
- Wide PWM Frequency Range Input (30Hz- 30kHz)
- Lower vibration at lower duty cycle
- Prevent spike current on fan speed control
- Better motor efficiency
- Lower fan switching noise
| Part number (Download spec sheets) | Dimension (mm) | Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure (in H2O) |
|---|---|---|---|---|---|---|---|---|---|
FFB0924EHE-SP20
|
N/A | N/A | 24 VDC | 0.50 A | 12.00 W | 4800 RPM | 55.0 dB(A) | 110.18CFM (3.120 m3/min) | 0.665inchH2O (16.90mmH2O) |
FFB0848SHE-TP36
|
N/A | N/A | 48 VDC | 0.16 A | 7.68 W | 4900 RPM | 48.5 dB(A) | 68.51CFM (1.940 m3/min) | 0.591inchH2O (15.01mmH2O) |
FFB0812XHXHC
|
80x80x25 | 7~15 | 12 VDC | 1.00 A | 12.00 W | 9000 RPM | 59.0 dB(A) | 92.69CFM (2.626m3/min) | 1.102inchH2O (28.00mmH2O) |
FFB0424VHN-TZT4
|
N/A | N/A | 24 VDC | 0.10 A | 2.40 W | 9500 RPM | 41.9 dB(A) | 15.79CFM (0.447 m3/min) | 0.509inchH2O (12.94mmH2O) |
FFB0412VHN-TP03
|
N/A | N/A | 12 VDC | 0.16 A | 1.92 W | 9500 RPM | 45.0 dB(A) | 15.79CFM (0.447 m3/min) | 0.509inchH2O (12.94mmH2O) |
FFB0412UHN-SP4Z
|
N/A | N/A | 12 VDC | 0.84 A | 10.08 W | 23000 RPM | 59.9 dB(A) | 26.55CFM (0.751 m3/min) | 3.15inchH2O (80.00mmH2O) |
FFB0412SN-00Y2F
|
N/A | N/A | 12 VDC | 0.93 A | 11.16 W | 22000 RPM | 61.5 dB(A) | 29.23CFM (0.828 m3/min) | 3.46inchH2O (87.88mmH2O) |
FFB0412EN-00Y2E
|
N/A | N/A | 12 VDC | 1.45 A | 17.40 W | 25000 RPM | 64.0 dB(A) | 32.90CFM (0.932 m3/min) | 4.44inchH2O (112.78mmH2O) |
FFB03812VN-SPC
|
38x38x28 | 7.0 -13.2 VDC | 12 VDC | 0.85 A | 10.20 W | 23000 RPM | 62.5 dB(A) | 23.00CFM (0.650 m3/min) | 3.40inchH2O (86.36mmH2O) |
FFB03812VHN-9C3P
|
38x38x23 | 7.0 -13.2 VDC | 12 VDC | 0.55 A | 6.60 W | 16000 RPM | 58.5 dB(A) | 20.23CFM (0.573 m3/min) | 1.463inchH2O (37.15mmH2O) |
FFB03612EHNYCL
|
36x36x28 | 10.8 - 13.2 VDC | 12 VDC | 0.63 A | 7.56 W | 19000 RPM | 58.0 dB(A) | 20.94CFM (0.593 m3/min) | 1.691inchH2O (42.943mmH2O) |
FFB03612EHN-BGA
|
36x36x28 | 10.8 - 13.2 VDC | 12 VDC | 0.39 A | 4.68 W | 14500 RPM | 50.0 dB(A) | 16.30CFM (0.461 m3/min) | 1.000inchH2O (25.40mmH2O) |
EFC1748DG-TYSG
|
172x172x51 | 28.0~53.0 | 48 VDC | 1.23 A | 59.04 W | 5500 RPM | 63.4 dB(A) | 415.66CFM (11.770 m3/min) | 1.771inchH2O (44.99mmH2O) |
EFC0812DB-F00
|
80x80x15 | 7.0 - 12.6 VDC | 12 VDC | 0.33 A | 3.96 W | 3800 RPM | 41.0 dB(A) | 48.80CFM (1.382 m3/min) | 0.171inchH2O (4.35mmH2O) |
EFB1548VHG-TP14
|
172x150x51 | 36.0~60.0 | 48 VDC | 0.49 A | 23.52 W | 4000 RPM | 60.0 dB(A) | 302.29CFM (8.560 m3/min) | 0.937inchH2O (23.80mmH2O) |

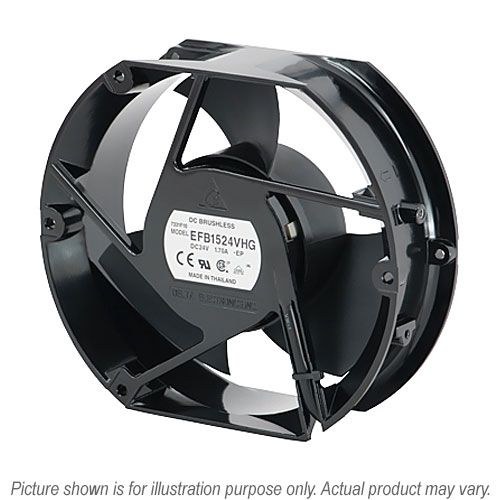

EFB1524VHG-EP
|
172x150x51 | 20.4~27.6 | 24 VDC | 1.02 A | 24.48 W | 4000 RPM | 60.0 dB(A) | 302.29CFM (8.560 m3/min) | 0.937inchH2O (23.80mmH2O) |
| EFB1324SHE-EP | 127x127x38 | 18.0~28.0 | 24 VDC | 0.75 A | 18.00 W | 4600 RPM | 58.5 dB(A) | 200.00CFM (5.663 m3/min) | 0.757inchH2O (19.23mmH2O) |
EFB0412VHD-SP05
|
40x40x20 | 36.0 - 75.0 VDC | 12 VDC | 0.12 A | 1.44 W | 9000 RPM | 34.5 dB(A) | 10.10CFM (0.286 m3/min) | 0.416inchH2O (10.57mmH2O) |
BFB1012UH-BA40ZYD
|
Rounded/Rect- 96.6mm L X 94.3mm H x 24.90mm | 12.0 - 16.8 VDC | 14.2 VDC | 2.15 A | 30.53 W | 7000 RPM | 68.0 dB(A) | 36.93CFM (1.046 m3/min) | 4.764inchH2O (121.02mmH2O) |
BFB1012HH-TP48
|
Rounded/Rect-97.2x94.4x33 | 10.8 - 13.2 VDC | 12 VDC | 0.69 A | 8.28 W | 3200 RPM | 53.5 dB(A) | 28.33CFM (0.802 m3/min) | 0.947inchH2O (24.05mmH2O) |
BFB1012EH-C18J
|
Rounded/Rect- 96.6mm L X 94.3mm H x 32.90mm | 10.8-14.0VDC | 12 VDC | 1.97 A | 23.64 W | 5800 RPM | 62.0 dB(A) | 45.49CFM (1.288 m3/min) | 3.694inchH2O (93.83mmH2O) |
BFB1012EF-0018H
|
Rounded/Rect- 96.6mm L X 94.3mm H x 32.90mm | 10.8 - 12.6 VDC | 12 VDC | 5.00 A | 60.00 W | 7500 RPM | 69.0 dB(A) | 56.08CFM (1.588 m3/min) | 6.903inchH2O (175.35mmH2O) |
BFB0712HHD77
|
76x76x25 | 9.0~16.0 | 12 VDC | 0.53 A | 8.15 W | 5500 RPM | 50.0 dB(A) | 14.70CFM (0.41 m3/min) | 1.41inchH2O (35.9mmH2O) |
BFB0512HA-CX3D
|
50x50x10.30 | 10.8 - 13.2 VDC | 12 VDC | 0.12 A | 1.44 W | 5100 RPM | 32.5 dB(A) | 3.53CFM (0.100 m3/min) | 0.563inchH2O (14.31mmH2O) |
BFB04512HHA-CZ0T
|
45x45x10 | 50.0~13.5 | 12 VDC | 0.14 A | 1.68 W | 6100 RPM | 36.0 dB(A) | 3.60CFM (0.102 m3/min) | 0.598inchH2O (15.20mmH2O) |
BCB0812UHN-TP09
|
Rounded/Rect-75x80x30 | 10.8 - 12.6 VDC | 12 VDC | 2.30 A | 27.60 W | 10800 RPM | 69.3 dB(A) | 30.16CFM (0.854 m3/min) | 3.675inchH2O (93.35mmH2O) |
AUC0512DB-AF00
|
50x50x15 | 10.8 - 13.2 VDC | 12 VDC | 0.18 A | 2.16 W | 7400 RPM | 38.5 dB(A) | 20.22CFM (0.572 m3/min) | 0.299inchH2O (7.58mmH2O) |
AUB1212H-CK15
|
120x120x25 | 10.8~13.2 | 12 VDC | 0.27 A | 3.24 W | 2200 RPM | 38.0 dB(A) | 88.60CFM (2.51 m3/min) | 0.161inchH2O (04.08mmH2O) |
AUB0912VH-CX09
|
92x92x25 | 10.8~13.2 | 12 VDC | 0.38 A | 4.56 W | 3800 RPM | 45.0 dB(A) | 67.80CFM (1.920 m3/min) | 0.302inchH2O (07.67mmH2O) |
AUB0812VH-SP00
|
80x80x25 | 10.8~13.2 | 12 VDC | 0.19 A | 2.28 W | 3600 RPM | 39.0 dB(A) | 42.02CFM (1.190 m3/min) | 0.217inchH2O (05.51mmH2O) |
AUB0812L-9X41
|
80x80x25 | 10.8~13.8 | 12 VDC | 0.09 A | 1.08 W | 2400 RPM | 25.0 dB(A) | 27.90CFM (0.790 m3/min) | 0.102 inH2O (02.59 mmH2O) |
AUB0812HHDXHN
|
80x80x20 | 10.8~12.6 | 12 VDC | 0.30 A | 3.60 W | 4500 RPM | 43.0 dB(A) | 51.46CFM (1.457 m3/min) | 0.291inchH2O (07.38mmH2O) |
ASB0305HP-00CP4
|
30x30x6 | 10.8 - 12.6 VDC | 5 VDC | 0.20 A | 1.00 W | 9500 RPM | 29.0 dB(A) | 5.10CFM (0.144 m3/min) | 0.156inchH2O (3.96mmH2O) |
AFC1212D-SP19
|
120x120x25.40 | 10.8 - 12.6 VDC | 12 VDC | 0.32 A | 3.84 W | 3000 RPM | 46.0 dB(A) | 89.70CFM (2.540 m3/min) | 0.338inchH2O (8.591mmH2O) |
AFC0948DE-TP20
|
92x92x38 | 36.0 - 75.0 VDC | 48 VDC | 0.60 A | 28.80 W | 7500 RPM | 67.0 dB(A) | 159.36CFM (4.515 m3/min) | 1.528inchH2O (38.082mmH2O) |
AFC0912DB-F00
|
92x92x15 | 7.0 - 12.6 VDC | 12 VDC | 0.31 A | 3.72 W | 3300 RPM | 41.5 dB(A) | 51.53CFM (1.453 m3/min) | 0.156inchH2O (3.96mmH2O) |
AFC0912D-AF00
|
92x92x25.40 | 8.0 - 13.2 VDC | 12 VDC | 0.75 A | 9.00 W | 4800 RPM | 53.0 dB(A) | 102.59CFM (2.905 m3/min) | 0.526inchH2O (13.35mmH2O) |
AFC0712DD-TP10
|
70x70x20 | 8.0 - 13.2 VDC | 12 VDC | 0.35 A | 4.20 W | 5000 RPM | 44.3 dB(A) | 46.86CFM (1.327 m3/min) | 0.285inchH2O (7.24mmH2O) |
AFC0712DB-F00
|
70x70x15 | 8.0 - 13.2 VDC | 12 VDC | 0.35 A | 4.20 W | 6000 RFM | 46.5 dB(A) | 41.95CFM (1.188 m3/min) | 0.327inchH2O (8.308mmH2O) |
AFC0612D-SP07
|
60x60x25.40 | 10.8 - 13.8 VDC | 12 VDC | 0.13 A | 1.56 W | 4250 RPM | 34.0 dB(A) | 23.38CFM (0.662 m3/min) | 0.211inchH2O (5.35mmH2O) |
AFC0612DB-F00
|
60x60x15 | 8.0 - 13.2 VDC | 12 VDC | 0.33 A | 3.96 W | 7200 RFM | 47.5 dB(A) | 29.24CFM (0.828 m3/min) | 0.517inchH2O (13.12mmH2O) |
AFB1548VH-CD8G
|
172x150x25 | 42.0~60.0 | 48 VDC | 0.65 A | 31.20 W | 5000 RPM | 65.0 dB(A) | 305.043CFM (8.638 m3/min) | 1.198inchH2O (30.426mmH2O) |
AFB1512EHYVB
|
Rounded/Rect-172x150x25.40 | 10.0 - 13.2 VDC | 12 VDC | 3.00 A | 36.00 W | 4300 RPM | 61.5 dB(A) | 290.64CFM (8.230 m3/min) | 0.821inchH2O (20.85mmH2O) |
AFB1248VHE-TP18
|
120x120x38 | 34.0 - 56.0 VDC | 48 VDC | 0.31 A | 14.88 W | 4100 RPM | 55.5 dB(A) | 190.48CFM (5.394 m3/min) | 0.694inchH2O (17.635mmH2O) |
AFB1248VHE-T9LN
|
120x120x38 | 34.0~56.0 | 48 VDC | 0.31 A | 14.88 W | 4100 RPM | 55.5 dB(A) | 190.48CFM (5.394 m3/min) | 0.694inchH2O (17.635mmH2O) |
AFB1248SHEDC4
|
120x120x38 | 36.0~59.0 | 48 VDC | 0.13 A | 6.24 W | 2300 RPM | 40.0 dB(A) | 103.24CFM (2.924 m3/min) | 0.255inchH2O (06.50mmH2O) |
AFB1224GHEYNU
|
120x120x38 | 21.6- 26.4 VDC | 24 VDC | 1.30 A | 31.20 W | 5200 RPM | 62.0 dB(A) | 240.96CFM (6.823 m3/min) | 1.082inchH2O (27.483mmH2O) |
AFB1224EHE-EP
|
120x120x38 | 21.6 ~ 26.4 | 24 VDC | 0.85 A | 20.40 W | 4600 RPM | 58.5 dB(A) | 212.573CFM (6.019m3/min) | 0.844inchH2O (21.427mmH2O) |
AFB1212HHE-TP02
|
120x120x38 | 10.8 - 13.2 VDC | 12 VDC | 0.40 A | 4.80 W | 2900 RPM | 44.0 dB(A) | 120.07CFM (3.400 m3/min) | 0.354inchH2O (09.00mmH2O) |
AFB0824SHBAV1
|
80x80x15 | 14.0 -26.0 VDC | 24 VDC | 0.16 A | 4.08 W | 4000 RPM | 42.5 dB(A) | 42.73CFM (1.210 m3/min) | 0.216inchH2O (5.49mmH2O) |
AFB0812SH-TP12
|
80x80x25.40 | 10.0 - 13.2 VDC | 12 VDC | 0.30 A | 3.60 W | 4500 RPM | 46.0 dB(A) | 55.59CFM (1.574 m3/min) | 0.38inchH2O (09.598mmH2O) |
AFB0712SHX02
|
70x70x25.40 | 5.0 - 13.8 VDC | 12 VDC | 0.65 A | 7.80 W | 6300 RPM | 50.5 dB(A) | 61.05CFM (1.729 m3/min) | 0.625inchH2O (15.90mmH2O) |
AFB0705MC-00F0R
|
Φ65.0 | 4.5 - 5.5 VDC | 5 VDC | 0.22 A | 1.10 W | 2900 RPM | 28.1 dB(A) | 22.09CFM (0.626 m3/min) | 0.093 inchH2O (2.36 mmH2O) |
AFB0648EH-TP27
|
60x60x25.40 | 36.0 - 60.0 VDC | 48 VDC | 0.14 A | 6.72 W | 6800 RPM | 46.5 dB(A) | 38.35CFM (1.086 m3/min) | 0.544inchH2O (13.81mmH2O) |
AFB0624EH-SP50
|
60x60x25.40 | 21.6 - 26.4 VDC | 24 VDC | 0.24 A | 5.76 W | 6800 RPM | 46.5 dB(A) | 38.35CFM (1.086 m3/min) | 0.544inchH2O (13.81mmH2O) |

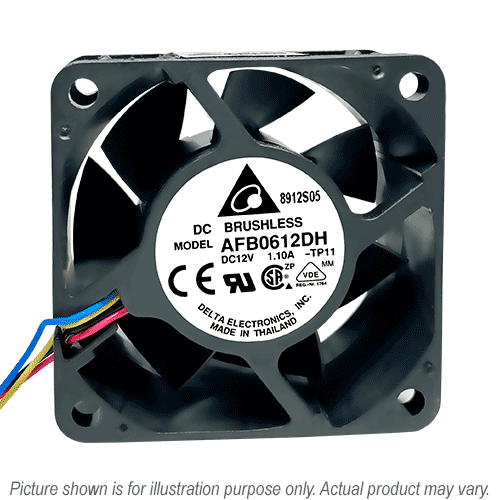

AFB0612DH-TP11
|
60x60x25.40 | 10.8 - 13.2 VDC | 12 VDC | 0.84 A | 10.08 W | 9000 RPM | 55.0 dB(A) | 50.40CFM (1.427 m3/min) | N/A |
AFB0512HB-TP41
|
60x60x25.40 | 10.8 - 13.2 VDC | 12 VDC | 0.10 A | 1.44 W | 6300 RPM | 34.0 dB(A) | 17.97CFM (0.509 m3/min) | 0.230inchH2O (5.84mmH2O) |
AFB0412VHB-TP29
|
40x40x15 | 7.0 - 13.8 VDC | 12 VDC | 0.18 A | 2.16 W | 9500 RPM | 36.5 dB(A) | 13.00CFM (0.368 m3/min) | 0.459inchH2O (11.66mmH2O) |
AFB0412VHB-TP25
|
40x40x15 | 7.0 - 13.8 VDC | 12 VDC | 0.18 A | 2.16 W | 9500 RPM | 36.5 dB(A) | 13.00CFM (0.368 m3/min) | 0.459inchH2O (11.66mmH2O) |
AFB0412VHA-DU48
|
40x40x10 | 7.0 - 15.0 VDC | 12 VDC | 0.06 A | 1.08 W | 8000 RPM | 33.0 dB(A) | 8.81CFM (0.250 m3/min) | 0.224inchH2O (5.678mmH2O) |
AFB0412SHB-SP04
|
40x40x15 | 7.0 - 13.8 VDC | 12 VDC | 0.25 A | 3.00 W | 11000 RPM | 41.5 dB(A) | 14.83CFM (0.420 m3/min) | 0.601inchH2O (15.26mmH2O) |
BSB0205HP-00EFG
|
20x20x5 | 36.0 - 75.0 VDC | 5 VDC | 0.08 A | 0.40 W | 12000 RPM | 35.9 dB(A) | 0.57CFM (0.016 m3/min) | 0.144inchH2O (3.66mmH2O) |
BFM1012UHFF8
|
Rounded/Rect-96.6mm L X 94.3mm H x 32.90mm | 10.8~12.6 | 12 VDC | 5.80 A | 69.60 W | 8700 RPM | 70.5 dB(A) | 66.03CFM (1.785 m3/min) | 6.806inchH2O (172.86mmH2O) |
TFC0424EN-01EGG
|
40x40x28 | 22.0 - 26.0 VDC | 24 VDC | 0.25 A | 6.00 W | 18300 RPM | 55.0 dB(A) | 21.11CFM (0.598 m3/min) | 1.979inchH₂O (50.28 mmH₂O) |
FA482A08-J1A
|
N/A | N/A | 48 VDC | 2.80 A | 134.40 W | 15000 RPM | 78.0 dB(A) | 185.00CFM (5.239 m3/min) | 7.00inchH2O (177.80mmH2O) |
FFB0448EN-00EEY
|
N/A | N/A | 48 VDC | 0.43 A | 20.64 W | 26500 RPM | 66.5 dB(A) | 35.42CFM (1.003 m3/min) | 4.880inchH2O (123.95mmH2O) |
PFR0648SE-00EP3
|
N/A | N/A | 48 VDC | 0.60 A | 28.80 W | 19500 RPM | 69.0 dB(A) | 155.38CFM (5.239m3/min) | 4.920inchH2O (124.97mmH2O) |
BFB04512HHA-DV52
|
45x45x10.30 | 5.0 - 13.5 VDC | 12 VDC | 0.14 A | 1.68 W | 6100 RPM | 36.0 dB(A) | 3.60CFM (0.102 m3/min) | 0.598inchH2O (15.20mmH2O) |
PFB0412EN-E
|
40x40x28 | 10.8 ~ 13.2 VDC | 12 VDC | 4.00 A | 31.20 W | 32500 RPM | 70.5 dB(A) | 38.00 CFM (1.076 m3/min) | 7.430inchH2O (188.72mmH2O) |
GFB0412ES-E
|
40x40x56 mm | 10.8 ~ 13.2 VDC | 12 VDC | 3.25 A | 39.00 W | 29500 RPM | 73.0 dB(A) | 33.90CFM (0.960 m3/min) | 6.440inchH2O (163.58mmH2O) |
GFB0812ES-E
|
80x80x56 | 10.8 ~ 13.2 VDC | 12 VDC | 4.50 A | 54.00 W | 16300 RPM | 79.0 dB(A) | 136.00CFM (3.853 m3/min) | 5.899inchH2O (149.82mmH2O) |
PFB0612EE-E
|
60x60x38 | 10.8 ~ 13.2 VDC | 12 VDC | 3.50 A | 42.00 W | 25500 RPM | 68.6 dB(A) | 77.31CFM (2.165 m3/min) | 7.310inchH2O (185.67mmH2O) |
GFB0612ES-E
|
60x60x56 | 10.8 ~ 13.2 VDC | 12 VDC | 4.15 A | 49.80 W | 24300 RPM | 82.0 dB(A) | 76.51CFM (2.170 m3/min) | 9.73inchH2O (247.14mmH2O) |
GFB0912ES-E
|
92x92x56 | 10.8 ~ 13.2 | 12 VDC | 3.95 A | 47.40 W | 11400 RPM | 78.5 dB(A) | 165.44CFM (4.685 m3/min) | 4.670inchH2O (118.62mmH2O) |
BFB0712HH-AWPH
|
Rounded/Rect-75.7x75.7x25 | 7.0 - 13.8 VDC | 12 VDC | 0.34 A | 4.08 W | 4400 RPM | 51.0 dB(A) | 15.32CFM (0.434 m3/min) | 0.977inchH2O (24.816mmH2O) |
ASB0305HP-00
|
30x30x6.9 | 4.5 - 5.5 VDC | 5 VDC | 0.20 A | 1.00 W | 9500 RPM | 29.0 dB(A) | 5.10CFM (0.144 m3/min) | 0.156inchH2O (3.96mmH2O) |
KDB0305HA3-00
|
30x30x3.4 | 4.5 - 5.5 VDC | 5 VDC | 0.35 A | 1.75 W | 12500 RPM | 42.0 dB(A) @ 0.5M | 0.95CFM (0.027 m3/min) | 0.946inchH2O (24.02mmH2O) |
AUB0912HJ-00
|
92x92x25 mm | 10.8 - 13.2 VDC | 12 VDC | 0.35 A | 4.20 W | 4600 RPM | 45.0 dB(A) | 69.02CFM (1.955 m3/min) | 0.407 inchH2O (10.340 mm H2O) |
BUB0712HD-SM
|
73x75x20 mm | 10.8 - 12.6 VDC | 12 VDC | 0.26 A | 3.12 W | 3800 RPM | 41.5 dB(A) | 10.21CFM (0.289 m3/min) | 0.831 inchH2O (21.100 mm H2O) |
BUB0812HN-00
|
80x80x28 mm | 10.8 - 13.2 VDC | 12 VDC | 0.50 A | 6.00 W | 4300 RPM | 44.5 dB(A) | 18.84CFM (0.534 m3/min) | 1.350 inchH2O (34.300 mm H2O) |
EUB0912HF-03P1
|
92x92x32 mm | 10.8 - 13.2 VDC | 12 VDC | 0.13 A | 1.44 W | 3350 RPM | 33.5 dB(A) | 47.00CFM (1.330 m3/min) | 0.227 inchH2O (5.770 mm H2O) |
EUB1312HE-10P1
|
125x125x39 mm | 10.8 - 13.2 VDC | 12 VDC | 0.13 A | 1.56 W | 2200 RPM | 32.0 dB(A) | 79.867CFM (2.260 m3/min) | 0.184 inchH2O (4.660 mm H2O) |
KSB1212ME-03P1
|
Round-120mm Diameter x 38 mm W | 10.8 - 13.2 VDC | 12 VDC | 0.19 A | 2.28 W | 1800 RPM | 36.2 dB(A) | 44.91CFM (1.272 m3/min) | 0.300 inchH2O (7.620 mm H2O) |
KSB0405HBF0D
|
Φ40.0 | N/A | 5 VDC | 0.16 A | 0.80 W | 3150 RPM | 31.0 dB(A) | 1.19CFM (0.034 m3/min) | 0.008 inchH2O (2.28 mmH2O) |
KFB04512HHAF0C
|
Φ44.0 | N/A | 12 VDC | 0.15 A | 2.16 W | 5000 RPM | 28.5 dB(A) | 4.29CFM (0.121 m3/min) | 0.171inchH2O (04.33mmH2O) |
KFB0612HAFDB
|
Φ60.0 | N/A | 12 VDC | 0.15 A | 1.80 W | 3300 RFM | 36.7 dB(A) | 9.15CFM (0.274 m3/min) | 0.634inchH2O (16.10mmH2O) |
THD1348HE
|
134x134x38 | 36.0-60.0 | 48 VDC | 5.00 A | 240.00 W | 12500 RPM | 82.0 dB(A) | 490.00CFM (13.870 m3/min) | 7.10inchH2O (180.34mmH2O) |
EFB0424VHD-CP0
|
40x40x20mm | 14.0 - 26.5 VDC | 24 VDC | 0.06 A | 1.44 W | 9000 RPM | 37.3 dB(A) | 9.36CFM (0.266 m3/min) | 0.368 inchH2O (9.346mmH2O) |
QFR0624DHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.35 A | 8.40 W | 10600 RPM | 55.0 dB(A) | 49.50CFM (1.402 m3/min) | 1.043inchH2O (26.50mmH2O) |
QFR0624UHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.23 A | 5.52 W | 9000 RPM | 50.0 dB(A) | 42.00CFM (1.189 m3/min) | 0.767inchH2O (1950mmH2O) |
QFR0624GHP0
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.16 A | 3.84 W | 7600 RPM | 47.0 dB(A) | 34.78CFM (0.98 m3/min) | 0.570 inchH2O (14.48 mmH2O) |
QFR0624EHP0
|
60x60x25mm | 16.0 - 26.4 VDC | 24 VDC | 0.10 A | 2.40 W | 6000 RPM | 39.5 dB(A) | 27.50CFM (0.778 m3/min) | 0.360 inchH2O (9.14 mm H2O) |
QFR0624UHP6
|
60x60x25.40mm | 16.0 - 26.4 VDC | 24 VDC | 0.26 A | 6.24 W | 9000 RPM | 50.0 dB(A) | 41.30CFM (1.170 m3/min) | 0.742 inchH2O (18.84 mm H2O) |
QFR0824UHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.23 A | 5.52 W | 5400 RPM | 50.0 dB(A) | 65.55CFM (1.854 m3/min) | 0.488 inchH2O (12.40 mm H2O) |
QFR0824SHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.15 A | 3.60 W | 4300 RPM | 44.2 dB(A) | 52.38CFM (1.482 m3/min) | 0.324 inchH2O (8.23 mm H2O) |
QFR0824HHP0
|
80x80x25mm | 14.0 - 27.6 VDC | 24 VDC | 0.23 A | 5.52 W | 3300 RPM | 50.0 dB(A) | 39.60CFM (1.120 m3/min) | 0.488 inchH2O (12.40 mm H2O) |
QFR0812GJ-00P0
|
80x80x25.40mm | 7.0 - 13.8 VDC | 12 VDC | 0.97 A | 11.64 W | 8000 RPM | 57.5 dB(A) | 88.44CFM (2.720 m3/min) | 0.805 inchH2O (20.46 mm H2O) |
PFB0824DHEP0
|
80x80x38mm | 14.0 - 27.6 VDC | 24 VDC | 1.26 A | 30.24 W | 9000 RPM | 65.0 dB(A) | 132.56CFM (3.754 m3/min) | 2.030inchH2O (51.57mmH2O) |
PFB0824UHEP0
|
80x80x38mm | 14.0 - 27.6 VDC | 24 VDC | 0.77 A | 18.48 W | 7500 RPM | 61.0 dB(A) | 107.30CFM (3.038 m3/min) | 1.368inchH2O (34.75mmH2O) |
QFR0912GJ-00P0
|
92x92x25.40mm | 7.0 - 13.8 VDC | 12 VDC | 0.71 A | 8.52 W | 5600 RPM | 51.0 dB(A) | 93.67CFM (2.650 m3/min) | 0.513 inchH2O (13.05 mm H2O) |
PFB0924DHEP0
|
92x92x38mm | 21.6 - 26.4 VDC | 24 VDC | 1.45 A | 34.80 W | 8000 RPM | 66.5 dB(A) | 175.03CFM (4.957 m3/min) | 1.819inchH2O (46.21mmH2O) |
PFB0924DHEP6
|
92x92x38mm | 21.6 - 26.4 VDC | 24 VDC | 1.10 A | 26.40 W | 7200 RFM | 63.7 dB(A) | 151.50CFM (4.290 m3/min) | 1.395 inchH2O (35.43 mm H2O) |
PFB1224SE-00P0
|
120x120x38mm | 14.0 - 27.6 VDC | 24 VDC | 2.10 A | 50.40 W | 7500 RPM | 70.0 dB(A) | 265.43CFM (7.517 m3/min) | 2.070 inchH2O (52.58 mm H2O) |
PFB1224HE-00P0
|
120x120x38mm | 14.0 - 27.6 VDC | 24 VDC | 1.00 A | 24.00 W | 5800 RPM | 65.0 dB(A) | 201.41CFM (5.704 m3/min) | 1.480 inchH2O (37.59 mm H2O) |
THD2048HT
|
Round-200mm diameter x 70mm Width | 36.0~75.0 | 48 VDC | 8.00 A | 384.00 W | 7400 RPM | 78.0 dB(A) | 1026.80CFM (29.06 m3/min) | 4.945inchH2O (125.61mmH2O) |
THD0848ME
|
80x80x38 | 36.0~75.0 | 48 VDC | 0.55 A | 26.40 W | 9500 RPM | 60.0 dB(A) | 128.00CFM (3.626 m3/min) | 1.476inchH2O (37.50mmH2O) |
THD1248HE
|
120x120x38 | 32.0 ~ 59.0 | 48 VDC | 2.20 A | 105.82 W | 10900 RPM | 75.0 dB(A) | 287.00CFM (8.122 m3/min) | 4.40inchH2O (111.764mmH2O) |
THD0948HE-A
|
92x92x38 | 36.0~75.0 | 48 VDC | 1.10 A | 52.80 W | 13500 RPM | 71.0 dB(A) | 182.41CFM (5.167 m3/min) | 3.435inchH2O (87.24mmH2O) |
THB1748BG
|
N/A | N/A | 48 VDC | 3.50 A | 168.00 W | 8000 RPM | 75.0 dB(A) | 607.07CFM (17.170 m3/min) | 4.136inchH2O (105.5mmH2O) |
QFR1212GHEXUM
|
120x120x38 | 10.8 - 12.6 VDC | 12 VDC | 1.80 A | 21.60 W | 6000 RFM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170inchH2O (29.179mmH2O) |

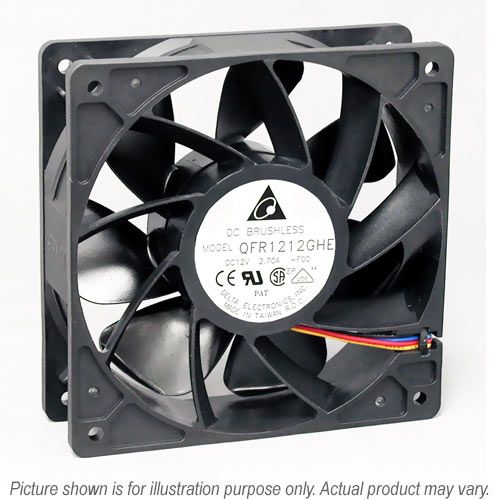

QFR1212GHE
|
120x120x38 | 8.0 - 13.2 VDC | 12 VDC | 1.80 A | 21.60 W | 6000 RFM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170inchH2O (29.179mmH2O) |
QFR0824UHP6
|
80x80x25mm | 14.0 - 26.4 VDC | 24 VDC | 0.23 A | 5.52 W | 5300 RPM | 49.6 dB(A) | 62.18CFM (1.759 m3/min) | 0.475inchH2O (12.06mmH2O) |
FFB1424VHG-EP
|
N/A | N/A | 24 VDC | 1.00 A | 24.00 W | 3200 RPM | 58.5 dB(A) | 252.11CFM (7.139 m3/min) | 0.644inchH2O (16.36mmH2O) |
FFC0612DE-PP01
|
N/A | 7.0 - 13.2 VDC | 12 VDC | 0.90 A | 10.80 W | 9000 RPM | 60.0 dB(A) | 54.79CFM (1.550 m3/min) | 1.182inchH2O (30.02mmH2O) |
FFC0812DE-F00
|
N/A | N/A | 12 VDC | 1.50 A | 18.00 W | 7500 RPM | 62.2 dB(A) | 102.02CFM (2.889 m3/min) | 1.233inchH2O (31.32mmH2O) |
FFC0912DE-TP04
|
N/A | N/A | 12 VDC | 0.80 A | 9.60 W | 4800 RPM | 55.0 dB(A) | 110.18CFM (3.120 m3/min) | 0.665inchH2O (16.90mmH2O) |
FFC0948BY7T
|
N/A | N/A | 48 VDC | 0.17 A | 8.16 W | 3900 RPM | 49.5 dB(A) | 86.40CFM (2.448 m3/min) | 0.355inchH2O (09.01mmH2O) |
| FFC1212D-F00 | N/A | N/A | 12 VDC | 1.45 A | 17.40 W | 4000 RPM | 56.4 dB(A) | 150.33CFM (4.257 m3/min) | 0.489inchH2O (12.43mmH2O) |
QFR0812SH-CX13
|
80x80x25.40 | 5.0 - 13.2 VDC | 12 VDC | 0.33 A | 3.96 W | 4300 RPM | 41.2 dB(A) | 54.57CFM (1.545 m3/min) | 0.331inchH2O (8.400mmH2O) |
GFC0412DS-DF00
|
40x40x56mm | N/A | 12 VDC | 1.30 A | 15.60 W | 16000 RPM | 64.5 dB(A) | 32.179CFM (0.911 m3/min) | 2.631inchH2O (66.824mmH2O) |
GFC0812DS-CMA8
|
80x80x56mm | N/A | 12 VDC | 2.17 A | 26.04 W | 12000 RPM | 72.6 dB(A) | 90.12CFM (2.552 m3/min) | 3.827inchH2O (97.21mmH2O) |
GFC0812DW-SM00B7P
|
80x80x80mm | N/A | 12 VDC | 5.20 A | 62.40 W | 12000 RPM | 74.5 dB(A) | 90.12CFM (2.552 m3/min) | 4.170inchH2O (105.94mmH2O) |
GFM0812DS-SMB7R
|
80x80x56mm | N/A | 12 VDC | 2.40 A | 28.80 W | 12500 RPM | 73.3 dB(A) | 93.23CFM (2.640 m3/min) | 4.485inchH2O (113.91mmH2O) |

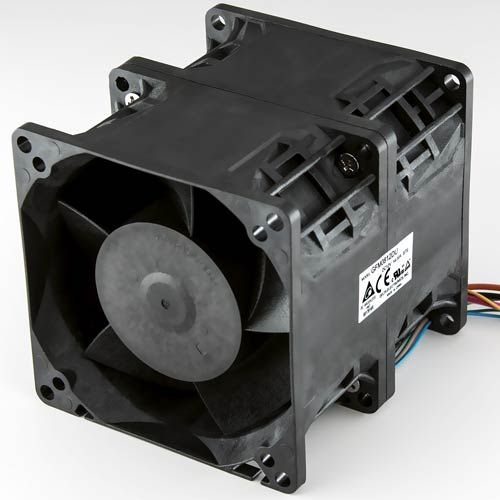

GFM0812DUB7S
|
80x80x86mm | N/A | 12 VDC | 9.00 A | 18.00 W | 13800 RPM | 82.5 dB(A) | 190.63CFM (5.398 m3/min) | 5.749inchH2O (146.04mmH2O) |
KFB2348HHU-EP
|
N/A | N/A | 48 VDC | 2.20 A | 105.60 W | 2600 RPM | 71.0 dB(A) | 735.08CFM (20.853 m3/min) | 1.990inchH2O (50.54mmH2O) |
KDB0305HA3-00C1J
|
30x30x3.5mm | 4.5 - 5.5 VDC | 5 VDC | 0.35 A | 1.75 W | 12500 RPM | 42.0 dB(A) | 0.95CFM (0.027 m3/min) | 0.946inchH2O (24.02mmH2O) |
PFB0412EHN-TP06
|
N/A | N/A | 12 VDC | 0.50 A | 6.00 W | 16000 RPM | 54.5 dB(A) | 21.83CFM (0.618 m3/min) | 1.431inchH2O (36.334mmH2O) |
THA0412AD-TZW3
|
N/A | N/A | 12 VDC | 0.43 A | 5.16 W | 15600 RPM | 52.0 dB(A) | 20.56CFM (0.582 m3/min) | 1.385inchH2O (35.16mmH2O) |
PFB0812DHE-TYNT
|
N/A | N/A | 12 VDC | 2.75 A | 33.00 W | 9000 RPM | 66.0 dB(A) | 132.60CFM (3.754 m3/min) | 2.030inchH2O (51.57mmH2O) |
PFB0812UHE-EP
|
80x80x38 | 10.2 - 13.8 | 12 VDC | 0.99 A | 11.88 W | 6550 RPM | 57.5 dB(A) | 91.87CFM (2.601 m3/min) | 0.974inchH2O (24.74mmH2O) |
PFB0824DHEYDG
|
80x80x38 | 12.0 - 27.6 VDC | 24 VDC | 1.35 A | 32.40 W | 9000 RPM | 65.0 dB(A) | 132.56CFM (3.754 m3/min) | 2.030inchH2O (51.57mmH2O) |
PFB0948UHE-TP16
|
N/A | N/A | 48 VDC | 0.52 A | 24.96 W | 7000 RPM | 64.0 dB(A) | 153.52CFM (4.347 m3/min) | 1.449inchH2O (36.79mmH2O) |
PFB1248UHE-EP
|
N/A | N/A | 48 VDC | 0.88 A | 42.24 W | 5300 RPM | 66.0 dB(A) | 243.66CFM (6.900 m3/min) | 1.311inchH2O (33.315mmH2O) |
PFB1248XHE-TP17
|
N/A | N/A | 48 VDC | 1.60 A | 76.80 W | 7000 RPM | 72.5 dB(A) | 306.92CFM (8.691 m3/min) | 2.175inchH2O (55.235mmH2O) |
PFC0612DE-F00
|
N/A | N/A | 12 VDC | 1.40 A | 16.80 W | 12000 RPM | 61.5 dB(A) | 67.85CFM (1.922 m3/min) | 2.129inchH2O (54.10mmH2O) |
PFC0812DE-SP04
|
N/A | N/A | 12 VDC | 2.75 A | 33.00 W | 9000 RPM | 65.0 dB(A) | 132.56CFM (3.754 m3/min) | 2.030inchH2O (51.57mmH2O) |
PFC0812DE-SP07
|
N/A | N/A | 12 VDC | 0.80 A | 9.60 W | 6000 RPM | 54.4 dB(A) | 86.65CFM (2.454 m3/min) | 0.895inchH2O (22.733mmH2O) |
PFC1212DE-F00
|
N/A | N/A | 12 VDC | 4.00 A | 48.00 W | 5500 RPM | 66.5 dB(A) | 252.85CFM (7.160 m3/min) | 1.412inchH2O (35.877mmH2O) |
QFR1248GHE-SP01
|
120x120x38 | 33.0 - 52.8 VDC | 48 VDC | 0.50 A | 24.00 W | 6000 RPM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170inchH2O (29.179mmH2O) |
PFC1224DE-F00
|
N/A | N/A | 24 VDC | 2.00 A | 48.00 W | 5500 RPM | 66.5 dB(A) | 252.85CFM (7.160 m3/min) | 1.412inchH2O (35.877mmH2O) |

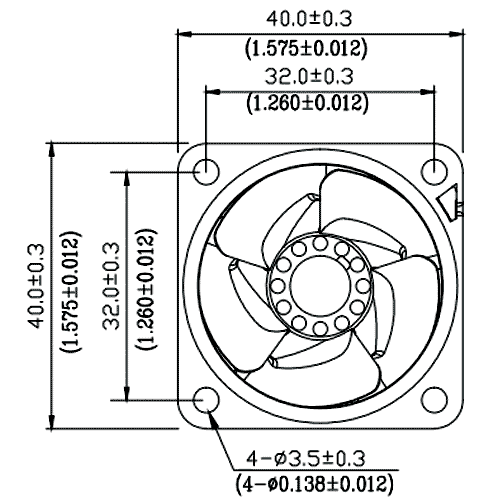

PFM0412HSA05
|
N/A | N/A | 12 VDC | 1.00 A | 12.00 W | 24000 RPM | 59.5 dB(A) | 28.89CFM (0.818 m3/min) | 3.53inchH2O (89.700mmH2O) |
PFM0612XHEB7T
|
60x60x38mm | 10.8 - 12.6 VDC | 12 VDC | 1.15 A | 13.80 W | 18500 RPM | 65.1 dB(A) | 64.44CFM (1.825 m3/min) | 2.343inchH2O (59.52mmH2O) |
PFM0812HE-01BFY
|
80x80x38mm | N/A | 12 VDC | 4.30 A | 51.60 W | 16300 RPM | 77.0 dB(A) | 129.42CFM (3.665 m3/min) | 4.969inchH2O (126.22mmH2O) |
PFM1412DEB7V
|
139.7x139.7x38 mm | 10.8 - 12.8 VDC | 12 VDC | 3.90 A | 46.80 W | 6500 RPM | 70.0 dB(A) | 282.31CFM (7.994 m3/min) | 2.033inchH2O (51.65mmH2O) |
PFR0612DHE-SP00
|
N/A | N/A | 12 VDC | 1.60 A | 19.20 W | 14500 RPM | 63.3 dB(A) | 65.98CFM (1.868 m3/min) | 2.502inchH2O (63.56mmH2O) |
THA1248BE
|
N/A | N/A | 48 VDC | 2.07 A | 99.36 W | 7600 RPM | 72.0 dB(A) | 318.19CFM (9.010 m3/min) | 3.091inchH2O (78.50mmH2O) |
PFR0612XHE-SP00
|
N/A | N/A | 12 VDC | 2.30 A | 27.60 W | 16500 RPM | 67.7 dB(A) | 76.16CFM (2.157 m3/min) | 3.185inchH2O (80.90mmH2O) |
PFR0812XHE-SP00
|
N/A | N/A | 12 VDC | 3.50 A | 42.00 W | 13300 RPM | 71.5 dB(A) | 134.292CFM (3.800 m3/min) | 3.00inchH2O (76.20mmH2O) |
PFR0848XHE-DV82
|
N/A | N/A | 48 VDC | 1.00 A | 48.00 W | 13800 RPM | 73.0 dB(A) | 144.18CFM (4.080 m3/min) | 3.457inchH2O (87.80mmH2O) |
PFR0912XHE-SP00
|
N/A | N/A | 12 VDC | 3.70 A | 44.40 W | 11500 RPM | 71.0 dB(A) | 185.55CFM (5.255 m3/min) | 2.523inchH2O (64.10mmH2O) |
PFR1212DHE-SP00
|
N/A | N/A | 12 VDC | 3.70 A | 44.40 W | 7400 RPM | 68.5 dB(A) | 254.34CFM (7.202 m3/min) | 1.438inchH2O (36.513mmH2O) |
PFR1212UHE-SP00
|
N/A | N/A | 12 VDC | 2.70 A | 32.40 W | 6600 RPM | 65.5 dB(A) | 228.65CFM (6.475 m3/min) | 1.206inchH2O (30.636mmH2O) |
QFR0812DE-F00
|
80x80x38 | 10.8 - 13.2 VDC | 12 VDC | 1.15 A | 13.80 W | 9000 RPM | 60.0 dB(A) | 105.21CFM (2.991m3/min) | 1.335inchH2O (33.91mmH2O) |
QFR1224GHE-SP01
|
120x120x38 | 16.0 - 26.4 VDC | 24 VDC | 0.94 A | 22.56 W | 6000 RPM | 64.0 dB(A) | 210.38CFM (5.957 m3/min) | 1.170inchH2O (29.179mmH2O) |
QFR0812UH-CX14
|
80x80x25.40 | 10.8 - 12.6 VDC | 12 VDC | 0.55 A | 6.60 W | 5600 RPM | 50.5 dB(A) | 70.24CFM (1.989 m3/min) | 0.551inchH2O (13.99mmH2O) |
QFR0812UHEYDW
|
80x80x38 | 10.8 - 13.2 VDC | 12 VDC | 1.15 A | 13.80 W | 9000 RPM | 60.0 dB(A) | 105.21CFM (2.979 m3/min) | 1.335inchH2O (33.91mmH2O) |
QFR0912VH-SP00
|
92x92x25.40 | 10.8 - 13.2 VDC | 12 VDC | 0.40 A | 4.80 W | 4200 RPM | 45.0 dB(A) | 70.24CFM (1.989 m3/min) | 0.551inchH2O (13.99mmH2O) |
QFR1224GHEYPR
|
120x120x38 | 21.6 - 26.4 VDC | 24 VDC | 0.91 A | 21.84 W | 6000 RPM | 64.5 dB(A) | 195.68CFM (5.542 m3/min) | 1.028inchH2O (26.105mmH2O) |
THD0948HE-AXHH
|
92x92x38 | 36.0~75.0 | 48 VDC | 1.10 A | 52.80 W | 13500 RPM | 71.0 dB(A) | 182.41CFM (5.167 m3/min) | 3.435inchH2O (87.24mmH2O) |
TFA0412BN-CN
|
N/A | N/A | 12 VDC | 0.42 A | 5.04 W | 15600 RPM | 50.8 dB(A) | 22.20CFM (0.629 m3/min) | 1.617inchH2O (41.08mmH2O) |
TFA0412CN-CN
|
40x40x28 | 7.0 - 13.2 VDC | 12 VDC | 0.60 A | 7.20 W | 17600 RPM | 55.0 dB(A) | 25.29CFM (0.717 m3/min) | 1.868inchH2O (47.44mmH2O) |
THA0412AD
|
N/A | N/A | 12 VDC | 0.43 A | 5.16 W | 15600 RPM | 52.0 dB(A) | 20.56CFM (0.582 m3/min) | 1.385inchH2O (35.16mmH2O) |
THA0412BN
|
N/A | N/A | 12 VDC | 0.89 A | 10.68 W | 19000 RPM | 59.0 dB(A) | 29.52CFM (0.830 m3/min) | 2.40inchH2O (61.06mmH2O) |
THB0648BE
|
60x60x38 | 36.0 - 60.0 VDC | 48 VDC | 0.34 A | 16.32 W | 14700 RPM | 61.5 dB(A) | 68.60CFM (1.943 m3/min) | 2.886inchH2O (73.30mmH2O) |
THB1212B-AXHF
|
120x120x25.4 | 7.0 - 15.0 VDC | 12 VDC | 1.60 A | 19.20 W | 5300 RPM | 59.0 dB(A) | 184.20CFM (5.218 m3/min) | 0.899inchH2O (22.83mmH2O) |
THB1224B-PM00
|
120x120x25.40 | 18.0 - 27.5 VDC | 24 VDC | 0.95 A | 22.80 W | 8300 RPM | 65.0 dB(A) | 174.73CFM (4.948 m3/min) | 2.139inchH2O (54.33mmH2O) |
THB1248B-A
|
120x120x25.40 | 36.0 -75.0 VDC | 48 VDC | 0.40 A | 19.20 W | 5300 RPM | 59.0 dB(A) | 186.57CFM (5.285 m3/min) | 0.962inchH2O (24.43mmH2O) |
THB1248CE
|
120x120x38 | 36.0 - 60.0 VDC | 48 VDC | 0.95 A | 45.60 W | 7800 RPM | 70.0 dB(A) | 262.00CFM (7.360 m3/min) | 2.025inchH2O (51.44mmH2O) |
THB1448AE
|
139.7x139.7x38 | 36.0 - 60.0 VDC | 48 VDC | 1.10 A | 52.80 W | 6100 RPM | 66.8 dB(A) | 325.90CFM (9.230 m3/min) | 1.650inchH2O (41.85mmH2O) |

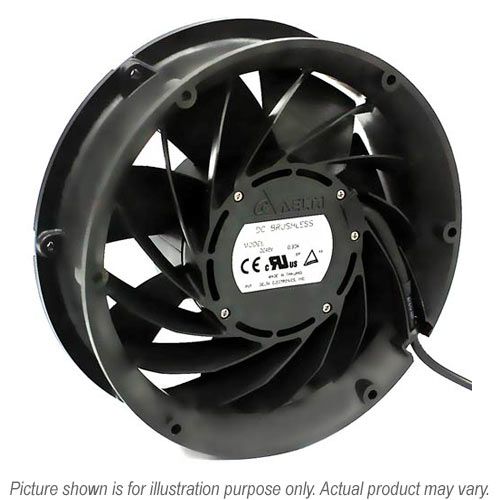

THB1548AG
|
Rounded/Rect-172mm L x 150mm H x 50.80 mm W | 36.0 - 60.0 VDC | 48 VDC | 3.00 A | 144.00 W | 7500 RPM | 77.0 dB(A) | 527.37CFM (14.930 m3/min) | 3.776inchH2O (95.92mmH2O) |
THB1548DG-CXKQ
|
Rounded/Rect-172mm L x 150mm H x 50.80mm W | 24.0 - 72.0 VDC | 48 VDC | 1.57 A | 75.36 W | 5800 RPM | 70.0 dB(A) | 410.51CFM (11.624 m3/min) | 2.085inchH2O (52.97mmH2O) |
| Part number (Download spec sheets) | Dimension (mm) | Operating Voltage Range (VDC) | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Noise (dB-A) | Air Flow (CFM) | Air Pressure (in H2O) |
|---|
Contact local distributors for standard PWM fan offerings.
