Search results for: 'efb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

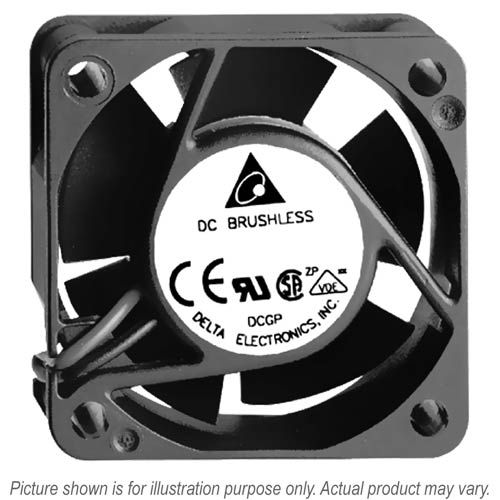

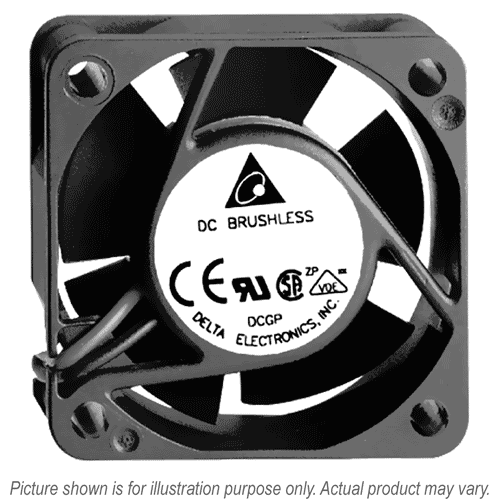

EFB0412HHD-R00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	9.43 CFM (0.267 m3/min)	0.354 inchH2O (9.00mmH2O)	30.5 dB(A)	1.20 W	8200 RPM	3 lead wires
EFB0412LD	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	5.54 CFM (0.157 m3/min)	0.136 inchH2O (3.45 mmH2O)	22.0 dB(A)	0.60 W	5000 RPM	2 lead wires
EFB0412LD-R00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	5.54 CFM (0.157 m3/min)	0.136 inchH2O (3.45 mmH2O)	22.0 dB(A)	0.60 W	5000 RPM	3 lead wires
EFB0412MD	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	7.17 CFM (0.203 m3/min)	0.218 inchH2O (5.54 mmH2O)	24.0 dB(A)	0.72 W	6300 RPM	2 lead wires
EFB0412MD-F00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	7.17 CFM (0.203 m3/min)	0.218 inchH2O (5.54 mmH2O)	24.0 dB(A)	0.72 W	6300 RPM	3 lead wires
EFB0412MD-R00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	7.17 CFM (0.203 m3/min)	0.218 inchH2O (5.54 mmH2O)	24.0 dB(A)	0.72 W	6300 RPM	3 lead wires
EFB0412VHD	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	1.44 W	9000 RPM	2 lead wires
EFB0412VHD-F00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	1.44 W	9000 RPM	3 lead wires
EFB0412VHD-R00	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	1.44 W	9000 RPM	3 lead wires
EFB0412VHD-SP05	Square-40mm L X 40mm H	20.00mm	Ball	12 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	34.5 dB(A)	1.44 W	9000 RPM	4 lead wires
EFB0424HHD	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	9.43 CFM (0.267 m3/min)	0.354 inchH2O (8.99mmH2O)	30.5 dB(A)	1.68 W	8200 RPM	2 lead wires
EFB0424LD	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	5.54 CFM (0.157 m3/min)	0.136 inchH2O (3.45 mmH2O)	22.0 dB(A)	0.96 W	5000 RPM	2 lead wires
EFB0424MD	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	7.17 CFM (0.203 m3/min)	0.218 inchH2O (5.54 mmH2O)	24.0 dB(A)	1.20 W	6300 RPM	2 lead wires
EFB0424VHD	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	2.16 W	9000 RPM	2 lead wires
EFB0424VHD-F00	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	2.16 W	9000 RPM	3 lead wires
EFB0424VHD-R00	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	2.16 W	9000 RPM	3 lead wires
EFB0424VHD-TZW2	Square-40mm L X 40mm H	20.00mm	Ball	24 VDC	10.10 CFM (0.286 m3/min)	0.416 inchH2O (10.57 mmH2O)	32.5 dB(A)	2.16 W	9000 RPM	2 lead wires

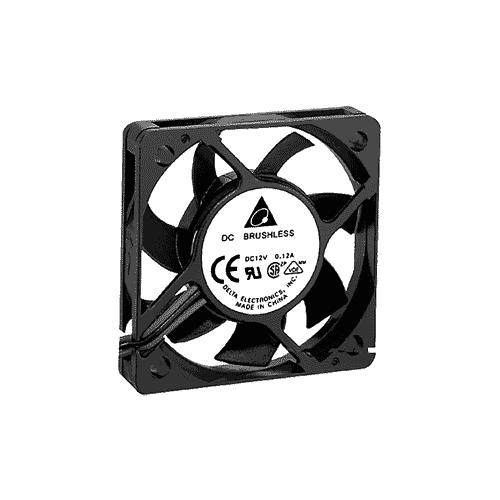

EFB0505LA	Square-50mm L X 50mm H	10.00mm	Ball	5 VDC	7.50 CFM (0.212 m3/min)	0.068 inchH2O (1.72 mmH2O)	18.0 dB(A)	0.35 W	3500 RPM	2 lead wires
EFB0505MA	Square-50mm L X 50mm H	10.00mm	Ball	5 VDC	9.21 CFM (0.261 m3/min)	0.113 inchH2O (2.87 mmH2O)	25.0 dB(A)	0.65 W	4500 RPM	2 lead wires
EFB0505MA-F00	Square-50mm L X 50mm H	10.00mm	Ball	5 VDC	9.21 CFM (0.261 m3/min)	0.113 inchH2O (2.87 mmH2O)	25.0 dB(A)	0.65 W	4500 RPM	3 lead wires
EFB0512HA-F00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	11.40 CFM (0.323 m3/min)	0.167 inchH2O (4.24 mmH2O)	30.0 dB(A)	1.20 W	5500 RPM	3 lead wires
EFB0512HA-R00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	11.40 CFM (0.323 m3/min)	0.167 inchH2O (4.24 mmH2O)	30.0 dB(A)	1.20 W	5500 RPM	3 lead wires
EFB0512HHAFAH	Round-45mm Diameter	9.80mm	Ball	12 VDC	7.47 CFM (0.211 m3/min)	0.056 inchH2O (1.42 mmH2O)	29.5 dB(A)	1.56 W	5000 RPM	3 lead wires
EFB0512HHA-R00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	13.57 CFM (0.384 m3/min)	0.232 inchH2O (5.89 mmH2O)	33.5 dB(A)	1.80 W	6500 RPM	3 lead wires
EFB0512LA	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	7.50 CFM (0.212 m3/min)	0.068 inchH2O (1.72 mmH2O)	18.0 dB(A)	0.60 W	3500 RPM	2 lead wires
EFB0512LA-F00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	7.50 CFM (0.212 m3/min)	0.068 inchH2O (1.72 mmH2O)	18.0 dB(A)	0.60 W	3500 RPM	2 lead wires
EFB0512LA-R00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	7.50 CFM (0.212 m3/min)	0.068 inchH2O (1.72 mmH2O)	18.0 dB(A)	0.60 W	3500 RPM	2 lead wires
EFB0512MA	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	9.21 CFM (0.261 m3/min)	0.113 inchH2O (2.87 mmH2O)	25.0 dB(A)	0.96 W	4500 RPM	2 lead wires
EFB0512MA-F00	Square-50mm L X 50mm H	10.00mm	Ball	12 VDC	9.21 CFM (0.261 m3/min)	0.113 inchH2O (2.87 mmH2O)	25.0 dB(A)	0.96 W	4500 RPM	3 lead wires
EFB0512VHBBBN	Square-50mm L X 50mm H	15.00mm	Ball	13.5 VDC	13.03 CFM (0.369 m3/min)	0.222 inchH2O (5.65 mmH2O)	35.0 dB(A)	1.76 W	7600 RPM	3 lead wires
