Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

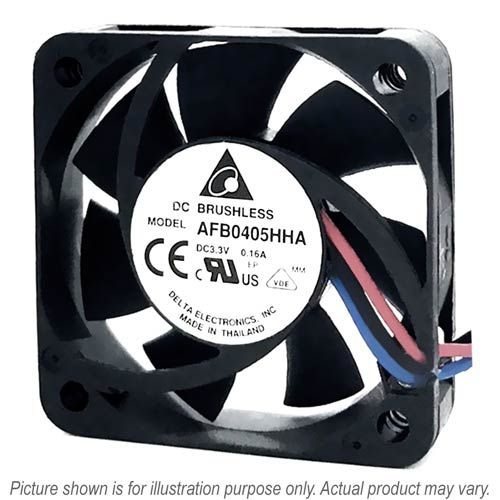

AFB0405HHA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	8.15 CFM (0.231 m3/min)	0.190 inchH2O (4.83 mmH2O)	31.5 dB(A)	0.45 W	7000 RPM	3 lead wires
AFB0405LA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	4.39 CFM (0.124 m3/min)	0.068 inchH2O (1.72 mmH2O)	16.0 dB(A)	0.15 W	4000 RPM	2 lead wires
AFB0405LA-AR00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	4.39 CFM (0.124 m3/min)	0.068 inchH2O (1.72 mmH2O)	16.0 dB(A)	0.15 W	4000 RPM	3 lead wires
AFB0405MA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	5.67 CFM (0.161 m3/min)	0.104 inH2O (2.65 mmH2O)	21.5 dB(A)	0.25 W	5000 RPM	2 lead wires
AFB0405MA-AR00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	5.67 CFM (0.161 m3/min)	0.104 inH2O (2.65 mmH2O)	21.5 dB(A)	0.25 W	5000 RPM	3 lead wires
AFB0405VHA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	9.25 CFM (0.262 m3/min)	0.242 inchH2O (6.16 mmH2O)	35.5 dB(A)	0.55 W	8000 RPM	2 lead wires
AFB0405VHA-AR00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	9.25 CFM (0.262 m3/min)	0.242 inchH2O (6.16 mmH2O)	35.5 dB(A)	0.55 W	8000 RPM	2 lead wires
AFB0412HA-AAU4 (EOL)	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	6.89 CFM (0.195 m3/min)	0.140 inchH2O (3.60 mmH2O)	27.0 dB(A)	0.48 W	6000 RPM	3 lead wires
AFB0412HA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	6.89 CFM (0.195 m3/min)	0.140 inchH2O (3.60 mmH2O)	27.0 dB(A)	0.48 W	6000 RPM	3 lead wires
AFB0412HB	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	9.46 CFM (0.268 m3/min)	0.272 inchH2O (6.92 mmH2O)	28.5 dB(A)	1.20 W	7000 RPM	2 lead wires
AFB0412HB-F00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	9.46 CFM (0.268 m3/min)	0.272 inchH2O (6.92 mmH2O)	28.5 dB(A)	1.20 W	7000 RPM	3 lead wires
AFB0412HB-R00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	9.46 CFM (0.268 m3/min)	0.272 inchH2O (6.92 mmH2O)	28.5 dB(A)	1.20 W	7000 RPM	3 lead wires
AFB0412HHA-A	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	8.15 CFM (0.231 m3/min)	0.190 inH20 (4.831 mmH2O)	31.5 dB(A)	0.60 W	7000 RPM	2 lead wires
AFB0412HHA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	8.15 CFM (0.231 m3/min)	0.190 inH20 (4.831 mmH2O)	31.5 dB(A)	0.60 W	7000 RPM	3 lead wires
AFB0412HHA-TA5F	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	8.15 CFM (0.231 m3/min)	0.190 inH20 (4.831 mmH2O)	31.5 dB(A)	0.60 W	7000 RPM	3 lead wires

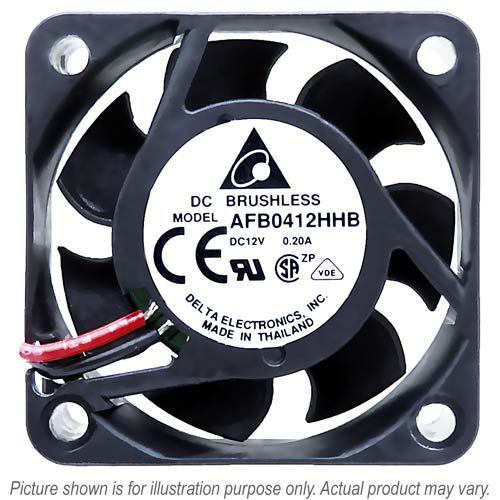

AFB0412HHB	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	11.48 CFM (0.325 m3/min)	0.359 inchH2O (9.13 mmH2O)	32.0 dB(A)	1.56 W	8300 RPM	2 lead wires
AFB0412HHB-F00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	11.48 CFM (0.325 m3/min)	0.359 inchH2O (9.13 mmH2O)	32.0 dB(A)	1.56 W	8300 RPM	3 lead wires
AFB0412LA-A	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	4.39 CFM (0.124 m3/min)	0.068 inchH2O (1.737 mmH2O)	16.0 dB(A)	0.24 W	4000 RPM	2 lead wires
AFB0412MA-A	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	5.67 CFM (0.161 m3/min)	0.104 inH2O (2.65 mmH2O)	21.5 dB(A)	0.36 W	5000 RPM	2 lead wires
AFB0412MA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	5.67 CFM (0.161 m3/min)	0.104 inH2O (2.65 mmH2O)	21.5 dB(A)	0.36 W	5000 RPM	3 lead wires
AFB0412MB-F00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	8.12 CFM (0.230 m3/min)	0.202 inchH2O (5.12 mmH2O)	24.5 dB(A)	1.08 W	6000 RPM	3 lead wires
AFB0412SHB	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	3.00 W	11000 RPM	2 lead wires
AFB0412SHB-F00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	3.00 W	11000 RPM	3 lead wires
AFB0412SHB-R00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	14.83 CFM (0.420 m3/min)	0.001 inchH2O (15.26 mmH2O)	41.5 dB(A)	3.00 W	N/A	3 lead wires
AFB0412SHB-SP04	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	3.00 W	11000 RPM	4 lead wires
AFB0412SHB-T500	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	3.00 W	11000 RPM	2 lead wires
AFB0412VB-A	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	15.18 CFM (0.430 m3/min)	0.622 inchH2O (15.80 mmH2O)	46.0 dB(A)	2.52 W	12000 RPM	2 lead wires
AFB0412VB-AF00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	15.18 CFM (0.430 m3/min)	0.622 inchH2O (15.80 mmH2O)	46.0 dB(A)	2.52 W	12000 RPM	3 lead wires
AFB0412VB-AR00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	15.18 CFM (0.430 m3/min)	0.622 inchH2O (15.80 mmH2O)	46.0 dB(A)	2.52 W	12000 RPM	3 lead wires
AFB0412VHA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	9.25 CFM (0.262 m3/min)	0.242 inchH2O (6.16 mmH2O)	35.5 dB(A)	0.72 W	8000 RPM	3 lead wires
