Items 121-150 of 453

per page
Set Ascending Direction
Compare
Parts		 Part Number Image Size/Dimension Width Bearing Voltage Air Flow Static Pressure Noise Power RPM Termination
AFB0524HHB-F00
AFB0524HHB-F00 AFB0524HHB-F00
Square-50mm L X 50mm H 15.00mm Ball 24 VDC 16.24 CFM (0.460 m3/min) 0.315 inchH2O (8.00 mmH2O) 36.0 dB(A) 1.92 W 6400 RPM 3 lead wires

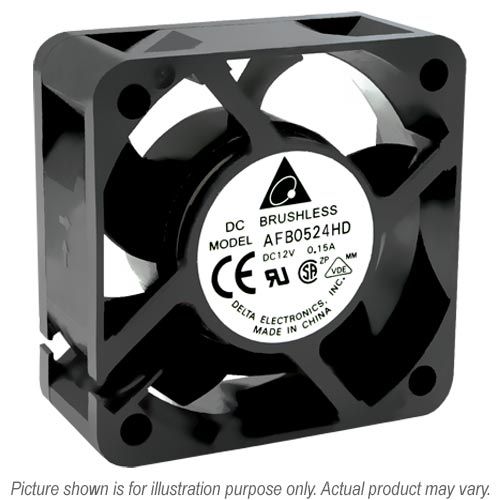

AFB0524HHD
AFB0524HHD, 50x50x20mm, 24VDC, 0.09A, 2.16 Watts, 6400 RPM, 2 lead wires, ball bearing, axial, dc fan, delta AFB0524HHD, 50x50x20mm, 24VDC, 0.09A, 2.16 Watts, 6400 RPM, 2 lead wires, ball bearing, axial, dc fan, delta
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 18.30CFM (0.518 m3/min) 0.254 inchH2O (6.44 mmH2O) 37.0 dB(A) 2.16 W 6400 RPM 2 lead wires
AFB0524LD
AFB0524LD AFB0524LD
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 10.98CFM (0.311 m3/min) 0.095 inchH2O (2.42 mmH2O) 25.0 dB(A) 1.20 W 4000 RPM 2 lead wires

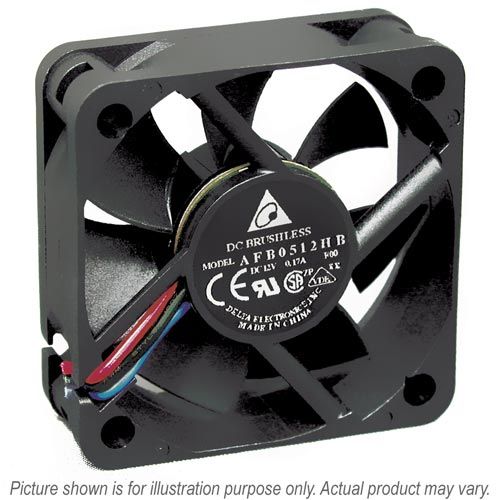

AFB0524MB
AFB0524MB, 50x50x15mm, 24VDC, 0.06A, 1.44 Watts, 4800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta AFB0524MB, 50x50x15mm, 24VDC, 0.06A, 1.44 Watts, 4800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta
Square-50mm L X 50mm H 15.00mm Ball 24 VDC 12.36 CFM (0.350 m3/min) 0.180 inchH2O (4.60 mmH2O) 28.0 dB(A) 1.44 W 4800 RPM 2 lead wires
AFB0524MB-R00
AFB0524MB-R00 AFB0524MB-R00
Square-50mm L X 50mm H 15.00mm Ball 24 VDC 12.36 CFM (0.350 m3/min) 0.180 inchH2O (4.60 mmH2O) 28.0 dB(A) 1.44 W 4800 RPM 3 lead wires
AFB0524MD
AFB0524MD, 50x50x20mm, 24VDC, 0.06A, 1.44 Watts, 4800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta AFB0524MD, 50x50x20mm, 24VDC, 0.06A, 1.44 Watts, 4800 RPM, 2 lead wires, ball bearing, axial, dc fan, delta
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 13.39 CFM (0.379 m3/min) 0.137 inchH2O (3.48 mmH2O) 28.0 dB(A) 1.44 W 4800 RPM 2 lead wires
AFB0524VHD
AFB0524VHD AFB0524VHD
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 20.30CFM (0.575 m3/min) 0.303 inchH2O (7.70 mmH2O) 40.5 dB(A) 2.40 W 7000 RPM 2 lead wires
AFB0524VHD-R00
AFB0524VHD-R00 AFB0524VHD-R00
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 20.30CFM (0.575 m3/min) 0.303 inchH2O (7.70 mmH2O) 40.5 dB(A) 2.40 W 7000 RPM 3 lead wires
AFB0524VHD-TZW5
AFB0524VHD-TZW5 AFB0524VHD-TZW5
Square-50mm L X 50mm H 20.00mm Ball 24 VDC 20.30CFM (0.575 m3/min) 0.303 inchH2O (7.70 mmH2O) 40.5 dB(A) 2.40 W 7000 RPM 2 lead wires

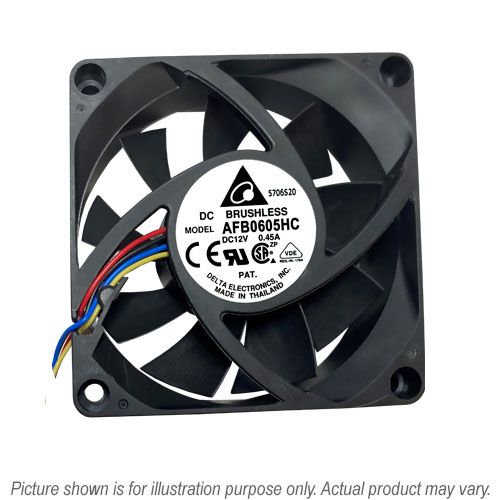

AFB0605HC
AFB0605HC, 60x60x13mm, 5V, 0.29 A, 1.45 Watts, 4200 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan AFB0605HC, 60x60x13mm, 5V, 0.29 A, 1.45 Watts, 4200 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 21.22 CFM (0.601 m3/min) 0.163 inchH2O (4.15 mmH2O) 31.5 dB(A) 1.45 W 4200 RPM 2 lead wires
AFB0605HC-F00
AFB0605HC-F00, 60x60x13mm, 5VDC, 0.29 A, 1.45 Watts, 4200 RPM, 3 wire leads, ball bearing, axial, dc fan, delta fan AFB0605HC-F00, 60x60x13mm, 5VDC, 0.29 A, 1.45 Watts, 4200 RPM, 3 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 21.22 CFM (0.601 m3/min) 0.163 inchH2O (4.15 mmH2O) 31.5 dB(A) 1.45 W 4200 RPM 3 lead wires
AFB0605LC
AFB0605LC, 60x60x13mm, 5VDC, 0.12 A, 0.60 Watts, 3000 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan AFB0605LC, 60x60x13mm, 5VDC, 0.12 A, 0.60 Watts, 3000 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 21.22 CFM (0.601 m3/min) 0.163 inchH2O (4.15 mmH2O) 24.0 dB(A) 0.60 W 3000 RPM 2 lead wires
AFB0605LC-R00
AFB0605LC-R00, 60x60x13mm, 5VDC, 0.12 A, 0.60 Watts, 3000 RPM, 3 wire leads, locked rotor sensor, ball bearing, axial, dc fan, delta fan AFB0605LC-R00, 60x60x13mm, 5VDC, 0.12 A, 0.60 Watts, 3000 RPM, 3 wire leads, locked rotor sensor, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 21.22 CFM (0.601 m3/min) 0.163 inchH2O (4.15 mmH2O) 24.0 dB(A) 0.60 W 3000 RPM 3 lead wires
AFB0605LD
AFB0605LD, 60x60x13mm, 5VDC, 0.14 A, 0.70 Watts, 3000 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan AFB0605LD, 60x60x13mm, 5VDC, 0.14 A, 0.70 Watts, 3000 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 20.00mm Ball 5 VDC 13.06 CFM (0.370 m3/min) 0.119 inchH2O (3.03 mmH2O) 24.0 dB(A) 0.70 W 3200 RPM 2 lead wires
AFB0605MC
AFB0605MC, 60x60x13mm, 5VDC, 0.18 A, 0.90 Watts, 3600 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan AFB0605MC, 60x60x13mm, 5VDC, 0.18 A, 0.90 Watts, 3600 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 18.15 CFM (0.514 m3/min) 0.119 inchH2O (3.02 mmH2O) 28.0 dB(A) 0.90 W 3600 RPM 2 lead wires
AFB0605MC-F00
AFB0605MC-F00, 60x60x13mm, 5VDC, 0.18 A, 0.90 Watts, 3600 RPM, 2 wire leads, Speed Sensor (Tach), ball bearing, axial, dc fan, delta fan AFB0605MC-F00, 60x60x13mm, 5VDC, 0.18 A, 0.90 Watts, 3600 RPM, 2 wire leads, Speed Sensor (Tach), ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 13.00mm Ball 5 VDC 18.15 CFM (0.514 m3/min) 0.119 inchH2O (3.02 mmH2O) 28.0 dB(A) 0.90 W 3600 RPM 2 lead wires
AFB0605MD
AFB0605MD, 60x60x13mm, 5VDC, 0.14 A, 0.70 Watts, 3200 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan AFB0605MD, 60x60x13mm, 5VDC, 0.14 A, 0.70 Watts, 3200 RPM, 2 wire leads, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 20.00mm Ball 5 VDC 18.15 CFM (0.514 m3/min) 0.119 inchH2O (3.02 mmH2O) 24.0 dB(A) 0.70 W 3200 RPM 2 lead wires

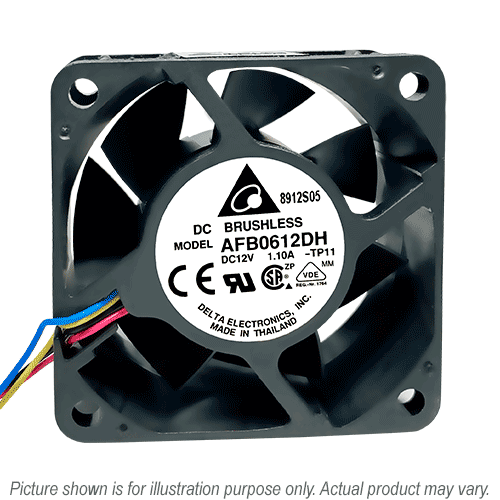

AFB0612DH-A
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 50.40 CFM (1.427 m3/min) 0.926 inchH2O (23.52 mmH2O) 55.0 dB(A) 10.08 W 9000 RPM 2 lead wires
AFB0612DH-AF00
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 50.40 CFM (1.427 m3/min) 0.926 inchH2O (23.52 mmH2O) 55.0 dB(A) 10.08 W 9000 RPM 3 lead wires
AFB0612DH-TZUT
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 50.40 CFM (1.427 m3/min) 0.926 inchH2O (23.52 mmH2O) 55.0 dB(A) 10.08 W 9000 RPM 2 lead wires
AFB0612EH-A
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 2 lead wires
AFB0612EH-AB
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 2 lead wires
AFB0612EH-ABF00
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 3 lead wires
AFB0612EH-ABR00
AFB0612EH-ABR00, 60x60x25.4mm, 12 VDC, 0.38 A, 4.56 Watts, 6800 RPM, 3 wire leads, Locked Rotor Sensor, ball bearing, axial, dc fan, delta fan AFB0612EH-ABR00, 60x60x25.4mm, 12 VDC, 0.38 A, 4.56 Watts, 6800 RPM, 3 wire leads, Locked Rotor Sensor, ball bearing, axial, dc fan, delta fan
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 3 lead wires
AFB0612EH-AF00
AFB0612EH-AF00, 60x60x25.40mm, 12VDC, 0.38 A, 4.56 Watts, 6800 RPM, Speed Sensor (Tach), 3 wire leads, ball bearing, axial fan, dc fan, delta fan AFB0612EH-AF00, 60x60x25.40mm, 12VDC, 0.38 A, 4.56 Watts, 6800 RPM, Speed Sensor (Tach), 3 wire leads, ball bearing, axial fan, dc fan, delta fan
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 3 lead wires
AFB0612EH-AR00
AFB0612EH-AR00, 60x60x25.40mm, 12V, 0.38 A, 4.56 Watts, 6800 RPM, 3 lead wires, ball bearing, Locked Rotor Sensor, axial fan, dc fan, delta AFB0612EH-AR00, 60x60x25.40mm, 12V, 0.38 A, 4.56 Watts, 6800 RPM, 3 lead wires, ball bearing, Locked Rotor Sensor, axial fan, dc fan, delta
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 38.35CFM (1.086 m3/min) 0.544 inchH2O (13.81 mmH2O) 46.5 dB(A) 4.56 W 6800 RPM 3 lead wires
AFB0612EHF-R00 (EOL)
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 32.00mm Ball 12 VDC 60.60 CFM (1.716 m3/min) 1.436 inchH2O (36.48 mmH2O) 58.0 dB(A) 12.60 W 11000 RPM 3 lead wires
AFB0612GH-A
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 41.95 CFM (1.188 m3/min) 0.640 inchH2O (16.27 mmH2O) 50.5 dB(A) 6.60 W 7500 RPM 2 lead wires
AFB0612GH-AF00
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 25.40mm Ball 12 VDC 41.95 CFM (1.188 m3/min) 0.640 inchH2O (16.27 mmH2O) 50.5 dB(A) 6.60 W 7500 RPM 3 lead wires
AFB0612GHF (EOL)
https://www.delta-fan.com/Download/Images/AFB60x25.png https://www.delta-fan.com/Download/Images/AFB60x25.png
Square-60mm L X 60mm H 32.00mm Ball 12 VDC 66.30 CFM (1.877 m3/min) 1.696 inchH2O (43.07 mmH2O) 60.5 dB(A) 16.20 W 12000 RPM 2 lead wires
