Mar 14, 2023 | Delta

Delta's 3-phase brushless DC fans, designed for data center and storage servers, utilize three-phase fan motors that represent the next stage.

Delta's latest brushless DC fans, designed for data center and storage servers, utilize three-phase fan motors that represent the next stage in advancement of server cooling fans. Delta three-phase motor design provides stable transition between slots, which allows fans to run smoothly while maintaining low vibration, high air pressure, and high energy efficiency.

Product Highlights:

• Optimized blade design for high efficiency
• Powered by three-phase motors and advanced electrical drives
• Enhanced structure to achieve low vibration

Benefits: Delta three-phase brushless DC motor fans deliver high energy efficiency to save system power and low vibration to increase HDD performance, resulting in energy and cost savings.

Available Product Models

Part number (Download spec sheets)	Dimension (mm)	Operating Voltage Range (VDC)	Voltage (VDC)	Current (A)	Power (W)	Speed (RPM)	Noise (dB-A)	Air Flow (CFM)	Air Pressure (in H2O)

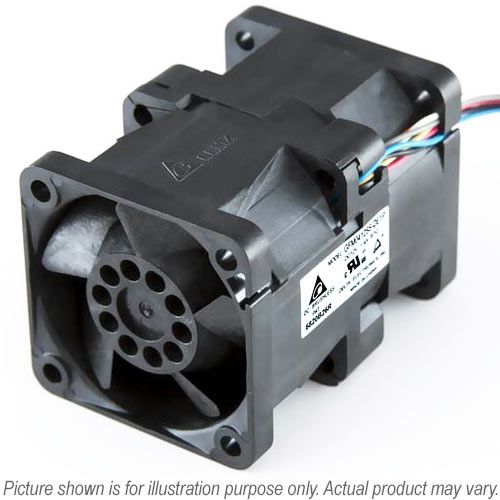

GFC0412DS-TP01	40x40x56mm	10.8 - 12.6 VDC	12 VDC	1.00 A	12.00 W	15300 RPM	61.0 dB(A)	30.50CFM (0.864 m3/min)	1.726 inchH2O (43.83 mmH2O)
GFC0412DS-DF00	40x40x56mm	10.8 - 12.6 VDC	12 VDC	1.30 A	15.60 W	16000 RPM	64.5 dB(A)	32.179CFM (0.911 m3/min)	2.631 inchH2O (66.824 mmH2O)
GFM0412SS-DE1PB7Q	40x40x56mm	10.8 - 12.6 VDC	12 VDC	1.10 A	12.60 W	19000 RPM	68.5 dB(A)	21.56CFM (0.610 m3/min)	3.416 inchH2O (86.78 mmH2O)
GFC0412DS-DV17	40x40x56mm	10.8 - 12.6 VDC	12 VDC	1.50 A	18.00 W	20500 RPM	66.0 dB(A)	33.22CFM (0.941 m3/min)	3.330 inchH2O (84.58 mmH2O)
GFC0412DS-SM06B0G	40x40x56mm	10.8 - 12.6 VDC	12 VDC	2.27 A	27.24 W	23000 RPM	69.0 dB(A)	37.61CFM (1.065 m3/min)	4.110 inchH2O (104.39 mmH2O)
PFM0612XHEB7T	60x60x38mm	10.8 - 12.6 VDC	12 VDC	1.15 A	13.80 W	18500 RPM	65.1 dB(A)	64.44 CFM (1.825 m3/min)	2.343 inchH2O (59.52 mmH2O)
GFC0612DS-AQ14	60x60x56mm	10.8 - 13.2 VDC	12 VDC	1.60 A	19.20 W	10400 RPM	66.0 dB(A)	65.03 CFM (1.842 m3/min)	2.007 inchH2O (50.98 mmH2O)
GFC0624DW-DT48	60x60x76mm	18.0 - 26.0 VDC	24 VDC	1.40 A	31.20 W	11300 RPM	71.5 dB(A)	69.44 CFM (1.996 m3/min)	3.025 inchH2O (76.83 mmH2O)
PFM0812HE-01BFY	80x80x38mm	10.8 - 12.6 VDC	12 VDC	4.30 A	51.60 W	16300 RPM	77.0 dB(A)	129.42 CFM (3.665 m3/min)	4.969inchH2O (126.22mmH2O)
GFC0812DS-CMA8	80x80x56mm	10.8 - 12.6 VDC	12 VDC	2.17 A	26.04 W	12000 RPM	72.6 dB(A)	90.12 CFM (2.552 m3/min)	3.827 inchH2O (97.21 mmH2O)
GFM0812DS-SMB7R	80x80x56mm	10.8 - 13.2 VDC	12 VDC	2.40 A	28.80 W	12500 RPM	73.3 dB(A)	93.23 CFM (2.640 m3/min)	4.485inchH2O (113.91mmH2O)
GFC0812DW-TD2G	80x80x76mm	10.8 - 12.6 VDC	12 VDC	8.27 A	99.24 W	13500 RPM	80.0 dB(A)	177.10CFM (5.015 m3/min)	4.502inchH2O (114.35mmH2O)
GFC0812DW-SM00B7P	80x80x80mm	10.8 - 12.6 VDC	12 VDC	5.20 A	62.40 W	12000 RPM	74.5 dB(A)	90.12 CFM (2.552 m3/min)	4.170inchH2O (105.94mmH2O)
GFM0812DUB7S	80x80x86mm	10.8 - 12.6 VDC	12 VDC	9.00 A	18.00 W	13800 RPM	82.5 dB(A)	190.63CFM (5.398 m3/min)	5.749inchH2O (146.04mmH2O)
PFM1412DEB7V	139.7x139.7x38 mm	10.8 - 12.8 VDC	12 VDC	3.90 A	46.80 W	6500 RPM	70.0 dB(A)	282.31CFM (7.994 m3/min)	2.033 inchH2O (51.65 mmH2O)
