Delta manufactures axial fans and EC motor assemblies for a range of industries and applications. Delta provides value-added benefits of local stock, large production capacity with 13.7 million square feet, extensive reliability testing and strict quality control. For more information on Delta electronically commutated fans, please Contact Us.

• Optional fan guard and round or square mounting plate
• Variable input range
• APFC, PPFC
• 0-10V PWM speed control
• RS485, Modbus
• UL/cUL

Standard models are listed below. Additional designs can be made available for specific application requirements.

Delta's Part Number (click for spec sheet)	Click for 3D file	Power Curve	Product Type	Diameter	Voltage
GTW040FUC15RS	GTW040FUC15RS.zip	GTW040FUC15RS	Axial Round 528mm L x 154mm W w/ Fan Guard and Wall Ring, 230VAC, 420W	528mm L x 154mm W	230VAC
GTW071PUT23E	GTW071PUT23E.zip	GTW071PUT23E	850 x 850 x 235mm, 400VAC, 2700W, wide range voltage, Square Mounting Plate, alarm relay, Locked rotor protection, Soft start, IP54, PWM	710 mm	Wide range 3-400VAC 3P-380~480 with PPFC
GTW080PUR22E	GTW080PUR22E.zip	GTW080PUR22E	Wide range voltage 970 x 970 x 260mm, EC Axial Fan with Square Mounting Plate 400Vac 2200W Alarm relay, Locked rotor protection, soft start, IP54, PWM	800 mm	Wide range 3-400VAC 3P-380~480 with PPFC

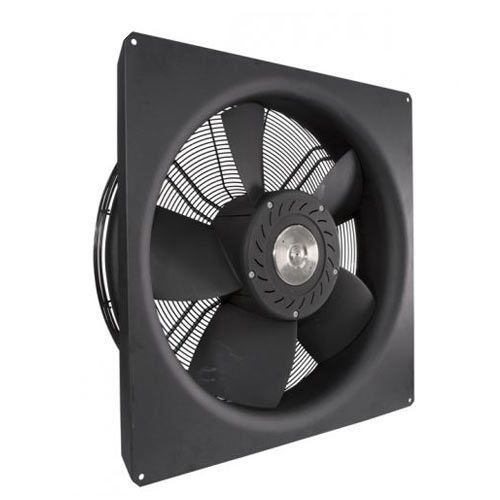

GTW080PUU23E	GTW080PUU23E.zip	GTW080PUU23E	970 x 970 x 260mm, 400VAC, 3100W, IP54, PWM, Wide range voltage, EC Axial Fan with Square Mounting Plate, alarm relay, locked rotor protection, soft start	800 mm	Wide range 3-400VAC 3P-380~480 with PPFC
GTW091PUR22E	GTW091PUR22E.zip	GTW091PUR22E	GTW091PUR22E, 1070 x 1070 x 237mm, 400VAC, 2200W, wide range voltage, IP54, PWM, EC Axial Fan with Square Mounting Plate, alarm relay, locked rotor protection, soft start	910 mm	Wide range 3-400VAC 3P-380~480 with PPFC
GTW091PUU23E	GTW091PUU23E.zip	GTW091PUU23E	1070 x 1070 x 237mm, 400 VAC, 3100 W, IP54, PWM, Wide range voltage, EC Axial Fan with Square Mounting Plate, alarm relay, locked rotor protection, soft start	910 mm	Wide range 3-400VAC 3P-380~480 with PPFC
GTW012FU604	GTW012FU604.zip	GTW012FU604	120mm EC Axial Fan	120mm	100-240VAC 1~ 50/60Hz with PPFC
GTW012FU804	GTW012FU804.stp	GTW012FU804	120mm EC Axial Fan	120mm	100-240VAC 1~ 50/60Hz with PPFC
GTW017EUB12	GTW017EUB12.stp	GTW017EUB12	Dimension 200x122mm EC Axial Fan	170mm	200-240VAC 1~ 50/60Hz with APFC
GTW025FUC16	GTW025FUC16.stp	GTW025FUC16	Axial Square 250mm L x 250mm H x 126mm W, 230VAC, 230W	250mm	230 Vac 1~ 50/60Hz with PPFC
GTW040FUC15E-M001	GTW040FUC15E-M001.zip	GTW040FUC15E-M001	Axial Round 528mm L x 154mm W w/ Fan Guard and Wall Ring, 230VAC, 420W	Round 528mm L x 154mm	200-240VAC 1~ 50/60Hz with PPFC

Delta's Part Number (click for spec sheet)	Click for 3D file	Power Curve	Product Type	Diameter	Voltage
