Small Cell

Small Cell application cooling solutions that meet the demands when performance in wide coverage and efficiency in small spaces.
The Delta offers the effectively cooling when applies in other telecom or similar equipment requirement cooling solutions.

The most challenging aspect of today’s small cell designs was almost considered and need for below:
•  Low Noise - Suitable for stealth in the crowd, to avoid noise interference
•  Long life- Suitable for long product life cycle applications
•  High reliability- Suitable for unaffected areas and maintenance requirements
•  EMC requirement and compatibility - Suitable to avoid interference or compatibility requirements
•  Good IP protection- Suitable for harsh environments or harsh local requirements

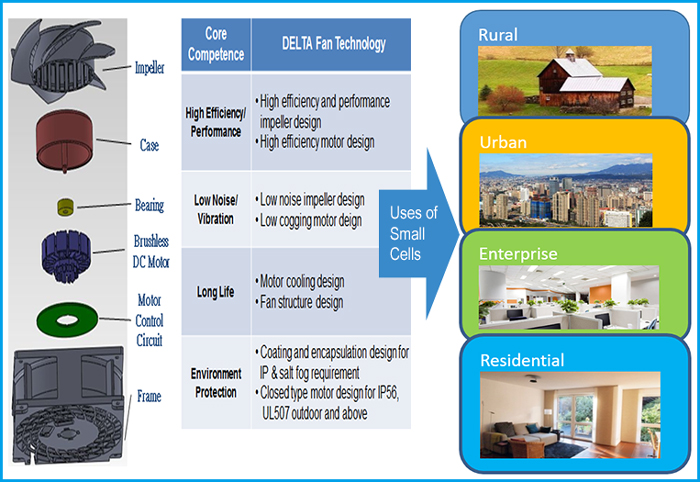

Delta is meeting these applications requirements with:
•  Bio-inspired Fan Tech. design that avoids airflow separation, optimizing rotor reduce noise and stator blades for higher efficiency
•  Optimized motor or Fan structure design increase dynamic load rating and life
•  Advanced motor control circuit and optimized fan efficiency to enhanced reliability
•  EMC guards options and interference suppression processing for compatibility
•  Fan closed type structure or optional protect material cover PCBA design for IP protection
Telecom Small Cell


Small Cell Fan Recommend List:

The newest generation THD series with talent design implement bionic blade then push up the fan meet higher performance, higher efficiency and low noise. The recommended model list can be referred and selected by different size. (Move mouse over images to view a larger size or click on images/PN to get more details)


Part number
(Download spec sheets)
Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
THD0848METHD0848ME
THD0848ME
THD0848ME
80x80x38 36.0~75.0 48V 0.55 26.4 9500 60 128 1.48
THD0948HETHD0848ME-A
THD0948HE-A
THD0948HE-A
92x92x38 36.0~75.0 48V 1.1 52.8 13500 71 182.4 3.44
THD1248HETHD1248HE
THD1248HE
THD1248HE
120x120x38 32~59 48V 2.2 105.82 10900 75 287 4.4
THD1348HETHD1348HE
THD1348HE
THD1348HE
127x127x38 36.0~60.0 48V 5 240 12500 82 490 7.1
*THD1748HG 172x172x50.8 32.0~60.0 48V 3.23 155.1 8000 72 563.5 4.55
THD2048HTTHD2048HT
THD2048HT
THD2048HT
200x200x70 36.0~75.0 48V 8 384 7400 78 1026 4.94
TCA1048AB0C 100x100x25 36.0~60.0 48 0.39 18.72 6700 65 68.67 1.9
TCA1748ATAYT 175x175x69 36.0~60.0 48 1.6 76.8 4000 70.8 428 1.96
TCA1748ATXHD 175x175x69 36.0~60.0 48 1.6 76.8 4000 70.8 428 1.96
TCB3148M15BP9TCB3148M15BP9
TCB3148M15BP9
TCB3148M15BP9
318x318x150 36.0~60.0 48 6.1 292.8 1900 70 1620 2.22
THC1248METHC1248ME
THC1248ME
THC1248ME
120x120x38 36.0~60.0 48V 0.8 38.4 7750 68 191.33 2.11
THC1548MGDJJTHC1548MGDJJ
THC1548MGDJJ
THC1548MGDJJ
172x150x51 36.0~60.0 48V 0.6 28.8 4100 64.45 294.2 1.06
THC1748MGCGPTHC1748MGCGP
THC1748MGCGP
THC1748MGCGP
172x172x51 36.0~60.0 48V 0.6 28.8 4100 62.6 285.3 1.0
* THD1748HG will be available in Q2 2018
The performance data is subject to change without notice.
Many of the fans found in leading brands of Telecom equipment are made by Delta.

Choose from one of our FFB, GFB, PFB, PFR, and T series for a solution that is right for you.

Contact us now for more product information or sample requests.
