Ingress Protection (IP) series
telecom

Professional Grade IP56 and IP55: Durable, Reliable, and Weatherproof.

Delta Ingress Protection (IP) rated fans are purpose-built with superior production techniques to prevent dust and water ingress in harsh conditions. IP fans undergo the most rigorous testing against harsh environments, including:
•   Rain and flooding
•   Salt, fog, and moisture
•   Severe dust and dirt exposure
IP Reference Table:
IP

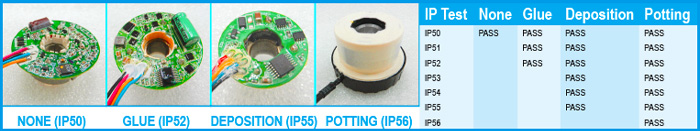

IP Code and IP56 / IP55 Protection:
The IP Code classifies and rates the degrees of protection against the intrusion of solid objects, such as hands and fingers, as well as dust, accidental contact, and moisture or water.
The enclosures are critical to the lifespan and efficient operation of any fan, and are built to withstand specific intrusions. To ensure greater durability, Delta provides IP55 and higher protection ratings as an industry standard.
• The first numeral is the protection rating against dust.
• The second numeral is the rating for protection against water jets.
IP
Please refer to the below table for an explanation of what IP is. IP is defined as Ingress Protection.
The first digit indicates protection from solid particles while the second digit indicates protection from liquids.
Protection against solid particles Protection against liquids
0 No protection 0 No protection
1 More than 50mm, e.g. accidential touch by the back of a hand. 1 Dripping water (vertically falling drops)
2 More than 12.5mm, e.g. a finger. 2 Dripping water (when tilted up to 15°.
3 More than 2.5mm, e.g. a tool. 3 Spraying water (at any angle up to 60°).
4 More than 1mm, e.g. a wire. 4 Splashing of water (any direction).
5 Dust-protected (Dust shall not penetrate in quantity to interfere with satisfactory operation of the apparatus or to impair safety). 5 Water jets.
6 Dust-tight (No ingress of dust). 6 Powerful water jets.
    7 Immersion, up to 1m depth.
    8 Immersion, 1m or more depth.
Delta IP56 Axial Fans (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
AFB0612H-EP 60x60x25 5.0~13.8 12 0.14 1.68 4250 34.0 22.63 0.21 -10 ~ +70
AFB0612EHD7B 60x60x25 6.0~13.8 12 0.32 3.84 6000 44.0 32.45 0.42 -10 ~ +70
PFB0812UHE-EP 80x80x38 10.2~13.8 12 0.99 11.88 6550 57.5 91.87 0.97 -25 ~ +60
PFB0848UHE12C 80x80x38 36.0~60.0 48 0.23 11.04 6400 58.0 89.09 0.95 -40 ~ +70
PFB0948GHED6W 92x92x38 36.0~60.0 48 0.35 16.80 6000 60.5 123.58 1.02 -10 ~ +70
FFC0948BY7T 92x92x38 36.0~75.0 48 0.17 8.16 3900 49.5 86.40 0.35 -25 ~ +70
AFB1224EHE-EP 120x120x38 21.6 ~ 26.4 24 0.85 20.4 4600 58.5 212.57 0.84 -10 ~ +70
PFB1248UHE-EP 120x120x38 30.0~60.0 48 0.88 42.24 5300 66.0 243.66 1.31 -40 ~ +70
EFB1324SHE-EP 127x127x38 18.0~28.0 24 0.75 18.00 4600 58.5 200.00 0.76 -10 ~ +70
TDA1348AE-EP 127x127x38 36.0~57.0 48 0.40 19.00 5300 60.4 159.95 1.46 -33 ~ +70
FFB1424VHG-EP 140x140x51 18.0~26.4 24 1.00 24.00 3200 58.5 252.11 0.64 -10 ~ +70
AFB1548VH-CD8G 172x150x25 42.0~60.0 48 0.65 31.2 5000 65.0 305.04 1.20 -40 ~ +70
EFB1524VHG-EP 172x150x51 20.4~27.6 24 1.02 24.48 4000 60.0 302.29 0.94 -10 ~ +70
EFB1548VHGD8N 172x150x51 36.0~72.0 48 0.56 26.88 4000 60.0 302.29 0.94 -22 ~ +65
KFB2348HHU-EP 225x225x99 36.0~60.0 48 2.0 105.3 2600 71.0 735.08 1.99 -25 ~ +70
Delta IP55 Axial Fans (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
AFB0412HHA-TA5F 40x40x10 7.0~13.8 12 0.05 0.60 7000 31.5 8.15 0.19 -10 ~ +70
AFB0412SHB-T500 40x40x15 7.0~13.8 12 0.25 3.00 11000 41.5 14.83 0.60 -10 ~ +70
EFB0424VHD-TZW2 40x40x20 14.0~27.6 24 0.09 2.16 9000 32.5 10.10 0.42 -10 ~ +70
THA0412AD-TZW3 40x40x20 7.0~15.0 12 0.43 5.16 15600 52.0 20.56 1.39 -25 ~ +70
FFB0412UHN-TYYK 40x40x28 5.5~13.2 12 0.65 7.80 18500 58.5 27.05 2.11 -10 ~ +70
EFB0512HA12H 50x50x10 10.8~12.6 12 0.10 1.20 5500 30.0 11.40 0.17 -10 ~ +70
AFB0512VHD-TZW4 50x50x20 7.0 ~ 13.8 12 0.16 1.92 7000 40.5 20.30 0.30 -10 ~ +70
AFB0524VHD-TZW5 50x50x20 14.0~27.6 24 0.10 2.40 7000 40.5 20.30 0.30 -10 ~ +70
AFB0612SH-TA50 60x60x25 4.0~13.8 12 0.27 3.24 6000 44.5 34.15 0.42 -10 ~ +70
AFB0612DH-TZUT 60x60x25 7.0~13.2 12 0.84 10.08 9000 55.0 50.40 0.93 -10 ~ +70
AFB0624EH-TA50 60x60x25 14.0~27.6 24 0.24 5.76 6800 46.5 38.35 0.54 -10 ~ +70
AFB0624EHDC9 60x60x25 14.0~27.6 24 0.24 5.76 6800 46.5 38.35 0.54 -10 ~ +70
AFB0624SH-TYTH 60x60x25 14.0~27.6 24 0.17 4.08 6000 44.5 34.15 0.42 -10 ~ +70
AFB0612HHE-T500 60x60x38 7.0~13.8 12 0.68 8.16 8000 50.0 46.17 0.79 -10 ~ +70
PFB0612GHE-T500 60x60x38 7.0~13.2 12 0.85 10.20 10000 57.5 55.62 1.44 -10 ~ +60
PFB0612SHE-TZM8 60x60x38 7.0~13.2 12 0.48 5.76 8000 50.5 43.57 0.92 -10 ~ +60
PFB0624SHE-TZNY 60x60x38 14.0~26.4 24 0.28 6.72 8000 50.5 43.57 0.92 -10 ~ +60
PFB0612UHE-T50F 60x60x38 7.0~13.2 12 1.40 16.8 12000 61.5 67.85 2.13 -10 ~ +60
PFB0624GHE-TD88 60x60x38 14.0~26.4 24 0.48 10.32 10000 57.5 55.62 1.44 -10 ~ +60
QFR0612UHE-PM00 60x60x38 7.0~13.2 12 1.10 13.20 13000 61.5 56.45 2.19 -10 ~ +70
AFB0812HH-T500 80x80x25 7.0~13.8 12 0.20 2.40 3250 34.0 37.43 0.18 -10 ~ +70
AFB0824HH-T500 80x80x25 14.0~27.6 24 0.09 2.16 3250 34.0 37.43 0.18 -10 ~ +70
FFB0812VH-T500 80x80x25 14.0~13.2 12 0.34 4.08 4000 45.4 54.56 0.29 -10 ~ +60
AFB0812SH11J 80x80x25 7.0~13.8 12 0.34 4.08 4000 40.0 46.62 0.27 -10 ~ +70
FFB0824SH-TZW1 80x80x25 20.4~26.4 24 0.24 5.76 4500 48.6 67.02 0.39 -10 ~ +70
PFB0812DHE-T500 80x80x38 5.5~13.2 12 2.75 33.00 9000 65.0 132.60 2.03 -10 ~ +60
PFB0812UHE-T500 80x80x38 7.0~13.2 12 1.55 18.60 7500 61.0 107.30 1.37 -10 ~ +60
PFB0824UHE-T500 80x80x38 14.0~26.4 24 0.77 18.48 7500 61.0 107.03 1.37 -10 ~ +60
PFB0812DHE-TYNT 80x80x38 10.8~13.2 12 2.75 33.00 9000 66.0 132.60 2.03 -10 ~ +60
PFB0824DHE-T50F 80x80x38 14.0~26.4 24 1.35 32.40 9000 65.0 132.60 2.30 -10 ~ +60
AFB0912H-TA50 92x92x25 5.0~13.8 12 0.21 2.52 2800 37.0 59.89 0.19 -10 ~ +70
AFB0912SH-TZUG 92x92x25 5.0~12.6 12 0.75 9.00 4800 53.0 102.59 0.53 -10 ~ +70
AFB0924SH-TZUH 92x92x25 14.0~26.4 24 0.40 9.60 4800 53.0 102.59 0.53 -10 ~ +70
AFB0924HH-A367 92x92x25 14.0~26.4 24 0.18 4.32 3300 42.5 72.74 0.26 -10 ~ +70
AFB0912GHE-TA50 92x92x38 7.0~13.8 12 1.65 19.8 5400 60.0 143.87 0.80 -10 ~ +70
FFB0924EHE-T500 92x92x38 14.0~27.6 24 0.50 12.0 4800 55.0 110.18 0.66 -10 ~ +60
FFB0924VHE-T50R 92x92x38 14.0~27.6 24 0.28 6.72 3800 47.5 85.46 0.41 -10 ~ +70
FFB0948SHE-T500 92x92x38 28.0~56.0 48 0.20 9.60 4400 52.5 100.29 0.57 -10 ~ +60
PFB0912DHE-T500 92x92x38 7.0~13.2 12 3.10 37.20 8000 66.5 175.03 1.82 -10 ~ +60
PFB0912EHE-T500 92x92x38 7.0~13.2 12 0.68 8.16 4800 54.0 103.67 0.69 -10 ~ +60
PFB0924DHE-T500 92x92x38 14.0~26.4 24 1.45 34.80 8000 66.5 175.03 1.82 -10 ~ +60
AFB1212SH-T500 120x120x25 7.0~13.8 12 0.53 6.36 3400 46.5 113.11 0.43 -10 ~ +60
AFB1212VH-T500 120x120x25 7.0~13.8 12 0.40 4.80 3100 44.5 103.75 0.37 -10 ~ +60
FFB1212EH-TZUJ 120x120x25 7.0~13.2 12 1.45 17.40 4000 56.4 150.33 0.49 -10 ~ +60
AFB1224SH-T500 120x120x25 14.0~27.6 24 0.28 6.72 3400 46.5 113.11 0.43 -10 ~ +60
FFB1224HH-T500 120x120x25 14.0~26.4 24 0.28 6.72 3100 49.7 114.73 0.29 -10 ~ +60
THB1224B-PM00 120x120x25 18.0~27.5 24 0.95 22.80 8300 65.0 174.73 2.14 -10 ~ +70
AFB1212VHE-T50F 120x120x38 4.0~13.2 12 0.60 7.20 3200 48.0 129.60 0.42 -10 ~ +60
AFB1212GHE-TZR6 120x120x38 6.0~12.8 12 2.45 29.40 5200 62.0 240.96 1.08 -10 ~ +70
AFB1224HHE-T500 120x120x38 7.0~27.6 24 0.30 7.20 2900 44.0 120.07 0.35 -10 ~ +60
FFB1224EHE212 120x120x38 14.0~27.6 24 1.00 24.00 4000 59.0 190.00 0.70 -10 ~ +50
AFB1248VHE-T9LN 120x120x38 34.0~56.0 48 0.31 14.88 4100 55.5 190.48 0.69 -40 ~ +70
PFB1248UHE309 120x120x38 36.0~72.0 48 1.10 52.80 5500 66.5 252.85 1.41 -10 ~ +60
AFB1224SHE-T500 120x120x38 7.0~27.6 24 0.50 12.00 3700 53.0 151.85 0.57 -10 ~ +60
AFB1224SHE-T50F 120x120x38 7.0~27.6 24 0.50 12.00 3700 53.0 151.85 0.57 -10 ~ +60
AFB1224VHE-TC5F 120x120x38 7.0~27.6 24 0.50 12.00 3700 53.0 151.85 0.57 -10 ~ +70
AFB1248HE-T500 120x120x38 28.0~56.0 48 0.12 5.76 2600 41.0 105.94 0.30 -10 ~ +60
AFB1248SHE-TC50 120x120x38 20.0~56.0 48 0.31 14.88 4100 55.5 190.48 0.69 -10 ~ +70
AFB1248SHEDC4 120x120x38 36.0~59.0 48 0.13 6.24 2300 40.0 103.24 0.26 -10 ~ +70
FFB1224XHE-TM50 120x120x38 14.0~26.4 24 3.25 78.00 6300 73.5 264.62 1.70 -10 ~ +70
PFB1212GHE-T50F 120x120x38 8.0~13.2 12 2.70 32.40 4800 64.0 217.80 1.08 -10 ~ +60
PFB1212UHE-T50F 120x120x38 8.0~13.2 12 4.00 48.00 5500 66.5 252.85 1.41 -10 ~ +60
PFB1224GHE286 120x120x38 14.0~26.4 24 1.35 32.40 4800 64.0 271.80 1.08 -10 ~ +60
PFB1224UHE-T50F 120x120x38 14.0~26.5 24 2.00 48.00 5500 66.5 252.85 1.41 -10 ~ +60
EFB1512HG-T50F 172x150x51 8.0~14.0 12 1.35 16.20 3350 55.0 251.79 0.69 -10 ~ +70
EFB1512HHG-T500 172x150x51 8.0~14.0 12 1.79 21.48 3700 57.5 279.60 0.80 -10 ~ +70
EHB1548SHG-C126 172x150x51 32.0~80.0 48 0.88 42.24 4900 66.5 347.08 1.49 -40 ~ +80
EFB1724VHG-T500 172x172x51 12.0~28.0 24 0.97 23.28 4000 57.0 302.29 0.94 -10 ~ +70
EFC1748DG-TYSG 172x172x51 28.0~53.0 48 1.23 59.04 5500 63.4 415.66 1.771 -10 ~ +70
Delta IP55 Blowers (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
BFB0405HHA-TZP4 40x40x10 4.0~5.5 5 0.16 0.80 8500 34.5 3.00 0.56 -10 ~ +70
BFB0512HH-T50F 51x51x15 10.0~13.8 12 0.21 2.52 6500 45.0 4.59 0.87 -10 ~ +70
BFB0724H-T500 75x75x30 14.0~27.6 24 0.12 2.88 2900 38.0 11.30 0.48 -10 ~ +70
BFB0712HHD77 76x76x25 9.0~16.0 12 0.53 8.15 5500 50.0 14.70 1.41 -40 ~ +85
BFB1012L-TA5R 97x94x33 4.0~13.2 12 0.37 4.44 2700 49.5 23.17 0.58 -10 ~ +60
BFB1012HD-04D4L 100x98x20 90.0~16.9 12 0.58 6.96 4400 50.5 18.30 1.62 -40 ~ +85
TCA1048AB0C 100x100x25 36.0~60.0 48 0.39 18.72 6700 65.0 68.67 1.90 -10 ~ +70
BFB1212VH-TA50 120x120x32 5.5~13.8 12 1.47 17.64 3100 57.0 42.47 1.85 -10 ~ +60
BFB1224H-T50R 120x120x32 7.0~27.6 24 0.35 8.40 2500 51.0 29.00 0.83 -10 ~ +60
BFB1224GH-TA50 120x120x32 14.0~27.6 24 1.60 38.40 4400 65.0 60.39 4.09 -10 ~ +60
BFB1224GH-A369 120x120x32 14.0~27.6 24 1.60 38.40 4400 65.0 60.39 4.09 -10 ~ +60
Delta IP54 Axial Fans (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
PFB0912UHE-T500 92x92x38 7.0~13.2 12 1.96 23.52 7000 64.0 153.52 1.45 -10 ~ +70
THB1248B-AXHG 120x120x25 36.0~75.0 48 0.40 19.20 5300 59.0 186.57 0.96 -10 ~ +70
EFB1548VHG-TP14 172x150x51 36.0~60.0 48 0.49 23.52 4000 60.0 302.29 0.94 -10 ~ +60
Delta IP54 Blowers (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
KFB1748VHTAYP 175x175x69 26.0~57.0 48 0.72 34.56 3100 66.0 334.02 1.32 -10 ~ +70
TCA1748ATXHD 175x175x69 36.0~60.0 48 1.60 76.80 4000 70.8 428.00 1.95 -25 ~ +70
KFB2348HHUAYQ 225x225x99 36.0~60.0 48 2.20 105.60 2600 71.0 735.08 1.99 -10 ~ +70
Delta IP53 Blowers (Click on part numbers to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
BFB04512HHA-CZ0T 45x45x10 50.0~13.5 12 0.14 1.68 6100 36.00 3.60 0.60 -10 ~ +70
Delta IP51 Axial Fans (Click on a part number to download spec, 3D, and more.)
Part number Dimension (mm) Operating Voltage (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure
(in H2O)
Operating
Temperature (ºC)
THB1548DG-CN 172x150x51 36.0~72.0 48 1.72 82.56 6100 70.0 427.80 2.29 -10 ~ +70
The performance data is subject to change without notice.

Download IP Overview and Part Number List
