Bionic Blade Fan

Bionic Blade Fan

Delta THD Series Fans Deliver Efficient High Performance with Low Noise.

Quiet, powerful and efficient, with an innovative bionic blade design, THD fans are the new standard for high-performance DC axial fans. THD series fans optimize cooling for data centers, networking, telecom, servers and cloud storage applications.

The fan blade simulates the curve of an osprey's wing in flight and the new THD series fan reduces fan noise up to 6dB-A. THD fans also come in different sizes, ranging from SQ 60mm to OD 225mm.

THD DC fans profile

The next-generation bionic blade design helps telecom fans meet higher operating points, lower noise, and higher efficiency requirements. The flight of an osprey inspired the THD series fan. The osprey's diving posture when catching prey is swift, quiet, and precise, their wings work similarly to fans. Parameterized processes help engineers apply an osprey's posture and wing structure into the THD fan blade design.

THD bionic blade fans reduce up to 6dB-A of noise versus competitors while maintaining high efficiency. The noise reduction is equivalent to the difference between four fans running simultaneously to the noise of one fan, an impressive margin.

The engineering team applied the THD fan's high-performance heat dissipation solution to a range of Delta products, from telecom servers to heat exchangers and air conditioning — the THD series is one of Delta's top-notch fan solutions.

Main Product Features

  • Multi-section stack design: with virtual simulation analysis and biometric parameters similar to an osprey wing's airfoil mechanics

  • Strong bionic blades: Our new fan blades are extensively tested for durability in speed tests and usage simulations

  • Stator blade tip design: Lowers noise and wingtip vortex through reduced wingtip connection surface, simulating the floating wingtip of an osprey in flight

  • hDEC Control: Advanced motor drive control improves the efficiency of the fan motor


design concept, biomechanics, high strength blade, hDEC control, advanced blades tip

Better Structural Design Means Lower Vibration

Delta enhanced the structural design of the fan frame to attain higher natural frequencies for improved resonance and lower vibration.

Available Models: (Roll over a DC fan to see a larger image or click on the part number to get more details)

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
https://www.delta-fan.com/Download/Images/THD/THD0612VE-00.jpg https://www.delta-fan.com/Download/Images/THD/THD0612VE-00.jpg THD0612VE-00 60x60x38 10.2~13.2 12 VDC 2.90 A 34.80 W 19500 RPM 66.0 dB(A) 80.54 CFM (2.278m3/min) 4.43inchH2O (112.52mmH2O)
THD0848ME THD0848ME THD0848ME 80x80x38 36.0~75.0 48 VDC 0.55 A 26.40 W 9500 RPM 60.0 dB(A) 128.00 CFM (3.626 m3/min) 1.476 inchH2O (37.50 mmH2O)
https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0812VE-00.png THD0812VE-00 80x80x80 10.8~13.2 12 VDC 15.0 A 180.00 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.480 inchH2O (190.00 mmH2O)
https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png https://www.delta-fan.com/Download/Images/THD/THD0848VE-00.png THD0848VE-00 80x80x80 36.0~72.0 48 VDC 3.60 A 172.80 W 15000 RPM 78.5 dB(A) 195.00CFM (5.522m3/min) 7.280inchH2O (185.00mmH2O)
THD0924HEP5, 92x92x38mm, industrial fan, IP55, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP5, 92x92x38mm, industrial fan, IP55, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP5 92x92x38 21.6 - 26.4 VDC 24 VDC 1.15 A 27.60 W 10700 RPM 64.0 dB(A) 145.54 CFM (4.121 m3/min) 2.334 inchH2O (59.283 mmH2O)
THD0924HEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 1.15 A, 27.60 Watts, 10700 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan THD0924HEP6 92x92x38 21.6 - 26.4 VDC 24 VDC 1.15 A 27.60 W 10700 RPM 64.0 dB(A) 145.54 CFM (4.121 m3/min) 2.334 inchH2O (59.283 mmH2O)

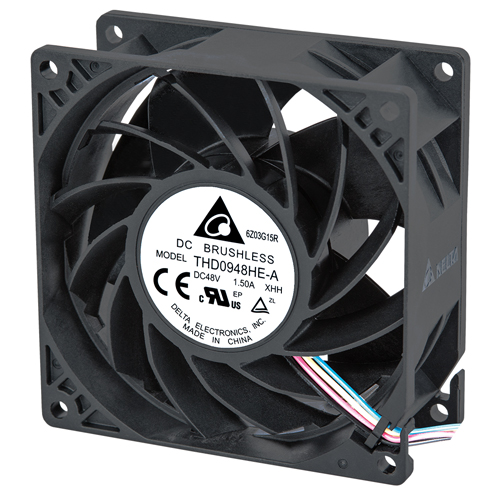

THD0948HE-A THD0948HE-A THD0948HE-A 92x92x38 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435 inchH2O (87.24 mmH2O)
THD0948HE-AXHH THD0948HE-AXHH THD0948HE-AXHH 92x92x38 36.0~75.0 48 VDC 1.10 A 52.80 W 13500 RPM 71.0 dB(A) 182.41CFM (5.167 m3/min) 3.435 inchH2O (87.24 mmH2O)

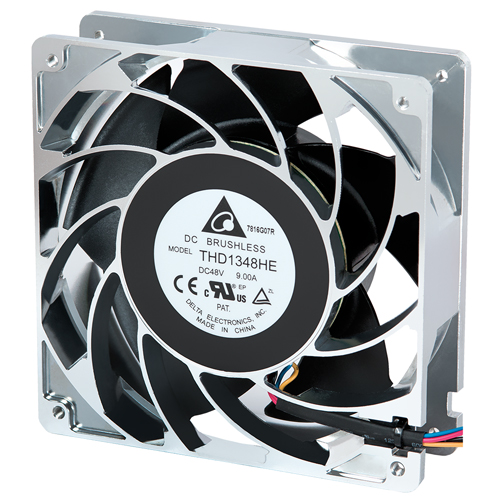

THD1348HE THD1348HE THD1348HE 134x134x38 36.0-60.0 48 VDC 5.00 A 240.00 W 12500 RPM 82.0 dB(A) 490.00CFM (13.870 m3/min) 7.10inchH2O (180.34mmH2O)

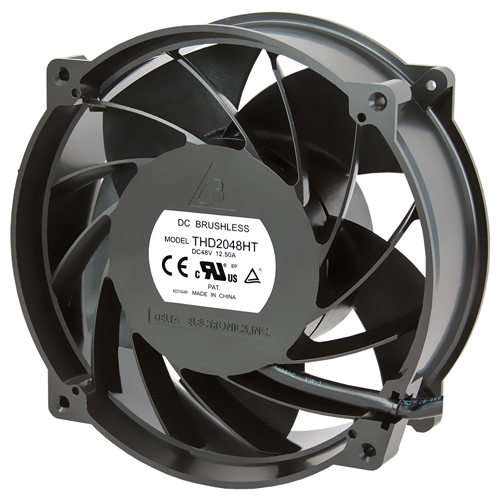

THD2048HT THD2048HT THD2048HT Round-200mm diameter x 70mm Width 36.0~75.0 48 VDC 8.00 A 384.00 W 7400 RPM 78.0 dB(A) 1026.80CFM (29.06 m3/min) 4.945inchH2O (125.61mmH2O)
https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00 Round-225mm diameter x 100mm Width 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291 inchH2O (58.20 mmH2O)
https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg https://www.delta-fan.com/Download/Images/THD2348MU-00P8.jpg THD2348MU-00P8 Round-225mm diameter x 100mm Width 36.0~60.0 48 VDC 3.75 A 180.00 W 5000 RPM 70.0 dB(A) 915.00CFM (25.909 m3/min) 2.291 inchH2O (58.20 mmH2O)
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)


The performance data is subject to change without notice.
