3-Phase Brushless DC Motor Fan

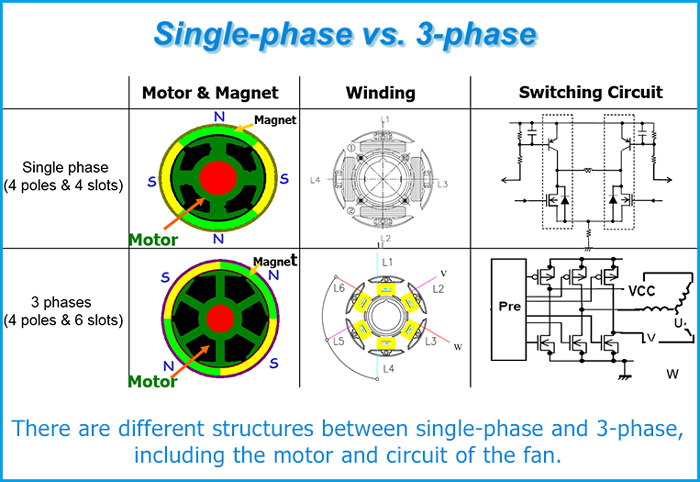

Data center and server cooling fans demand high energy efficiency and low rotating vibration to achieve thermal requirements and operating performance. Delta's 3-Phase Brushless DC Motor Fans, powered by 3-Phase motors, provide smoother transition between slots compared to single-phase motor fans. The benefits of 3 phase motor include low cogging torque, low vibration disturbance, smooth rotational torque, and high power efficiency.

The core technologies of Delta 3-Phase Brushless DC Motor Fans are:

Optimized blade design for high efficiency

Delta is constantly studying the CFD analysis and Delta's own airflow section software. We assess every aspect of the fan's airflow path to minimize the vortex which delivers a more efficient product. Delta continues to develop innovative cooling solutions in optimizing our fan's blade design to increase the aerodynamics for maximum energy efficiency and lower vibration.



Powered by 3 phase motor and advanced electrical drives

Well-known operational control circuit for motor driving availability can serve to evaluate the motor back electromotive force impact of efficiency and vibration. Delta develops precisely 3 phase motor driving technology to control fan rotation with minimum back electromotive and switching noise.

Enhanced structure to achieve low vibration

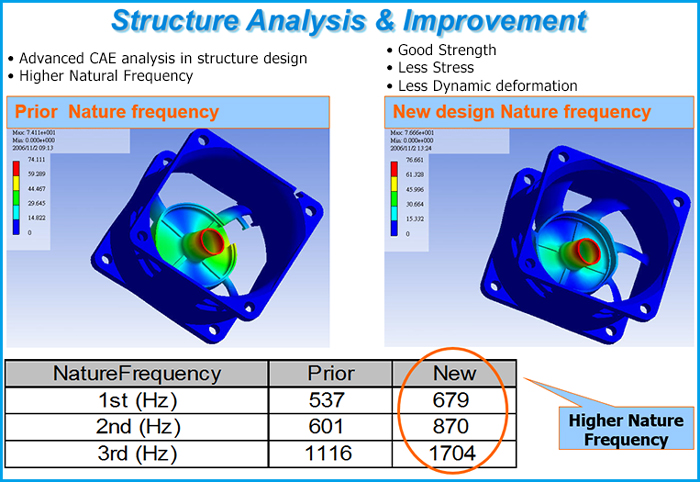

Through vibration simulations and different material bonding strength studies, Delta has enhanced the structural design of the fan's frame to gain higher natural frequency for improved vibration and resonance.

Available Models

Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)
GFM0412SS-DE1PB7Q GFM0412SS-DE1PB7Q GFM0412SS-DE1PB7Q 40x40x56mm 10.8 - 12.6 VDC 12 VDC 1.10 A 12.60 W 19000 RPM 68.5 dB(A) 21.56CFM (0.610 m3/min) 3.416 inchH2O (86.78 mmH2O)
PFM0612XHEB7T PFM0612XHEB7T PFM0612XHEB7T 60x60x38mm 10.8 - 12.6 VDC 12 VDC 1.15 A 13.80 W 18500 RPM 65.1 dB(A) 64.44 CFM (1.825 m3/min) 2.343 inchH2O (59.52 mmH2O)
PFM0812HE-01BFY PFM0812HE-01BFY PFM0812HE-01BFY 80x80x38mm 10.8 - 12.6 VDC 12 VDC 4.30 A 51.60 W 16300 RPM 77.0 dB(A) 129.42 CFM (3.665 m3/min) 4.969inchH2O (126.22mmH2O)
GFM0812DS-SMB7R GFM0812DS-SMB7R GFM0812DS-SMB7R 80x80x56mm 10.8 - 13.2 VDC 12 VDC 2.40 A 28.80 W 12500 RPM 73.3 dB(A) 93.23 CFM (2.640 m3/min) 4.485inchH2O (113.91mmH2O)
GFC0812DW-SM00B7P GFC0812DW-SM00B7P GFC0812DW-SM00B7P 80x80x80mm 10.8 - 12.6 VDC 12 VDC 5.20 A 62.40 W 12000 RPM 74.5 dB(A) 90.12 CFM (2.552 m3/min) 4.170inchH2O (105.94mmH2O)
GFM0812DUB7S GFM0812DUB7S GFM0812DUB7S 80x80x86mm 10.8 - 12.6 VDC 12 VDC 9.00 A 18.00 W 13800 RPM 82.5 dB(A) 190.63CFM (5.398 m3/min) 5.749inchH2O (146.04mmH2O)
PFM1412DEB7V PFM1412DEB7V PFM1412DEB7V 139.7x139.7x38 mm 10.8 - 12.8 VDC 12 VDC 3.90 A 46.80 W 6500 RPM 70.0 dB(A) 282.31CFM (7.994 m3/min) 2.033 inchH2O (51.65 mmH2O)
Part number (Download spec sheets) Dimension (mm) Operating Voltage Range (VDC) Voltage (VDC) Current (A) Power (W) Speed (RPM) Noise (dB-A) Air Flow (CFM) Air Pressure (in H2O)

 *The performance data is subject to change.
