Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

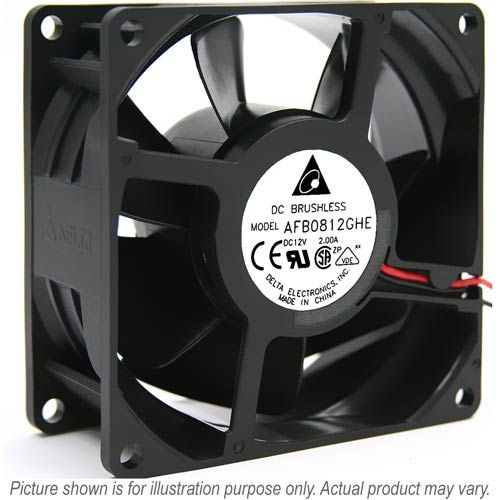

AFB0812EHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	85.55 CFM (2.423 m3/min)	0.749 inchH2O (19.02 mmH2O)	50.5 dB(A)	12.00 W	5900 RPM	2 lead wires
AFB0812EHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	85.55 CFM (2.423 m3/min)	0.749 inchH2O (19.02 mmH2O)	50.5 dB(A)	12.00 W	5900 RPM	3 lead wires
AFB0812GHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	85.55 CFM (2.423 m3/min)	0.749 inchH2O (19.02 mmH2O)	54.0 dB(A)	16.80 W	6800 RPM	3 lead wires

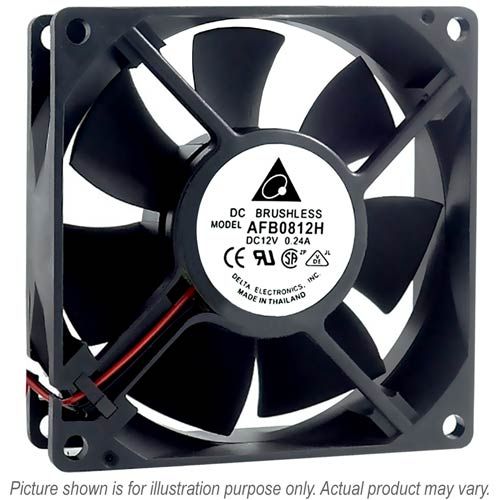

AFB0812H	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	1.92 W	3000 RPM	2 lead wires
AFB0812HB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	34.0 dB(A)	1.68 W	3100 RPM	2 lead wires
AFB0812HB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	34.0 dB(A)	1.68 W	3100 RPM	3 lead wires
AFB0812HD-A	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	49.34 CFM (1.397 m3/min)	0.249 inchH2O (6.33 mmH2O)	40.0 dB(A)	2.64 W	4200 RPM	2 lead wires
AFB0812HD-AF00	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	49.34 CFM (1.397 m3/min)	0.249 inchH2O (6.33 mmH2O)	40.0 dB(A)	2.64 W	4200 RPM	3 lead wires
AFB0812H-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	1.92 W	3000 RPM	3 lead wires
AFB0812HH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	37.43 CFM (1.060 m3/min)	0.181 inchH2O (4.59 mmH2O)	34.0 dB(A)	2.40 W	3250 RPM	2 lead wires
AFB0812HHB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	35.67CFM (1.010 m3/min)	0.159 inchH2O (4.03 mmH2O)	37.0 dB(A)	1.92 W	3400 RPM	2 lead wires
AFB0812HHD-A	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	55.87CFM (1.582 m3/min)	0.311 inchH2O (7.90 mmH2O)	44.0 dB(A)	3.84 W	4800 RPM	2 lead wires
AFB0812HHD-AF00	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	55.87CFM (1.582 m3/min)	0.311 inchH2O (7.90 mmH2O)	44.0 dB(A)	3.84 W	4800 RPM	3 lead wires
AFB0812HH-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	37.43 CFM (1.060 m3/min)	0.181 inchH2O (4.59 mmH2O)	34.0 dB(A)	2.40 W	3250 RPM	3 lead wires
AFB0812HH-T500	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	37.43 CFM (1.060 m3/min)	0.181 inchH2O (4.59 mmH2O)	34.0 dB(A)	2.40 W	3250 RPM	2 lead wires
AFB0812L	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	27.90 CFM (0.790 m3/min)	0.102 inH2O (2.59 mmH2O)	25.0 dB(A)	1.08 W	2400 RPM	2 lead wires
AFB0812LB-R00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	24.72 CFM (0.700 m3/min)	0.087 inchH2O (2.20 mmH2O)	27.5 dB(A)	1.08 W	2400 RPM	3 lead wires
AFB0812LD-A	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	33.52CFM (0.949 m3/min)	0.129 inchH2O (3.27 mmH2O)	30.5 dB(A)	1.44 W	3000 RPM	2 lead wires
AFB0812L-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	27.90 CFM (0.790 m3/min)	0.102 inH2O (2.59 mmH2O)	25.0 dB(A)	1.08 W	2400 RPM	3 lead wires
AFB0812M	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	31.43 CFM (0.890 m3/min)	0.129 inchH2O (3.28 mmH2O)	28.0 dB(A)	1.44 W	2700 RPM	2 lead wires
AFB0812MB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	28.25 CFM (0.800 m3/min)	0.107 inchH2O (2.71 mmH2O)	30.5 dB(A)	1.32 W	N/A	2 lead wires
AFB0812MB-R00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	28.25 CFM (0.800 m3/min)	0.107 inchH2O (2.71 mmH2O)	30.5 dB(A)	1.32 W	N/A	3 lead wires

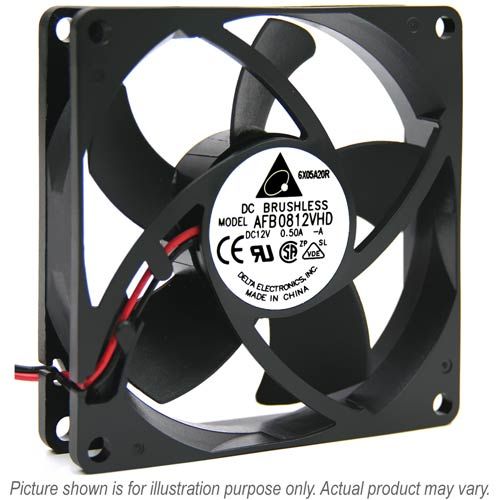

AFB0812MD-A	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	41.68CFM (1.180 m3/min)	0.182 inchH2O (04.63 mmH2O)	36.0 dB(A)	1.92 W	3600 RPM	2 lead wires
AFB0812MD-AF00	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	41.68CFM (1.180 m3/min)	0.182 inchH2O (04.63 mmH2O)	36.0 dB(A)	1.92 W	3600 RPM	3 lead wires
AFB0812M-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	31.43 CFM (0.890 m3/min)	0.129 inchH2O (3.28 mmH2O)	28.0 dB(A)	1.44 W	2700 RPM	3 lead wires
AFB0812SH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	46.62 CFM (1.320 m3/min)	0.267 inchH2O (6.78 mmH2O)	40.0 dB(A)	4.08 W	4000 RPM	2 lead wires
AFB0812SHB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	3.24 W	N/A	2 lead wires
AFB0812SHB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	3.24 W	N/A	3 lead wires

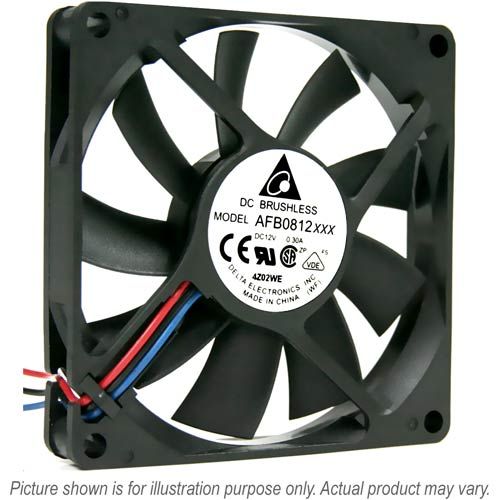

AFB0812SHB-R00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	3.24 W	4000 RPM	3 lead wires
AFB0812SHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	72.76 CFM (2.060 m3/min)	0.547 inchH2O (13.89 mmH2O)	46.0 dB(A)	8.16 W	5000 RPM	2 lead wires
