Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

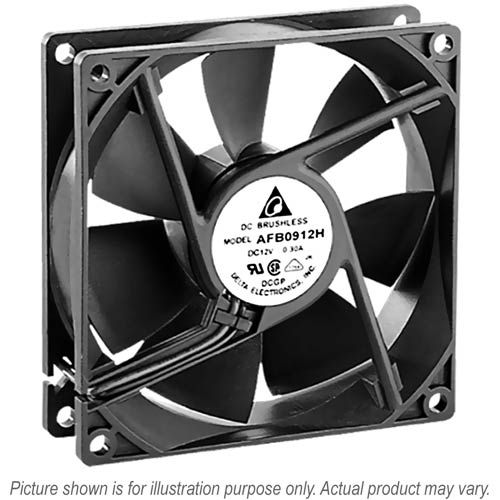

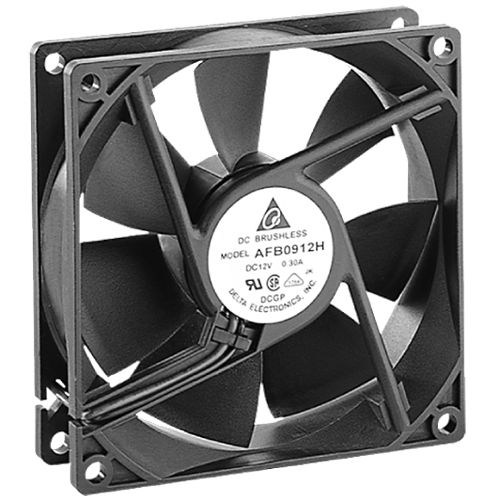

AFB0912H	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	51.21 CFM (1.450 m3/min)	0.177 inchH2O (4.50 mmH2O)	34.0 dB(A)	1.92 W	2850 RPM	2 lead wires
AFB0912HD-F00 (EOL)	Square-92mm L X 92mm H	20.00mm	Ball	12 VDC	54.60 CFM (1.546 m3/min)	N/A	35.0 dB(A)	1.92 W	2700 RPM	3 lead wires
AFB0912H-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	51.21 CFM (1.450 m3/min)	0.177 inchH2O (4.50 mmH2O)	34.0 dB(A)	1.92 W	2850 RPM	3 lead wires
AFB0912HH	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	57.92 CFM (1.640 m3/min)	0.221 inchH2O (5.62 mmH2O)	38.0 dB(A)	3.00 W	3200 RPM	2 lead wires

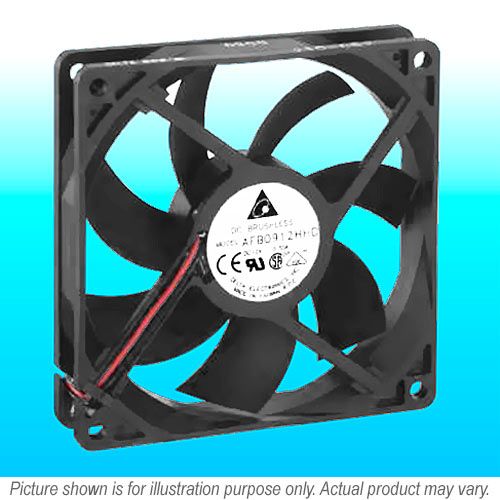

AFB0912HHD-F00 (EOL)	Square-92mm L X 92mm H	20.00mm	Ball	12 VDC	59.54 CFM (1.686 m3/min)	0.166 inchH2O (4.22 mmH2O)	38.0 dB(A)	2.88 W	3000 RPM	3 lead wires
AFB0912HH-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	57.92 CFM (1.640 m3/min)	0.221 inchH2O (5.62 mmH2O)	38.0 dB(A)	3.00 W	3200 RPM	3 lead wires
AFB0912L	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	37.08 CFM (1.050 m3/min)	0.100 inchH2O (2.53 mmH2O)	25.0 dB(A)	0.84 W	2100 RPM	2 lead wires
AFB0912L-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	37.08 CFM (1.050 m3/min)	0.354 inchH2O (9.00mmH2O)	25.0 dB(A)	0.84 W	2100 RPM	3 lead wires
AFB0912M	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	43.79 CFM (1.240 m3/min)	0.130 inchH2O (3.25 mmH2O)	30.0 dB(A)	1.32 W	2450 RPM	2 lead wires
AFB0912M-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	43.79 CFM (1.240 m3/min)	0.130 inchH2O (3.25 mmH2O)	30.0 dB(A)	1.32 W	2450 RPM	3 lead wires
AFB0912SH-A	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.00 W	4800 RPM	2 lead wires
AFB0912SH-AF00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.00 W	4800 RPM	3 lead wires
AFB0912SH-TZUG	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.00 W	4800 RPM	3 lead wires

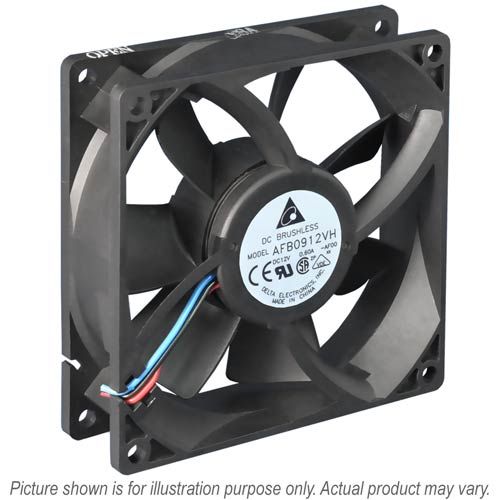

AFB0912VH	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	67.80 CFM (1.920 m3/min)	0.302 inchH2O (7.67 mmH2O)	45.0 dB(A)	4.80 W	3800 RPM	2 lead wires
AFB0912VHD-F00 (EOL)	Square-92mm L X 92mm H	20.00mm	Ball	12 VDC	66.11 CFM (1.872 m3/min)	0.198 inchH2O (5.03 mmH2O)	40.5 dB(A)	3.36 W	3300 RPM	3 lead wires
AFB0912VH-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	67.80 CFM (1.920 m3/min)	0.302 inchH2O (7.67 mmH2O)	45.0 dB(A)	4.80 W	3800 RPM	3 lead wires
AFB0924H	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	51.21 CFM (1.450 m3/min)	0.177 inchH2O (4.50 mmH2O)	34.0 dB(A)	2.40 W	2850 RPM	2 lead wires
AFB0924HD	Square-92mm L X 92mm H	20.00mm	Ball	24 VDC	54.60 CFM (1.546 m3/min)	0.138 inchH2O (03.51 mmH2O)	35.0 dB(A)	2.40 W	2700 RPM	2 lead wires
AFB0924HD-R00	Square-92mm L X 92mm H	20.00mm	Ball	24 VDC	66.11 CFM (1.872 m3/min)	0.198 inchH2O (5.03 mmH2O)	40.5 dB(A)	3.84 W	3300 RPM	2 lead wires
AFB0924HH	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	57.92 CFM (1.640 m3/min)	0.221 inchH2O (5.62 mmH2O)	38.0 dB(A)	3.12 W	3200 RPM	2 lead wires
AFB0924HH-A	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	72.74 CFM (2.060 m3/min)	0.262 inchH2O (6.65 mmH2O)	42.5 dB(A)	4.32 W	3300 RPM	2 lead wires
AFB0924LD	Square-92mm L X 92mm H	20.00mm	Ball	24 VDC	41.00CFM (1.161 m3/min)	0.084 inchH2O (2.13 mmH2O)	28.5 dB(A)	1.44 W	2100 RPM	2 lead wires
AFB0924M	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	43.79 CFM (1.240 m3/min)	0.130 inchH2O (3.25 mmH2O)	30.0 dB(A)	1.92 W	2450 RPM	2 lead wires
AFB0924SH-A	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.60 W	4800 RPM	2 lead wires
AFB0924SH-AF00	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.60 W	4800 RPM	3 lead wires
AFB0924SH-TZUH	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	102.59 CFM (2.905 m3/min)	0.526 inchH2O (13.35 mmH2O)	53.0 dB(A)	9.60 W	4800 RPM	3 lead wires
AFB0924VH	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	67.80 CFM (1.920 m3/min)	0.302 inchH2O (7.67 mmH2O)	45.0 dB(A)	5.28 W	3800 RPM	2 lead wires
AFB0924VH-A	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	81.47 CFM (2.307 m3/min)	0.345 inchH2O (8.76mmH2O)	46.0 dB(A)	6.00 W	3800 RPM	2 lead wires
AFB0924VHD-F00	Square-92mm L X 92mm H	20.00mm	Ball	24 VDC	66.11 CFM (1.872 m3/min)	0.198 inchH2O (5.03 mmH2O)	40.5 dB(A)	3.84 W	3300 RPM	3 lead wires
AFB0924VH-R00	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	67.80 CFM (1.920 m3/min)	0.302 inchH2O (7.67 mmH2O)	45.0 dB(A)	5.28 W	3800 RPM	3 lead wires
