Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

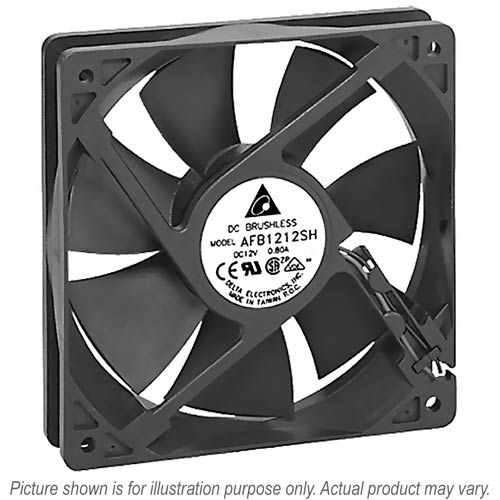

AFB1212SH-T500	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.36 W	3400 RPM	2 lead wires
AFB1212VH	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	103.75 CFM (2.938 m3/min)	0.371 inchH2O (9.43 mmH2O)	44.5 dB(A)	4.80 W	3100 RPM	2 lead wires
AFB1212VHE	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	7.20 W	3200 RPM	2 lead wires
AFB1212VHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	7.20 W	3200 RPM	3 lead wires
AFB1212VHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	7.20 W	3200 RPM	3 lead wires
AFB1212VHE-T50F	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	7.20 W	3200 RPM	3 lead wires
AFB1212VH-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	103.75 CFM (2.938 m3/min)	0.371 inchH2O (9.43 mmH2O)	44.5 dB(A)	4.80 W	3100 RPM	3 lead wires
AFB1212VH-T500	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	103.75 CFM (2.938 m3/min)	0.371 inchH2O (9.43 mmH2O)	44.5 dB(A)	4.80 W	3100 RPM	2 lead wires
AFB1224EHE-EP	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	212.573CFM (6.019m3/min)	0.844 inchH2O (21.427 mmH2O)	58.5 dB(A)	20.40 W	4600 RPM	4 lead wires
AFB1224GHEYNU	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	240.96CFM (6.823 m3/min)	1.082 inchH2O (27.483 mmH2O)	62.0 dB(A)	31.20 W	5200 RPM	4 lead wires
AFB1224H	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	82.67 CFM (2.341 m3/min)	0.246 inchH2O (6.25 mmH2O)	38.5 dB(A)	3.36 W	2500 RPM	2 lead wires
AFB1224HE	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	2 lead wires
AFB1224HE-F00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	3 lead wires
AFB1224HE-R00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	3 lead wires
AFB1224HH	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	95.14 CFM (2.694 m3/min)	0.304 inchH2O (7.73 mmH2O)	41.5 dB(A)	4.32 W	2800 RPM	2 lead wires
AFB1224HHE	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	2 lead wires
AFB1224HHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	3 lead wires
AFB1224HHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	3 lead wires
AFB1224HHE-T500	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	2 lead wires
AFB1224HH-F00	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	95.14 CFM (2.694 m3/min)	0.304 inchH2O (7.73 mmH2O)	41.5 dB(A)	4.32 W	2800 RPM	3 lead wires
AFB1224L	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	62.93 CFM (1.782 m3/min)	0.154 inchH2O (3.93 mmH2O)	32.5 dB(A)	2.16 W	1900 RPM	2 lead wires
AFB1224LE	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	84.76 CFM (2.400 m3/min)	0.180 inchH2O (4.56 mmH2O)	34.0 dB(A)	3.60 W	2000 RPM	2 lead wires
AFB1224M	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	73.84 CFM (2.091 m3/min)	0.203 inchH2O (5.15 mmH2O)	35.5 dB(A)	2.88 W	2200 RPM	2 lead wires
AFB1224M-F00	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	73.84 CFM (2.091 m3/min)	0.203 inchH2O (5.15 mmH2O)	35.5 dB(A)	2.88 W	2200 RPM	3 lead wires
AFB1224SH	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.72 W	3400 RPM	2 lead wires
AFB1224SHE	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.00 W	3700 RPM	2 lead wires
AFB1224SHE-CR00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	190.48CFM (5.394 m3/min)	0.694 inchH2O (17.635 mmH2O)	55.5 dB(A)	14.88 W	4100 RPM	3 lead wires
AFB1224SHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.00 W	3700 RPM	3 lead wires
AFB1224SHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.00 W	3700 RPM	3 lead wires
AFB1224SHE-T50F	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.00 W	3700 RPM	3 lead wires
