Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB0412VHA-DU48	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	8.81 CFM (0.250 m3/min)	0.224 inchH2O (5.678 mmH2O)	33.0 dB(A)	1.08 W	8000 RPM	4 lead wires
AFB0412VHB	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	13.00 CFM (0.368 m3/min)	0.459 inchH2O (11.66 mmH2O)	36.5 dB(A)	1.92 W	9500 RPM	2 lead wires
AFB0412VHB-F00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	13.00 CFM (0.368 m3/min)	0.459 inchH2O (11.66 mmH2O)	36.5 dB(A)	1.92 W	9500 RPM	3 lead wires
AFB0412VHB-R00	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	13.00 CFM (0.368 m3/min)	0.459 inchH2O (11.66 mmH2O)	36.5 dB(A)	1.92 W	9500 RPM	3 lead wires
AFB0412VHB-TP29	Square-40mm L X 40mm H	15.00mm	Ball	12 VDC	13.00 CFM (0.368 m3/min)	0.459 inchH2O (11.66 mmH2O)	36.5 dB(A)	2.16 W	9500 RPM	4 lead wires
AFB0424HB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	9.46 CFM (0.268 m3/min)	0.272 inchH2O (6.92 mmH2O)	28.5 dB(A)	1.92 W	7000 RPM	2 lead wires
AFB0424HB-F00	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	9.46 CFM (0.268 m3/min)	0.272 inchH2O (6.92 mmH2O)	28.5 dB(A)	1.92 W	7000 RPM	3 lead wires
AFB0424HHB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	11.48 CFM (0.325 m3/min)	0.359 inchH2O (9.13 mmH2O)	32.0 dB(A)	2.16 W	8300 RPM	2 lead wires
AFB0424LB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	6.50 CFM (0.0184 m3/min)	0.144 inchH2O (3.67 mmH2O)	18.5 dB(A)	1.20 W	5000 RPM	2 lead wires
AFB0424MB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	8.12 CFM (0.230 m3/min)	0.202 inchH2O (5.12 mmH2O)	24.5 dB(A)	1.44 W	6000 RPM	2 lead wires
AFB0424SHB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	2.88 W	11000 RPM	2 lead wires
AFB0424SHB-F00	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	2.88 W	11000 RPM	3 lead wires
AFB0424SHB-R00	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	14.83 CFM (0.420 m3/min)	0.601 inchH2O (15.26 mmH2O)	41.5 dB(A)	2.88 W	11000 RPM	3 lead wires
AFB0424VHB	Square-40mm L X 40mm H	15.00mm	Ball	24 VDC	13.00 CFM (0.368 m3/min)	0.459 inchH2O (11.66 mmH2O)	36.5 dB(A)	2.40 W	9500 RPM	2 lead wires
AFB04512HB	Square-45mm L X 45mm H	15.00mm	Ball	12 VDC	13.99 CFM (0.396 m3/min)	0.223 inchH2O (5.661 mmH2O)	33.5 dB(A)	1.68 W	6300 RPM	2 lead wires
AFB0505MB	Square-50mm L X 50mm H	15.00mm	Ball	5 VDC	12.36 CFM (0.350 m3/min)	0.181 inchH2O (4.60 mmH2O)	28.0 dB(A)	1.10 W	4800 RPM	2 lead wires
AFB0512HB-F00	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	14.13 CFM (0.400 m3/min)	0.240 inchH2O (6.10 mmH2O)	32.0 dB(A)	1.20 W	5600 RPM	3 lead wires
AFB0512HB-R00	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	14.13 CFM (0.400 m3/min)	0.240 inchH2O (6.10 mmH2O)	32.0 dB(A)	1.20 W	5600 RPM	3 lead wires
AFB0512HB-TP41	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	17.97CFM (0.509 m3/min)	0.230 inchH2O (5.84 mmH2O)	34.0 dB(A)	1.44 W	6300 RPM	4 lead wires
AFB0512HHB	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	16.24 CFM (0.460 m3/min)	0.315 inchH2O (8.00 mmH2O)	36.0 dB(A)	1.56 W	6400 RPM	2 lead wires
AFB0512HHB-F00	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	16.24 CFM (0.460 m3/min)	0.315 inchH2O (8.00 mmH2O)	36.0 dB(A)	1.56 W	6400 RPM	3 lead wires
AFB0512HHD-R00	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	18.30CFM (0.518 m3/min)	0.254 inchH2O (6.44 mmH2O)	37.0 dB(A)	1.68 W	6400 RPM	3 lead wires
AFB0512LB-F00	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	9.89 CFM (0.280 m3/min)	0.126 inchH2O (3.20 mmH2O)	24.0 dB(A)	0.72 W	4000 RPM	3 lead wires
AFB0512LD-R00	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	10.98CFM (0.311 m3/min)	0.095 inchH2O (2.42 mmH2O)	25.0 dB(A)	0.72 W	4000 RPM	3 lead wires
AFB0512MB	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	12.36 CFM (0.350 m3/min)	0.181 inchH2O (4.60 mmH2O)	28.0 dB(A)	0.96 W	4800 RPM	2 lead wires
AFB0512MB-F00	Square-50mm L X 50mm H	15.00mm	Ball	12 VDC	12.36 CFM (0.350 m3/min)	0.181 inchH2O (4.60 mmH2O)	28.0 dB(A)	0.96 W	4800 RPM	3 lead wires
AFB0512VHD-R00	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	20.30CFM (0.575 m3/min)	0.303 inchH2O (7.70 mmH2O)	40.5 dB(A)	1.92 W	7000 RPM	3 lead wires
AFB0524HB	Square-50mm L X 50mm H	15.00mm	Ball	24 VDC	14.13 CFM (0.400 m3/min)	0.240 inchH2O (6.10 mmH2O)	32.0 dB(A)	1.68 W	5600 RPM	2 lead wires

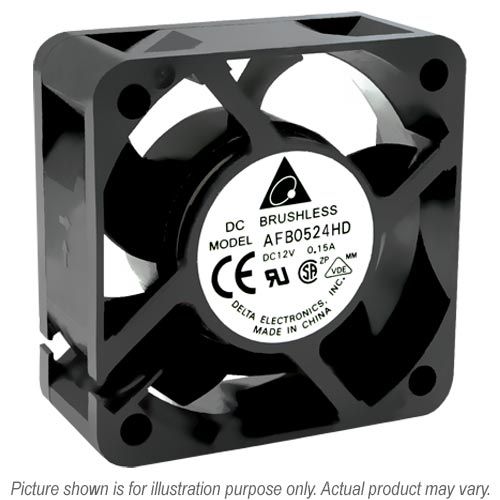

AFB0524HD	Square-50mm L X 50mm H	20.00mm	Ball	24 VDC	15.79CFM (0.447 m3/min)	0.182 inchH2O (4.62 mmH2O)	33.0 dB(A)	1.68 W	5600 RPM	2 lead wires
AFB0524HHB	Square-50mm L X 50mm H	15.00mm	Ball	24 VDC	16.24 CFM (0.460 m3/min)	0.315 inchH2O (8.00 mmH2O)	36.0 dB(A)	1.92 W	6400 RPM	2 lead wires
