Search results for bfb
Search results for bfb

Search results for: 'bfb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
BFB0512L-F00	Round-51mm Diameter	15.00mm	Ball	12 VDC	2.47 CFM (0.070 m3/min)	0.276 inchH2O (7.00 mmH2O)	26.5 dB(A)	0.84 W	3500 RPM	3 lead wires
BFB0512M	Round-51mm Diameter	15.00mm	Ball	12 VDC	3.18 CFM (0.090 m3/min)	0.433 inchH2O (11.00 mmH2O)	32.5 dB(A)	1.20 W	4500 RPM	2 lead wires
BFB0512MA-C	Square-50mm L X 50mm H	10.30mm	Ball	12 VDC	2.89 CFM (0.082 m3/min)	0.383 inchH2O (9.72 mmH2O)	28.0 dB(A)	0.84 W	4300 RPM	2 lead wires
BFB0512MA-CF00	Square-50mm L X 50mm H	10.30mm	Ball	12 VDC	2.89 CFM (0.082 m3/min)	0.383 inchH2O (9.72 mmH2O)	28.0 dB(A)	0.84 W	4300 RPM	3 lead wires
BFB0512MD-F00	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	4.91 CFM (0.139 m3/min)	0.387 inchH2O (9.82 mmH2O)	32.0 dB(A)	1.56 W	4100 RPM	3 lead wires
BFB0512M-F00	Round-51mm Diameter	15.00mm	Ball	12 VDC	3.18 CFM (0.090 m3/min)	0.433 inchH2O (11.00 mmH2O)	32.5 dB(A)	1.20 W	4500 RPM	3 lead wires
BFB0512VHD	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	6.75 CFM (0.191 m3/min)	0.732 inchH2O (18.60 mmH2O)	38.5 dB(A)	2.76 W	5300 RPM	2 lead wires
BFB0512VHD-F00	Square-50mm L X 50mm H	20.00mm	Ball	12 VDC	6.75 CFM (0.191 m3/min)	0.732 inchH2O (18.60 mmH2O)	38.5 dB(A)	2.76 W	5300 RPM	3 lead wires
BFB0524HH	Square-51mm L X 51mm H	15.00mm	Ball	24 VDC	4.59 CFM (0.130 m3/min)	0.866 inchH2O (22.00 mmH2O)	45.0 dB(A)	2.64 W	6500 RPM	2 lead wires
BFB0524HH-F00	Square-51mm L X 51mm H	15.00mm	Ball	24 VDC	4.59 CFM (0.130 m3/min)	0.866 inchH2O (22.00 mmH2O)	45.0 dB(A)	2.64 W	6500 RPM	3 lead wires
BFB0524HH-R00	Square-51mm L X 51mm H	15.00mm	Ball	24 VDC	4.59 CFM (0.130 m3/min)	0.866 inchH2O (22.00 mmH2O)	45.0 dB(A)	2.64 W	6500 RPM	3 lead wires
BFB0524H-R00	Square-51mm L X 51mm H	15.00mm	Ball	24 VDC	3.88 CFM (0.110 m3/min)	0.709 inchH2O (18.00 mmH2O)	38.0 dB(A)	2.16 W	5500 RPM	3 lead wires
BFB0524M	Square-51mm L X 51mm H	15.00mm	Ball	24 VDC	3.18 CFM (0.090 m3/min)	0.433 inchH2O (11.00 mmH2O)	32.5 dB(A)	1.68 W	4500 RPM	2 lead wires

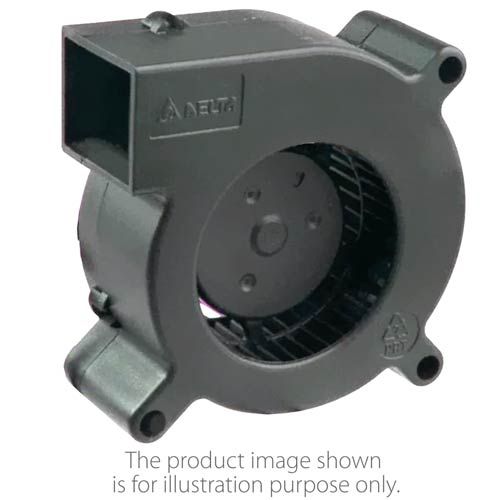

BFB0612H	Rounded/Rect-60mm L	25.00mm	Ball	12 VDC	6.71 CFM (0.190 m3/min)	0.428 inchH2O (10.86 mmH2O)	30.0 dB(A)	2.16 W	3200 RPM	2 lead wires
BFB0612HB-N	Rounded/Rect-60mm L	15.40mm	Ball	12 VDC	4.67 CFM (0.132 m3/min)	0.651 inchH2O (16.53 mmH2O)	37.0 dB(A)	2.16 W	4800 RPM	2 lead wires
BFB0612HB-NF00	Rounded/Rect-60mm L	15.40mm	Ball	12 VDC	4.67 CFM (0.132 m3/min)	0.651 inchH2O (16.53 mmH2O)	37.0 dB(A)	2.16 W	4800 RPM	3 lead wires
BFB0612H-F00	Rounded/Rect-60mm L	25.00mm	Ball	12 VDC	6.71 CFM (0.190 m3/min)	0.428 inchH2O (10.86 mmH2O)	30.0 dB(A)	2.16 W	3200 RPM	3 lead wires
BFB0612HH-F00	Rounded/Rect-60mm L	25.00mm	Ball	12 VDC	7.88 CFM (0.223 m3/min)	0.610 inchH2O (15.49 mmH2O)	35.0 dB(A)	2.88 W	3700 RPM	3 lead wires
BFB0612H-R00	Rounded/Rect-60mm L	25.00mm	Ball	12 VDC	6.71 CFM (0.190 m3/min)	0.428 inchH2O (10.86 mmH2O)	30.0 dB(A)	2.16 W	3200 RPM	3 lead wires
BFB0612MB-N	Rounded/Rect-60mm L	15.40mm	Ball	12 VDC	4.03 CFM (0.114 m3/min)	0.431 inchH2O (10.95 mmH2O)	32.0 dB(A)	1.56 W	4200 RPM	2 lead wires
BFB0712H-A	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	13.84 CFM (0.392 m3/min)	0.773 inchH2O (19.63 mmH2O)	48.0 dB(A)	3.24 W	4000 RPM	2 lead wires
BFB0712H-AF00	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	13.84 CFM (0.392 m3/min)	0.773 inchH2O (19.63 mmH2O)	48.0 dB(A)	3.24 W	4000 RPM	3 lead wires
BFB0712H-F00	Rounded/Rect-75.7mm L x 75.7mm H	30.00mm	Ball	12 VDC	15.33 CFM (0.434 m3/min)	0.977 inchH2O (24.81 mmH2O)	38.0 dB(A)	2.64 W	2900 RPM	3 lead wires

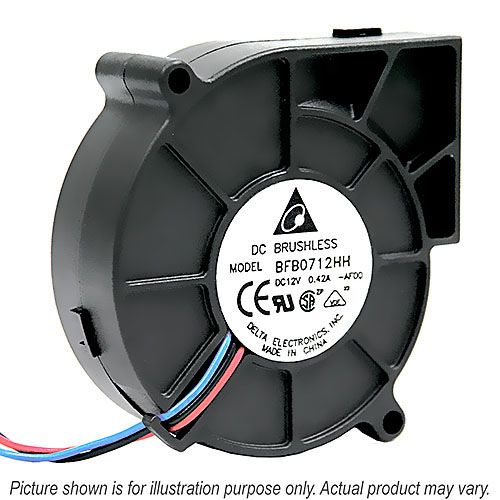

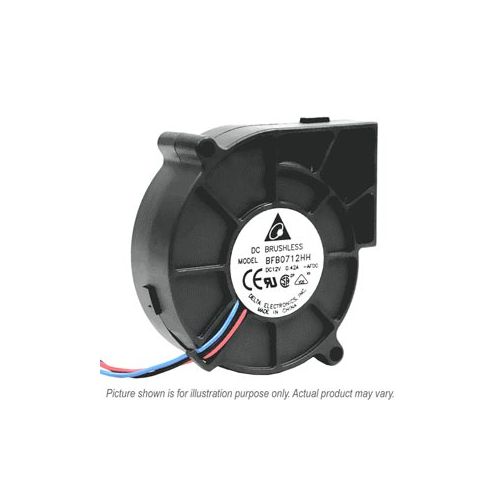

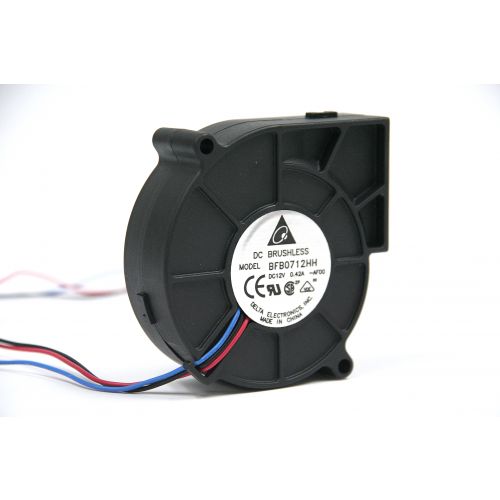

BFB0712HH-A	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	15.33 CFM (0.434 m3/min)	0.977 inchH2O (24.81 mmH2O)	51.0 dB(A)	4.08 W	4400 RPM	2 lead wires
BFB0712HH-AF00	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	15.33 CFM (0.434 m3/min)	0.977 inchH2O (24.81 mmH2O)	51.0 dB(A)	4.08 W	4400 RPM	3 lead wires
BFB0712HHD77	Rounded/Rect-75.7mm L x 80.6mm H	25.00mm	Ball	12 VDC	14.70 CFM (0.41 m3/min)	1.41 inchH2O (35.9 mmH2O)	52.0 dB(A)	8.15 W	5500 RPM	3 lead wires
BFB0712L-A	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	9.258 CFM (0.262 m3/min)	0.286 inchH2O (7.25 mmH2O)	39.0 dB(A)	1.20 W	2800 RPM	2 lead wires
BFB0712L-AF00	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	9.258 CFM (0.262 m3/min)	0.286 inchH2O (7.25 mmH2O)	39.0 dB(A)	1.20 W	2800 RPM	3 lead wires
BFB0712L-F00	Rounded/Rect-75.7mm L x 75.7mm H	30.00mm	Ball	12 VDC	7.00 CFM (0.198 m3/min)	0.157 inchH2O (4.00 mmH2O)	26.0 dB(A)	0.72 W	1900 RPM	3 lead wires
BFB0712M-A	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	11.31 CFM (0.320 m3/min)	0.478 inchH2O (12.135 mmH2O)	43.0 dB(A)	1.92 W	3400 RPM	2 lead wires
