Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

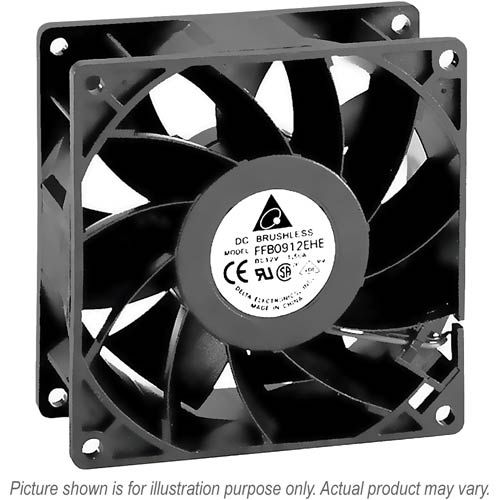

FFB0912EHE-R00	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	3 wire leads
FFB0912HH	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	4.80 W	3200 RPM	2 wire leads
FFB0912HHE	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	71.69 CFM (2.030 m3/min)	0.298 inchH2O (7.58 mmH2O)	42.5 dB(A)	4.20 W	3200 RPM	2 wire leads
FFB0912HHE-R00	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	71.69 CFM (2.030 m3/min)	0.298 inchH2O (7.58 mmH2O)	42.5 dB(A)	4.20 W	3200 RPM	3 wire leads
FFB0912HH-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	4.80 W	3200 RPM	3 wire leads
FFB0912HH-R00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	4.80 W	3200 RPM	3 wire leads

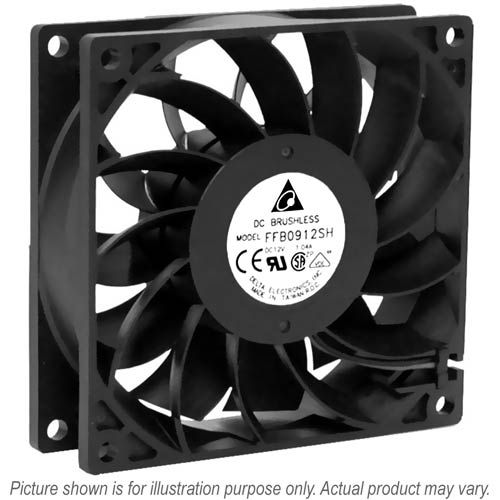

FFB0912SH	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	90.05 CFM (2.550 m3/min)	0.396 inchH2O (10.06 mmH2O)	50.0 dB(A)	8.28 W	4100 RPM	2 wire leads
FFB0912SHE	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	100.29 CFM (2.840 m3/min)	0.572 inchH2O (14.53 mmH2O)	52.5 dB(A)	9.00 W	4400 RPM	2 wire leads
FFB0912SH-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	90.05 CFM (2.550 m3/min)	0.396 inchH2O (10.06 mmH2O)	50.0 dB(A)	8.28 W	4100 RPM	3 wire leads
FFB0912VH	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	293.25CFM (8.304m3 / min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.20 W	3700 RPM	2 wire leads
FFB0912VHE	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	293.25CFM (8.304m3 / min)	0.406 inchH2O (10.30 mmH2O)	47.5 dB(A)	6.00 W	3800 RPM	2 wire leads
FFB0912VHE-F00	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	293.25CFM (8.304m3 / min)	0.406 inchH2O (10.30 mmH2O)	47.5 dB(A)	6.00 W	3800 RPM	3 wire leads
FFB0912VHE-R00	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	293.25CFM (8.304m3 / min)	0.319 inchH2O (08.11 mmH2O)	47.5 dB(A)	6.00 W	3800 RPM	3 wire leads
FFB0912VH-F00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	81.97 CFM (2.321 m3/min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.20 W	3700 RPM	3 wire leads
FFB0912VH-R00	Square-92mm L X 92mm H	25.40mm	Ball	12 VDC	81.97 CFM (2.321 m3/min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.20 W	3700 RPM	3 wire leads
FFB0924EHE	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	2 wire leads
FFB0924EHE-F00	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	3 wire leads
FFB0924EHE-SP20	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	3 wire leads
FFB0924EHE-T500	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	2 wire leads
FFB0924HH	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	5.76 W	3200 RPM	2 wire leads
FFB0924HHE	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	71.69 CFM (2.030 m3/min)	0.298 inchH2O (7.58 mmH2O)	42.5 dB(A)	4.32 W	3200 RPM	2 wire leads
FFB0924HH-F00	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	5.76 W	3200 RPM	3 wire leads
FFB0924SHE	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	100.29 CFM (2.840 m3/min)	0.572 inchH2O (14.53 mmH2O)	52.5 dB(A)	9.60 W	4400 RPM	2 wire leads
FFB0924VH	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	81.97 CFM (2.321 m3/min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.44 W	3700 RPM	2 wire leads
FFB0924VHE	Square-92mm L X 92mm H	38.00mm	Ball	24 VDC	85.46 CFM (2.420 m3/min)	0.406 inchH2O (10.30 mmH2O)	47.5 dB(A)	6.72 W	3800 RPM	2 wire leads
FFB0924VH-F00	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	81.97 CFM (2.321 m3/min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.44 W	3700 RPM	3 wire leads
FFB0924VH-R00	Square-92mm L X 92mm H	25.40mm	Ball	24 VDC	81.97 CFM (2.321 m3/min)	0.319 inchH2O (08.11 mmH2O)	48.2 dB(A)	7.44 W	3700 RPM	3 wire leads
FFB0948HH-F00	Square-92mm L X 92mm H	25.40mm	Ball	48 VDC	70.21 CFM (1.988 m3/min)	0.242 inchH2O (6.14 mmH2O)	44.1 dB(A)	6.72 W	3200 RPM	3 wire leads
