HEATERS

HEATERS

Cabinet heaters provide protection for enclosed electronics and equipment in low temperature environments. Delta heaters have a Positive Temperature Coefficient (PTC) heating element for increased safety and reduced operating costs. PTC heaters generate only the heat necessary for a desired temperature, versus at a constant rate, saving energy while helping to prevent overheating and burnout. Standard and custom designs are available.

  • High quality Delta DC brushless fan component for reduced energy consumption and low noise
  • Available with PTC heating element for extended reliability
  • 90-degree air flow and rack mount solutions to fit more

PRODUCT LISTS

48VDC Heaters

Part number Heating
Capacity (W)
Dimensions
(inch)
Dimensions
(mm)
Rated Voltage
(VDC)
Rated Current
(A)
Weight
(lbs / kg)
Approvals Indoor / Outdoor

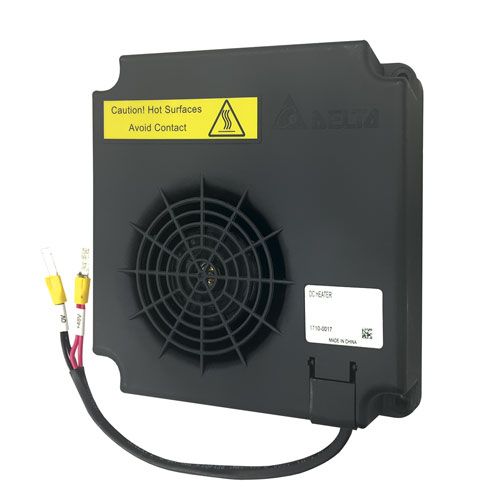

HEH030PA 300 5.9H x 5.7W x 1.8D 150H x 145W x 45D 48 7.5 1.3 / 0.6 N/A UL, CE
HEH050PA 500 5.9H x 5.7W x 1.8D 150H x 145W x 45D 48 12.5 1.3 / 0.6 N/A UL, CE
HEH070PA 700 5.9H x 5.7W x 1.8D 150H x 145W x 45D 48 14.5 1.3 / 0.6 N/A UL, CE
HEH100PA 1000 9.4H x 7.3W x 2.2D 240H x 185W x 57D 48 22.0 3.3 / 1.5 N/A UL, CE
HEH100PB 1000 1.7H X 19.0W x 7.0D 44H x 483W x 177D 48 22.0 5.0 / 2.3 N/A UL
Part number Heating
Capacity (W)
Dimensions
(inch)
Dimensions
(mm)
Rated Voltage
(VDC)
Rated Current
(A)
Weight
(lbs / kg)
Approvals Indoor / Outdoor



230VAC Heaters

Part number Heating
Capacity (W)
Dimensions
(inch)
Dimensions
(mm)
Rated Voltage
(VDC)
Rated Current
(A)
Weight
(lbs / kg)
Approvals Indoor / Outdoor

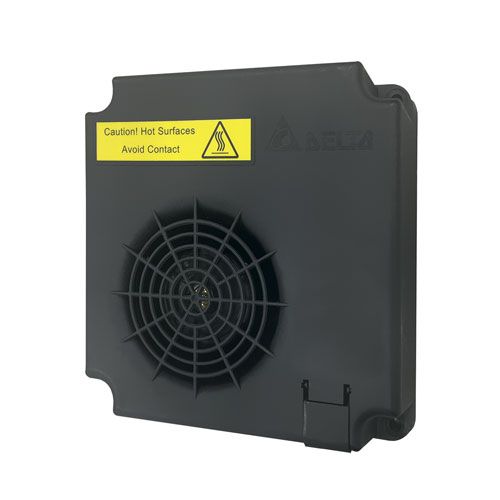

HEH030BA 300 5.9H x 5.7W x 1.8D 150H x 145W x 45D 220 1.5 1.1 / 0.5 N/A UL, CE
HEH050BA 500 5.9H x 5.7W x 1.8D 150H x 145W x 45D 220 2.5 1.1 / 0.5 N/A UL, CE
HEH070BA 700 5.9H x 5.7W x 1.8D 150H x 145W x 45D 220 4.5 1.1 / 0.5 N/A UL, CE
HEH095BA 950 6.6H x 5.7W x 2.3D 167H x 145W x 100D 220 4.5 3.3 / 1.5 N/A UL, CE
HEH100BA 1000 9.3H x 7.3W x 2.3D 235H x 185W x 58D 220 5.0 3.3 / 1.5 N/A UL, CE
HEH150BA 1500 9.3H x 7.3W x 2.3D 235H x 185W x 58D 220 7.2 3.3 / 1.5 N/A UL, CE
Part number Heating
Capacity (W)
Dimensions
(inch)
Dimensions
(mm)
Rated Voltage
(VDC)
Rated Current
(A)
Weight
(lbs / kg)
Approvals Indoor / Outdoor

Contact Delta today for help with your next project.
