Delta thermoelectric coolers (TEC) provide slightly below ambient cooling in tight spaces. A TEC module is a sandwich of components (Peltier chips, heat sinks and fans) which provides cooling without the need for refrigerant or a compressor. All Delta TEC’s incorporate Delta DC brushless fans engineered to run continuously for 80,000 hours, or nine years. Standard and custom designs are available.
Features and benefits include:
- High quality Delta DC brushless fan component for reduced energy consumption and low noise.
- Built-in controller.
- Self-test function and LED alarms.
- LED status indicator.
- Low noise.
- Wide operating temperature range.
- IP55 protection.
PRODUCT LISTS
48VDC
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|---|---|---|---|---|---|---|---|---|
HET400PA
|
400 W | 8.3H x 17.7W x 9.0D | 210H x 450W x 228D | 48 VDC | 11.7 | 65 | 24.2 / 11.0 | UL Recognized, CE | Outdoor |
HET200PC-B
|
200 W | 7.1H x 15.7W x 5.6D | 181H x 400W x 143D | 48 | 7.4 | 66 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
HET200PC
|
200 W | 7.1H x 15.7W x 6.6D | 181H x 400W x 169D | 48 | 6.1 | 62 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |

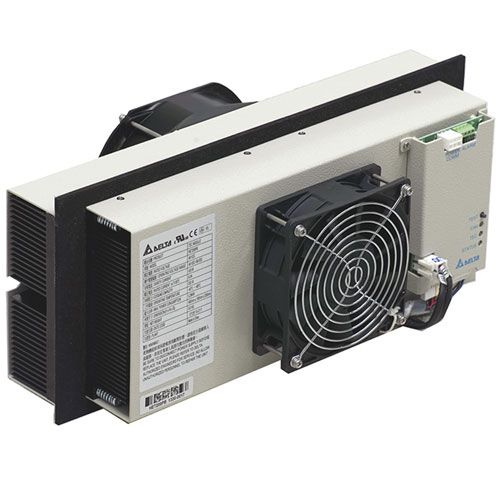

HET200PB
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 48 | 7.4 | 62 | 19.8 / 9.0 | UL , CUL, TUV, CE | Outdoor |
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|
24VDC
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|---|---|---|---|---|---|---|---|---|
HET200VB
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 24 | 12.2 | 61 | 19.8 / 9.0 | UL Recognized, CE | Outdoor |
HET200VC
|
200 W | 7.1H x 15.7W x 6.6D | 181H x 400W x 169D | 24 | 12 | 62 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|
