Air Conditioners

Delta air conditioners use active compressor-based cooling to keep internal enclosure temperatures below ambient. These slim air-cons employ a variable speed DC inverter compressor and dual rotor design to achieve a high COP with reduced vibration and low operating noise. All Delta air conditioners feature Delta’s high-quality DC brushless fans engineered to run continuously for a minimum of 80,000 hours, or nine years. Standard and custom designs are available.

Estimate your required cooling capacity by clicking here :

FEATURES

High quality Delta DC brushless fan tray component for reduced energy consumption and low noise.
Variable speed DC inverter compressor
Inverter compressor design
Increased heat transfer rate
Optional communication functionality
Easy installation and maintenance access
LED status indicator
Low noise
IP55 protection

PRODUCT LISTS

Air Conditioners Side-Mount VDC 48V

The DC air conditioners with 48VDC power input, which are designed for IP55 sealed outdoor telecom cabinet to provide stable and optimum internal conditions for equipment and avoid hotspot inside the cabinet.

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor
HEC2000XA	2000 W / 6800 BTU	29.4H x 17.6W x 7.9D	746H x 446W x 200D	48	13.8	62	81.6 / 37.0	CE	Outdoor
HEC0800PB	800 W / 2720 BTU	27.6H x 19.7W x 7.9D	700H x 500W x 200D	48	3.9	62	61.7 / 28.0	UL Recognized, CE	Outdoor
HEC0800PC	800W / 2720 BTU	31.3H x 15.0W x 6.4D	796H x 383W x 163D	48VDC	3.8	52	59.5 / 27.0	CE, cURus, TUV	Outdoor
HEC1000PB	1000W / 3400 BTU	27.6H x 19.7W x 7.9D	700H x 500W x 200D	48	5.6	62	61.7 / 28.0	UL Recognized, CE	Outdoor
HEC1000PC	1000W / 3400 BTU	27.6H x 19.7W x 7.9D	700H x 500W x 200D	48	5.6	62	61.7 / 28.0	CE, cURus, TUV	Outdoor
HEC1200PB	1200W / 4010 BTU	27.6H x 19.7W x 7.9D	700H x 500W x 200D	48	7.3	62	61.7 / 28.0	UL Recognized, CE	Outdoor
HEC1500PB	1500W / 5100 BTU	27.6H x 19.7W x 7.9D	700H x 500W x 200D	48	12.5	62	61.7 / 28.0	UL Recognized, CE	Outdoor

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor

Air Conditioners 115VAC

The AC air conditioners with 115VAC power input, which are designed for UL TYPE 4X sealed outdoor telecom cabinet to provide stable and optimum internal conditions for equipment and avoid hotspot inside the cabinet.

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor
HEC0600AFR	600 W / 2049 BTU	20H x 10W x 10D	508H x 254W x 254D	115 VAC	4.3	60	34.2 / 15.5	UL Recognized	Outdoor
HEC0600AFS	600 W / 2049 BTU	20H x 10W x 10D	508H x 254W x 254D	115 VAC	4.3	60	34.2 / 15.5	UL Recognized	Outdoor
HEC1000AFR	1000 W / 3143 BTU	32.0H x 11.8W x 9.5D	810H x 299W x 240D	115 VAC	6.4	65	50.7 / 27.0	UL Recognized	Outdoor
HEC1000AFS	1000 W / 3143 BTU	32.0H x 11.8W x 9.5D	810H x 299W x 240D	115 VAC	6.4	65	50.7 / 27.0	UL Recognized	Outdoor

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor

Air Conditioners 230VAC

The AC air conditioner with 230V AC power input, which are designed for IP55 sealed outdoor telecom cabinet to provide stable and optimum internal conditions for equipment and avoid hotspot inside the cabinet.

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor

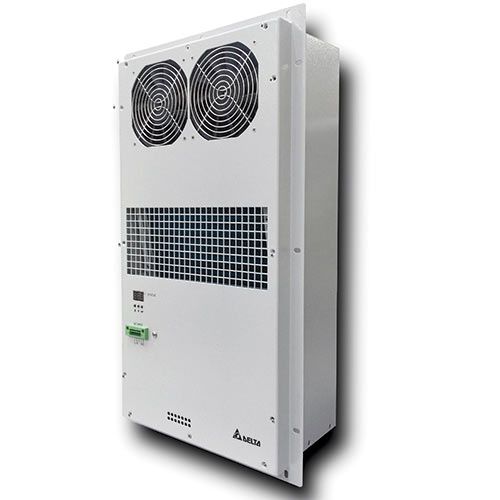

HEC0500BFA	500 W / 1870 BTU	21.7H x 11.6W x 6.3D	550H x 295W x 160D	230 VAC	4.1	61	35.3 / 16.0	UL Recognized, CE	Outdoor
HEC0600BFR	600 W / 2049 BTU	20H x 10W x 10D	508H x 254W x 254D	230 VAC	1.6	63	35.3 / 16.0	UL Recognized, CE	Outdoor
HEC0600BFS	600 W / 2049 BTU	20H x 10W x 10D	508H x 254W x 254D	230 VAC	1.6	63	35.3 / 16.0	UL Recognized	Outdoor
HEC0700BFB	700 W / 2380 BTU	21.5H x 12.4W x 6.9D	545H x 315W x 175D	230 VAC	1.3	60	35.3 / 16.0	UL Recognized, CE	Outdoor
HEC1000BFR	1000 W / 3143 BTU	32H x 11.8W x 9.5D	810H x 299W x 240D	230 VAC	2.4	65	50.7 / 27.0	UL Recognized	Outdoor
HEC1000BFS	1000 W / 3143 BTU	32H x 11.8W x 9.5D	810H x 299W x 240D	230 VAC	2.4	65	50.7 / 27.0	UL Recognized	Outdoor

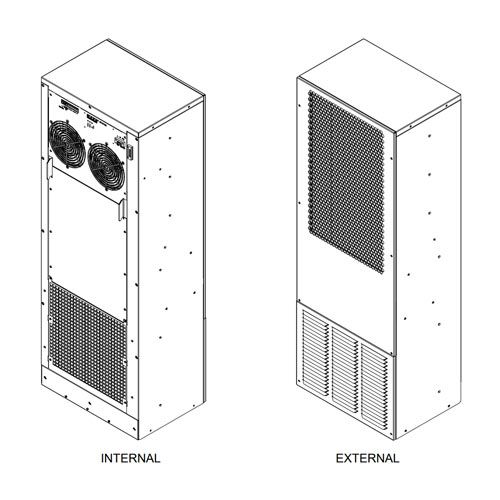

HEC2500BFE	8000 W / 2500 BTU	43.0H x 15.7W x 10.9D	1093H x 400W x 276D	230 VAC	3.8 ~ 4.4	62	88.0 / 40.0	UL Recognized	Outdoor

Part number	Cooling Capacity	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Operating Current (A)	Noise (dB-A) @1.5M	Weight (lbs / kg)	Approvals	Indoor / Outdoor

Hybrid ACU: The AC Air Conditioner plus DC Heat Exchanger

HEC2010FFA is a hybrid air conditioner with 48VDC & 230 VAC power input, which is designed for IP55 sealed outdoor telecom cabinet to provide stable and optimum internal conditions for equipment and avoid hotspots inside the cabinet.
