Heaters

Cabinet heaters provide protection for enclosed electronics and equipment in low-temperature environments. Delta heaters have a Positive Temperature Coefficient (PTC) heating element for increased safety and reduced operating costs. PTC heaters generate only the heat necessary for the desired temperature, versus at a constant rate, saving energy while helping to prevent overheating and burnout.

The heater is designed for warming up the air in the enclosure. It can avoid equipment damaged at lower temperatures and water condensation. The heater can be mounted on the wall of the cabinet. Standard and custom designs are available.

Estimate your required cooling capacity by clicking here :

FEATURES:

High quality Delta DC brushless fan component for reduced energy consumption and low noise.
Available with PTC heating element for extended reliability.
90-degree air flow and rack mount solutions to fit more.
PTC heating element.
Compact design.
LED status indicator (1kW model).
Triple protection - mechanical temp switch, sensor and fuse (1kW model).

PRODUCT LISTS

48VDC Heaters

Part number	Heating Capacity (W)	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Rated Current (A)	Weight (lbs / kg)	Approvals	Indoor / Outdoor
HEH030PA	300 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	48 VDC	7.5	1.3 / 0.5	CE, cURus, TUV	Indoor
HEH050PA	500 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	48VDC	12.5	1.3 / 0.6	UL Recognized, CE	Indoor
HEH070PA	700 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	48VDC	14.5	1.1 / 0.5	UL Recognized, CE	Indoor
HEH100PA	1000 W heating	9.4H x 7.3W x 2.2D	240H x 185W x 57D	48VDC	22.0	3.3 / 1.5	UL Recognized, CE	Indoor

Part number	Heating Capacity (W)	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Rated Current (A)	Weight (lbs / kg)	Approvals	Indoor / Outdoor

230VAC Heaters

Part number	Heating Capacity (W)	Dimensions (inch)	Dimensions (mm)	Rated Voltage (VDC)	Rated Current (A)	Weight (lbs / kg)	Approvals	Indoor / Outdoor
HEH030BA	300 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	220VAC	1.5	1.1 / 0.5	UL Recognized, CE	Indoor
HEH050BA	500 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	220 VAC	2.5	1.1 / 0.5	UL Recognized, CE	Indoor
HEH070BA	700 W heating	5.9H x 5.7W x 1.8D	150H x 145W x 45D	220 VAC	4.5	1.1 / 0.5	UL Recognized, CE	Indoor

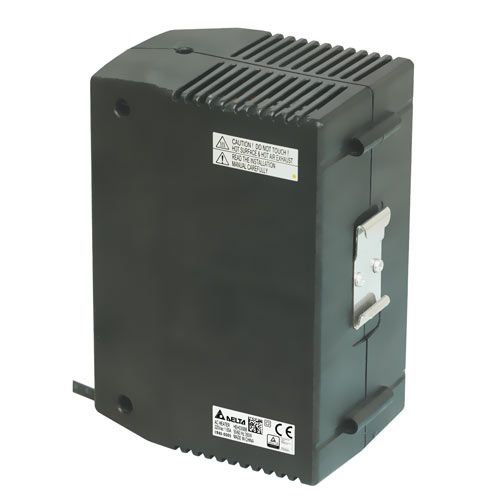

HEH030BB	300 W heating	5.7H x 3.0W x 4.1D	145H x 75W x 105D	220 VAC	1.65	1.32 / 0.6	N/A	Indoor
HEH080BB	800 W heating	7.4H x 4.3W x 3.1D	187H x 108W x 80D	230 VAC	3.5	1.8 / 0.8	UL Recognized	Indoor
HEH095BA	950 W heating	6.6H x 5.7W x 2.3D	167H x 145W x 100D	220 VAC	4.5	3.3 / 1.5	UL Recognized, CE	Indoor

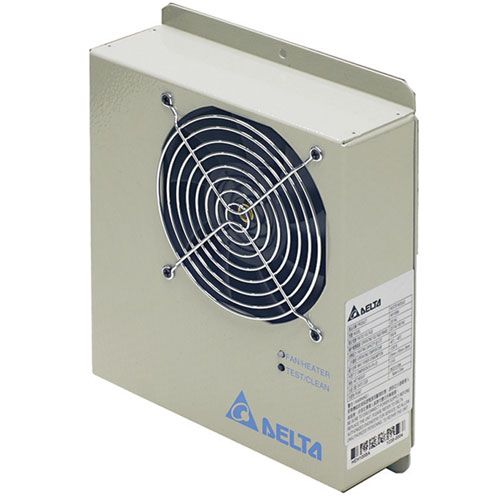

HEH100BA	1000 W heating	9.3H x 7.3W x 2.3D	235H x 185W x 58D	220 VAC	5.0	3.3 / 1.5	UL Recognized, CE	Indoor
HEH150BA	1500 W heating	9.3H x 7.3W x 2.3D	235H x 185W x 58D	220 VAC	7.2	3.3 / 1.5	UL Recognized, CE	Indoor
