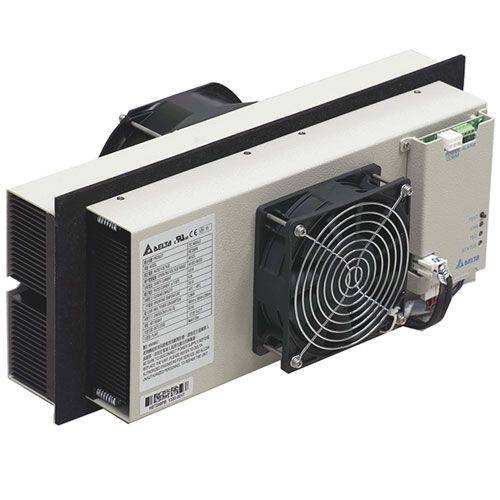

Delta thermoelectric coolers (TEC) provide slightly below ambient cooling in tight spaces. A TEC module is a sandwich of components (Peltier chips, heat sinks and fans) which provides cooling without the need for refrigerant or a compressor. All Delta TEC’s incorporate Delta DC brushless fans engineered to run continuously for 80,000 hours, or nine years. Standard and custom designs are available.
Estimate your required cooling capacity by clicking here :
Features and benefits include:
- High quality Delta DC brushless fan component for reduced energy consumption and low noise.
- Built-in controller.
- Self-test function and LED alarms.
- LED status indicator.
- Low noise.
- Wide operating temperature range.
- IP55 protection.
PRODUCT LISTS
48VDC
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|---|---|---|---|---|---|---|---|---|
HET200PB-A01
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 48 | 7.4 | 62 | 19.8 / 9.0 | UL , CUL, TUV, CE | Outdoor |
HET400PA-A01
|
400 W | 8.3H x 17.7W x 9.0D | 210H x 450W x 228D | 48 VDC | 11.7 | 65 | 24.2 / 11.0 | UL Recognized, CE | Outdoor |
HET400PA
|
400 W | 8.3H x 17.7W x 9.0D | 210H x 450W x 228D | 48 VDC | 11.7 | 65 | 24.2 / 11.0 | UL Recognized, CE | Outdoor |
HET200PC-B
|
200 W | 7.1H x 15.7W x 5.6D | 181H x 400W x 143D | 48 | 7.4 | 66 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
HET200PC
|
200 W | 7.1H x 15.7W x 6.6D | 181H x 400W x 169D | 48 | 6.1 | 62 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
HET200PB
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 48 | 7.4 | 62 | 19.8 / 9.0 | UL , CUL, TUV, CE | Outdoor |
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|
24VDC
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|---|---|---|---|---|---|---|---|---|
HET200VB
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 24 | 12.2 | 61 | 19.8 / 9.0 | UL Recognized, CE | Outdoor |
HET200VC
|
200 W | 7.1H x 15.7W x 6.6D | 181H x 400W x 169D | 24 | 12 | 62 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
HET200VB-A01
|
200 W | 7.1H x 15.7W x 8.2D | 180H x 400W x 208D | 24 | 12.2 | 61 | 19.8 / 9.0 | UL Recognized, CE | Outdoor |
HET200VC-A01
|
200 W | 7.1H x 15.7W x 6.6D | 181H x 400W x 169D | 24 | 23 | 62 | 13.2 / 6.0 | UL , CUL, TUV, CE | Outdoor |
| Part number | Cooling/heating Capacity |
Dimensions (inch) |
Dimensions (mm) |
Rated Voltage (VDC) |
Operating Current (A) |
Noise (dB-A) @1.5M |
Weight (lbs / kg) |
Approvals | Indoor / Outdoor |
|---|
