Search results for asb
Search results for asb

Search results for: 'asb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
ASB0305HP-00	Square-30mm L X 30mm H	6.90mm	Superflo	5 VDC	5.10 CFM (0.144 m3/min)	0.156 inchH2O (3.96 mmH2O)	29.0 dB(A)	1.00 W	9500 RPM	4 lead wires
ASB0412VHA-AF00	Square-40mm L X 40mm H	10.00mm	Sleeve	12 VDC	9.50CFM (0.269 m3/min)	0.253 inH2O (6.422 mmH2O)	32.5 dB(A)	0.96 W	8000 RPM	3 lead wires
ASB0405SA-00	Square-40mm L X 40mm H	10.00mm	Sleeve	5 VDC	8.86 CFM (0.251 m3/min)	0.230 inchH2O (5.84 mmH2O)	33.5 dB(A)	0.90 W	8000 RPM	3 lead wires
ASB01703HA3-00CAH	Square-17mm L X 17mm H	3.00mm	Sleeve	3 VDC	0.51 CFM (0.014 m3/min)	0.071 inchH2O (0.040 mmH2O)	30.0 dB(A)	0.18 W	12000 RPM	3 lead wires
ASB01503HA3-00CYN	Square-15mm L X 15mm H	3.00mm	Sleeve	3 VDC	0.28 CFM (0.008 m3/min)	0.075 inchH2O (0.042 mmH2O)	31.0 dB(A)	0.15 W	14500 RPM	3 lead wires

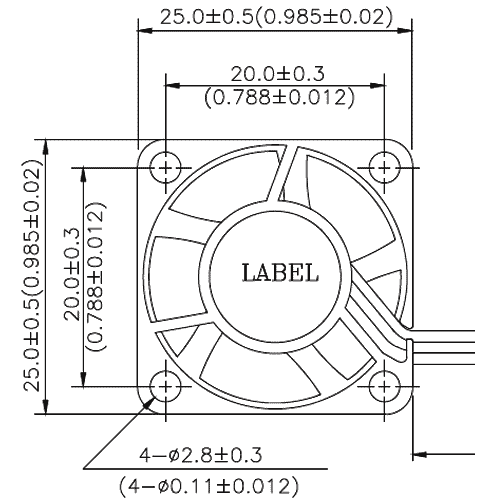

ASB02505SHA-AY6B	Square-25mm L X 25mm H	10.00mm	Ball	5 VDC	4.31 CFM (0.122 m3/min)	0.320 inchH2O (8.13 mmH2O)	31.0 dB(A)	0.60 W	10500 RPM	3 lead wires
ASB02512VHA-A76N	Square-25mm L X 25mm H	10.00mm	Sleeve	12 VDC	3.35 CFM (0.095 m3/min)	0.214 inchH2O (5.43 mmH2O)	27.0 dB(A)	0.60 W	13000 RPM	3 lead wires
ASB0305HA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.70 W	10500 RPM	2 lead wires
ASB0305HA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.70 W	10500 RPM	3 lead wires
ASB0305HA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.70 W	10500 RPM	3 lead wires
ASB0305HP-00CP4 (EOL)	Square-30mm L X 30mm H	6.90mm	Superflo	5 VDC	5.10 CFM (0.144 m3/min)	0.156 inchH2O (3.96 mmH2O)	29.0 dB(A)	1.00 W	9500 RPM	4 lead wires
ASB0305LA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.50 W	8000 RPM	2 lead wires
ASB0305LA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.50 W	8000 RPM	3 lead wires
ASB0305LA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.50 W	8000 RPM	3 lead wires
ASB0305MA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.55 W	9000 RPM	2 lead wires
ASB0305MA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.55 W	9000 RPM	3 lead wires
ASB0305MA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	5 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.55 W	9000 RPM	3 lead wires
ASB0312HA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.84 W	10500 RPM	2 lead wires
ASB0312HA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.84 W	10500 RPM	3 lead wires
ASB0312HA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	4.30 CFM (0.122 m3/min)	0.214 inchH2O (5.44 mmH2O)	27.0 dB(A)	0.84 W	10500 RPM	3 lead wires
ASB0312LA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.60 W	8000 RPM	2 lead wires
ASB0312LA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.60 W	8000 RPM	3 lead wires
ASB0312LA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.21 CFM (0.091 m3/min)	0.131 inchH2O (3.33 mmH2O)	21.0 dB(A)	0.60 W	8000 RPM	3 lead wires
ASB0312MA-D	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.72 W	9000 RPM	2 lead wires
ASB0312MA-DF00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.72 W	9000 RPM	3 lead wires
ASB0312MA-DR00	Square-30mm L X 30mm H	10.00mm	Sleeve	12 VDC	3.72 CFM (0.105 m3/min)	0.168 inchH2O (4.27 mmH2O)	23.0 dB(A)	0.72 W	9000 RPM	3 lead wires
ASB03512HB-F00	Square-35mm L X 35mm H	15.00mm	Sleeve	12 VDC	9.50CFM (0.270 m3/min)	0.327 inchH2O (8.305 mmH2O)	37.0 dB(A)	1.32 W	11000 RPM	3 lead wires
ASB0412SA-00	Square-40mm L X 40mm H	10.00mm	Sleeve	12 VDC	8.86 CFM (0.251 m3/min)	0.234 inH2O (5.94 mmH2O)	33.5 dB(A)	0.84 W	8000 RPM	4 lead wires
ASB0412VHA-A	Square-40mm L X 40mm H	10.00mm	Sleeve	12 VDC	9.51 CFM (0.269 m3/min)	0.253 inH2O (6.422 mmH2O)	32.5 dB(A)	0.96 W	8000 RPM	2 lead wires
ASB0412VHA-AF0B	Round-36.9mm Diameter	10.30mm	Sleeve	12 VDC	3.13 CFM (0.083 m3/min)	0.116 inchH2O (2.95 mmH2O)	28.0 dB(A)	1.20 W	4800 RPM	3 lead wires
