Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB0812SHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	72.76 CFM (2.060 m3/min)	0.547 inchH2O (13.89 mmH2O)	46.0 dB(A)	8.16 W	5000 RPM	3 lead wires
AFB0812SH-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	46.62 CFM (1.320 m3/min)	0.267 inchH2O (6.78 mmH2O)	40.0 dB(A)	4.08 W	4000 RPM	3 lead wires
AFB0812SH-TP12	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	55.59CFM (1.574 m3/min)	0.38 inchH2O (9.598 mmH2O)	46.0 dB(A)	3.60 W	4500 RPM	4 lead wires
AFB0812VH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	42.02 CFM (1.190 m3/min)	0.217 inchH2O (5.51 mmH2O)	38.0 dB(A)	3.12 W	3600 RPM	2 lead wires
AFB0812VHB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	39.20 CFM (1.110 m3/min)	0.188 inchH2O (4.77 mmH2O)	39.5 dB(A)	2.28 W	N/A	2 lead wires
AFB0812VHB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	39.20 CFM (1.110 m3/min)	0.188 inchH2O (4.77 mmH2O)	39.5 dB(A)	2.28 W	N/A	3 lead wires
AFB0812VHB-R00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	39.20 CFM (1.110 m3/min)	0.188 inchH2O (4.77 mmH2O)	39.5 dB(A)	2.28 W	N/A	3 lead wires

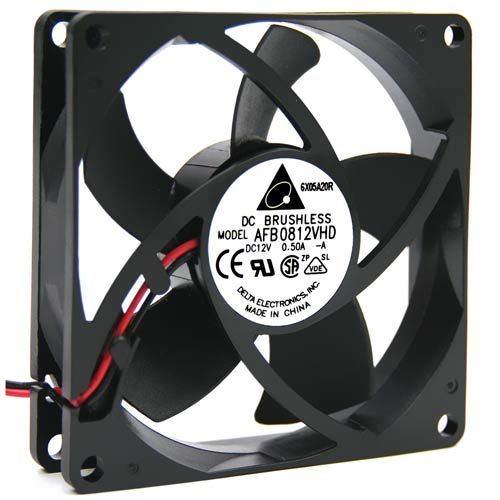

AFB0812VHD-A	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	63.54 CFM (1.799 m3/min)	0.394 inchH2O (10.02 mmH2O)	47.5 dB(A)	5.04 W	5400 RPM	2 lead wires

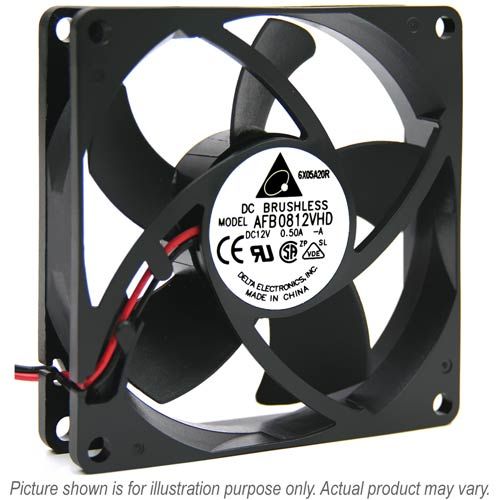

AFB0812VHD-AF00	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	63.54 CFM (1.799 m3/min)	0.394 inchH2O (10.02 mmH2O)	47.5 dB(A)	5.04 W	5400 RPM	3 lead wires
AFB0812VHD-AR00	Square-80mm L X 80mm H	20.00mm	Ball	12 VDC	63.54 CFM (1.799 m3/min)	0.394 inchH2O (10.02 mmH2O)	47.5 dB(A)	5.04 W	5400 RPM	3 lead wires
AFB0812VH-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	42.02 CFM (1.190 m3/min)	0.217 inchH2O (5.51 mmH2O)	38.0 dB(A)	3.12 W	3600 RPM	3 lead wires
AFB0824GHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	99.01 CFM (2.804 m3/min)	1.006 inchH2O (25.54 mmH2O)	54.0 dB(A)	15.60 W	6800 RPM	2 lead wires

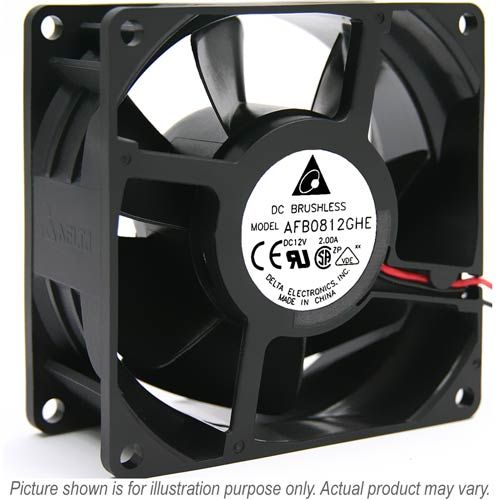

AFB0824GHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	99.01 CFM (2.804 m3/min)	1.006 inchH2O (25.54 mmH2O)	54.0 dB(A)	15.60 W	6800 RPM	3 lead wires
AFB0824H	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	1.68 W	3000 RPM	2 lead wires
AFB0824HB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	33.55CFM (0.950 m3/min)	0.138 inchH2O (3.50 mmH2O)	34.0 dB(A)	1.92 W	3100 RPM	2 lead wires
AFB0824HB-F00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	33.55CFM (0.950 m3/min)	0.138 inchH2O (3.50 mmH2O)	34.0 dB(A)	1.92 W	3100 RPM	3 lead wires
AFB0824HH	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	37.43 CFM (1.060 m3/min)	0.181 inchH2O (4.59 mmH2O)	34.0 dB(A)	2.16 W	3250 RPM	2 lead wires
AFB0824HHB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	35.67CFM (1.010 m3/min)	0.159 inchH2O (4.03 mmH2O)	37.0 dB(A)	2.40 W	3400 RPM	2 lead wires
AFB0824HH-T500	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	37.43 CFM (1.060 m3/min)	0.181 inchH2O (4.59 mmH2O)	34.0 dB(A)	2.16 W	3250 RPM	2 lead wires
AFB0824L	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	27.90 CFM (0.790 m3/min)	0.102 inH2O (2.59 mmH2O)	25.0 dB(A)	1.20 W	2400 RPM	2 lead wires

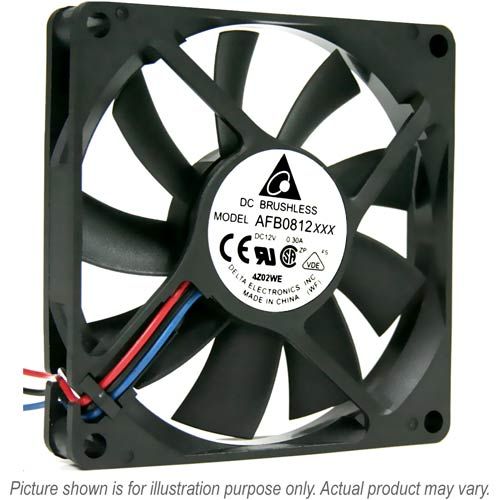

AFB0824LB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	24.72 CFM (0.700 m3/min)	0.087 inchH2O (2.20 mmH2O)	27.5 dB(A)	1.20 W	2400 RPM	2 lead wires
AFB0824M	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	31.43 CFM (0.890 m3/min)	0.129 inchH2O (3.28 mmH2O)	28.0 dB(A)	1.44 W	2700 RPM	2 lead wires
AFB0824MB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	28.25 CFM (0.800 m3/min)	0.107 inchH2O (2.71 mmH2O)	30.5 dB(A)	1.44 W	2700 RPM	2 lead wires
AFB0824SH	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	46.62 CFM (1.320 m3/min)	0.267 inchH2O (6.78 mmH2O)	40.0 dB(A)	3.84 W	4000 RPM	2 lead wires
AFB0824SHB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	4.08 W	4000 RPM	2 lead wires
AFB0824SHBAV1	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	4.08 W	4000 RPM	4 lead wires
AFB0824SHB-R00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	42.73 CFM (1.210 m3/min)	0.216 inchH2O (5.49 mmH2O)	42.5 dB(A)	4.08 W	4000 RPM	3 lead wires
AFB0824SHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	72.76 CFM (2.060 m3/min)	0.547 inchH2O (13.89 mmH2O)	46.0 dB(A)	8.40 W	5000 RPM	2 lead wires
AFB0824VH	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	42.02 CFM (1.190 m3/min)	0.217 inchH2O (5.51 mmH2O)	38.0 dB(A)	3.36 W	3600 RPM	2 lead wires
AFB0824VHB-R00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	39.20 CFM (1.110 m3/min)	0.188 inchH2O (4.77 mmH2O)	39.5 dB(A)	2.88 W	3700 RPM	3 lead wires
