Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB0412HA-A	Square-40mm L X 40mm H	10.00mm	Ball	12 VDC	6.89 CFM (0.195 m3/min)	0.140 inchH2O (3.60 mmH2O)	27.0 dB(A)	0.48 W	6000 RPM	2 lead wires

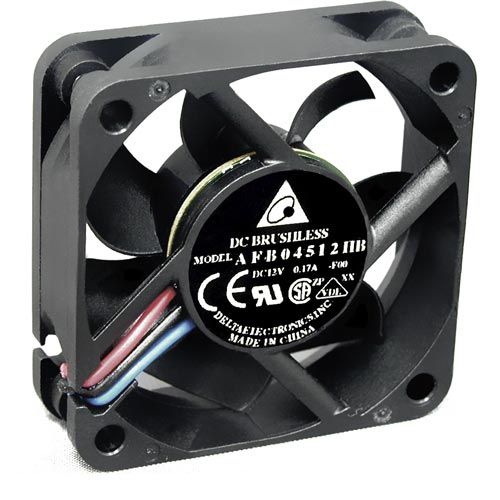

AFB04512HB-F00	Square-45mm L X 45mm H	15.00mm	Ball	12 VDC	13.99 CFM (0.396 m3/min)	0.223 inchH2O (5.661 mmH2O)	33.5 dB(A)	1.68 W	6300 RPM	3 lead wires

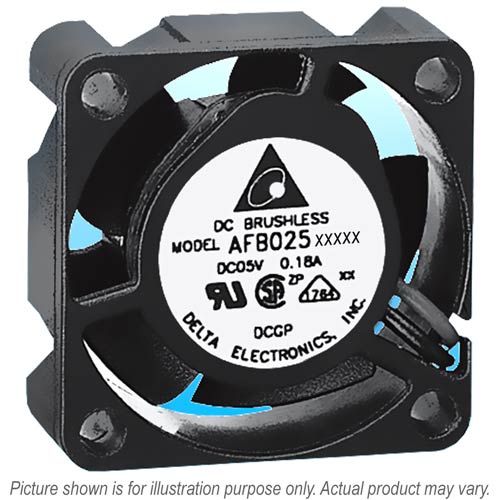

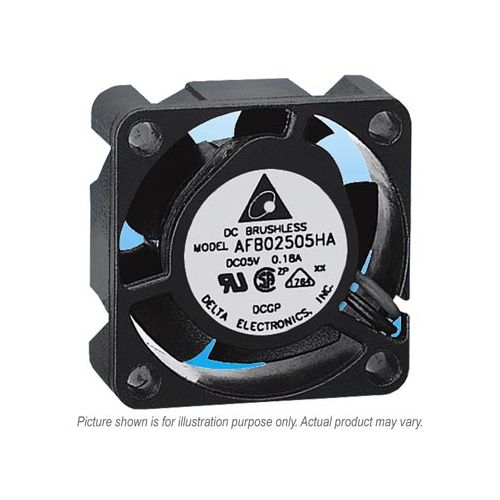

AFB02505HA-C	Square-25mm L X 25mm H	10.00mm	Ball	5 VDC	1.78 CFM (0.05 m3/min)	0.176 inchH2O (4.48 mmH2O)	23.5 dB(A)	0.60 W	10000 RPM	2 lead wires
AFB02512HAYBH	Square-25mm L X 25mm H	10.00mm	Ball	12 VDC	1.84 CFM (0.052 m3/min)	0.176 inchH2O (4.48 mmH2O)	23.5 dB(A)	0.72 W	10000 RPM	3 lead wires
AFB02512HHA-A	Square-25mm L X 25mm H	10.00mm	Ball	12 VDC	2.40 CFM (0.068 m3/min)	0.300 inchH2O (7.65 mmH2O)	28.0 dB(A)	0.96 W	13000 RPM	2 lead wires
AFB02512HHAYBJ	Square-25mm L X 25mm H	10.00mm	Ball	12 VDC	2.40 CFM (0.068 m3/min)	0.300 inchH2O (7.65 mmH2O)	28.0 dB(A)	0.96 W	13000 RPM	3 lead wires
AFB02512LAYBF	Square-25mm L X 25mm H	10.00mm	Ball	12 VDC	0.84 CFM (0.024 m3/min)	0.045 inchH2O (1.15 mmH2O)	18.0 dB(A)	0.36 W	5000 RPM	3 lead wires
AFB02512MAYBG	Square-25mm L X 25mm H	10.00mm	Ball	12 VDC	1.20 CFM (0.034 m3/min)	0.085 incH2O (2.18 mmH2O)	20.0 dB(A)	0.48 W	7000 RPM	3 lead wires

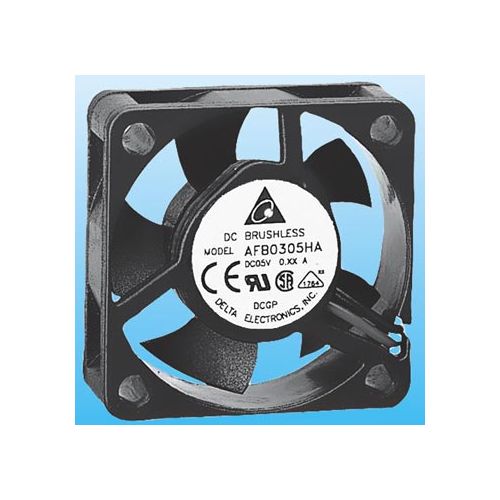

AFB03505HA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	5.50 CFM (0.156 m3/min)	0.156 inchH2O (4.48 mmH2O)	22.0 dB(A)	0.70 W	7000 RPM	3 lead wires
AFB03505HA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	5.50 CFM (0.156 m3/min)	0.156 inchH2O (4.48 mmH2O)	22.0 dB(A)	0.70 W	7000 RPM	3 lead wires
AFB03505HAYBY	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	5.50 CFM (0.156 m3/min)	0.156 inchH2O (4.48 mmH2O)	22.0 dB(A)	0.70 W	7000 RPM	2 lead wires
AFB03505LA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	3.35 CFM (0.095 m3/min)	0.048 inchH2O (1.23 mmH2O)	10.0 dB(A)	0.30 W	4500 RPM	2 lead wires
AFB03505LA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	3.35 CFM (0.095 m3/min)	0.048 inchH2O (1.23 mmH2O)	10.0 dB(A)	0.30 W	4500 RPM	3 lead wires
AFB03505LA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	3.35 CFM (0.095 m3/min)	0.048 inchH2O (1.23 mmH2O)	10.0 dB(A)	0.30 W	4500 RPM	3 lead wires
AFB03505MA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.50 W	5800 RPM	2 lead wires
AFB03505MA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.50 W	5800 RPM	3 lead wires
AFB03505MA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.50 W	5800 RPM	3 lead wires

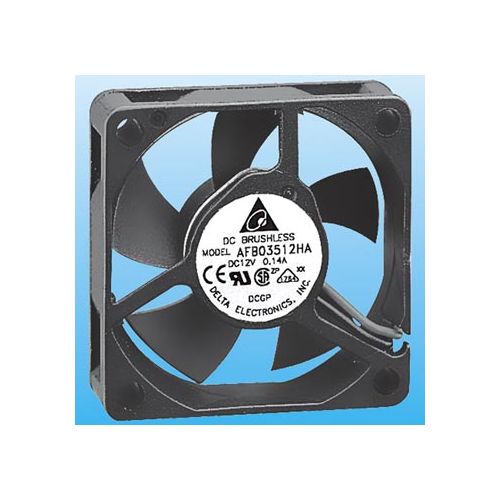

AFB03512HA-AYFQ	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	5.16 CFM (0.146 m3/min)	0.110 InchH2O (2.79 mmH2O)	22.0 dB(A)	0.72 W	7000 RPM	3 lead wires
AFB03512HA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	5.50 CFM (0.156 m3/min)	0.016 inchH2O (2.70 mmH2O)	22.0 dB(A)	0.72 W	7000 RPM	2 lead wires
AFB03512HA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	5.50 CFM (0.156 m3/min)	0.016 inchH2O (2.70 mmH2O)	22.0 dB(A)	0.72 W	7000 RPM	3 lead wires
AFB03512HA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	5.50 CFM (0.156 m3/min)	0.016 inchH2O (2.70 mmH2O)	22.0 dB(A)	0.72 W	7000 RPM	3 lead wires
AFB03512LA-AYFS	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	3.35 CFM (0.095 m3/min)	0.048 inchH2O (1.23 mmH2O)	10.0 dB(A)	0.36 W	4500 RPM	3 lead wires
AFB03512LA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	3.36 CFM (0.095 m3/min)	0.048 inchH2O (1.21 mmH2O)	13.0 dB(A)	0.36 W	4500 RPM	2 lead wires
AFB03512LA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	3.36 CFM (0.095 m3/min)	0.048 inchH2O (1.21 mmH2O)	13.0 dB(A)	0.36 W	4500 RPM	3 lead wires
AFB03512LA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	3.36 CFM (0.095 m3/min)	0.048 inchH2O (1.21 mmH2O)	13.0 dB(A)	0.36 W	4500 RPM	3 lead wires
AFB03512MA-AYFR	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.60 W	5800 RPM	3 lead wires
AFB03512MA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.60 W	5800 RPM	3 lead wires
AFB03512MA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	4.27 CFM (0.121 m3/min)	0.076 inchH2O (1.94 mmH2O)	16.0 dB(A)	0.60 W	5800 RPM	3 lead wires
AFB0405HA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	6.89 CFM (0.195 m3/min)	0.140 inchH2O (3.60 mmH2O)	27.0 dB(A)	0.35 W	6000 RPM	2 lead wires

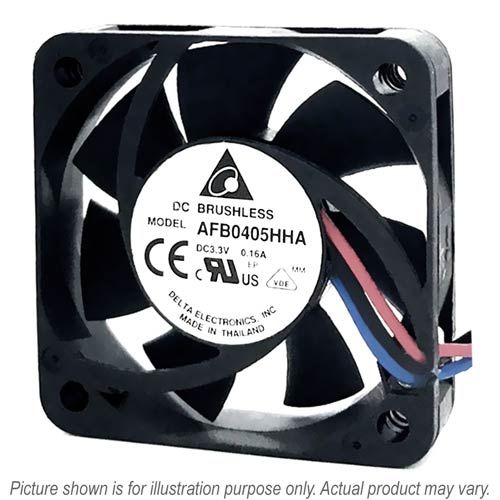

AFB0405HA-AR00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	6.90 CFM (0.195 m3/min)	0.140 inchH2O (3.60 mmH2O)	27.0 dB(A)	0.35 W	6000 RPM	2 lead wires
