Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
EFB0612HA	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	18.01 CFM (0.510 m3/min)	0.132 inchH2O (3.35 mmH2O)	33.0 dB(A)	1.44 W	4200 RPM	2 lead wires
EFB0612HA-F00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	18.01 CFM (0.510 m3/min)	0.132 inchH2O (3.35 mmH2O)	33.0 dB(A)	1.44 W	4200 RPM	2 lead wires
EFB0612HA-R00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	18.01 CFM (0.510 m3/min)	0.132 inchH2O (3.35 mmH2O)	33.0 dB(A)	1.44 W	4200 RPM	3 lead wires

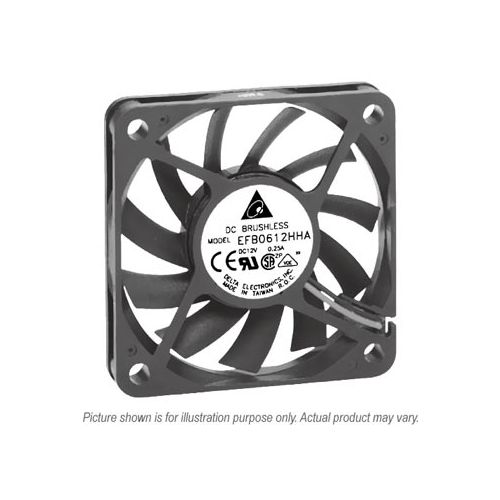

EFB0612HHA	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	21.19 CFM (0.600 m3/min)	0.169 inchH2O (4.30 mmH2O)	36.5 dB(A)	2.16 W	4800 RPM	2 lead wires
EFB0612HHA-F00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	21.19 CFM (0.600 m3/min)	0.169 inchH2O (4.30 mmH2O)	36.5 dB(A)	2.16 W	4800 RPM	3 lead wires
EFB0612HHAF99	Round-56.0mm Diameter	10.70mm	Ball	12 VDC	15.03 CFM (0.426 m3/min)	0.129 inchH2O (3.272 mmH2O)	39.0 dB(A)	2.40 W	4800 RPM	3 lead wires
EFB0612HHA-R00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	21.19 CFM (0.600 m3/min)	0.169 inchH2O (4.30 mmH2O)	36.5 dB(A)	2.16 W	4800 RPM	3 lead wires
EFB0612LA	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	13.42 CFM (0.380 m3/min)	0.065 inchH2O (1.65 mmH2O)	24.5 dB(A)	0.84 W	3000 RPM	2 lead wires
EFB0612LA-F00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	13.42 CFM (0.380 m3/min)	0.065 inchH2O (1.65 mmH2O)	24.5 dB(A)	0.84 W	3000 RPM	3 lead wires
EFB0612LA-R00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	13.42 CFM (0.380 m3/min)	0.065 inchH2O (1.65 mmH2O)	24.5 dB(A)	0.84 W	3000 RPM	3 lead wires
EFB0612MA	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	15.14 CFM (0.440 m3/min)	0.094 inchH2O (2.40 mmH2O)	29.0 dB(A)	0.96 W	3600 RPM	2 lead wires
EFB0612MA-F00	Square-60mm L X 60mm H	10.00mm	Ball	12 VDC	15.14 CFM (0.440 m3/min)	0.094 inchH2O (2.40 mmH2O)	29.0 dB(A)	0.96 W	3600 RPM	3 lead wires
EFB0812HB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.37CFM (1.200 m3/min)	0.134 inchH2O (3.42 mmH2O)	37.0 dB(A)	2.52 W	3300 RPM	2 lead wires
EFB0812HB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.37CFM (1.200 m3/min)	0.134 inchH2O (3.42 mmH2O)	37.0 dB(A)	2.52 W	3300 RPM	3 lead wires
EFB0812HB-R00 (EOL)	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	42.37CFM (1.200 m3/min)	0.134 inchH2O (3.42 mmH2O)	37.0 dB(A)	2.52 W	3300 RPM	3 lead wires
EFB0812LB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	29.62CFM (0.839 m3/min)	0.067 inchH2O (01.71 mmH2O)	33.0 dB(A)	1.20 W	2300 RPM	3 lead wires
EFB0812MB	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	36.02CFM (1.020 m3/min)	0.099 inchH2O (2.51 mmH2O)	33.0 dB(A)	1.56 W	2800 RPM	2 lead wires
EFB0812MB-F00	Square-80mm L X 80mm H	15.00mm	Ball	12 VDC	36.02CFM (1.020 m3/min)	0.099 inchH2O (2.51 mmH2O)	33.0 dB(A)	1.56 W	2800 RPM	3 lead wires
EFB0824HHB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	48.80 CFM (1.382 m3/min)	0.171 inchH2O (4.35 mmH2O)	41.0 dB(A)	4.80 W	3800 RPM	2 lead wires
EFB0824HHB-F00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	48.80 CFM (1.382 m3/min)	0.171 inchH2O (4.35 mmH2O)	41.0 dB(A)	4.80 W	3800 RPM	3 lead wires
EFB0824LB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	29.62CFM (0.839 m3/min)	0.067 inchH2O (01.71 mmH2O)	30.0 dB(A)	1.92 W	2300 RPM	2 lead wires
EFB0824LB-F00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	29.62CFM (0.839 m3/min)	0.067 inchH2O (01.71 mmH2O)	30.0 dB(A)	1.92 W	2300 RPM	3 lead wires
EFB0824MB	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	36.02CFM (1.020 m3/min)	0.099 inchH2O (2.51 mmH2O)	33.0 dB(A)	2.64 W	2800 RPM	2 lead wires
EFB0824MB-F00	Square-80mm L X 80mm H	15.00mm	Ball	24 VDC	36.02CFM (1.020 m3/min)	0.099 inchH2O (2.51 mmH2O)	33.0 dB(A)	2.64 W	2800 RPM	3 lead wires
EFB1324SHE-EP	Square-127mm L X 127mm H	38.00mm	Ball	24 VDC	200.00CFM (5.663 m3/min)	0.757 inchH2O (19.23 mmH2O)	58.5 dB(A)	18.00 W	4600 RPM	4 lead wires
EFB1512HHG-T500	Rounded/Rect-172mm L x 150mm H	50.80mm	Ball	12 VDC	279.69 CFM (7.920 m3/min)	0.800 inchH2O (20.30 mmH2O)	57.5 dB(A)	21.48 W	3700 RPM	2 lead wires
EFB1524HHG	Rounded/Rect-172mm L x 150mm H	50.80mm	Ball	24 VDC	279.69 CFM (7.920 m3/min)	0.800 inchH2O (20.30 mmH2O)	57.5 dB(A)	18.48 W	3700 RPM	2 lead wires
EFB1524SHG	Rounded/Rect-172mm L x 150mm H	50.80mm	Ball	24 VDC	325.00CFM (9.203 m3/min)	1.083 inchH2O (27.50 mmH2O)	63.0 dB(A)	28.08 W	4300 RPM	2 lead wires
EFB1524SHG-F00	Rounded/Rect-172mm L x 150mm H	50.80mm	Ball	24 VDC	325.00CFM (9.203 m3/min)	1.083 inchH2O (27.50 mmH2O)	63.0 dB(A)	28.08 W	4300 RPM	3 lead wires
EFB1524SHG-R00	Rounded/Rect-172mm L x 150mm H	50.80mm	Ball	24 VDC	325.00CFM (9.203 m3/min)	1.083 inchH2O (27.50 mmH2O)	63.0 dB(A)	28.08 W	4300 RPM	3 lead wires
