Search results for ffb
Search results for ffb

Search results for: 'ffb/'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
FFB0812HHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	45.20 CFM (1.280 m3/min)	0.281 inchH2O (7.13 mmH2O)	39.0 dB(A)	2.40 W	3400 RPM	2 wire leads
FFB0812HHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	45.20 CFM (1.280 m3/min)	0.281 inchH2O (7.13 mmH2O)	39.0 dB(A)	2.40 W	3400 RPM	3 wire leads

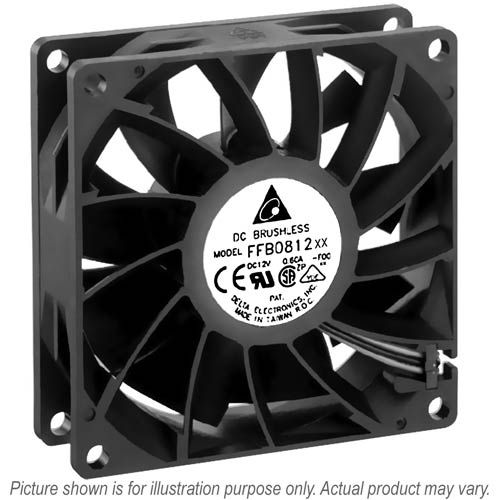

FFB0812SH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	67.02 CFM (1.898 m3/min)	0.392 inchH2O (9.955 mmH2O)	48.6 dB(A)	6.00 W	4500 RPM	2 wire leads
FFB0812SHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	6.96 W	4900 RPM	2 wire leads
FFB0812SHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	6.96 W	4900 RPM	3 wire leads
FFB0812SHE-R00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	6.96 W	4900 RPM	3 wire leads
FFB0812SH-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	67.02 CFM (1.898 m3/min)	0.392 inchH2O (9.955 mmH2O)	48.6 dB(A)	6.00 W	4500 RPM	3 wire leads
FFB0812SH-R00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	67.02 CFM (1.898 m3/min)	0.392 inchH2O (9.955 mmH2O)	48.6 dB(A)	6.00 W	4500 RPM	3 wire leads
FFB0812UHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	100.29 CFM (2.840 m3/min)	1.233 inchH2O (31.32 mmH2O)	62.2 dB(A)	18.00 W	7500 RPM	2 wire leads
FFB0812UHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	100.29 CFM (2.840 m3/min)	1.233 inchH2O (31.32 mmH2O)	62.2 dB(A)	18.00 W	7500 RPM	3 wire leads
FFB0812VH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	54.56CFM (1.545 m3/min)	0.291 inchH2O (7.38 mmH2O)	45.4 dB(A)	4.08 W	4000 RPM	2 wire leads
FFB0812VHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	4.56 W	4200 RPM	2 wire leads
FFB0812VHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	4.56 W	4200 RPM	3 wire leads
FFB0812VHE-R00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	4.56 W	4200 RPM	3 wire leads
FFB0812VH-F00	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	54.56CFM (1.545 m3/min)	0.291 inchH2O (7.39 mmH2O)	45.4 dB(A)	4.08 W	4000 RPM	3 wire leads
FFB0812VH-T500	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	54.56CFM (1.545 m3/min)	0.291 inchH2O (7.39 mmH2O)	45.4 dB(A)	4.08 W	4000 RPM	2 wire leads
FFB0812XHXHC	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	92.69 CFM (2.626m3/min)	1.102 inchH2O (28.00 mmH2O)	59.0 dB(A)	12.00 W	9000 RPM	4 wire leads

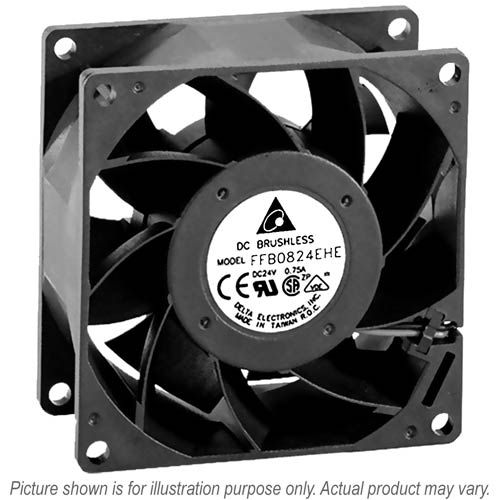

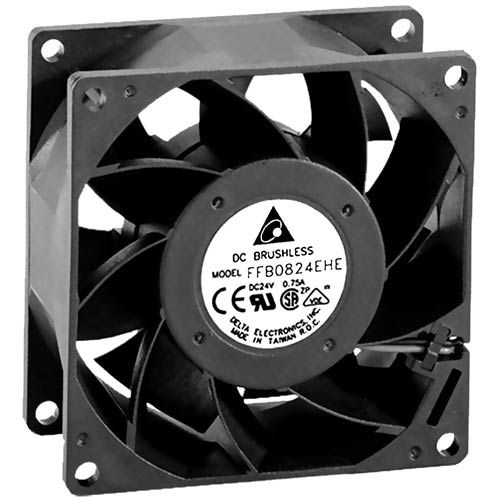

FFB0824EHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	12.00 W	5700 RPM	2 wire leads
FFB0824EHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	12.00 W	5700 RPM	3 wire leads
FFB0824EHE-R00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	12.00 W	5700 RPM	3 wire leads
FFB0824HHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	45.20 CFM (1.280 m3/min)	0.281 inchH2O (7.13 mmH2O)	39.0 dB(A)	3.60 W	3400 RPM	2 wire leads
FFB0824SHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	8.16 W	4900 RPM	2 wire leads
FFB0824SHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	8.16 W	4900 RPM	3 wire leads
FFB0824SH-TZW1	Square-80mm L X 80mm H	25.40mm	Ball	24 VDC	67.02 CFM (1.898 m3/min)	0.392 inchH2O (9.95 mmH2O)	48.6 dB(A)	5.76 W	4500 RPM	2 wire leads
FFB0824VHE	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	5.76 W	4200 RPM	2 wire leads
FFB0824VHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	5.76 W	4200 RPM	3 wire leads
FFB0824VHE-R00	Square-80mm L X 80mm H	38.00mm	Ball	24 VDC	57.21 CFM (1.620 m3/min)	0.424 inchH2O (10.77 mmH2O)	44.5 dB(A)	5.76 W	4200 RPM	3 wire leads
FFB0848SHE-TP36	Square-80mm L X 80mm H	38.00mm	Ball	48 VDC	68.51 CFM (1.940 m3/min)	0.591 inchH2O (15.01 mmH2O)	48.5 dB(A)	7.68 W	4900 RPM	4 wire leads

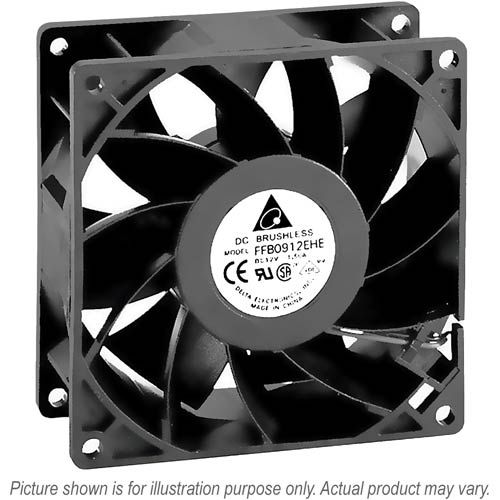

FFB0912EHE	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	2 wire leads
FFB0912EHE-F00	Square-92mm L X 92mm H	38.00mm	Ball	12 VDC	110.18 CFM (3.120 m3/min)	0.665 inchH2O (16.90 mmH2O)	55.0 dB(A)	12.00 W	4800 RPM	3 wire leads
