Search results for bfb
Search results for bfb

Search results for: 'bfb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

View as Grid List

Show

per page

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
BFB0712M-AF00	Rounded/Rect-75.7mm L x 75.7mm H	25.00mm	Ball	12 VDC	11.31 CFM (0.320 m3/min)	0.478 inchH2O (12.135 mmH2O)	43.0 dB(A)	1.92 W	3400 RPM	3 lead wires
BFB0712M-F00	Rounded/Rect-75.7mm L x 75.7mm H	30.00mm	Ball	12 VDC	9.00 CFM (0.255 m3/min)	0.268 inchH2O (6.80 mmH2O)	32.0 dB(A)	1.56 W	2350 RPM	3 lead wires
BFB0724H	Rounded/Rect-75.7mm L x 75.7mm H	30.00mm	Ball	24 VDC	11.30CFM (0.320 m3/min)	0.480 inchH2O (12.20 mmH2O)	38.0 dB(A)	2.88 W	2900 RPM	2 lead wires

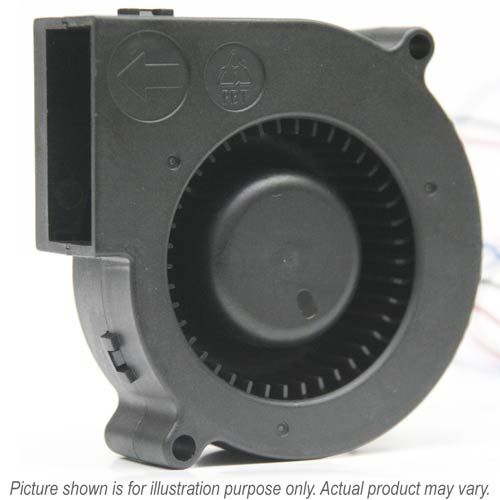

BFB0724L	Square-75.7mm L X 75.7mm H	30.00mm	Ball	24 VDC	7.00 CFM (0.198 m3/min)	0.157 inchH2O (4.00 mmH2O)	26.0 dB(A)	1.20 W	1900 RPM	2 lead wires
BFB0724M	Square-75.7mm L X 75.7mm H	30.00mm	Ball	24 VDC	9.00 CFM (0.255 m3/min)	0.268 inchH2O (6.80 mmH2O)	32.0 dB(A)	1.68 W	2350 RPM	2 lead wires
BFB1012EF-0018H	Rounded/Rect-96.6mm L x 94.3mm H	32.90mm	Ball	12 VDC	56.08CFM (1.588 m3/min)	6.903inchH2O (175.35mmH2O)	69.0 dB(A)	60.00 W	7500 RPM	4 lead wires
BFB1012EH-A	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	46.00CFM (1.302 m3/min)	2.814 inchH2O (71.48 mmH2O)	64.0 dB(A)	29.40 W	5300 RPM	2 lead wires
BFB1012EH-AF00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	46.00CFM (1.302 m3/min)	2.814 inchH2O (71.48 mmH2O)	64.0 dB(A)	29.40 W	5300 RPM	3 lead wires
BFB1012HD-04D4L	Rounded/Rect-100mm L x 97.7mm H	22.90mm	Ball	12 VDC	18.30 CFM (0.50 m3/min)	1.62 inchH2O (40.60 mmH2O)	50.5 dB(A)	6.96 W	4000 RPM	3 lead wires

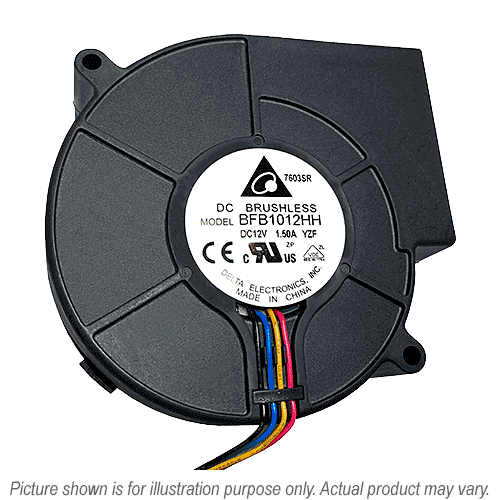

BFB1012HH-A	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	34.27CFM (0.971 m3/min)	1.564 inchH2O (39.70 mmH2O)	57.0 dB(A)	15.00 W	4000 RPM	2 lead wires
BFB1012HH-AF00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	34.27CFM (0.971 m3/min)	1.564 inchH2O (39.70 mmH2O)	57.0 dB(A)	15.00 W	4000 RPM	3 lead wires
BFB1012L-A	Rounded/Rect-97.8mm L x 95.5mm H	33.00mm	Ball	12 VDC	23.17CFM (0.656 m3/min)	0.585 inchH2O (14.85 mmH2O)	49.5 dB(A)	4.40 W	2700 RPM	2 lead wires
BFB1012L-AF00	Rounded/Rect-97.8mm L x 95.5mm H	33.00mm	Ball	12 VDC	23.17CFM (0.656 m3/min)	0.585 inchH2O (14.85 mmH2O)	49.5 dB(A)	4.40 W	2700 RPM	3 lead wires
BFB1012M-A	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	27.44CFM (0.777 m3/min)	0.893 inchH2O (22.68 mmH2O)	52.5 dB(A)	6.60 W	3200 RPM	2 lead wires
BFB1012M-AF00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	27.44CFM (0.777 m3/min)	0.893 inchH2O (22.68 mmH2O)	52.5 dB(A)	6.60 W	3200 RPM	3 lead wires
BFB1012UH-BA40ZYD	Rounded/Rect-96.6mm L x 94.3mm H	24.90mm	Ball	14.2 VDC	36.93CFM (1.046 m3/min)	4.764inchH2O (121.02mmH2O)	68.0 dB(A)	30.53 W	7000 RPM	4 lead wires
BFB1012VH-A	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	37.97 CFM (1.075 m3/min)	1.952 inchH2O (49.58 mmH2O)	60.0 dB(A)	18.00 W	4500 RPM	2 lead wires
BFB1012VH-AF00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	12 VDC	37.97 CFM (1.075 m3/min)	1.952 inchH2O (49.58 mmH2O)	60.0 dB(A)	18.00 W	4500 RPM	3 lead wires
BFB1024H	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	24 VDC	25.42CFM (0.720 m3/min)	1.000 inchH2O (25.40 mmH2O)	52.0 dB(A)	9.60 W	3600 RPM	2 lead wires
BFB1024H-F00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	24 VDC	25.42CFM (0.720 m3/min)	1.000 inchH2O (25.40 mmH2O)	52.0 dB(A)	9.60 W	3600 RPM	3 lead wires
BFB1024HH	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	24 VDC	28.25 CFM (0.800 m3/min)	1.299 inchH2O (33.00 mmH2O)	55.0 dB(A)	13.20 W	4000 RPM	2 lead wires
BFB1024HH-F00	Rounded/Rect-97.2mm L x 94.4mm H	33.00mm	Ball	24 VDC	28.25 CFM (0.800 m3/min)	1.299 inchH2O (33.00 mmH2O)	55.0 dB(A)	13.20 W	4000 RPM	3 lead wires
BFB1212EH-A	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	12 VDC	54.85CFM (1.553 m3/min)	3.485 inchH2O (88.51 mmH2O)	62.0 dB(A)	28.44 W	4000 RPM	2 lead wires
BFB1212GH-A	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	12 VDC	60.39 CFM (1.710 m3/min)	4.094 inchH2O (104.00 mmH2O)	65.0 dB(A)	39.60 W	4400 RPM	2 lead wires
BFB1212GH-AF00	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	12 VDC	60.39 CFM (1.710 m3/min)	4.094 inchH2O (104.00 mmH2O)	65.0 dB(A)	39.60 W	4400 RPM	3 lead wires
BFB1224EH-A	Square-120mm L X 120mm H	32.00mm	Ball	24 VDC	54.85CFM (1.553 m3/min)	3.485 inchH2O (88.51 mmH2O)	62.0 dB(A)	26.88 W	4000 RPM	2 lead wires
BFB1224GH-A	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	24 VDC	60.39 CFM (1.710 m3/min)	4.094 inchH2O (104.00 mmH2O)	65.0 dB(A)	38.40 W	4400 RPM	2 lead wires
BFB1224GH-AF00	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	24 VDC	60.39 CFM (1.710 m3/min)	4.094 inchH2O (104.00 mmH2O)	65.0 dB(A)	38.40 W	4400 RPM	3 lead wires
BFB1224GH-TA50	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	24 VDC	60.39 CFM (1.710 m3/min)	4.094 inchH2O (104.00 mmH2O)	65.0 dB(A)	38.40 W	4400 RPM	2 lead wires
BFB1224H-T50R	Rounded/Rect-120mm L x 92mm H	32.00mm	Ball	24 VDC	29.00CFM (0.821 m3/min)	0.827 inchH2O (21.00 mmH2O)	51.0 dB(A)	8.40 W	2500 RPM	3 lead wires
