Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB0712LC-R00 (EOL)	Square-70mm L X 70mm H	13.00mm	Ball	12 VDC	21.19 CFM (0.600 m3/min)	0.079 inchH2O (2.01 mmH2O)	27.0 dB(A)	1.08 W	2800 RPM	3 lead wires
AFB0712M-A	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	28.85CFM (0.817 m3/min)	0.140 inchH2O (03.55 mmH2O)	31.5 dB(A)	1.32 W	3100 RPM	2 lead wires
AFB0712MB	Square-70mm L X 70mm H	15.00mm	Ball	12 VDC	28.18CFM (0.798 m3/min)	0.123 inchH2O (3.12 mmH2O)	31.0 dB(A)	1.68 W	3300 RPM	2 lead wires
AFB0712MB-F00	Square-70mm L X 70mm H	15.00mm	Ball	12 VDC	28.18CFM (0.798 m3/min)	0.123 inchH2O (3.12 mmH2O)	31.0 dB(A)	1.68 W	3300 RPM	3 lead wires
AFB0712SH-A	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	61.05 CFM (1.729 m3/min)	0.625 inchH2O (15.90 mmH2O)	50.5 dB(A)	7.56 W	6300 RPM	2 lead wires
AFB0712SH-AB	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	61.05 CFM (1.729 m3/min)	0.625 inchH2O (15.90 mmH2O)	50.5 dB(A)	7.80 W	6300 RPM	2 lead wires
AFB0712SH-AF00	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	61.05 CFM (1.729 m3/min)	0.625 inchH2O (15.90 mmH2O)	50.5 dB(A)	7.56 W	6300 RPM	3 lead wires
AFB0712SHX02	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	61.05 CFM (1.729 m3/min)	0.625 inchH2O (15.90 mmH2O)	50.5 dB(A)	7.80 W	6300 RPM	4 lead wires

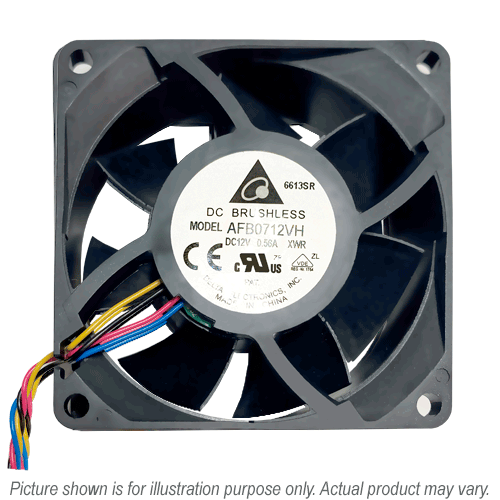

AFB0712VH-A	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	51.97CFM (1.472 m3/min)	0.433 inchH2O (10.99 mmH2O)	47.5 dB(A)	5.28 W	5500 RPM	2 lead wires
AFB0712VH-AF00	Square-70mm L X 70mm H	25.40mm	Ball	12 VDC	51.97CFM (1.472 m3/min)	0.433 inchH2O (10.99 mmH2O)	47.5 dB(A)	5.28 W	5500 RPM	3 lead wires

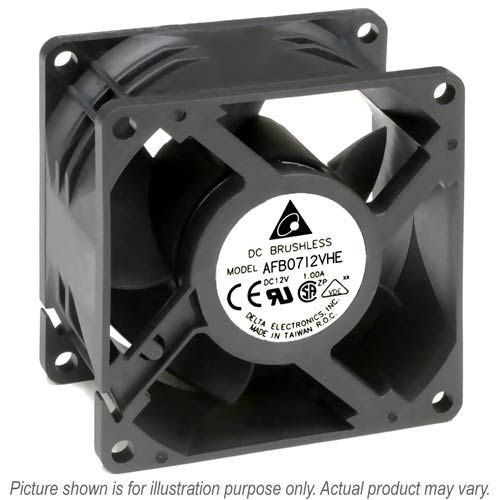

AFB0712VHE (EOL)	Square-69.5mm L X 69.5mm H	38.00mm	Ball	12 VDC	62.25 CFM (1.762 m3/min)	0.870 inchH2O (22.09 mmH2O)	51.0 dB(A)	8.40 W	7000 RPM	2 lead wires

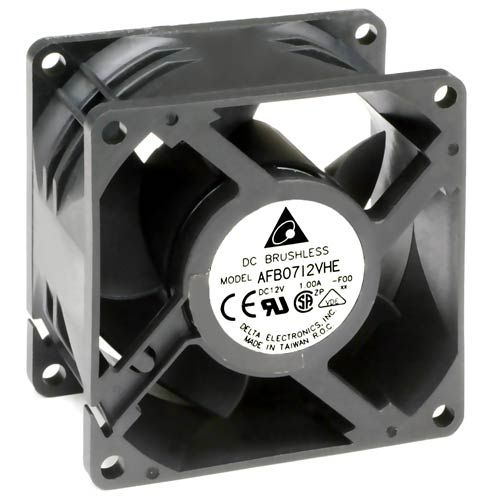

AFB0712VHE-F00	Square-69.5mm L X 69.5mm H	38.00mm	Ball	12 VDC	62.25 CFM (1.762 m3/min)	0.870 inchH2O (22.09 mmH2O)	51.0 dB(A)	8.40 W	7000 RPM	3 lead wires
AFB0712VHE-R00 (EOL)	Square-69.5mm L X 69.5mm H	38.00mm	Ball	12 VDC	62.25 CFM (1.762 m3/min)	0.870 inchH2O (22.09 mmH2O)	51.0 dB(A)	8.40 W	7000 RPM	3 lead wires
AFB0724H-A	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	36.30CFM (1.028 m3/min)	0.217 inchH2O (05.52 mmH2O)	37.5 dB(A)	3.12 W	3900 RPM	2 lead wires
AFB0724HB	Square-70mm L X 70mm H	15.00mm	Ball	24 VDC	33.20CFM (0.940 m3/min)	0.162 inchH2O (4.12 mmH2O)	34.5 dB(A)	2.88 W	3800 RPM	2 lead wires
AFB0724HC	Square-70mm L X 70mm H	13.00mm	Ball	24 VDC	31.01CFM (0.878 m3/min)	0.148 inchH2O (3.75 mmH2O)	35.0 dB(A)	3.36 W	3800 RPM	2 lead wires
AFB0724HH-A	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	44.01CFM (1.246 m3/min)	0.311 inchH2O (7.89 mmH2O)	44.0 dB(A)	4.32 W	4700 RPM	2 lead wires
AFB0724HH-AR00	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	44.01CFM (1.246 m3/min)	0.311 inchH2O (7.89 mmH2O)	44.0 dB(A)	4.32 W	4700 RPM	3 lead wires
AFB0724HHB	Square-70mm L X 70mm H	15.00mm	Ball	24 VDC	37.54CFM (1.063 m3/min)	0.210 inchH2O (5.33 mmH2O)	38.5 dB(A)	3.60 W	4300 RPM	2 lead wires
AFB0724HHB-F00	Square-70mm L X 70mm H	15.00mm	Ball	24 VDC	37.54CFM (1.063 m3/min)	0.210 inchH2O (5.33 mmH2O)	38.5 dB(A)	3.60 W	4300 RPM	3 lead wires
AFB0724LB	Square-70mm L X 70mm H	15.00mm	Ball	24 VDC	23.38CFM (0.662 m3/min)	0.089 inchH2O (2.27 mmH2O)	26.5 dB(A)	1.44 W	2800 RPM	2 lead wires
AFB0724LB-F00	Square-70mm L X 70mm H	15.00mm	Ball	24 VDC	23.38CFM (0.662 m3/min)	0.089 inchH2O (2.27 mmH2O)	26.5 dB(A)	1.44 W	2800 RPM	3 lead wires
AFB0724M-A	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	28.85CFM (0.817 m3/min)	0.139 inchH2O (3.55 mmH2O)	31.5 dB(A)	2.16 W	3100 RPM	2 lead wires
AFB0724VH-A	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	51.97CFM (1.472 m3/min)	0.433 inchH2O (10.99 mmH2O)	47.5 dB(A)	6.48 W	5500 RPM	2 lead wires
AFB0724VH-AF00	Square-70mm L X 70mm H	25.40mm	Ball	24 VDC	51.97CFM (1.472 m3/min)	0.433 inchH2O (10.99 mmH2O)	47.5 dB(A)	6.48 W	5500 RPM	3 lead wires
AFB0805H	Square-80mm L X 80mm H	25.40mm	Ball	5 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	2.15 W	3000 RPM	2 lead wires
AFB0805H-F00	Square-80mm L X 80mm H	25.40mm	Ball	5 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	2.15 W	3000 RPM	3 lead wires
AFB0805H-R00	Square-80mm L X 80mm H	25.40mm	Ball	5 VDC	35.31 CFM (1.000 m3/min)	0.159 inchH2O (4.04 mmH2O)	31.0 dB(A)	2.15 W	3000 RPM	3 lead wires
AFB0805L	Square-80mm L X 80mm H	25.40mm	Ball	5 VDC	27.90 CFM (0.790 m3/min)	0.102 inH2O (2.59 mmH2O)	25.0 dB(A)	1.20 W	2400 RPM	2 lead wires
AFB0805M-F00	Square-80mm L X 80mm H	25.40mm	Ball	5 VDC	31.43 CFM (0.890 m3/min)	0.129 inchH2O (3.28 mmH2O)	28.0 dB(A)	1.65 W	2700 RPM	3 lead wires
