Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB1212H	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	82.67 CFM (2.341 m3/min)	0.246 inchH2O (6.25 mmH2O)	38.5 dB(A)	2.76 W	2500 RPM	2 lead wires
AFB1212HE	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	3.84 W	2600 RPM	2 lead wires
AFB1212HE-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	3.84 W	2600 RPM	3 lead wires
AFB1212HE-R00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	3.84 W	2600 RPM	3 lead wires
AFB1212H-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	82.67 CFM (2.341 m3/min)	0.246 inchH2O (6.25 mmH2O)	38.5 dB(A)	2.76 W	2500 RPM	3 lead wires
AFB1212HH	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	95.14 CFM (2.694 m3/min)	0.304 inchH2O (7.73 mmH2O)	41.5 dB(A)	3.96 W	2800 RPM	2 lead wires
AFB1212HHE	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	5.52 W	2900 RPM	2 lead wires
AFB1212HHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	5.52 W	2900 RPM	3 lead wires
AFB1212HHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	5.52 W	2900 RPM	3 lead wires
AFB1212HHE-TP02	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	4.80 W	2900 RPM	4 lead wires
AFB1212HH-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	95.14 CFM (2.694 m3/min)	0.304 inchH2O (7.73 mmH2O)	41.5 dB(A)	3.96 W	2800 RPM	3 lead wires
AFB1212HH-R00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	95.14 CFM (2.694 m3/min)	0.304 inchH2O (7.73 mmH2O)	41.5 dB(A)	3.96 W	2800 RPM	3 lead wires
AFB1212H-R00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	82.67 CFM (2.341 m3/min)	0.246 inchH2O (6.25 mmH2O)	38.5 dB(A)	2.76 W	2500 RPM	3 lead wires
AFB1212L	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	62.93 CFM (1.782 m3/min)	0.154 inchH2O (3.93 mmH2O)	32.5 dB(A)	1.68 W	1900 RPM	2 lead wires
AFB1212LE	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	84.76 CFM (2.400 m3/min)	0.180 inchH2O (4.56 mmH2O)	34.0 dB(A)	2.28 W	2000 RPM	2 lead wires
AFB1212LE-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	84.76 CFM (2.400 m3/min)	0.180 inchH2O (4.56 mmH2O)	34.0 dB(A)	2.28 W	2000 RPM	3 lead wires
AFB1212L-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	62.93 CFM (1.782 m3/min)	0.154 inchH2O (3.93 mmH2O)	32.5 dB(A)	1.68 W	1900 RPM	3 lead wires
AFB1212L-R00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	62.93 CFM (1.782 m3/min)	0.154 inchH2O (3.93 mmH2O)	32.5 dB(A)	1.68 W	1900 RPM	3 lead wires
AFB1212M	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	73.84 CFM (2.091 m3/min)	0.203 inchH2O (5.15 mmH2O)	35.5 dB(A)	2.16 W	2200 RPM	2 lead wires
AFB1212ME	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	95.00 CFM (2.690 m3/min)	0.236 inchH2O (6.00 mmH2O)	38.0 dB(A)	3.12 W	2300 RPM	2 lead wires
AFB1212ME-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	95.00 CFM (2.690 m3/min)	0.236 inchH2O (6.00 mmH2O)	38.0 dB(A)	3.12 W	2300 RPM	3 lead wires
AFB1212ME-R00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	95.00 CFM (2.690 m3/min)	0.236 inchH2O (6.00 mmH2O)	38.0 dB(A)	3.12 W	2300 RPM	3 lead wires
AFB1212M-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	73.84 CFM (2.091 m3/min)	0.203 inchH2O (5.15 mmH2O)	35.5 dB(A)	2.16 W	2200 RPM	3 lead wires
AFB1212M-R00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	73.84 CFM (2.091 m3/min)	0.203 inchH2O (5.15 mmH2O)	35.5 dB(A)	2.16 W	2200 RPM	3 lead wires

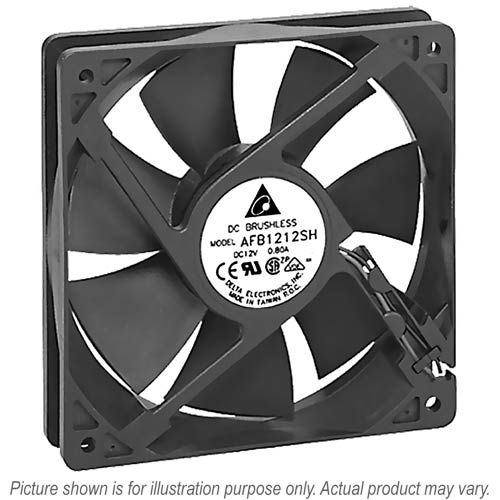

AFB1212SH	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.36 W	3400 RPM	2 lead wires
AFB1212SHE	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.60 W	3700 RPM	2 lead wires
AFB1212SHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.60 W	3700 RPM	3 lead wires
AFB1212SHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	12 VDC	151.85CFM (4.300 m3/min)	0.571 inchH2O (14.50 mmH2O)	53.0 dB(A)	12.60 W	3700 RPM	3 lead wires
AFB1212SH-F00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.36 W	3400 RPM	3 lead wires
AFB1212SH-R00	Square-120mm L X 120mm H	25.40mm	Ball	12 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.36 W	3400 RPM	3 lead wires
