Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
BFB03505HA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.65 W	7500 RPM	2 lead wires
BFB03505HA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.65 W	7500 RPM	3 lead wires
BFB03505HA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.65 W	7500 RPM	3 lead wires

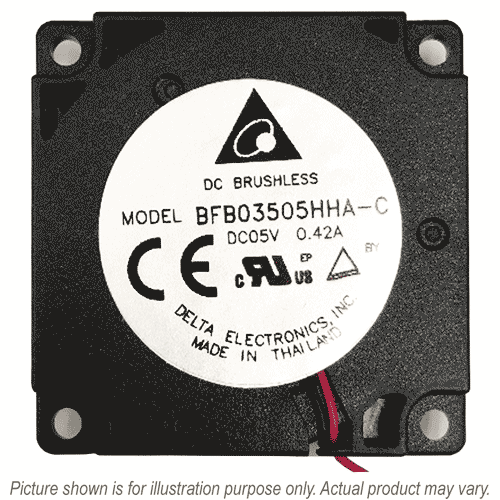

BFB03505HHA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	2.12 CFM (0.060 m3/min)	0.443 inchH2O (11.25 mmH2O)	31.0 dB(A)	1.15 W	8500 RPM	2 lead wires
BFB03505HHA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	2.12 CFM (0.060 m3/min)	0.443 inchH2O (11.25 mmH2O)	31.0 dB(A)	1.15 W	8500 RPM	3 lead wires
BFB03505HHA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	2.12 CFM (0.060 m3/min)	0.443 inchH2O (11.25 mmH2O)	31.0 dB(A)	1.15 W	8500 RPM	3 lead wires
BFB03505LA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.34 CFM (0.038 m3/min)	0.163 inchH2O (4.14 mmH2O)	24.0 dB(A)	0.45 W	5500 RPM	2 lead wires
BFB03505LA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.34 CFM (0.038 m3/min)	0.163 inchH2O (4.14 mmH2O)	24.0 dB(A)	0.45 W	5500 RPM	3 lead wires
BFB03505MA-C	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.60 W	6500 RPM	2 lead wires
BFB03505MA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.60 W	6500 RPM	3 lead wires
BFB03505MA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	5 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.60 W	6500 RPM	3 lead wires
BFB03512HA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.96 W	7500 RPM	2 lead wires
BFB03512HA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.96 W	7500 RPM	3 lead wires
BFB03512HA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.84 CFM (0.052 m3/min)	0.335 inchH2O (8.50 mmH2O)	29.0 dB(A)	0.96 W	7500 RPM	3 lead wires
BFB03512HHA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	2.12 CFM (0.060 m3/min)	0.443 inchH2O (11.25 mmH2O)	31.0 dB(A)	1.32 W	8500 RPM	2 lead wires
BFB03512HHA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	2.12 CFM (0.060 m3/min)	0.443 inchH2O (11.25 mmH2O)	31.0 dB(A)	1.32 W	8500 RPM	3 lead wires
BFB03512LA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.34 CFM (0.038 m3/min)	0.163 inchH2O (4.14 mmH2O)	24.0 dB(A)	0.60 W	5500 RPM	2 lead wires
BFB03512LA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.34 CFM (0.038 m3/min)	0.163 inchH2O (4.14 mmH2O)	24.0 dB(A)	0.60 W	5500 RPM	3 lead wires
BFB03512LA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.34 CFM (0.038 m3/min)	0.163 inchH2O (4.14 mmH2O)	24.0 dB(A)	0.60 W	5500 RPM	3 lead wires
BFB03512MA-C	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.72 W	6500 RPM	2 lead wires
BFB03512MA-CF00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.72 W	6500 RPM	3 lead wires
BFB03512MA-CR00	Square-35mm L X 35mm H	10.00mm	Ball	12 VDC	1.59 CFM (0.045 m3/min)	0.236 inchH2O (6.00 mmH2O)	26.0 dB(A)	0.72 W	6500 RPM	3 lead wires
BFB0405HHA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	3.00 CFM (0.085 m3/min)	0.564 inchH2O (14.33 mmH2O)	34.5 dB(A)	0.80 W	8500 RPM	2 lead wires
BFB0405HHA-AF00	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	3.00 CFM (0.085 m3/min)	0.564 inchH2O (14.33 mmH2O)	34.5 dB(A)	0.80 W	8500 RPM	3 lead wires
BFB0405HHA-TZP4	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	3.00 CFM (0.085 m3/min)	0.564 inchH2O (14.33 mmH2O)	34.5 dB(A)	0.80 W	8500 RPM	3 lead wires
BFB0405MA-A	Square-40mm L X 40mm H	10.00mm	Ball	5 VDC	2.30 CFM (0.065 m3/min)	0.312 inchH2O (7.93 mmH2O)	29.5 dB(A)	0.40 W	6500 RPM	2 lead wires
BFB0412ME (EOL)	Rounded/Rect-45mm L X42mm H	19.00mm	Ball	12 VDC	2.08 CFM (0.059 m3/min)	0.233 inchH2O (5.92 mmH2O)	30.0 dB(A)	0.60 W	4500 RPM	2 lead wires
BFB04505HA-CF00 (EOL)	Square-45mm L X 45mm H	10.30mm	Ball	5 VDC	N/A	0.391 inchH2O (9.936 mmH2O)	30.5 dB(A)	0.80 W	5150 RPM	3 lead wires

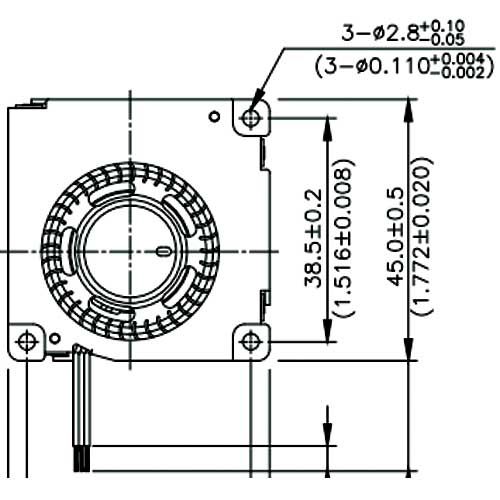

BFB04505HHA-C	Square-45mm L X 45mm H	10.30mm	Ball	5 VDC	3.49 CFM (0.099 m3/min)	0.560 inchH2O (14.22 mmH2O)	35.5 dB(A)	1.25 W	5900 RPM	2 lead wires
BFB04505HHA-CF00	Square-45mm L X 45mm H	10.30mm	Ball	5 VDC	3.49 CFM (0.099 m3/min)	0.560 inchH2O (14.22 mmH2O)	35.5 dB(A)	1.25 W	5900 RPM	3 lead wires
