Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination

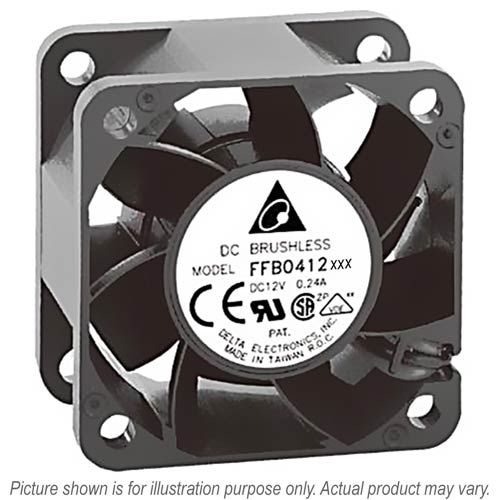

FFB0412HHN-F00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	13.24 CFM (0.375 m3/min)	0.370 inchH2O (9.39 mmH2O)	41.0 dB(A)	1.32 W	8000 RPM	3 wire leads
FFB0412HHN-R00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	13.24 CFM (0.375 m3/min)	0.370 inchH2O (9.39 mmH2O)	41.0 dB(A)	1.32 W	8000 RPM	3 wire leads
FFB0412HN-F00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	10.59CFM (0.300 m3/min)	0.248 inchH2O (6.30 mmH2O)	36.0 dB(A)	0.84 W	6500 RPM	3 wire leads
FFB0412HN-R00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	10.59CFM (0.300 m3/min)	0.248 inchH2O (6.30 mmH2O)	36.0 dB(A)	0.84 W	6500 RPM	3 wire leads
FFB0412MN	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	8.05 CFM (0.228 m3/min)	0.148 inchH2O (03.77 mmH2O)	30.0 dB(A)	0.60 W	5000 RPM	2 wire leads
FFB0412SHN	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	24.00CFM (0.680 m3/min)	1.075 inchH2O (27.30 mmH2O)	54.5 dB(A)	6.00 W	13000 RPM	2 wire leads
FFB0412SHN-BF00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	24.01CFM (0.680 m3/min)	1.075 inchH2O (27.30 mmH2O)	54.5 dB(A)	6.00 W	13000 RPM	3 wire leads
FFB0412SHN-F00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	24.00CFM (0.680 m3/min)	1.075 inchH2O (27.30 mmH2O)	54.5 dB(A)	6.00 W	13000 RPM	3 wire leads
FFB0412SHN-R00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	24.00CFM (0.680 m3/min)	1.075 inchH2O (27.30 mmH2O)	54.5 dB(A)	6.00 W	13000 RPM	3 wire leads
FFB0412SN-00Y2F	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	29.23CFM (0.828 m3/min)	3.46 inchH2O (87.88 mmH2O)	61.5 dB(A)	11.16 W	22000 RPM	4 wire leads
FFB0412UHN-CF00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	27.053CFM (0.766 m3/min)	2.111 inchH2O (53.631 mmH2O)	58.5 dB(A)	7.80 W	18500 RPM	3 wire leads
FFB0412UHN-CR00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	27.053CFM (0.766 m3/min)	2.111 inchH2O (53.631 mmH2O)	58.5 dB(A)	7.80 W	18500 RPM	3 wire leads
FFB0412UHN-SP4Z	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	26.55CFM (0.751 m3/min)	3.15 inchH2O (80.00 mmH2O)	59.9 dB(A)	10.08 W	23000 RPM	4 wire leads
FFB0412UHN-TYYK	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	27.05CFM (0.766 m3/min)	2.111 inchH2O (53.631 mmH2O)	58.5 dB(A)	7.80 W	18500 RPM	3 wire leads
FFB0412VHN-B	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	1.92 W	9500 RPM	2 wire leads
FFB0412VHN-BR00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	1.92 W	9500 RPM	3 wire leads
FFB0412VHN-F00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	1.92 W	9500 RPM	3 wire leads
FFB0412VHN-R00	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	1.92 W	9500 RPM	3 wire leads
FFB0412VHN-TP03	Square-40mm L X 40mm H	28.00mm	Ball	12 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	1.92 W	9500 RPM	4 wire leads
FFB0424HHN	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	13.24 CFM (0.375 m3/min)	0.370 inchH2O (9.39 mmH2O)	41.0 dB(A)	1.92 W	8000 RPM	2 wire leads
FFB0424HN	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	10.59CFM (0.300 m3/min)	0.248 inchH2O (6.30 mmH2O)	36.0 dB(A)	1.44 W	6500 RPM	2 wire leads
FFB0424HN-F00	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	10.59CFM (0.300 m3/min)	0.248 inchH2O (6.30 mmH2O)	36.0 dB(A)	1.44 W	6500 RPM	3 wire leads
FFB0424VHN	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	2.40 W	9500 RPM	2 wire leads
FFB0424VHN-B	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	42.0 dB(A)	2.40 W	9500 RPM	2 wire leads
FFB0424VHN-F00	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	2.40 W	9500 RPM	3 wire leads
FFB0424VHN-R00	Square-40mm L X 40mm H	28.00mm	Ball	24 VDC	15.79CFM (0.447 m3/min)	0.509 inchH2O (12.94 mmH2O)	45.0 dB(A)	2.40 W	9500 RPM	3 wire leads

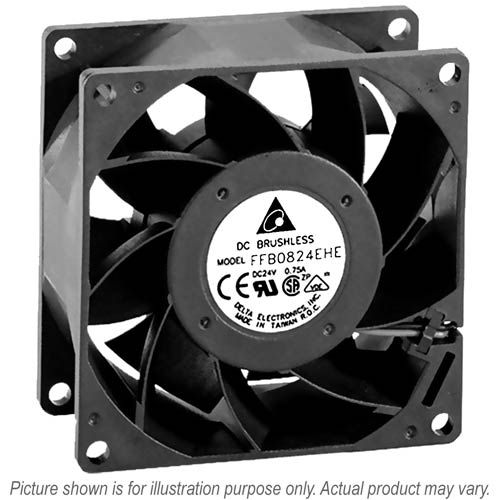

FFB0812EHE	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	10.80 W	5700 RPM	2 wire leads
FFB0812EHE-F00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	10.80 W	5700 RPM	3 wire leads
FFB0812EHE-R00	Square-80mm L X 80mm H	38.00mm	Ball	12 VDC	80.16 CFM (2.270 m3/min)	0.812 inchH2O (20.63 mmH2O)	52.5 dB(A)	10.80 W	5700 RPM	3 wire leads
FFB0812HH	Square-80mm L X 80mm H	25.40mm	Ball	12 VDC	47.22 CFM (1.339 m3/min)	0.229 inchH2O (5.81 mmH2O)	41.7 dB(A)	3.12 W	3500 RPM	2 wire leads
