Delta manufactures centrifugal fan and EC motor assemblies for a range of industries and applications. Delta provides value-added benefits of local stock, large production capacity with 13.7 million square feet, extensive reliability testing and strict quality control. For more information on Delta electronically commutated fans, please Contact Us.
- Optional inlet nozzle and mounting bracket
- Variable input range
- APFC, PPFC
- 0-10V PWM speed control
- RS485, Modbus
- UL/cUL
Standard models are listed below. Additional designs can be made available for specific application requirements.
| Delta's Part Number (click for spec sheet) |
Click for 3D file | Power Curve | Product Type | Diameter | Voltage |
|---|---|---|---|---|---|
GTB063PUU38R E1
|
GTB063PUU38R-E1.zip | GTB063PUU38R-E1 | Wide range voltage 636 x 383mm, 400VAC, 3700 W, Alarm relay, Locked rotor protection, soft start, IP54, PWM | 636 mm | Wide range 3-400VAC 3P-380~480 with PPFC |
GTB056PUT34R E1
|
GTB056PUT34R-E1.zip | GTB056PUT34R E1 | 560mm EC Centrifugal Blower with Inlet Nozzle, 3100W, 380-480V 3~ 50/60Hz | 560mm | 380-480V 3~ 50/60Hz |

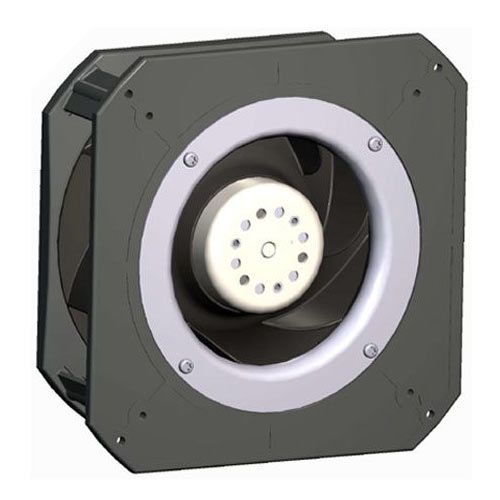

GTM019FUG09R-V
|
GTM019FUG09R-V.stp | GTM019FUG09R-V | Blower Round 190mm x 69mm, w/ Inlet Nozzle in Mounting Bracket, 230VAC, 185W, PWM, IP54, locked rotor protection, soft start, VAC | 225mm | 1~ 230VAC 50/60Hz |
GTB023FUA10R-V E1
|
GTB023FUA10R-V-E1.stp | GTB023FUA10R-V E1 | 230mm EC Centrifugal Blower with Inlet Nozzle, 85W, 200-240V 1~ 50/60Hz | 230mm | 200-240V 1~ 50/60Hz |
GTB023EUG10R-V E1
|
GTB023EUG10R-V-E1.stp | GTB023EUG10R-V E1 | 230mm EC Centrifugal Blower with Inlet Nozzle, 180W, 200-240V 1~ 50/60Hz | 230mm | 200-240V 1~ 50/60Hz |
GTB019FUG09R-V E1
|
GTB019FUG09R-V-E1.zip | GTB019FUG09R-V E1 | 190mm EC Centrifugal Blower with Inlet Nozzle, 185W, 200-240V 1~ 50/60Hz | 190mm | 200-240V 1~ 50/60Hz |
GTM019FUA07R-V
|
GTM019FUA07R-V.stp | GTM019FUA07R-V | Blower Round 190mm x 69mm, w/ Inlet Nozzle in Mounting Bracket, 230VAC, 85W | 190mm | 1~ 230Vac 50/60Hz |
GTB063PUU41R-V001
|
GTB063PUU41R-V001.zip | GTB063PUU41R-V001 | 630mm EC Centrifugal Blower with Inlet Nozzle | ψ675 x 405 mm | VAC |
GTB019BUA07R-V E1
|
GTB019BUA07R-V-E1.zip | GTB019BUA07R-V E1 | 190mm EC Centrifugal Blower with Inlet Nozzle, 85W, 100-140V 1~ 50/60Hz | 190mm | 100-140V, 1~ 50/60Hz |
GTB019FUA07R-V E1
|
GTB019FUA07R-V-E1.zip | GTB019FUA07R-V-E1 | 190mm EC Centrifugal Blower with Inlet Nozzle, 85W, 200-240V 1~ 50/60Hz | 190mm | 200-240V 1~ 50/60Hz |
GTM023EUG10R-V
|
GTM023EUG10R-V.zip | GTM023EUG10R-V | 270 x 270 x 126 mm, w/ Inlet Nozzle in Mounting Bracket, 230VAC, 180W | 230mm | 200-240VAC 1~ 50/60Hz with APFC |
GTM025FUC19R
|
GTM025FUC19R.stp | GTM025FUC19R | Blower Round 250mm x 195mm, w/ Inlet Nozzle in Mounting Bracket, 230VAC, 500W | 250mm | 230 VAC 1~ 50/60Hz with PPFC |
GTB025FUC19R N1
|
GTB025FUC19R N1.stp | GTB025FUC19R_N1 | 250mm EC Centrifugal Blower with Inlet Nozzle, 530W, 200-277V 1~ 50/60Hz | 250mm | 200-277V 1~ 50/60Hz |
GTB028EUB16 N1
|
GTB028EUB16 N1.stp | GTB028EUB16_N1 | 280mm EC Centrifugal Blower with Inlet Nozzle, 180W, 200-277V 1~ 50/60Hz | 280mm | 200-277V 1~ 50/60Hz |
GTB031FUC20R N1
|
GTB031FUC20R N1.stp | GTB031FUC20R-N1 | 310mm EC Centrifugal Blower with Inlet Nozzle, 530W, 200-277V 1~ 50/60Hz | 310mm | 200-277V 1~ 50/60Hz |
GTM031FUC20R
|
GTM031FUC20R.stp | GTM031FUC20R | 310mm EC Centrifugal Blower with Inlet Nozzle in Mounting Frame | 310mm | 200-277VAC 1~ 50/60Hz with PPFC |
GTB036EUD25R N1
|
GTB036EUD25R N1.stp | GTB036EUD25R N1 | 360mm EC Centrifugal Blower with Inlet Nozzle, 800W, 200-277V 1~ 50/60Hz | 360mm | 200-277V 1~ 50/60Hz |
GTB036FUC23R N1
|
GTB036FUC23R N1.stp | GTB036FUC23R N1 | 360mm EC Centrifugal Blower with Inlet Nozzle, 500W, 200-277V 1~ 50/60Hz | 360mm | 200-277V 1~ 50/60Hz |
GTB036PUD25E N1
|
GTB036PUD25E N1.stp | GTB036PUD25E N1 | 360mm EC Centrifugal Blower with Inlet Nozzle, 1000W, 380-480V 3~ 50/60Hz | 360mm | 380-480V 3~ 50/60Hz |
| GTB036NUQ27R-M001 (EOL) | GTB036NUQ27R-M001.zip | GTB036NUQ27R-M001 | 360mm EC Centrifugal Blower with Inlet Nozzle, 2500W, 380-480V 3~ 50/60Hz | 360mm | 380-480V 3~ 50/60Hz |
GTB040EUD26R N1
|
GTB040EUD26R N1.stp | GTB040EUD26R N1 | 400mm EC Centrifugal Blower with Inlet Nozzle, 800W, 200-277V 1~ 50/60Hz | 400mm | 200-277V 1~ 50/60Hz |
GTB040PUD26R N1
|
GTB040PUD26R N1.stp | GTB040PUD26R N1 | 400mm EC Centrifugal Blower with Inlet Nozzle, 1000W, 380-480V 3~ 50/60Hz | 400mm | 380-480V 3~ 50/60Hz |
| GTB050NUT34R N1 | GTB050NUT34R N1.stp | GTB050NUT34R N1 | 500mm EC Centrifugal Blower with Inlet Nozzle, 3100W, 380-480V 3~ 50/60Hz | 500mm | 380-480V 3~ 50/60Hz |
GTB050KUT34R E1 (EOL)
|
GTB050KUT34R-E1.zip | GTB050KUT34R E1 | 500mm EC Centrifugal Blower with Inlet Nozzle, 3100W, 200-480V 3~ 50/60Hz | 500mm | 200-480V 3~ 50/60Hz |
| GTB056PUT35R N1 (EOL) | GTB056PUT35R-N1.zip | GTB056PUT35R N1 | 560mm EC Centrifugal Blower with Inlet Nozzle | 560mm | 380-480Vac 3~ 50/60Hz with PPFC |
| Delta's Part Number (click for spec sheet) |
Click for 3D file | Power Curve | Product Type | Diameter | Voltage |
|---|
*The performance data is subject to change.
