    Search results for pfb

Search results for: 'pfb/'

Results:
Remaining
Search Entry:
Fan Type
Voltage Rated
Size / Dimension
Width
Air Flow
Static Pressure
Noise
RPM
Power (Watts)
Bearing Type
Features
Ingress Protection
More
FIND SIMILAR FANS
View as Grid List

Items 1-30 of 91

per page
Set Ascending Direction
Compare
Parts		 Part Number Image Size/Dimension Width Bearing Voltage Air Flow Static Pressure Noise Power RPM Termination
PFB1212SE-00
PFB1212SE-00 PFB1212SE-00
Square-120mm L X 120mm H 38.00mm Ball 12 VDC 260.76 CFM (7.384 m3/min) 2.654 inchH2O (67.41 mmH2O) 70.5 dB(A) 54.00 W 7500 RPM 4 wire leads
PFB0824DHEP5
PFB0824DHEP5, 80x80x38mm, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, Closed Type Motor, dc fan, delta fan PFB0824DHEP5, 80x80x38mm, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, Closed Type Motor, dc fan, delta fan
Square-80mm L X 80mm H 38.00mm Ball 24 VDC 132.56 CFM (3.754 m3/min) 2.03 inchH2O (51.57 mmH2O) 65.0 dB(A) 30.24 W 9000 RPM 4 wire leads
PFB0824UHEP5
PFB0824UHEP5, 80x80x38mm, IP55, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, dc fan, delta fan PFB0824UHEP5, 80x80x38mm, IP55, 24VDC, 1.26A, 30.24W, ball bearing, axial, 9000 RPM, 4 wire leads, dc fan, delta fan
Square-80mm L X 80mm H 38.00mm Ball 24 VDC 107.30 CFM (3.038 m3/min) 1.368 inchH2O (34.75 mmH2O) 65.0 dB(A) 30.24 W 7500 RPM 4 wire leads
PFB0824UHEP6
PFB0824UHEP6 PFB0824UHEP6
Square-80mm L X 80mm H 38.00mm Ball 24 VDC 96.789 CFM (2.740 m3/min) 1.148 inchH2O (29.16 mmH2O) 57.9 dB(A) 16.32 W 7000 RPM 4 wire leads
PFB0824GHEP6
PFB0824GHEP6 PFB0824GHEP6
Square-80mm L X 80mm H 38.00mm Ball 24 VDC 86.44 CFM (2.448 m3/min) 0.898 inchH2O (22.80 mmH2O) 55.5 dB(A) 10.80 W 6100 RPM 4 wire leads
PFB1224SE-00P6
PFB1224SE-00P6 PFB1224SE-00P6
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 265.43 CFM (7.517 m3/min) 2.070 inchH2O (52.58 mm H2O) 70.0 dB(A) 50.40 W 7500 RPM 4 wire leads
PFB1224LE-00P6
PFB1224LE-00P6 PFB1224LE-00P6
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 140.87 CFM (3.990 m3/min) 0.766 inchH2O (19.449 mmH2O) 57.0 dB(A) 10.08 W 4000 RPM 4 wire leads
PFB1224HE-00P6
PFB1224HE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00,24 VDC, 1.00 A, 24 Watts, 5800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224HE-00P6, 120x120x38mm, industrial fan, IP68, PWM, F00,24 VDC, 1.00 A, 24 Watts, 5800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 201.41CFM (5.704 m3/min) 1.480 inchH2O (37.59 mm H2O) 65.0 dB(A) 24.00 W 5800 RPM 4 wire leads
PFB1224GHEP6
PFB1224GHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224GHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 212.21 CFM (6.01 m3/min) 1.040 inchH2O (26.49 mmH2O) 64.0 dB(A) 32.40 W 4800 RPM 4 wire leads
PFB1224EHEP6
PFB1224EHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 0.90 A, 21.6 Watts, 4000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224EHEP6, 120x120x38mm, industrial fan, IP68, 24 VDC, 0.90 A, 21.6 Watts, 4000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) 59.0 dB(A) 21.60 W 4000 RPM 4 wire leads
PFB0924EHEP6
PFB0924EHEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 0.33 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924EHEP6, 92x92x38mm, industrial fan, IP68, 24 VDC, 0.33 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 103.67 CFM (2.936 m3/min) 0.691 inchH2O (17.56 mmH2O) 54.0 dB(A) 7.92 W 4800 RPM 4 wire leads
PFB1224SE-00P5
PFB1224SE-00P5, 120x120x38mm, IP55, F00/PMW, 24 VDC, 2.10 A, 50.40 Watts, 7500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan PFB1224SE-00P5, 120x120x38mm, IP55, F00/PMW, 24 VDC, 2.10 A, 50.40 Watts, 7500 RPM, 4 wire leads, ball bearing, axial fan, DC fan, delta fan
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 265.43 CFM (7.517 m3/min) 2.070 inchH2O (52.58 mm H2O) 70.0 dB(A) 50.40 W 7500 RPM 4 wire leads
PFB0924GHEP5
PFB0924GHEP5, 92x92x38mm, IP55, 24 VDC, 0.65 A, 15.60 Watts, 6000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924GHEP5, 92x92x38mm, IP55, 24 VDC, 0.65 A, 15.60 Watts, 6000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 124.19 CFM (3.517 m3/min) 1.004 inchH2O (25.49 mm H2O) 60.5 dB(A) 15.60 W 6000 RPM 4 wire leads
PFB0924EHEP5
PFB0924EHEP5, 92x92x38mm, IP55, 24 VDC, 0.42 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924EHEP5, 92x92x38mm, IP55, 24 VDC, 0.42 A, 7.92 Watts, 4800 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 103.67 CFM (2.936 m3/min) 0.691 inchH2O (17.56 mmH2O) 54.0 dB(A) 7.92 W 4800 RPM 4 wire leads
PFB0924DHEP5
PFB0924DHEP5, 92x92x38mm, IP55, 24 VDC, 1.45 A, 34.8 Watts, 8000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB0924DHEP5, 92x92x38mm, IP55, 24 VDC, 1.45 A, 34.8 Watts, 8000 RPM, 4 wire leads, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 175.03 CFM (4.957 m3/min) 1.819 inchH2O (46.21 mmH2O) 66.5 dB(A) 34.80 W 8000 RPM 4 wire leads
PFB1224GHEP5
PFB1224GHEP5, 120x120x38mm, IP55, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 lead wires, ball bearing, axial fan, closed type motor, DC fan, delta fan PFB1224GHEP5, 120x120x38mm, IP55, 24 VDC, 1.35 A, 32.4 Watts, 4800 RPM, 4 lead wires, ball bearing, axial fan, closed type motor, DC fan, delta fan
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 212.21 CFM (6.01 m3/min) 1.040 inchH2O (26.49 mmH2O) 64.0 dB(A) 32.40 W 4800 RPM 4 wire leads
PFB1224LE-00P0
https://www.delta-fan.com/Download/Images/PFB1224LE-00P0.jpg https://www.delta-fan.com/Download/Images/PFB1224LE-00P0.jpg
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 140.87 CFM (3.990 m3/min) 0.766 inchH2O (19.449 mmH2O) 57.0 dB(A) 10.80 W 4000 RPM 4 wire leads
PFB1224GHEP0
https://www.delta-fan.com/Download/Images/PFB1224GHEP0.jpg https://www.delta-fan.com/Download/Images/PFB1224GHEP0.jpg
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 212.21 CFM (6.01 m3/min) 1.040 inchH2O (26.49 mmH2O) 64.0 dB(A) 32.40 W 4800 RPM 4 wire leads
PFB1224EHEP0
https://www.delta-fan.com/Download/Images/PFB1224EHEP0.jpg https://www.delta-fan.com/Download/Images/PFB1224EHEP0.jpg
Square-120mm L X 120mm H 38.00mm Ball 24 VDC 181.27CFM (5.133 m3/min) 0.751 inchH2O (19.08 mmH2O) 59.0 dB(A) 21.60 W 4000 RPM 4 wire leads
PFB1248XHE-TP17
PFB1248XHE-TP17 PFB1248XHE-TP17
Square-120mm L X 120mm H 38.00mm Ball 48 VDC 306.92CFM (8.691 m3/min) 2.175 inchH2O (55.235 mmH2O) 72.5 dB(A) 76.80 W 7000 RPM 4 wire leads
PFB1248UHE-EP
PFB1248UHE-EP, 120x120x38mm, PWM, IP56, 48VDC, 0.88A, 42.24W, ball bearing, axial, 5300 RPM, 4 lead wires, speed sensor (Tach), dc fan, delta PFB1248UHE-EP, 120x120x38mm, PWM, IP56, 48VDC, 0.88A, 42.24W, ball bearing, axial, 5300 RPM, 4 lead wires, speed sensor (Tach), dc fan, delta
Square-120mm L X 120mm H 38.00mm Ball 48 VDC 243.66CFM (6.900 m3/min) 1.311 inchH2O (33.315 mmH2O) 66.0 dB(A) 42.24 W 5300 RPM 4 wire leads
PFB1248UHE
PFB1248UHE PFB1248UHE
Square-120mm L X 120mm H 38.00mm Ball 48 VDC 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) 66.5 dB(A) 48.00 W 5500 RPM 2 wire leads
PFB1212UHE-T50F
PFB1212UHE-T50F PFB1212UHE-T50F
Square-120mm L X 120mm H 38.00mm Ball 12 VDC 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) 66.5 dB(A) 48.00 W 5500 RPM 3 wire leads
PFB1212UHE
PFB1212UHE PFB1212UHE
Square-120mm L X 120mm H 38.00mm Ball 12 VDC 252.85CFM (7.160 m3/min) 1.412 inchH2O (35.877 mmH2O) 66.5 dB(A) 48.00 W 5500 RPM 2 wire leads

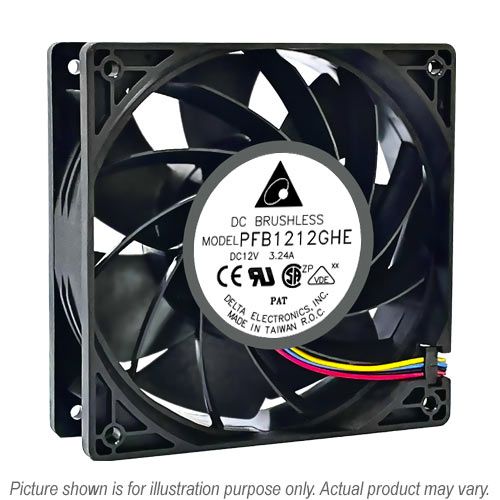

PFB1212GHE
PFB1212GHE PFB1212GHE
Square-120mm L X 120mm H 38.00mm Ball 12 VDC 217.79CFM (6.167 m3/min) 1.075 inchH2O (27.31 mmH2O) 64.0 dB(A) 32.40 W 4800 RPM 2 wire leads
PFB0948UHE-TP16
PFB0948UHE-TP16 PFB0948UHE-TP16
Square-92mm L X 92mm H 38.00mm Ball 48 VDC 153.52CFM (4.347 m3/min) 1.449 inchH2O (36.79 mmH2O) 64.0 dB(A) 24.96 W 7000 RPM 4 wire leads
PFB0924UHE-F00
PFB0924UHE-F00 PFB0924UHE-F00
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 153.52CFM (4.347 m3/min) 1.449 inchH2O (36.79 mmH2O) 64.0 dB(A) 21.84 W 7000 RPM 3 wire leads
PFB0924UHE
PFB0924UHE PFB0924UHE
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 153.52CFM (4.347 m3/min) 1.449 inchH2O (36.79 mmH2O) 64.0 dB(A) 21.84 W 7000 RPM 2 wire leads
PFB0924GHE-F00
PFB0924GHE-F00 PFB0924GHE-F00
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 129.31 CFM (3.662 m3/min) 1.015 inchH2O (25.78 mmH2O) 60.5 dB(A) 15.12 W 6000 RPM 3 wire leads
PFB0924GHE
PFB0924GHE PFB0924GHE
Square-92mm L X 92mm H 38.00mm Ball 24 VDC 129.31 CFM (3.662 m3/min) 1.015 inchH2O (25.78 mmH2O) 60.5 dB(A) 15.12 W 6000 RPM 2 wire leads
