Search results for afb
Search results for afb

Search results for: 'afb'

Results:

Remaining

Search Entry:

Fan Type

Voltage Rated

Size / Dimension

Width

Air Flow

Static Pressure

Noise

RPM

Power (Watts)

Bearing Type

Features

Ingress Protection

Part Number	Size/Dimension	Width	Bearing	Voltage	Air Flow	Static Pressure	Noise	Power	RPM	Termination
AFB1224SH-R00	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.72 W	3400 RPM	3 lead wires
AFB1224SH-T500	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	113.11 CFM (3.203 m3/min)	0.430 inchH2O (10.92 mmH2O)	46.5 dB(A)	6.72 W	3400 RPM	2 lead wires
AFB1224VH	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	103.71 CFM (2.938 m3/min)	0.371 inchH2O (9.43 mmH2O)	44.5 dB(A)	5.52 W	3100 RPM	2 lead wires
AFB1224VHE	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	9.12 W	3200 RPM	2 lead wires
AFB1224VHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	9.12 W	3200 RPM	3 lead wires
AFB1224VHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	24 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	9.12 W	3200 RPM	3 lead wires
AFB1224VH-F00	Square-120mm L X 120mm H	25.40mm	Ball	24 VDC	103.71 CFM (2.938 m3/min)	0.371 inchH2O (9.43 mmH2O)	44.5 dB(A)	5.52 W	3100 RPM	3 lead wires

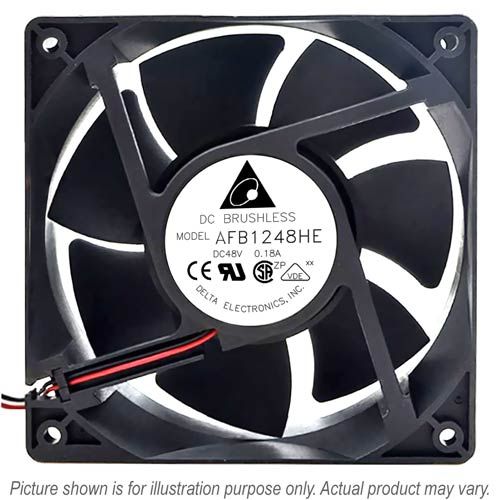

AFB1248HE-F00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	3 lead wires
AFB1248HE-R00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	3 lead wires
AFB1248HE-T500	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	105.94 CFM (3.000 m3/min)	0.300 inchH2O (7.60 mmH2O)	41.0 dB(A)	5.76 W	2600 RPM	2 lead wires
AFB1248HHE	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	120.07 CFM (3.400 m3/min)	N/A	44.0 dB(A)	7.20 W	2900 RPM	2 lead wires
AFB1248HHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	3 lead wires
AFB1248HHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	120.07 CFM (3.400 m3/min)	0.354 inchH2O (9.00mmH2O)	44.0 dB(A)	7.20 W	2900 RPM	3 lead wires
AFB1248SHEDC4	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	103.24 CFM (2.924 m3/min)	0.255 inchH2O (6.50 mmH2O)	40.0 dB(A)	6.24 W	2300 RPM	4 lead wires
AFB1248VHE	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	8.64 W	3200 RPM	2 lead wires
AFB1248VHE-F00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	8.64 W	3200 RPM	3 lead wires
AFB1248VHE-R00	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	129.96 CFM (3.680 m3/min)	0.420 inchH2O (10.70 mmH2O)	48.0 dB(A)	8.64 W	3200 RPM	3 lead wires
AFB1248VHE-T9LN	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	190.48CFM (5.394 m3/min)	0.694 inchH2O (17.635 mmH2O)	55.5 dB(A)	14.88 W	4100 RPM	4 lead wires
AFB1248VHE-TP18	Square-120mm L X 120mm H	38.00mm	Ball	48 VDC	190.48CFM (5.394 m3/min)	0.694 inchH2O (17.635 mmH2O)	55.5 dB(A)	14.88 W	4100 RPM	4 lead wires
AFB1512EHYVB	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	290.64CFM (8.230 m3/min)	0.821 inchH2O (20.85 mmH2O)	61.5 dB(A)	36.00 W	4300 RPM	4 lead wires
AFB1512HH-A	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	214.85CFM (6.084 m3/min)	0.524 inchH2O (13.30 mmH2O)	53.5 dB(A)	14.04 W	3200 RPM	2 lead wires
AFB1512HH-AF00	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	214.85CFM (6.084 m3/min)	0.524 inchH2O (13.30 mmH2O)	53.5 dB(A)	14.04 W	3200 RPM	3 lead wires
AFB1512L-A	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	160.77CFM (4.553 m3/min)	0.305 inchH2O (7.75 mmH2O)	46.0 dB(A)	6.72 W	2400 RPM	2 lead wires
AFB1512L-AF00	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	160.77CFM (4.553 m3/min)	0.305 inchH2O (7.75 mmH2O)	46.0 dB(A)	6.72 W	2400 RPM	3 lead wires
AFB1512L-AR00	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	12 VDC	160.77CFM (4.553 m3/min)	0.305 inchH2O (7.75 mmH2O)	46.0 dB(A)	6.72 W	2400 RPM	3 lead wires
AFB1524HH-AF00	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	24 VDC	214.85CFM (6.084 m3/min)	0.524 inchH2O (13.30 mmH2O)	53.5 dB(A)	14.88 W	3200 RPM	3 lead wires
AFB1524L-A	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	24 VDC	160.77CFM (4.553 m3/min)	0.305 inchH2O (7.75 mmH2O)	46.0 dB(A)	7.44 W	2400 RPM	2 lead wires
AFB1548VH-CD8G	Rounded/Rect-172mm L x 150mm H	25.40mm	Ball	48 VDC	305.043CFM (8.638 m3/min)	1.198 inchH2O (30.426 mmH2O)	65.0 dB(A)	31.20 W	5000 RPM	4 lead wires
AFB1724HH-A	Round-172mm Diameter	25.40mm	Ball	24 VDC	214.85CFM (6.084 m3/min)	0.524 inchH2O (13.30 mmH2O)	53.5 dB(A)	14.88 W	3200 RPM	2 lead wires
BFN0724SS-01	Rounded/Rect-80.4mm L x 67mm H	58.00mm	Ball	24 VDC	18.06CFM (511.407 m3/min)	19.66 inchH2O (499.36 mmH2O)	38.0 dB(A)	36.00 W	31500 RPM	3 lead wires
